| Model Name |
TS-EC1280U-E3-4GE-R2 |
| CPU |
Intel® Xeon® E3-1246 v3 Quad-core processor |
| Memory |
Total memory slots: 4
System memory: 4 GB DDR3 ECC RAM
Memory module pre-installed: 2 GB x2
Memory expandable up to: 32 GB (8GB x4)
Note:
- When upgrading RAM to more than 28GB, the original 4GB RAM modules must be removed.
- For the information of RAM module installation and compatible NAS models, please refer to the QNAP RAM Module Installation Guide
|
| Flash Memory |
512MB DOM |
| Internal Cache Port |
Two mSATA port on board for read caching
Note: The standard system is shipped without mSATA flash. For the optional mSATA flash, please visit
http://shop.qnap.com/
|
| Hard Drive |
12 x 3.5-inch SATA 6Gbps/3Gbps hard drive or 2.5-inch SATA, 6Gbps/3Gbps hard drive SSD hard drive
NOTE:
- The standard system is shipped without hard drives.
- For the hard drive compatibility list, please visit Compatibility list
|
| Hard Drive Tray |

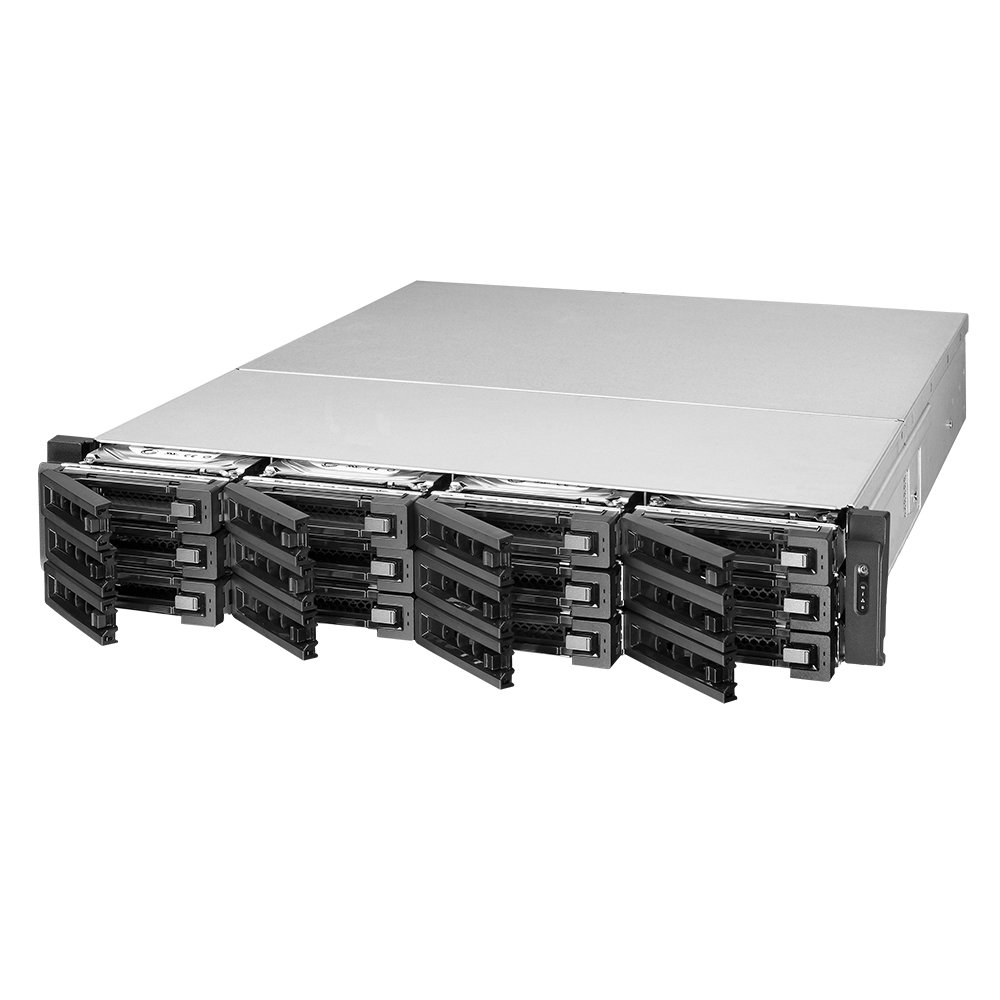

12 x hot-swappable and lockable tray |
| LAN Port |
Built-in 2 x 10 GbE SFP+ ports (LAN-10G2SF-MLX) and 4 x GbE ports
40GbE is optional
Note:
1. For the optional network card compatibility list, please visit Compatibility list of Expansion Card
2. For the information of network card installation, please refer to chapter 6 in the Turbo NAS Hardware Manual. |
| LED Indicators |
Status, 10 GbE, LAN, eSATA, storage expansion port status |
| USB |
4x USB 3.0 port (rear)
4x USB 2.0 port (rear)
Support USB printer, pen drive, USB hub, and USB UPS etc. |
| Buttons |
System: Power button and reset button |
| Alarm Buzzer |
System warning |
| Form Factor |
2U, Rackmount |
| Dimensions |
88(H) x 442.5(W) x 530.5(D) mm
3.46(H) x 17.42(W) x 20.89(D) inch |
| Weight |
Net weight (NAS only) : 14.18 kg/ 31.26 lb
Gross weight (with packing and accessories) : 21.41 kg/ 47.20 lb |
| Power Consumption (W) |
Sleep mode: 80.41
In Operation: 166.58 W
(with 12 x 1TB hard drive installed) |
| Sound Level* |
Sound pressure (LpAm) :55.3 dB(A) |
| Temperature |
0-40?C |
| Relative Humidity |
5~95% non-condensing, wet bulb: 27?C. |
| Power Supply |
Redundant power:
Input: 47-63 Hz; 100-127V~/ 8A; 200-240V/ 4A
Output: 400W |
| PCIe Slot |
2 (Right slot: 1* PCIe Gen3 x8; Left slot: 1* PCIe Gen3 x4)
Note:
The PCIe Gen3 x8 slot is occupied by a 10GbE network adapter. |
| Fan |
4 x 6 cm smart cooling fan |
| 製品保証期間 |
3年 |

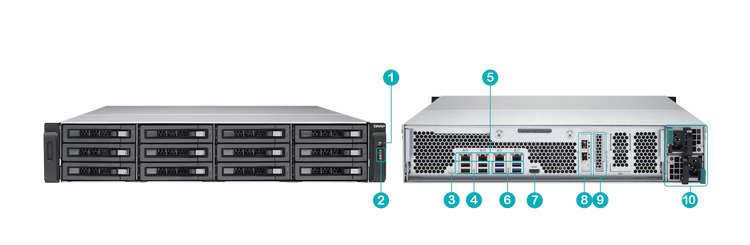

| 1. |
Power Button |
6. |
USB 3.0 Port x 4 |
| 2. |
LED Indicators:
10 GbE, Status, LAN, Storage Expansion Port Status |
7. |
HDMI port |
| 3. |
Password & Network Settings Reset Button |
8. |
Dual port 10GbE SFP+ |
| 4. |
USB 2.0 Port x 4 |
9. |
PCIe slot (PCIe Gen3 x4) |
| 5. |
Gigabit LAN x 4 |
10. |
Power connector |
Remark:

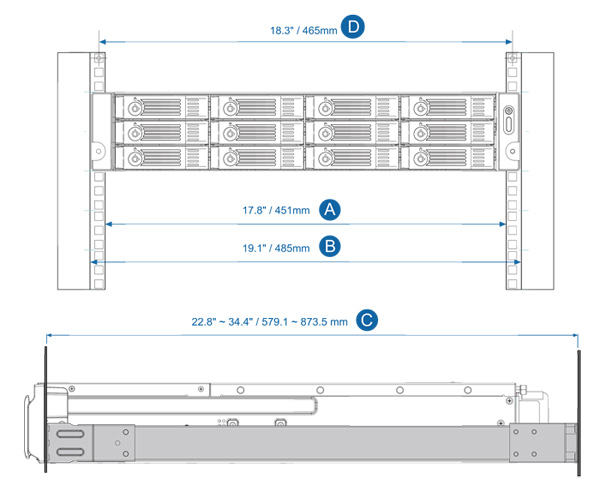

The TS-x80 rack mount models comply with ANSI/EIA-RS-310-D rack mounting standards. Before purchasing the server racks for these models, please make sure the server racks conform to the following criteria:
1. Rack size
- Mounting post width : ≥ 451mm
- Panel width : ≥ 485mm
- Mounting post depth : 579.1mm~873.5mm
- The distance between two rack posts is 465mm (center-to-center measurement of the rack's square holes)

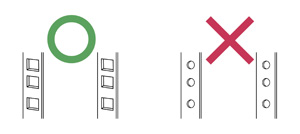

2. The optional rack kits for the TS-x80 rack mount models are only compatible with square-hole server racks.
* Testing Environment:
Refer to ISO 7779 ; Maximum HDD loaded ; Bystander Position ; Average data from 1 meter in front of operating NAS
Designs and specifications are subject to change without notice.
