販売終了

100W給電ポートを備えるUSB 3.1 Type-Cインターフェースパネル兼カード

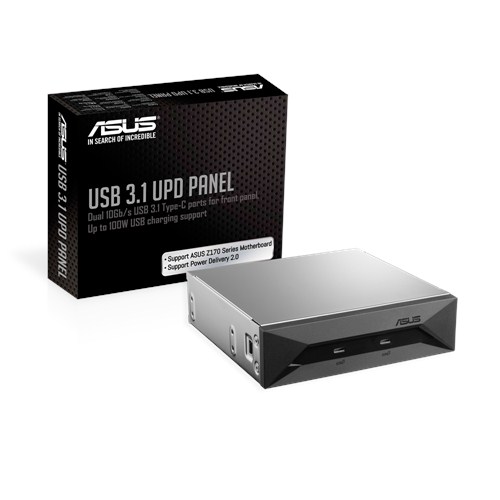

USB 3.1 UPD PANEL

JAN/UPC:0889349133804
TEKWIND型番:ASU-USB3.1/UPD/PANEL

【主な特長】

・USB 3.1 Type-C×2ポート搭載

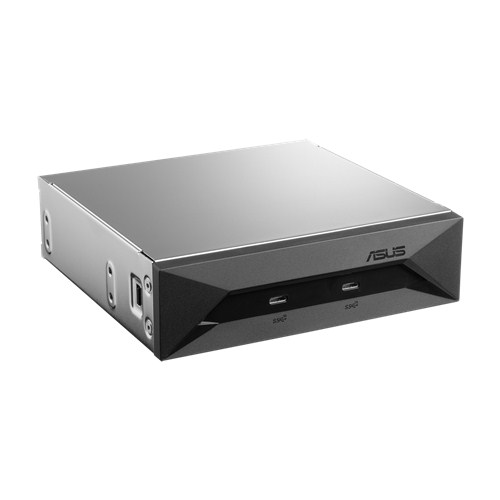

・5.25インチドライブベイまたは拡張スロットに搭載可能
・2ポートの内1つは100Wの給電を行えるUSB Power Deliveryに対応


製品についてお気軽にお問い合わせください

この製品を問い合わせる

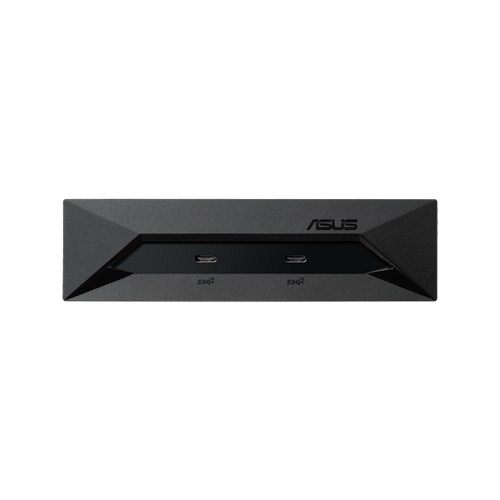

製品画像

スペック

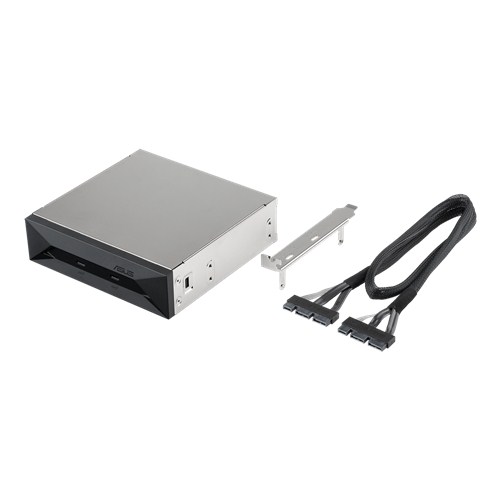

  • Accessories
    1 x SATA Express cable

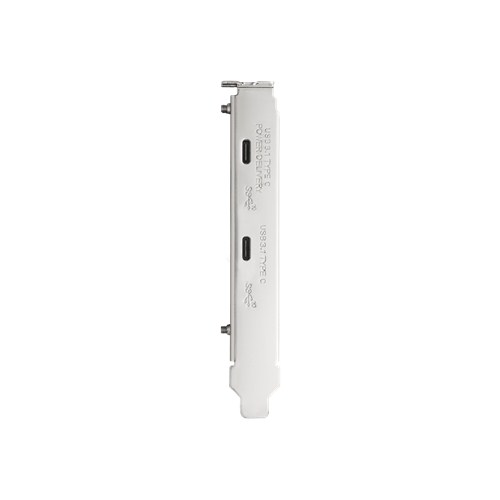

    1 x rear bracket
    1 x supporting CD
  • Dimensions
    145(H) x 140(W) x 42(D) mm for 5.25" bays
  • Features
    - Dual 10Gb/s USB 3.1 Type C ports for front panel
    - Up to 100W USB charging support

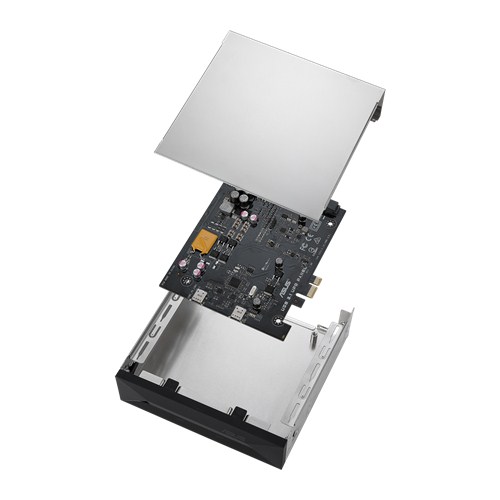

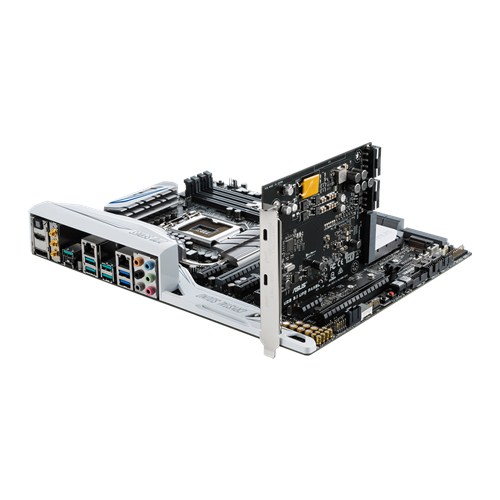

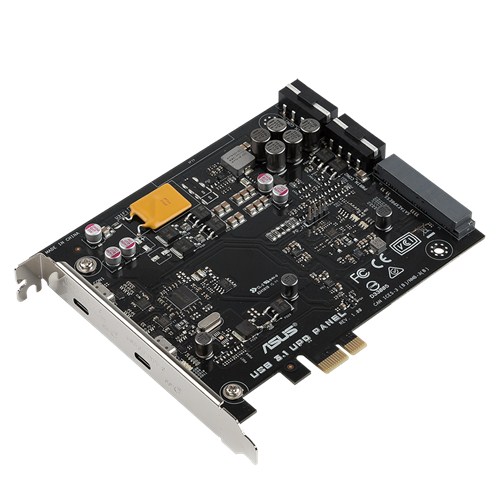

    - Easy installation for both front 5.25" bays and onboard PCIE slots
  • Compatible
    Model
    Support Z170 Series models

  • Maximum
    Power Output
    UPD type-C port:
    20V, 5A

    Normal type-C port:
    5V, 3A

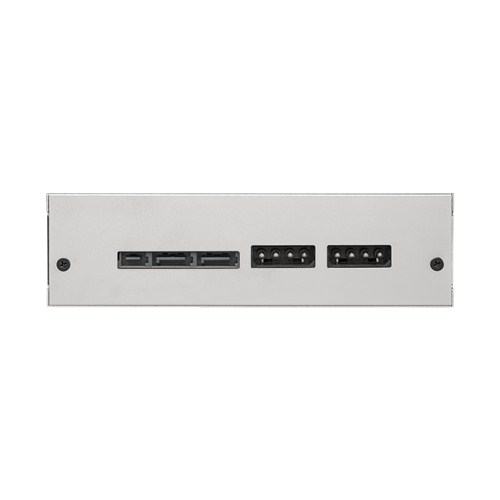

  • I/O Ports
    Input:
    1 x SATA Express
    2 x Molex power plug(12V/5V)
    Output:
    2 x USB 3.1 Type-C ports, 1 supports USB Power Delivery (max. 5A, 20V, 100W*)
  • Note
    *Ensure the device you wish to charge supports the Power Delivery 2.0 standard.
