カテゴリー:
産業用/組込み用パーツ
・JAN/UPC:0672042133741
・メーカー型番:MBD-X10SLL-F-O
・TEKWIND型番:SPM-MBD-X10SLL-F-O/1Y

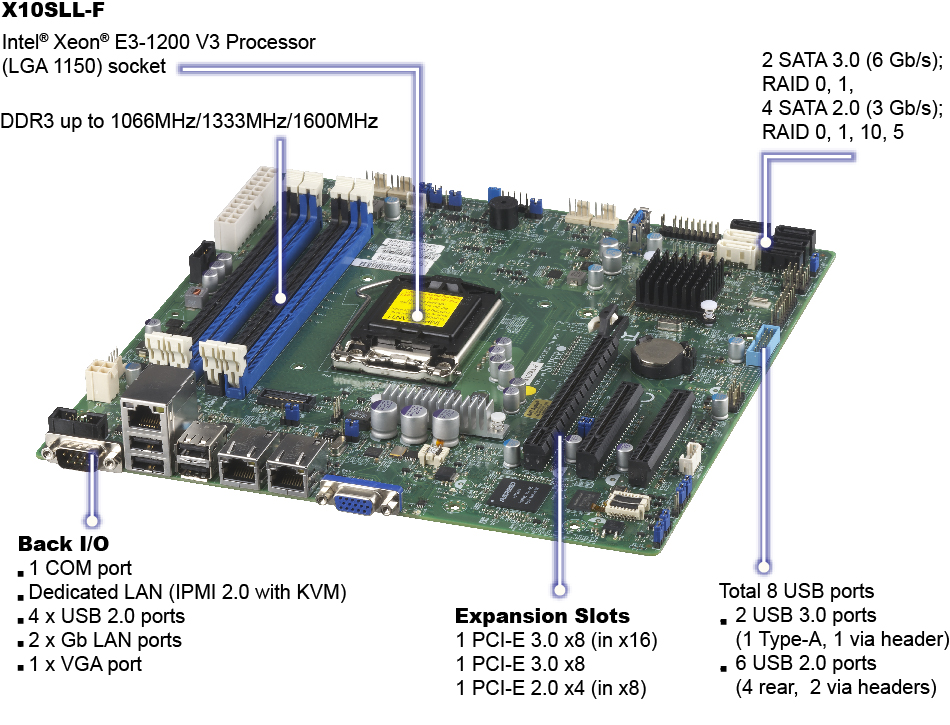

1. Single socket H3 (LGA 1150) supports Intel Xeon E3-1200 v3, 4th gen. Core i3, Pentium, Celeron processors
2. Intel C222 Express PCH
3. Up to 32GB DDR3 ECC 1600MHz UDIMMs in 4 sockets
4. Dual Gigabit Ethernet LAN ports (1x Intel i217LM & 1x Intel i210AT)
5. 2x SATA (6Gbps), 4x SATA (3Gbps)
6. 1x PCI-E 3.0 x8 (in x16), 1x PCI-E 3.0 x8, and 1x PCI-E 2.0 x4 (in x8) slots
7. 2x USB 3.0 (1 Type-A + 1 via header) 6x USB 2.0 (4 rear + 2 via header)
8. Integrated IPMI 2.0 with KVM and Dedicated LAN
9. SATA DOM power connector support
10. VGA D-sub connector, TPM header
スペック
Product SKUs
MBD-X10SLL-F | X10SLL-F (Bulk Pack) |
---|
Physical Stats
Form Factor | uATX |
---|---|
Dimensions | 9.6" x 9.6", (24.4cm x 24.4 cm) |
Processor/Cache
CPU | Intel® Xeon® processor E3-1200 v3 and 4th Gen Core i3, Pentium, Celeron processors Single Socket H3 (LGA 1150) |
---|
System Memory
Memory Capacity | 4x 240-pin DDR3 DIMM sockets Supports up to 32 GB DDR3 ECC Un-Buffered memory (UDIMM) |
---|---|
Memory Type | 1600MHz ECC DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs |
DIMM Sizes | 8GB, 4GB, 2GB, 1GB |
Memory Voltage | 1.5V, 1.35V |
Error Detection | Corrects single-bit errors Detects double-bit errors (using ECC memory) |
On-Board Devices
Chipset | Intel® C222 Express PCH |
---|---|
SATA | SATA3 (6Gbps) w/ RAID 0, 1 SATA2 (3Gbps) w/ RAID 0, 1, 5, 10 |
IPMI | Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support Aspeed AST2400 with 10/100/1000M bps MAC |
Network Controllers | Intel® i217LM + Intel® i210AT Controllers Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output 1x Realtek RTL8211E PHY (dedicated IPMI) |
VGA | BMC integrated Aspeed AST2400 |
Input / Output4
Serial ATA | 2x SATA3 (6Gbps) ports 4x SATA2 (3Gbps) ports |
---|---|
LAN | 2x Gigabit Ethernet LAN ports 1x RJ45 Dedicated IPMI LAN port |
USB | 2x USB 3.0 ports (1 Type-A, 1 via header) 6x USB 2.0 ports (4 rear, 2 via header) |
VGA | 1x VGA D-Sub Connector |
Serial Port / Header | 2x COM ports (1 rear, 1 header) |
DOM | SATA DOM (Disk on Module) power connector support |
TPM | 1x TPM 1.2 20-pin Header |
Chassis (Optimized for X10SLL-F )
1U Chassis | CSE-113MTQ-330CB CSE-113MTQ-R400CB CSE-512F-350B CSE-512F-441B CSE-811TQ-441B CSE-813MTQ-350C CSE-813MTQ-441CB CSE-813MTQ-R400CB |
---|---|
Mid-Tower | CSE-731i-300B CSE-732D4-500B CSE-732D4-865B CSE-732D4-903B CSE-733TQ-500B CSE-733TQ-665B |
Important Chassis Notes | To support the new generation Intel® Xeon® processor-based motherboards,Revision M chassis is recommended. Please talk to your sales representative for details. |
SuperServer(s) with X10SLL-F
Model(s) | SYS-5038D-I SYS-5018D-MF |
---|
Expansion Slots
PCI-Express | 1x PCI-E 3.0 x8 (in x16) slot 1x PCI-E 3.0 x8 slot 1x PCI-E 2.0 x4 (in x8) slot |
---|
System BIOS
BIOS Type | 128Mb SPI Flash EEPROM with AMI BIOS |
---|---|
BIOS Features | DMI (SMBIOS) 2.7 ACPI 5.0 USB Keyboard support |
Management
Software | IPMI (Intelligent Platform Management Interface) v2.0 with KVM support SuperDoctor® III Watch Dog NMI |
---|---|
Power Configurations | ACPI / ACPM Power Management Main Switch Override Mechanism Power-on mode for AC power recovery Internal/External modem ring-on |
PC Health Monitoring
Voltage | Monitors for CPU Cores, +12V, +3.3V, +5V, +5V Standby, VBAT, HT, Memory, Chipset Voltages. 5-Phase-switching voltage regulator with auto-sense from 0.8375V-1.60V |
---|---|
FAN | Total of five 4-pin fan headers supporting up to 5 fans 5x fans with tachometer status monitoring Status monitor for speed control Status monitor for on/off control Support 3-pin fans (w/o speed control) Low noise fan speed control Pulse Width Modulated (PWM) fan connectors |
Temperature | Monitoring for CPU and chassis environment CPU thermal trip support FC temperature sensing logic Thermal Monitor 2 (TM2) support PECI |
LED | CPU / System Overheat LED +5V Standby alert LED |
Other Features | Chassis intrusion detection Chassis intrusion header |
