カテゴリー: 産業用組込み向けパーツ

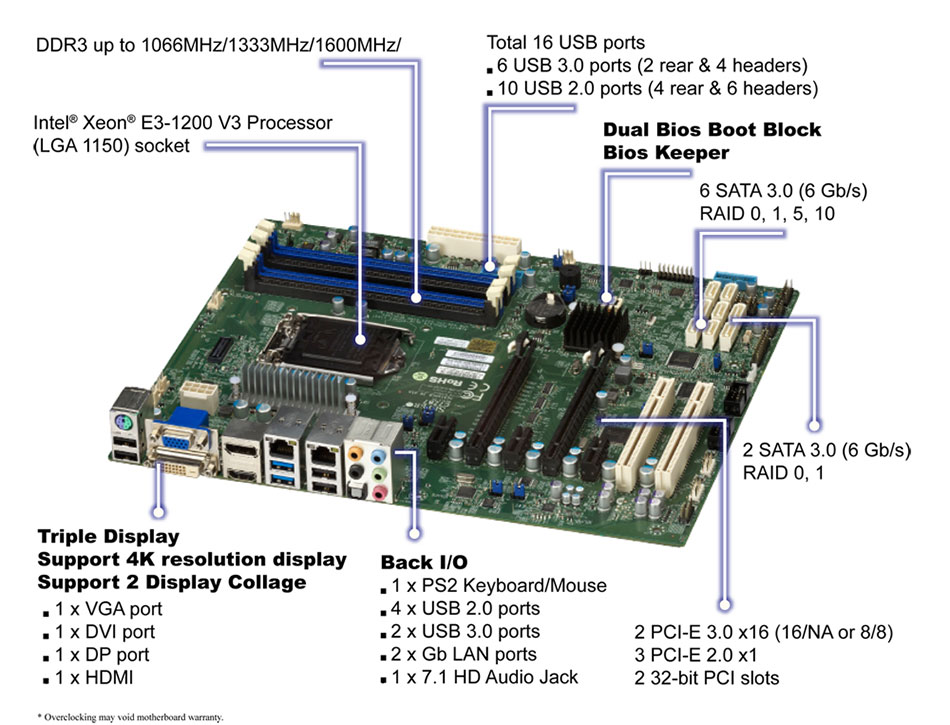

X10SAE (Single Pack)

JAN/UPC:0672042135455
メーカー型番:MBD-X10SAE-O
TEKWIND型番:SPM-MBD-X10SAE-O/1Y

1. Single socket H3 (LGA 1150) supports Intel® Xeon® E3-1200 v3, 4th gen. Core i7/i5/i3 processors
2. Intel C226 Express PCH
3. Up to 32GB DDR3 ECC/non-ECC 1600MHz UDIMM in 4 sockets
4. Dual Gigabit Ethernet LAN ports(1x Intel i217LM & 1x Intel i210AT)
5. 8x SATA3 (6Gbps)
6. 2x PCI-E 3.0 x16, 3x PCI-E 2.0 x1,and 2x PCI 5V 32-bit slots
7. 6x USB 3.0 (2 rear + 4 via headers) 10x USB 2.0 (4 rear + 6 via headers)
8. HD Audio 7.1 channel connector by Realtek ALC1150
9. 1x DOM power connector and 1x SPDIF Out Header
10. UEFI BIOS support

この製品を問い合わせる


製品画像


スペック

Product SKUs

MBD-X10SAE X10SAE (Bulk Pack)

Physical Stats

Form Factor ATX
Dimensions/th> 12" x 9.6", (30.48cm x 24.4 cm)

Processor/Cache

CPU Intel® Xeon® processor E3-1200 v3 and 4th Gen Core i7/i5/i3, Pentium, Celeron processors
Single Socket H3 (LGA 1150)
A Graphic Integrated CPU is required to have the on-board video functioned. Examples: E3-1265L v3, E3-1275 v3*

System Memory

Memory Capacity 4x 240-pin DDR3 DIMM sockets
Supports up to 32GB DDR3 ECC/Non-ECC Un-Buffered memory (UDIMM)
Memory Type 1600MHz ECC/non-ECC DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs
DIMM Sizes 8GB, 4GB, 2GB, 1GB
Memory Voltage 1.5V, 1.35V
Error Detection Corrects single-bit errors
Detects double-bit errors (using ECC memory)

On-Board Devices

Chipset Intel® C226 Express PCH
SATA SATA3 via PCH w/ RAID 0, 1, 5, 10
SATA3 via ASM1061®
Network Controllers Intel® i217LM + Intel® i210AT Controllers
Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
Audio RealTek ALC1150 High Definition Audio

Input / Output

Serial ATA 6x SATA3 (6Gbps) ports via PCH
2x SATA3 (6Gbps) ports via ASM1061®
Total of 8x SATA3 ports (6Gbps)
LAN 2x RJ45 Gigabit Ethernet LAN ports
USB 6x USB 3.0 ports (2 rear, 4 via headers)
10x USB 2.0 ports (4 rear, 6 via headers)
Audio 7.1 HD Jacks
Display* 1x VGA, 1x HDMI, 1x DVI, 1x Display port
Serial Port / Header 2x COM ports (headers)
DOM SATA DOM (Disk on Module) power connector support
Others TPM header, 2x Type B 1394a headers, PS/2 connector for mouse and keyboard

Chassis (Optimized for X10SAE )

Mid-Tower CSE-732D4-500B
CSE-732D4-865B
CSE-732D4-903B
CSE-732G-903B
CSE-733TQ-665B
Tower / 4U Rackmount CSE-743TQ-1200B-SQ
CSE-743TQ-865B-SQ
CSE-745TQ-800B
CSE-745TQ-920B
Important Chassis Notes To support the new generation Intel® Xeon® processor-based motherboards,Revision M chassis is recommended. Please talk to your sales representative for details.

SuperServer(s) with X10SAE

Model(s) SYS-5038A-IL


Expansion Slots

PCI-Express 2x PCI-E 3.0 x16 slots -
Function as: 16/NA or 8/8
3x PCI-E 2.0 x1 (in x4) slots
PCI 2x PCI 5V 32-bit slots

System BIOS

BIOS Type 128Mb SPI Flash EEPROM with AMI BIOS
BIOS Features DMI (SMBIOS) 2.7
ACPI 5.0
USB Keyboard support

Management

Software SuperDoctor® III
Watch Dog
AMT
vPro
Power Configurations ACPI / ACPM Power Management
Main Switch Override Mechanism
Power-on mode for AC power recovery
Internal/External modem ring-on

PC Health Monitoring

Voltage Monitors for CPU Cores, +1.8V, +12V, +3.3V, +5V, +5V Standby, VBAT, HT, Memory, Chipset Voltages.
5-Phase-switching voltage regulator with auto-sense from 0.8375V-1.60V
FAN Total of five 4-pin fan headers supporting up to 5 fans
5x fans with tachometer status monitoring
Status monitor for speed control
Status monitor for on/off control
Support 3-pin fans (w/o speed control)
Low noise fan speed control
Pulse Width Modulated (PWM) fan connectors
Temperature Monitoring for CPU and chassis environment
CPU thermal trip support
FC temperature sensing logic
Thermal Monitor 2 (TM2) support
PECI
LED CPU / System Overheat LED
+5V Standby alert LED
Other Features Chassis intrusion detection
Chassis intrusion header
