カテゴリー:
サーバー・ワークステーション > GPU/Xeon Phi向けサーバー

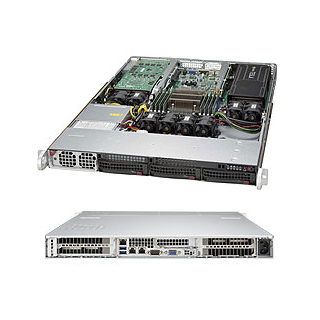

1Uシャーシ、Tesla/Xeon Phi 最大2機搭載対応、1G RJ45 LANx2、3x 3.5" Hot-swap drive bays
・JAN/UPC:0672042169719
・メーカー型番:SYS-5018GR-T
・TEKWIND型番:SPM-SYS-5018GR-T/1Y
1. Single socket R3 (LGA 2011) supports
Intel® Xeon® processor E5-2600
v4/ v3 and E5-1600 v4/ v3 family
2. Up to 1TB ECC 3DS LRDIMM , up to
DDR4- 2400MHz ; 8x DIMM slots
3. 2x PCI-E 3.0 x16 slots
(support GPU/Xeon Phi cards),
1x PCI-E 3.0 x8 low-profile slot
4. Integrated IPMI 2.0 with KVM and
Dedicated LAN
5. Intel® i350 Dual-Port GbE Controller

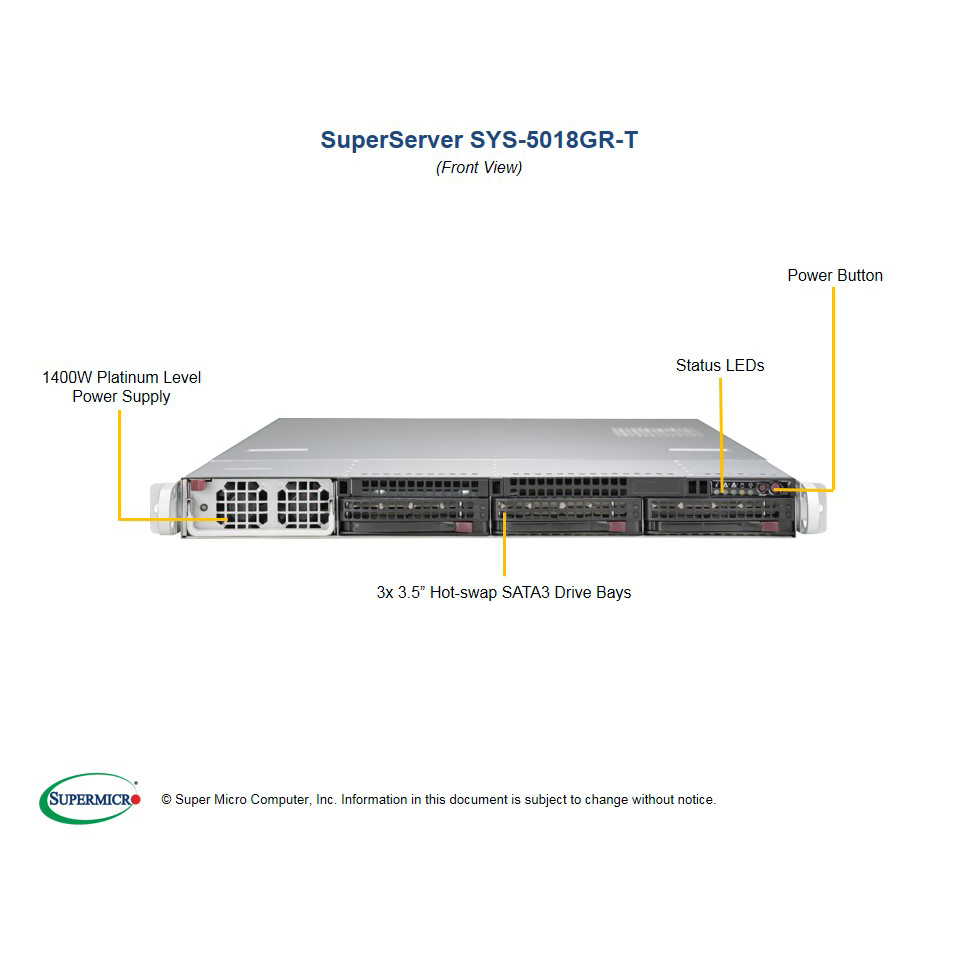

6. 3x 3.5" Hot-swap drive bays
7. 1400W High-efficiency Power Supply
Platinum Level (94%+)
Digital Switching Control & PMBus 1.2
8. 8x Counter rotating fans w/ optimal
fan speed control
スペック
CPU | LGA 2011 |
---|---|
LAN | 2x RJ45 Gigabit Ethernet LAN ports, 1x RJ45 Dedicated IPMI LAN port |
シリーズ | 1U Rackmount |
チップセット | Intel C612 chipset |
メモリ | Up to 1TB ECC 3DS LRDIMM , up to DDR4- 2400 MHz ; 8x DIMM slots |
拡張スロット | 2x PCI-E 3.0 x16 slots (support GPU/Xeon Phi cards), 1x PCI-E 3.0 x8 low-profile slot |
プロセッサーファミリ | Intel® Xeon® processor E5-2600 v4/ v3, E5-1600 v4†/ v3 family(最大TDPサポート:145W) |
---|---|
プロセッサー搭載数 | 1 |
チップセット | Intel® C612 chipset |
フォームファクタ | 1U |
メモリ | Up to 1TB ECC 3DS LRDIMM, 512GB ECC RDIMM, up to DDR4- 2400MHz ; 8x DIMM slots |
ドライブベイ | 3x 3.5" Hot-swap drive bays |
ネットワーク | 2 x RJ45 1GBase-Tポート |
拡張スロット | 2x PCI-E 3.0 x16 slots(support GPU/Xeon Phi cards),1x PCI-E 3.0 x8 low-profile slot |

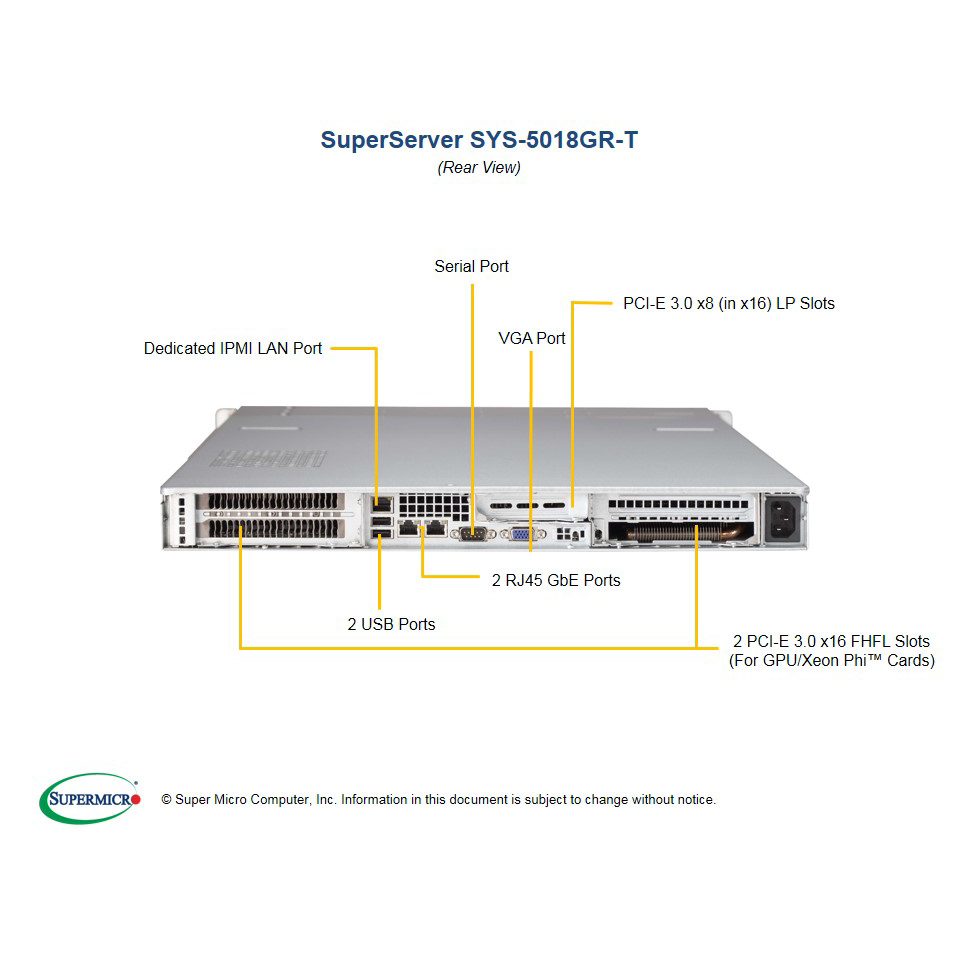

外部ポート | 1 VGA, 2 USB 3.0 ports ,1 COM |
外形寸法 (幅x高さx奥行) |
437x43x716mm |
電源ユニット | 1400W x 1 ,Platinum Level |
