ASUS（エイスース） P8B-X

・JAN/UPC：4937699420290
・TEKWIND型番：ASU-P8B-X

【主な特長】

P8B-X is the latest ASUS UP serverboard designed as Bromolow platform entry model, featuring an Intel? C202 PCH chipset, with support of leading-edge architecture, high expandability, dual Intel server class GbE and cost-effective solutions, the P8B-X is ideal for SMB, web, print/file and other entry-level applications.

製品についてお気軽にお問い合わせください

この製品を問い合わせる

プロフェッショナルがいるテックウインドの強み

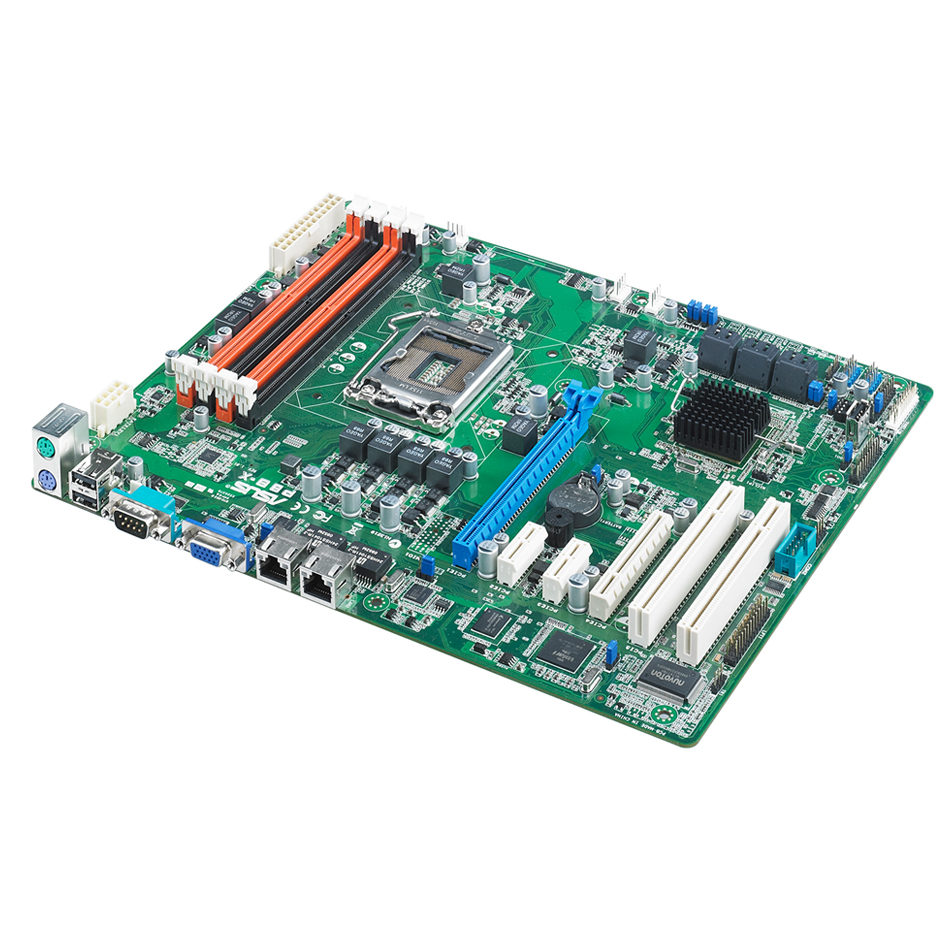

製品画像

スペック

Processor / System Bus	1 x Socket LGA1155 Intel® Xeon® E3-1200 Processor Family Intel® Xeon® E3-1200 v2 Processor Family Intel® Core™ i3-2100 Processor Family Intel® Pentium™ G8x0/G6x0 Intel® Celeron™ G5x0/G4x0 *Refer to www.asus.com for CPU Support list
Core Logic	Intel® C202 Chipset
Memory	Total Slots : 4 (2-channel) Capacity : Maximum up to 32GB UDIMM Memory Type : DDR3, 1066/1333/1600, UDIMM, with ECC1 Memory Size :*
Expansion Slots	Total Slot : 6 Slot Location 1 : PCI 32bit/33MHz Slot Location 2 : PCI 32bit/33MHz Slot Location 3 : PCI-E x8 (Gen2 X4 Link) Slot Location 4 : PCI-E x1 Slot Location 5 : PCI-E x1 Slot Location 6 : PCI-E x16 *2 Follow SSI Location#
Form Factor	12 " x 9.6 " Inch
ASUS Features	FAN speed control Rack Ready (Rack and Pedestal dual use)
Storage	SATA Controller : Intel® C202 6 x SATA2 3Gb/s ports Intel® Rapid Storage Technology(RST) (For Windows Only) (Support Software RAID 0, 1, 5, 10 )
Networking	2 x Intel® 82574L
Graphic	XGI® Z9s with 64MB VRAM 3 Aspeed AST1100 with 64MB VRAM 4
On Board I/O	1 x TPM header 1 x PSU Power Connector , 24-pin ATX power connector + 8-pin ATX 12V power connector 1 x USB connector 2 x USB pin header , Up to 4 Devices 5 x Fan Header , 4pin 1 x Chassis Intruder 1 x Serial Port Header

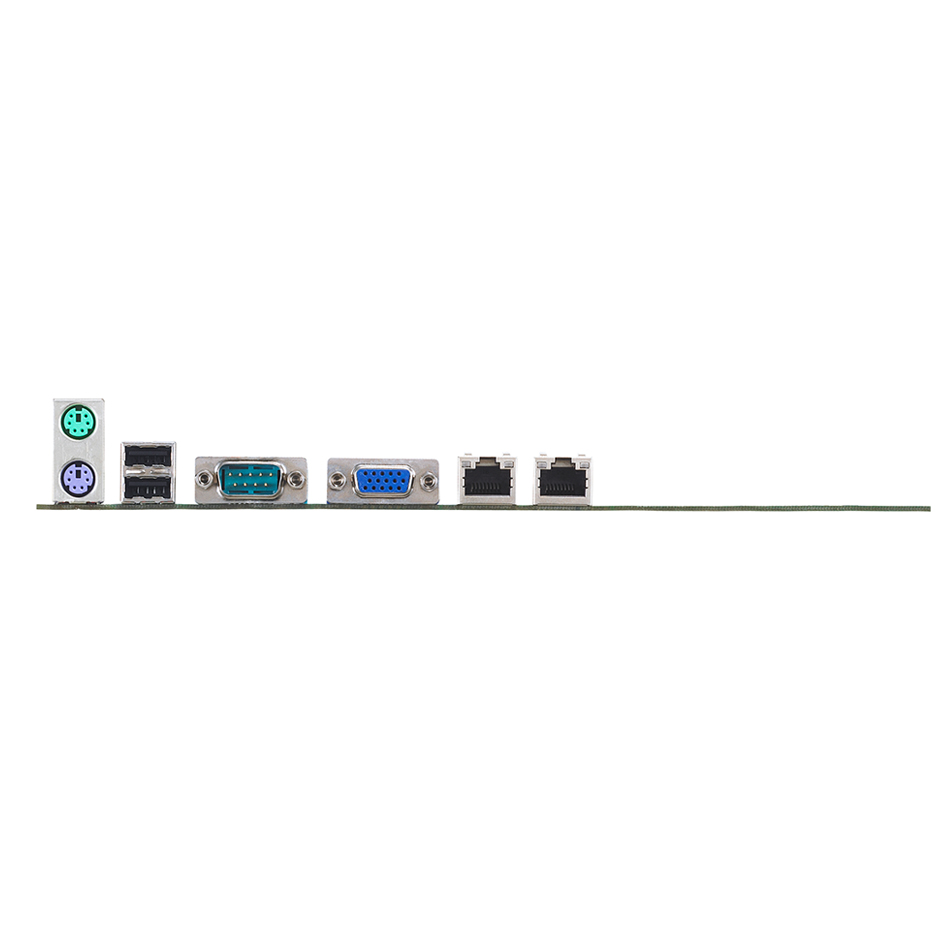

Back I/O Ports	1 x External Serial Port 2 x External USB Port 1 x VGA Port 2 x RJ-45 1 x PS/2 KB/Mouse
EMI	US (FCC, CFR47 Part 15, Class B) Europe (CE, EN55022 & EN55024) Australia (C-TICK)
Environment	Operation temperature: 10℃ ~ 35℃ Non operation temperature: -40℃ ~ 70℃ Non operation humidity: 20% ~ 90% ( Non condensing)
Accessories	Gift Box Pack : 1 x User's Guide 1 x Support CD 1 x I/O Shield 6 x SATA 3G Cable(s) 1 x Plate for LGA1155 Bulk Pack : 1 x User's Guide 1 x Support CD 1 x I/O Shield 1 x Plate for LGA1155
Product SKUs	Standard Gift Box Pack Standard Bulk Pack
Monitoring	CPU Temperature Fan RPM
Note	1 DDR3 1600 can only be supported with Intel® Xeon® E3-1200 v2 Processor 2 Gen3 link can only be supported with Intel® Xeon® E3-1200 v2 Processor 3 XGI® Z9s with 64MB VRAM (REV1.0x) 4 ASPEED® AST1100 with 64MB VRAM (REV2.0x)

All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets.
PCB color and bundled software versions are subject to change without notice.
Brand and product names mentioned are trademarks of their respective companies.
