・JAN/UPC：4937699420320
・TEKWIND型番：ASU-P8B-M
【主な特長】

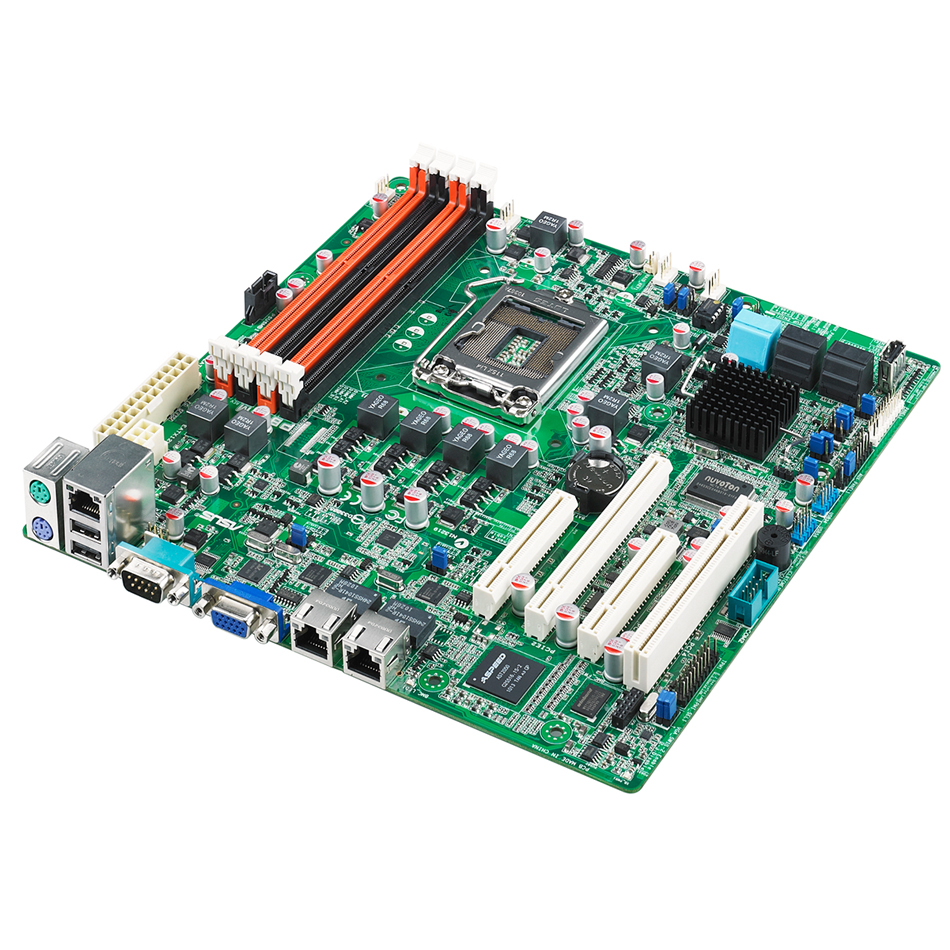

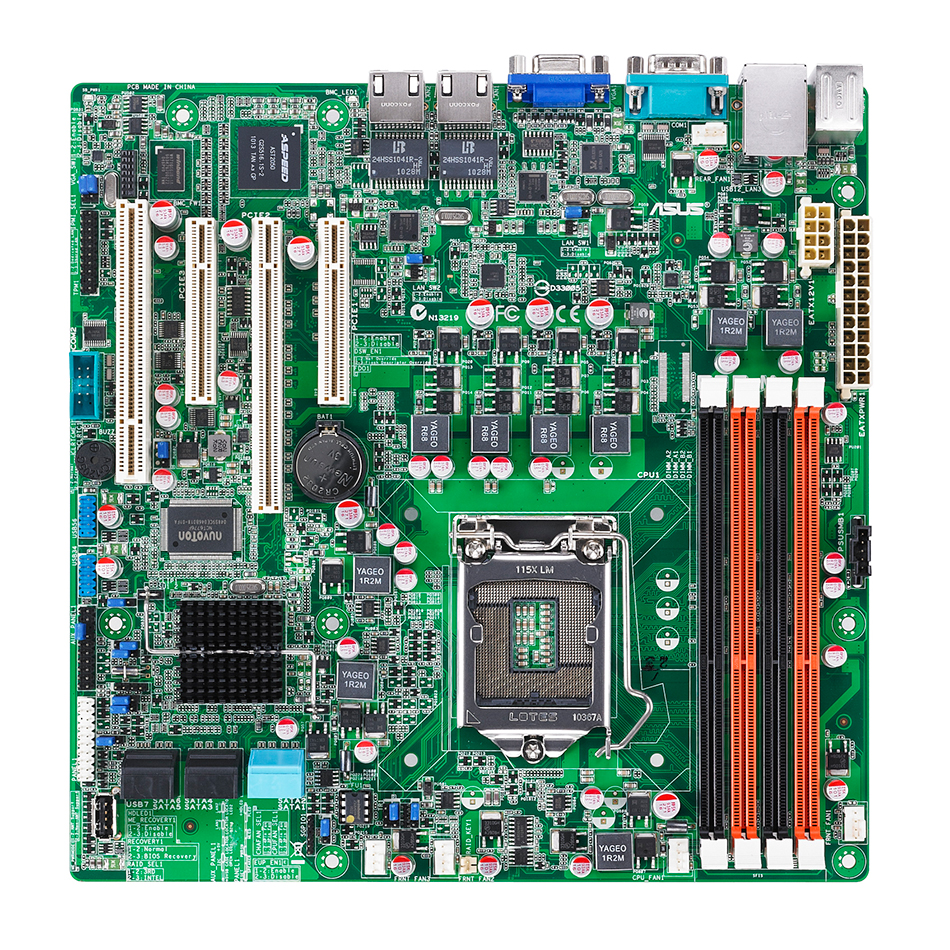

P8B-M is the 5th generation micro-ATX form factor UP serverboard designed based on up-to-dated Intel Bromolow platform. Featuring an Intel? C204 PCH chipset, with support of leading-edge architecture, dual Intel server class GbE, SATA 6G storage interface and optional ASMB5-iKVM all these advanced features integrated the compact sized micro-ATX board makes the P8B-M best candidate to fit in various appliance server.
製品についてお気軽にお問い合わせください
この製品を問い合わせる製品画像
スペック
| Processor / System Bus |
1 x Socket LGA1155 Intel® Xeon® E3-1200 Processor Family Intel® Xeon® E3-1200 v2 Processor Family Intel® Core™ i3-2100 Processor Family Intel® Pentium™ G8x0/G6x0 Intel® Celeron™ G5x0/G4x0 *Refer to www.asus.com for CPU Support list |
|---|---|
| Core Logic | Intel® C204 Chipset |
| Memory |
Total Slots : 4 (2-channel) Capacity : Maximum up to 32GB UDIMM Memory Type : DDR3, 1066/1333/1600, UDIMM, with ECC*1 Memory Size : |
| Expansion Slots |
Total Slot : 4 Slot Location 4 : PCI 32bit/33MHz Slot Location 5 : PCI-E x8 (Gen2 X4 Link) Slot Location 6 : PCI-E x16 (Gen3 X16 Link) *2 Slot Location 7 : PCI-E x8 Follow SSI Location# |
| Form Factor | 9.6 " x 9.6 " Inch |
| ASUS Features |
FAN speed control Rack Ready (Rack and Pedestal dual use) |
| Storage |
SATA Controller : Intel® C204 2 x SATA3 6Gb/s ports 4 x SATA2 3Gb/s ports Intel® Rapid Storage Technology(RST) (For Windows Only) (Support Software RAID 0, 1, 5, 10 ) LSI® MegaRAID (For Linux/Windows) (Support Software RAID 0, 1, 10 ) |
| Networking | 2 x Intel® 82574L + 1 x Mgmt LAN |
| Graphic | Aspeed AST2050 with 16MB VRAM |
| On Board I/O |
1 x TPM header 1 x PSU Power Connector , 24-pin ATX power connector + 8-pin ATX 12V power connector 1 x USB connector 2 x USB pin header , Up to 4 Devices 5 x Fan Header , 4pin 1 x SMBus 1 x Chassis Intruder 1 x Serial Port Header |
| Back I/O Ports |

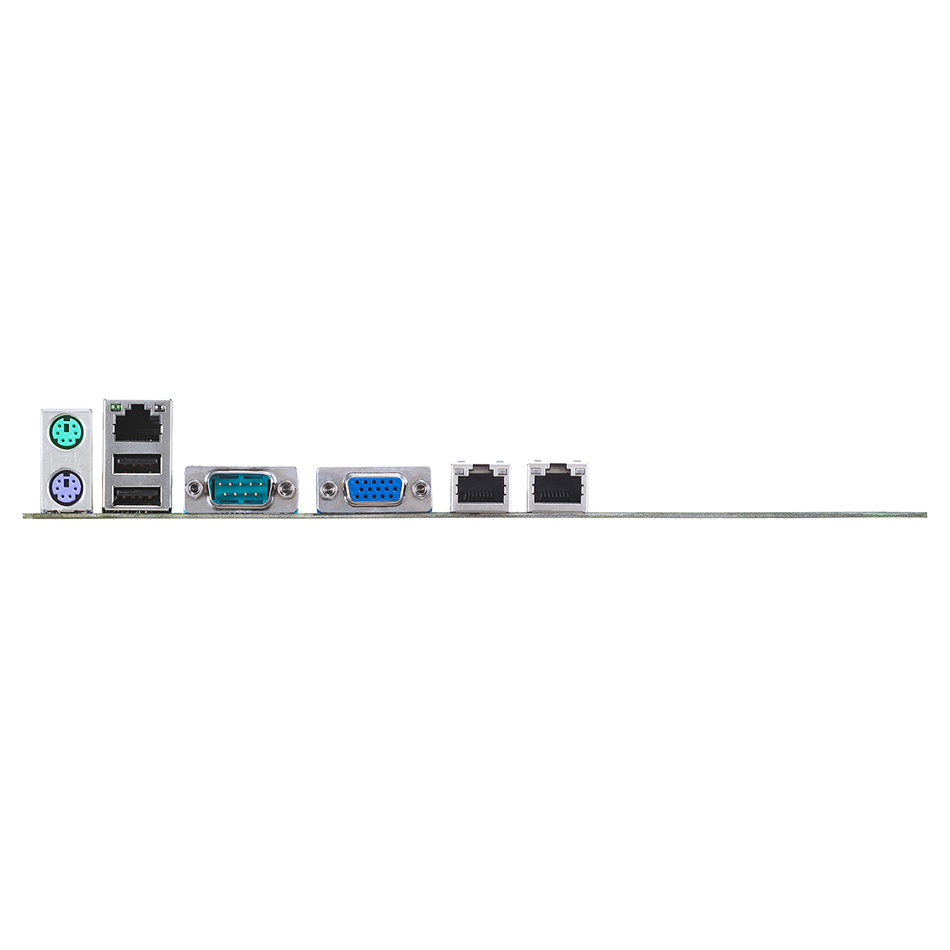

1 x External Serial Port 2 x External USB Port 1 x VGA Port 2 x RJ-45 1 x PS/2 KB/Mouse |
| Management Solution | Out of Band Remote Management:Optional ASMB5-iKVM for KVM-over-Internet |
| EMI |
US (FCC, CFR47 Part 15, Class B) Europe (CE, EN55022 & EN55024) Australia (C-TICK) |
| Environment |
Operation temperature: 10℃ ~ 35℃ Non operation temperature: -40℃ ~ 70℃ Non operation humidity: 20% ~ 90% ( Non condensing) |
| Accessories |
Gift Box Pack : 1 x User's Guide 1 x Support CD 1 x I/O Shield 4 x SATA 3G Cable(s) 2 x SATA 6G Cable(s) 1 x Plate for LGA1155 Bulk Pack : 1 x User's Guide 1 x Support CD 1 x I/O Shield 1 x Plate for LGA1155 |
| Product SKUs |
Standard Gift Box Pack Standard Bulk Pack |
| Monitoring |
CPU Temperature Fan RPM |
| Note |
*1 DDR3 1600 can only be supported with Intel® Xeon® E3-1200 v2 Processor *2 Gen3 link can only be supported with Intel® Xeon® E3-1200 v2 Processor |
- All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets.
- PCB color and bundled software versions are subject to change without notice.
- Brand and product names mentioned are trademarks of their respective companies.
