・JAN/UPC：4937699420276
・TEKWIND型番：ASU-P8B-E/4L
【主な特長】

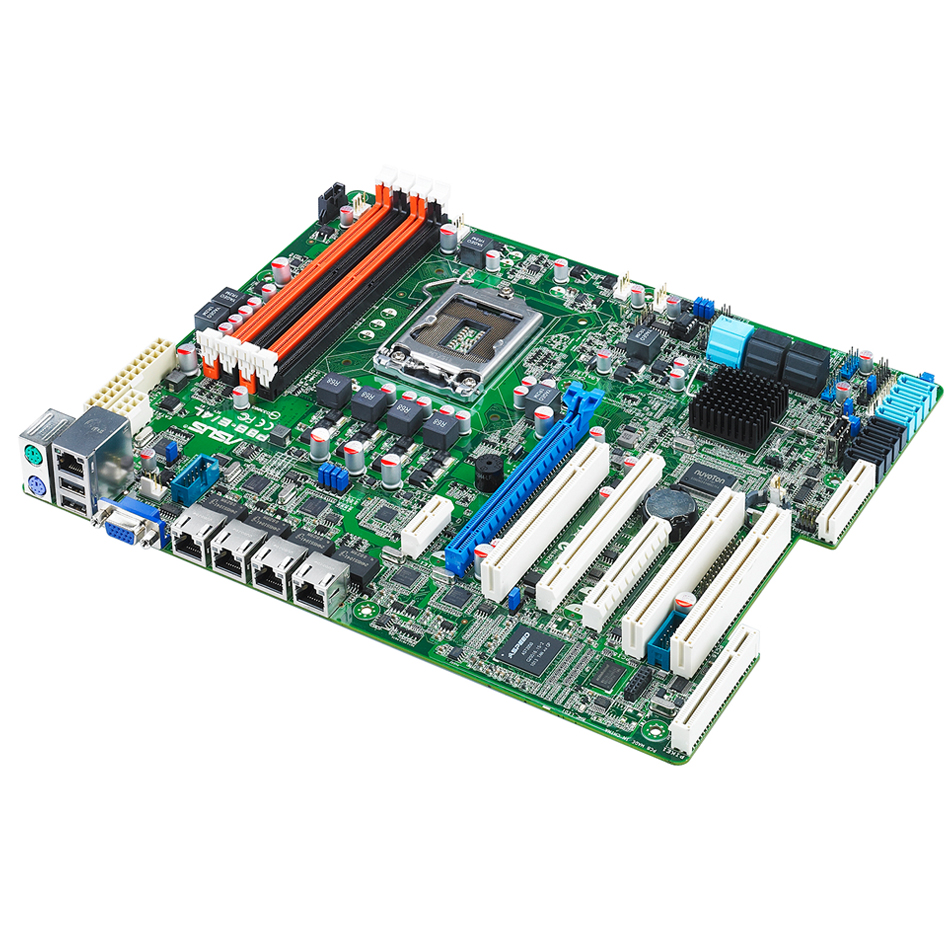

P8B-E/4L is the latest ASUS UP serverboard designed as Bromolow platform flagship model, featuring an Intel? C204 PCH chipset, leading SATA 6G storage technology, quad Intel server class GbE, ASMB5-iKVM module (optional) for out-of-band remote management, and wide-range OS support, making it an ideal foundation for versatile and feature-rich UP solution.
製品についてお気軽にお問い合わせください
この製品を問い合わせる製品画像
スペック
| Processor / System Bus |
1 x Socket LGA1155 Intel® Xeon® E3-1200 Processor Family Intel® Xeon® E3-1200 v2 Processor Family Intel® Core™ i3-2100 Processor Family Intel® Pentium™ G8x0/G6x0 Intel® Celeron™ G5x0/G4x0 *Refer to www.asus.com for CPU Support list |
|---|---|
| Core Logic | Intel® C204 Chipset |
| Memory |
Total Slots : 4 (2-channel) Capacity : Maximum up to 32GB UDIMM Memory Type : DDR3, 1066/1333/1600, UDIMM, with ECC*1 Memory Size : 1GB, 2GB, 4GB, 8GB UDIMM |
| Expansion Slots |
Total Slot : 6 Slot Location 1 : PCI 32bit/33MHz Slot Location 2 : PCI 32bit/33MHz Slot Location 3 : PCI-E x8 (Gen2 X4 Link) Slot Location 4 : PCI-E x16 (Gen3 X8 Link) *2 Slot Location 5 : PCI 32bit/33MHz Slot Location 6 : PCI-E x16 (Gen3 X16 Link), Auto switch to x8 link if slot 4 is occupied *2 Additional Slot 1 : PIKE Slot for Stroage expansion Follow SSI Location# |
| Form Factor | 12 " x 9.6 " Inch |
| ASUS Features |
FAN speed control Rack Ready (Rack and Pedestal dual use) |
| Storage |
SATA Controller : Intel® C204 2 x SATA3 6Gb/s ports 4 x SATA2 3Gb/s ports Intel® Rapid Storage Technology(RST) (For Windows Only) (Support Software RAID 0, 1, 5, 10 ) LSI® MegaRAID (For Linux/Windows) (Support Software RAID 0, 1, 10 ) SAS Controller : ASUS PIKE 1068E 8-port SAS RAID card (Optional) ASUS PIKE 6480 8-port SAS RAID card(Optional) ASUS PIKE 2008 8-port SAS2 6G RAID card (Optional) ASUS PIKE 2008/IMR 8-port SAS2 6G RAID card(Optional) ASUS PIKE 2108 8-port SAS2 6G RAID card (Optional) |
| Networking | 4 x Intel® 82574L + 1 x Mgmt LAN |
| Graphic | Aspeed AST2050 with 16MB VRAM |
| On Board I/O |
1 x TPM header 1 x PSU Power Connector , 24-pin ATX power connector + 8-pin ATX 12V power connector 1 x Management Connector , Onboard socket for management card 1 x Internal A Type USB Port 2 x USB pin header , Up to 4 Devices 5 x Fan Header , 4pin (3pin/4pin fan dual support) 1 x SMBus 1 x Chassis Intruder 2 x Serial Port Header |

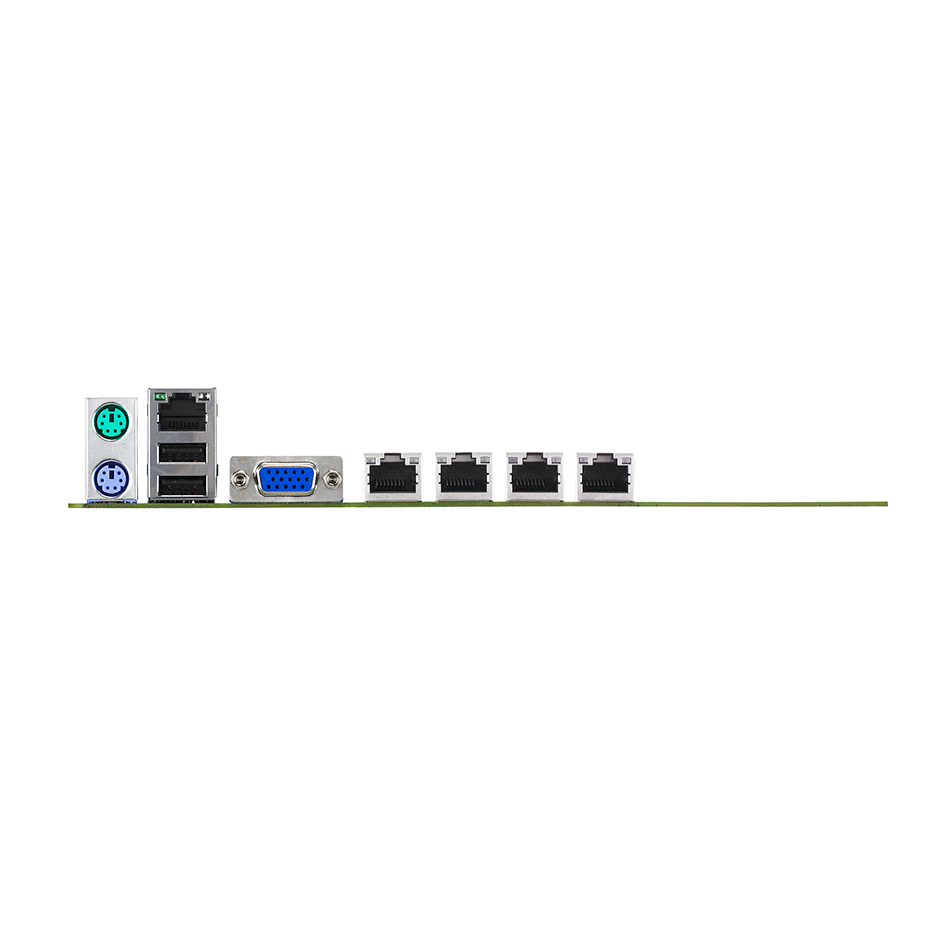

| Back I/O Ports |
2 x External USB Port 1 x VGA Port 4 x RJ-45 1 x PS/2 KB/Mouse |
| Management Solution |
ASWM Enterprise Optional ASMB5-iKVM for KVM-over-Internet |
| EMI |
US (FCC, CFR47 Part 15, Class B) Europe (CE, EN55022 & EN55024) Australia (C-TICK) |
| Environment |
Operation temperature: 10℃ ~ 35℃ Non operation temperature: -40℃ ~ 70℃ Non operation humidity: 20% ~ 90% ( Non condensing) |
| Accessories |
Gift Box Pack : 1 x User's Guide 1 x Support CD 1 x I/O Shield 4 x SATA 3G Cable(s) 2 x SATA 6G Cable(s) 1 x Plate for LGA1155 Bulk Pack : 1 x User's Guide 1 x Support CD 1 x I/O Shield 1 x Plate for LGA1155 |
| Product SKUs |
Standard Gift Box Pack Standard Bulk Pack |
| Note |
*1 DDR3 1600 can only be supported with Intel® Xeon® E3-1200 v2 Processor *2 Gen3 link can only be supported with Intel® Xeon® E3-1200 v2 Processor |
- All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets.
- PCB color and bundled software versions are subject to change without notice.
- Brand and product names mentioned are trademarks of their respective companies.
