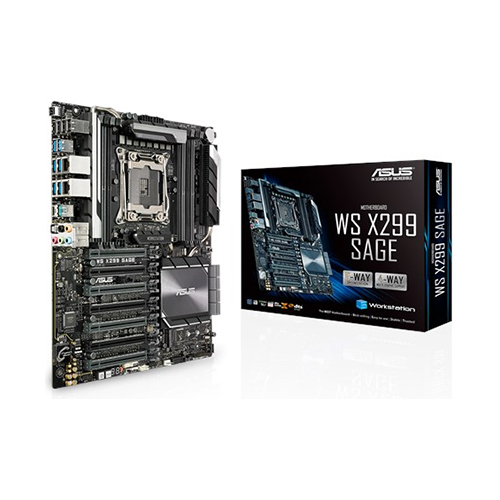

クアッドGPU、DDR4 4200MHz、デュアルM.2とU.2、USB 3.1 Gen 2コネクタ、ASUS Control Centerを搭載したIntel LGA 2066 CEBマザーボード
・JAN/UPC:0889349853672
・TEKWIND型番:ASU-WS/X299/SAGE
【主な特長】
・ クアッドGPUのグラフィックス性能: 最大4枚のデュアルスロットグラフィックスカードを搭載でき、NVIDIA® SLI™またはAMD CrossFireX™の4-Way構成に対応
・ 5-Way Optimization: ワンクリックでシステム全体のチューニングを施し、幅広い負荷に最適化されたオーバークロックとインテリジェントな冷却を実現。
・ 業界をリードする冷却機能: Fan Xpert 4、または、ASUSのUEFIで水冷やファンを総合的に管理
・ 超高効率のVRMヒートシンク: 金属フィンアレイ設計で放熱のための表面積を最大化し、スロットリングなしで性能を実現
・ ASUS Control Center: 中小企業向けの使いやすく安全で低コストなITの一元管理ソフトウェアユーティリティ
・ 超高速ストレージ: 最大32GbpsのデュアルM.2とU.2、最大10GbpsのオンボードUSB 3.1 Gen 2 Type-A/Type-Cポート、フロントパネルコネクタ
製品についてお気軽にお問い合わせください
この製品を問い合わせる定期購入をお考えの法人様向けECサービス
販社様専用会員制サイトで見るスペック
対応CPU | Intel® Socket 2066 Core™ X-Series Processors Supports Intel® Virtual RAID on CPU (VROC) * The Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types * Refer to www.asus.com for CPU support list |
---|---|
搭載チップセット | Intel® X299 |
メインメモリ | Intel® Core™ X-series Processors (6-core above) 8 x DIMM, Max. 128GB, DDR4- 4200(O.C.)/4133(O.C.)/4000(O.C.)/3600(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory Intel® Core™ X-series Processors (4-core) 4 x DIMM, Max. 64GB, DDR4- 4200(O.C.)/4133(O.C.)/4000(O.C.)/3600(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory Supports Intel® Extreme Memory Profile (XMP) * Hyper DIMM support is subject to the physical characteristics of individual CPUs. * Actual memory frequency differs from Intel CPU types and memory module. Please check Intel official site for more detail about the memory types supported by each CPU. |
マルチGPU対応 | Supports NVIDIA® 4-Way SLI™ Technology Supports AMD 4-Way CrossFireX Technology |
拡張スロット | 7 x PCIe 3.0/2.0 x16 (single x16 or dual x16/x16 or triple x16/x16/x16 or quad x16/x16/x16/x16 or seven x16/x8/x8/x8/x8/x8/x8) |
ストレージ機能 | Intel® X299 Chipset : 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode) 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode) 8 x SATA 6Gb/s port(s) 2 x U.2 connector*1 Support Raid 0, 1, 5, 10 Support Intel® Rapid Storage Technology enterprise 5.1 for X-Series(6-core and above) CPU RAID Supports Intel® Smart Response Technology Intel® Rapid Storage Technology 15 support Intel® Optane™ Memory Ready Intel® Virtual RAID (VROC) support for CPU RAID |
LAN機能 | Intel® I210-AT, 1000BASE-T/100BASE-TX/10BASE-T×1 Intel® I219-LM , 1000BASE-T/100BASE-TX/10BASE-T×1 |
オーディオ機能 | Realtek® ALC S1220A 7.1-Channel High Definition Audio CODEC - Impedance sense for front and rear headphone outputs - Internal audio Amplifier to enhance the highest quality sound for headphone and speakers - Supports : Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking - High quality 120 dB SNR stereo playback output (Line-out at rear) and 113 dB (Line-in) Audio Feature : - DTS Connect - DTS Headphone:X - Audio amplifier: Provides the highest-quality sound for headphone and speakers - Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity - Unique de-pop circuit: Reduces start-up popping noise to audio outputs Separate layer for left and right track, ensuring both sound deliver equal quality |
USB機能 | Intel® X299 Chipset : 8 x USB 3.1 Gen 1 port(s) (6 at back panel, , 2 at mid-board) Intel® X299 Chipset : 4 x USB 2.0 port(s) (4 at back panel, ) ASMedia® USB 3.1 Gen 2 controller : 2 x USB 3.1 Gen 2 port(s) (2 at back panel, , Type-A + USB Type-C™) ASMedia® USB 3.1 Gen 2 controller : 1 x USB 3.1 Gen 2 port(s) (1 at mid-board) |
独自機能 | OC Design - ASUS PRO Clock II Technology 5-Way Optimization by Dual Intelligent Processors 5 - 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ VRM, Fan Xpert 4, and Turbo Core App TPU Fan Xpert4 - Fan Xpert 4 featuring Fan Auto Tuning function and multiple thermistors selection for optimized system cooling control ASUS 5X Protection III : - ASUS SafeSlot Core: Fortified PCIe Slot prevents damage - ASUS Overvoltage Protection: World-class circuit-protecting power design - ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability! - ASUS Enhanced DRAM Overcurrent Protection - Short circuit damage prevention - ASUS ESD Guards - Enhanced ESD protection ASUS EPU : - EPU ASUS Digital Power Design : - Industry leading Digital 8 Phase CPU Power Design - Industry leading Digital 2 Phase DRAM Power Design AURA : - Aura RGB Strip Headers - Aura Addressable Strip Header(s) ASUS Exclusive Features : - AI Suite 3 - Ai Charger+ - Crystal Sound 3 ASUS EZ DIY : - ASUS CrashFree BIOS - ASUS EZ Flash - ASUS USB BIOS Flashback - Multi-language BIOS ASUS Q-Design : - ASUS Q-Shield - ASUS Q-Code - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED) - ASUS Q-Slot - ASUS Q-DIMM - ASUS Q-Connector M.2 and U.2 Onboard (The Latest Transfer Technology with up to 32Gb/s Data-transfer Speeds for M.2 and U.2) Asus Control Center (ACC) IT management software supported |
動作対応OS | Windows® 10 64-bit |
背面インターフェース | 2 x LAN (RJ45) port(s) 1 x USB 3.1 Gen 2 (teal blue)Type-A, 1 x USB 3.1 Gen 2 (black)USB Type-C™ 6 x USB 3.1 Gen 1 (blue) , 4 x USB 2.0 (one port can be switched to USB BIOS Flashback) 1 x Optical S/PDIF out 1 x USB BIOS Flashback Button(s) 1 x 8-channel Audio I/O |
基板上インターフェース | 1 x Aura Addressable Strip Header(s) 2 x U.2 port 1 x AAFP connector 1 x Aura RGB Strip Header 1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode) 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode) 1 x TPM header 1 x COM port(s) connector(s) 8 x SATA 6Gb/s connector(s) 1 x VROC_HW_Key 1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 2 x Chassis Fan connector(s) 1 x AIO_PUMP connector 1 x Thunderbolt header(s) 1 x 24-pin EATX Power connector(s) 1 x 6-pin ATX Power connector 2 x 8-pin ATX 12V Power connector(s) 1 x EZ XMP switch 1 x 5-pin EXT_FAN(Extension Fan) connector 1 x Power-on button(s) 1 x Reset button(s) 1 x Clear CMOS button(s) 1 x Water Pump header (4-pin) 1 x System panel connector 1 x Thermal sensor connector 1 x USB 3.1 Gen 2 front panel connector 1 x CPU_OV jumper 1 x MemOK! Button 1 x M.2 Fan Header |
主な付属品 | User's manual ASUS Q-Shield 1 x Vertical M.2 bracket set 1 x COM port cable(s) 8 x SATA 6Gb/s cable(s) 1 x M.2 screws 1 x Supporting DVD 1 x MOS Cooling kit (fan bracket and 40mm x 40mm fan) 1 x 3-Way SLI bridge(s) 1 x 4-Way SLI bridge(s) 1 x SLI HB BRIDGE(2-WAY-M) 1 x Q-Connector |
フォームファクター (サイズW×D) |
CEB Form Factor 12 inch x 10.5 inch ( 30.5 cm x 26.7 cm ) |
質量 | Color Box(3-in-1) Net Weight: 5.55kg Gross Weight: 8.06kg Bulk Pack(5-in-1) Net Weight: 6.99kg Gross Weight: 9.37kg |
動作環境 | Operation temperature: 10℃ ~ 35℃ Non operation temperature: -40℃ ~ 70℃ Non operation humidity: 20% ~ 90% ( Non condensing) |
その他 | *Intel® VROC is supported via RSTe, and Intel® VROC_HW_key. VROC_HW_Key is purchased separately. NVMe RAID type and function will depend on the Intel® VROC_HW_key installed. PCIEX16_1 to PCIEx16_3 & PCIEX16_4 to PCIEx16_7 support Intel® VROC separately. *1. The U.2 connectors are only supported on 44-Lane CPUs. |
