DDR4 4133MHz、デュアルM.2 & M.2ヒートシンク、U.2、USB 3.1 Gen 2コネクタ、ASMB9-iKVM、ASUS Control Centerを備えたIntel LGA 2066 ATXマザーボード

WS X299 PRO/SE

JAN/UPC:0889349813638
TEKWIND型番:ASU-WS/X299/PRO/SE

【主な特長】

・ ASUS Control Center: 中小企業向けの使いやすく安全で低コストなITの一元管理ソフトウェアユーティリティ
・ ASMB9-iKVM(BMC): リモートBIOSアップデート、ファン制御、スタンドアロンKVM、ビデオ記録、BSODキャプチャに対応しており、24時間の遠隔監視と診断が可能(Web GUI & CLI)
・ 超高効率のVRMヒートシンク: 金属フィンアレイをヒートパイプで広い表面に接続することで、X299の熱を管理し、スロットリングなしで性能を実現
・ 次世代の転送速度を実現する32GbpsのデュアルM.2およびU.2、10GbpsのUSB 3.1Type-AおよびType-C接続に対応


製品についてお気軽にお問い合わせください

この製品を問い合わせる

定期購入をお考えの法人様向けECサービス

販社様専用会員制サイトで見る

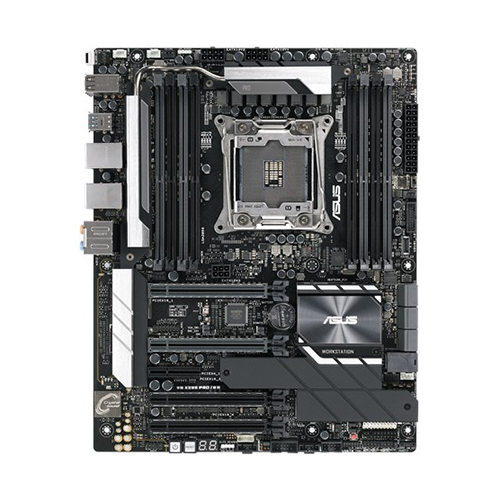

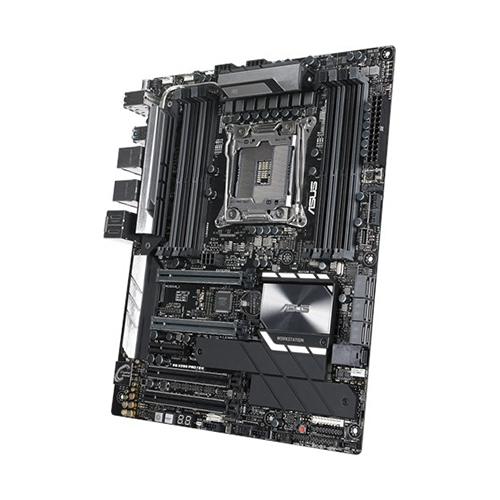

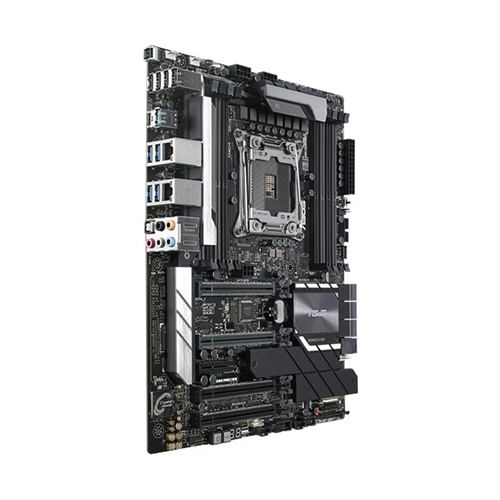

製品画像

スペック

対応CPU Intel® Socket 2066 Core™ X-Series Processors
* Refer to www.asus.com for CPU support list
搭載チップセット Build in Intel® X299
メインメモリ Intel® Core™ X-series Processors (6-core above)
8 x DIMM, Max. 128GB, DDR4- 4133(O.C.)/4000(O.C.)/3600(O.C.)/2666/2400 MHz Non-ECC, Un-buffered Memory
Intel® Core™ X-series Processors (4-core)
4 x DIMM, Max. 64GB, DDR4- 4133(O.C.)/4000(O.C.)/3600(O.C.)/2666/2400 MHz Non-ECC, Un-buffered Memory
* Hyper DIMM support is subject to the physical characteristics of individual CPUs.
* Please refer to ASUS AVL for the latest update.
* Actual memory frequency differs from Intel CPU types and memory module. Please check Intel official site for more detail about the memory types supported by each CPU.
マルチGPU対応 Supports NVIDIA® 3-Way SLI™ Technology *
Supports AMD 3-Way CrossFireX™ Technology *
拡張スロット 44-Lane CPU-
2 x PCIe 3.0 x16 (x16 mode)
1 x PCIe 3.0 x16 (x8 mode)
1 x PCIe 3.0 x16 (x4 mode)
1 x PCIe 3.0 x4 (x4 mode)
28-Lane CPU-
1 x PCIe 3.0 x16 (x16 mode)
1 x PCIe 3.0 x16 (x8 mode)
1 x PCIe 3.0 x16 (x4 mode)
1 x PCIe 3.0 x4 (x4 mode)
16-Lane CPU-
1 x PCIe 3.0 x16 (x8 mode)
2 x PCIe 3.0 x16 (x4 mode)
1 x PCIe 3.0 x4 (x4 mode)
ストレージ機能 Intel® X299 Chipset :
1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)*1
1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (both SATA & PCIE mode)*2
1 x U.2 connector
6 x SATA 6Gb/s port(s)
Support Raid 0, 1, 5, 10
Support Intel® Rapid Storage Technology enterprise 5.1 for X-Series(6-core and above) CPU RAID
Supports Intel® Smart Response Technology
Intel® Rapid Storage Technology 15 support
Intel® Optane™ Memory Ready
LAN機能 Intel® I210-AT, 1000BASE-T/100BASE-TX/10BASE-T×2
オーディオ機能 Realtek® ALC S1220A 7.1-Channel High Definition Audio CODEC featuring Crystal Sound 3
- Impedance sense for front and rear headphone outputs
- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
- Supports : Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking
- High quality 120 dB SNR stereo playback output (Line-out at rear) and 113 dB (Line-in)
Audio Feature :
- DTS Connect
- DTS Headphone:X
- Audio amplifier: Provides the highest-quality sound for headphone and speakers
- Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
- Unique de-pop circuit: Reduces start-up popping noise to audio outputs
Separate layer for left and right track, ensuring both sound deliver equal quality
USB機能 Intel® X299 Chipset :
6 x USB 3.1 Gen 1 port(s) (4 at back panel, , 2 at mid-board)
Intel® X299 Chipset :
6 x USB 2.0 port(s) (4 at back panel, , 2 at mid-board)
ASMedia® USB 3.1 Gen 2 controller :
3 x USB 3.1 Gen 2 port(s) (2 at back panel, , Type-A + USB Type-C™, 1 at mid-board)
独自機能 OC Design - ASUS PRO Clock II Technology
ASUS 5X Protection :
- ASUS Enhanced DRAM Overcurrent Protection - Short circuit damage prevention
- ASUS ESD Guards - Enhanced ESD protection
- ASUS Stainless Steel Back I/O - 3x more durable corrosion-resistant coating
ASUS EPU :
- EPU
ASUS Digital Power Design :
- Industry leading Digital 8 Phase CPU Power Design
- Industry leading Digital 2 Phase DRAM Power Design
AURA :
- Aura RGB Strip Headers
- Aura Addressable Strip Header(s)
ASUS Exclusive Features :
- Ai Charger+
- Turbo LAN
- Crystal Sound 3
ASUS Quiet Thermal Solution :
- Stylish Fanless Design with M.2 Heat-sink solution
ASUS Q-Design :
- ASUS Q-Shield
- ASUS Q-Code
- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
- ASUS Q-Slot
- ASUS Q-DIMM
- ASUS Q-Connector
M.2 and U.2 Onboard (The Latest Transfer Technology with up to 32Gb/s Data-transfer Speeds for M.2 and U.2)
Asus Control Center (ACC) IT management software supported

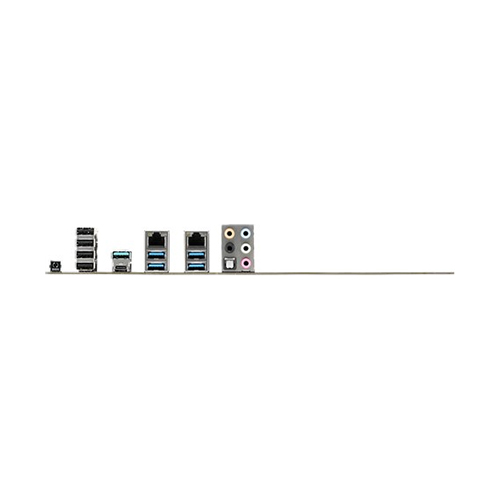

背面インターフェース 2 x LAN (RJ45) port(s)
2 x USB 3.1 Gen 2 ()Type-A + USB Type-C™
4 x USB 3.1 Gen 1 ,
4 x USB 2.0
1 x Optical S/PDIF out
1 x USB BIOS Flashback Button(s)
1 x 8-channel Audio I/O
基板上インターフェース 1 x Aura Addressable Strip Header(s)
1 x U.2 port
1 x Aura RGB Strip Header
1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s)
1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA mode & X4 PCIE mode)
1 x COM port(s) connector(s)
6 x SATA 6Gb/s connector(s)
1 x VROC_HW_Key
1 x Thunderbolt header(s)
1 x 24-pin EATX Power connector(s)
1 x 6-pin ATX Power connector
2 x 8-pin ATX 12V Power connector(s)
1 x EZ XMP switch
1 x VGA connector(s)
1 x AUX panel header(s)
1 x 5-pin EXT_FAN(Extension Fan) connector
1 x Power-on button(s)
1 x Reset button(s)
1 x Clear CMOS button(s)
1 x Front fan connector
1 x Rear fan connector
1 x U.2 Connector (support U.2 NVMe device)
1 x AIO PUMP Header
1 x Thermal sensor connector
1 x CPU_OV jumper
1 x MemOK! Button
1 x PANEL2
1 x PUMP Fan connector
1 x PANEL1
主な付属品 User's manual
I/O Shield
1 x COM port cable(s)
1 x VGA bracket cable
6 x SATA 6Gb/s cable(s)
2 x M.2 screws
1 x Supporting DVD
1 x 3-Way SLI bridge(s)
1 x SLI bridge(s)
1 x Q-Connector
1 x 2-port USB module(s)
1 x Extension Cable for RGB strips (80 cm)
1 x ASUS Fan holder
1 x 40mm x 40mm fan kit
フォームファクター
(サイズW×D)
CEB Form Factor
12 inch x 10.5 inch ( 30.5 cm x 26.7 cm )
質量 Gift Box(3-in-1)
Net Weight: 4.59 Kg
Gross Weight: 7.48 Kg

Bulk Pack(5-in-1)
Net Weight: 7.15 Kg
Gross Weight: 8.94 Kg
その他 *Actual number of Multi-graphic supported differs per Vendors' Graphic cards. Please check with Vendor beforehand.
*1 Bandwidth is shared between M.2_2 and U.2
*2 SATA Bandwidth is shared between M.2_1 and SAT6G_1
