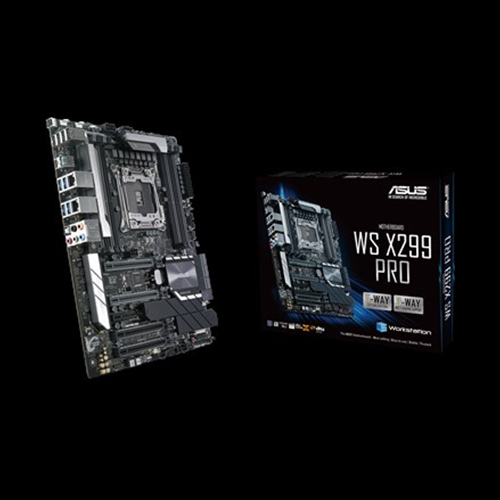

DDR4 4133MHz、デュアルM.2 & M.2ヒートシンク、U.2、USB 3.1 Gen 2コネクタを搭載したIntel LGA 2066 ATXマザーボード
・JAN/UPC:0889349810279
・TEKWIND型番:ASU-WS/X299/PRO
【主な特長】
・ 5-Way Optimization: ワンクリックでシステム全体のチューニングを施し、幅広い負荷に最適化されたオーバークロックとインテリジェントな冷却を実現。
・ 業界をリードする冷却機能: Fan Xpert 4、または、ASUSのUEFIで水冷やファンを総合的に管理
・ 超高効率のVRMヒートシンク: 金属フィンアレイをヒートパイプで広い表面に接続することで、X299の熱を管理し、スロットリングなしで性能を実現
・ 次世代の転送速度を実現する32GbpsのデュアルM.2およびU.2、10GbpsのUSB 3.1Type-AおよびType-C接続に対応
製品についてお気軽にお問い合わせください
この製品を問い合わせる定期購入をお考えの法人様向けECサービス
販社様専用会員制サイトで見るスペック
対応CPU | Intel® Socket 2066 Core™ X-Series Processors * The Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types * Refer to www.asus.com for CPU support list |
---|---|
搭載チップセット | Intel® X299 |
メインメモリ | Intel® Core™ X-series Processors (6-core above) 8 x DIMM, Max. 128GB, DDR4- 4133(O.C.)/3600(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory Intel® Core™ X-series Processors (4-core) 4 x DIMM, Max. 64GB, DDR4- 4133(O.C.)/3600(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory Supports Intel® Extreme Memory Profile (XMP) * Hyper DIMM support is subject to the physical characteristics of individual CPUs. * Actual memory frequency differs from Intel CPU types and memory module. Please check Intel official site for more detail about the memory types supported by each CPU. |
マルチGPU対応 | Supports NVIDIA® 3-Way SLI™ Technology * Supports AMD 3-Way CrossFireX™ Technology * |
拡張スロット | 44-Lane CPU- 2 x PCIe 3.0 x16 (x16 mode) 1 x PCIe 3.0 x16 (x8 mode) 1 x PCIe 3.0 x16 (x4 mode) 1 x PCIe 3.0 x4 (x4 mode) 28-Lane CPU- 1 x PCIe 3.0 x16 (x16 mode) 1 x PCIe 3.0 x16 (x8 mode) 1 x PCIe 3.0 x16 (x4 mode) 1 x PCIe 3.0 x4 (x4 mode) 16-Lane CPU- 1 x PCIe 3.0 x16 (x8 mode) 2 x PCIe 3.0 x16 (x4 mode) 1 x PCIe 3.0 x4 (x4 mode) |
ストレージ機能 | Intel® X299 Chipset : 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)*1 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)*2 1 x U.2 connector 6 x SATA 6Gb/s port(s) Support Raid 0, 1, 5, 10 Intel® Rapid Storage Technology 15 support Support Intel® Rapid Storage Technology enterprise 5.1 for X-Series(6-core and above) CPU RAID Supports Intel® Smart Response Technology Intel® Optane™ Memory Ready |
LAN機能 | Intel® I210-AT, 1000BASE-T/100BASE-TX/10BASE-T×2 |
オーディオ機能 | Realtek® ALC S1220A 7.1-Channel High Definition Audio CODEC featuring Crystal Sound 3 - Impedance sense for front and rear headphone outputs - Internal audio Amplifier to enhance the highest quality sound for headphone and speakers - Supports : Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking - High quality 120 dB SNR stereo playback output (Line-out at rear) and 113 dB (Line-in) Audio Feature : - DTS Connect - DTS Headphone:X - Audio amplifier: Provides the highest-quality sound for headphone and speakers - Premium Japanese audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity - Unique de-pop circuit: Reduces start-up popping noise to audio outputs Separate layer for left and right track, ensuring both sound deliver equal quality Premium Japan-made audio capacitors provides warm, natural, and immersive sound with exceptional clarity and fidelity |
USB機能 | Intel® X299 Chipset : 6 x USB 3.1 Gen 1 port(s) (4 at back panel, , 2 at mid-board) Intel® X299 Chipset : 6 x USB 2.0 port(s) (4 at back panel, , 2 at mid-board) ASMedia® USB 3.1 Gen 2 controller : 2 x USB 3.1 Gen 2 port(s) (2 at back panel, , Type-A + USB Type-C™) ASMedia® USB 3.1 Gen 2 controller : 1 x USB port(s) |
独自機能 | OC Design - ASUS PRO Clock II Technology 5-Way Optimization by Dual Intelligent Processors 5 - 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ VRM, Fan Expert 4, and Turbo App TPU Fan Xpert4 - Fan Xpert 4 featuring Fan Auto Tuning function and multiple thermistors selection for optimized system cooling control ASUS 5X Protection III : - ASUS SafeSlot Core: Fortified PCIe Slot prevents damage - ASUS Overvoltage Protection: World-class circuit-protecting power design - ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability! - ASUS Enhanced DRAM Overcurrent Protection - Short circuit damage prevention - ASUS ESD Guards - Enhanced ESD protection ASUS EPU : - EPU ASUS Digital Power Design : - Industry leading Digital 8 Phase CPU Power Design - Industry leading Digital 2 Phase DRAM Power Design AURA : - Aura RGB Strip Headers - Aura Addressable Strip Header(s) ASUS Exclusive Features : - AI Suite 3 - Ai Charger+ - Turbo LAN - Crystal Sound 3 ASUS EZ DIY : - ASUS CrashFree BIOS - ASUS EZ Flash - ASUS USB BIOS Flashback - Multi-language BIOS ASUS Q-Design : - ASUS Q-Shield - ASUS Q-Code - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED) - ASUS Q-Slot - ASUS Q-DIMM - ASUS Q-Connector M.2 and U.2 Onboard (The Latest Transfer Technology with up to 32Gb/s Data-transfer Speeds for M.2 and U.2) Asus Control Center (ACC) IT management software supported |
背面インターフェース | 2 x LAN (RJ45) port(s) 2 x USB 3.1 Gen 2 (teal blue)Type-A + USB Type-C™ 4 x USB 3.1 Gen 1 , 4 x USB 2.0 1 x Optical S/PDIF out 1 x USB BIOS Flashback Button(s) 1 x 8-channel Audio I/O |
基板上インターフェース | 1 x Aura Addressable Strip Header(s) 1 x AAFP connector 1 x Aura RGB Strip Header 1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) 1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s) 2 x M.2 Socket 3 1 x TPM header 6 x SATA 6Gb/s connector(s) 1 x VROC_HW_Key 2 x CPU Fan connector(s) 1 x AIO_PUMP connector 1 x Thunderbolt header(s) 1 x 24-pin EATX Power connector(s) 2 x 8-pin ATX 12V Power connector(s) 1 x 6-pin EZ_PLUG Power connector(s) 1 x EZ XMP switch 1 x Front panel connector(s) 1 x AUX panel header(s) 1 x MemOK! button(s) 1 x Thermal sensor connector(s) 1 x CPU OV 1 x Power-on button(s) 1 x Clear CMOS button(s) 1 x 5-pin EXT_FAN(Extension Fan) connector 1 x Rear fan 1 x COM port header 1 x U.2 Connector (support U.2 NVMe device) 1 x USB 3.1 Gen 2 front panel connector 1 x PANEL2 1 x PUMP Fan connector 1 x PANEL1 |
主な付属品 | User's manual I/O Shield 1 x COM port cable(s) 6 x SATA 6Gb/s cable(s) 2 x M.2 screws 1 x Supporting DVD 1 x 3-Way SLI bridge(s) 1 x SLI bridge(s) 1 x Q-Connector 1 x 2-port USB module(s) 1 x Extension Cable for RGB strips (80 cm) 1 x ASUS Fan holder 1 x 40mm x 40mm fan kit |
フォームファクター (サイズW×D) |
ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
質量 | Gift Box(3-in-1) Net Weight: 4.59 Kg Gross Weight: 7.48 Kg Bulk Pack(5-in-1) Net Weight: 7.15 Kg Gross Weight: 8.94 Kg |
その他 | *Actual number of Multi-graphic supported differs per Vendors' Graphic cards. Please check with Vendor beforehand. *1 Bandwidth is shared between M.2_2 and U.2 *2 SATA Bandwidth is shared between M.2_1 and SAT6G_1 |
