Z270 WS

4-WayマルチGPU、M.2/U.2/NVMe PCIeによる3-Way RAID 0といった最新のハイエンド構成に完全対応したZ270ワークステーションマザーボード

・JAN/UPC：0889349539606
・TEKWIND型番：ASU-Z270/WS

【主な特長】

・ 4-Way NVIDIA^® SLI™ および AMD^® Crossfire X™がもたらす究極のグラフィックス
・次世代の転送速度を実現する32GbpsのデュアルM.2およびU.2、10GbpsのUSB 3.1Type-AおよびType-C接続に対応
・ Auto-TuningとFan Xpert 4から成る5-Way Optimizationにより、独自のビルドに合わせて自動的にカスタム・最適化されたオーバークロックプロファイルを提供することで、パフォーマンスを最大限に引き出し、システムのダイナミックな冷却を実現
・オーディオコーデック「Realtek^® S1220A」が生み出す透明感と力強さが調和したサウンド
・強固な板金で覆われた独自の改良型PCIeスロット「SafeSlot」は、重量級GPU向けに高い保持力と耐久性を実現
・内蔵するIntel Gigabit LANがもたらすサーバーグレードのネットワーク

製品についてお気軽にお問い合わせください

この製品を問い合わせる

プロフェッショナルがいるテックウインドの強み

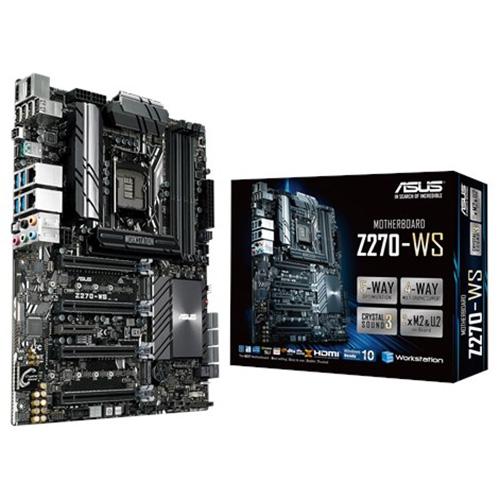

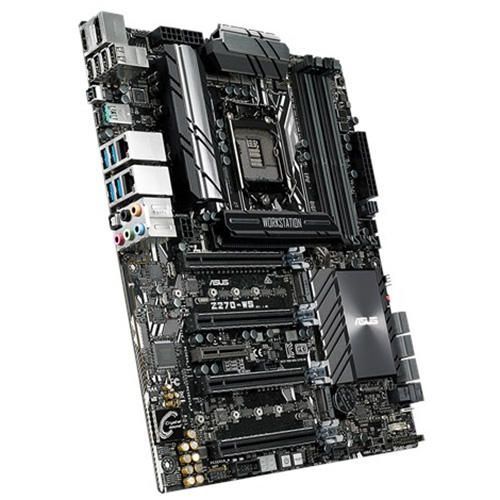

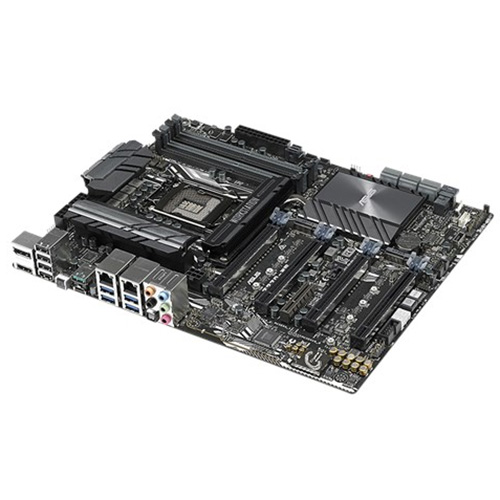

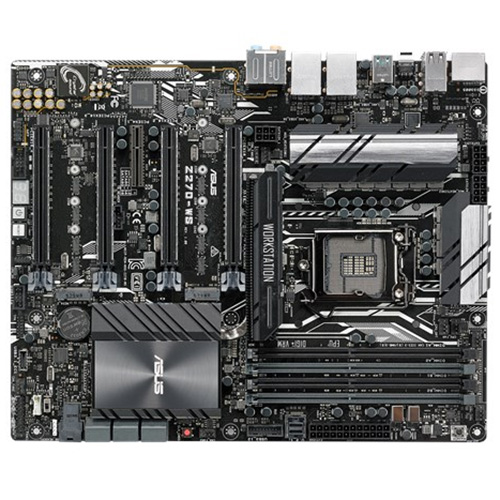

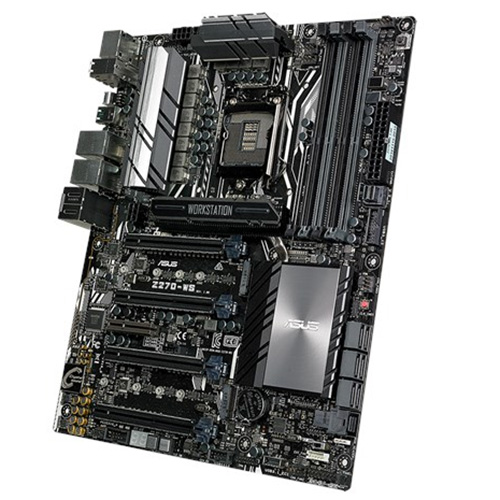

製品画像

スペック

対応CPU	Intel^® for 7^th/6^th Generation Core™ i7/Core™ i5/Core™ i3/Pentium^®/Celeron^® Processors Supports Intel^® 14 nm CPU Supports Intel^® Turbo Boost Technology 2.0 * The Intel^® Turbo Boost Technology 2.0 support depends on the CPU types. * Refer to www.asus.com for CPU support list
搭載チップセット	Intel^® Z270
対応メモリ	4 x DIMM, Max. 64GB, DDR4- 3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666(O.C.)/2400(O.C.)/2133 MHz Non-ECC, Un-buffered Memory デュアルチャンネル Memory Architecture Supports Intel^® Extreme Memory Profile (XMP) * Hyper DIMM support is subject to the physical characteristics of individual CPUs. * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
グラフィックス機能	Integrated Graphics Processor- Intel^® HD Graphics support Multi-VGA output support : HDMI/DisplayPort ports - Supports HDMI 2.0 with max. resolution 4096 x 2160 @ 60 / 24 Hz*¹ - Supports DisplayPort with max. resolution 4096 x 2304 @ 24 Hz / 4096 x 2304 @ 60 Hz - Supports High Dynamic Range(HDR),Wide Color Gamut(Rec.2020),HDCP 2.2 Maximum shared memory of 1024 MB Supports Intel^® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™ Supports up to 2 displays simultaneously DP 1.2 Multi-Stream Transport compliant, supports DP 1.2 monitor daisy chain up to 3 displays
マルチGPU対応	Supports NVIDIA^® Quad-GPU SLI™ Technology ⁷ Supports NVIDIA^® 4-Way SLI™ Technology ⁷ Supports AMD Quad-GPU CrossFireX™ Technology ⁷ Supports AMD 4-Way CrossFireX Technology ⁷
拡張スロット	4 x PCIe 3.0/2.0 x16 (single at x16, dual at x16/x16 mode, triple at x16/x8/x8 mode or quad x8/x8/x8/x8 mode) 1 x PCIe x4 (max at x4 mode)
ストレージ機能	1 x M.2 x4 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)² 1 x M.2 x4 Socket 3, with M Key, type 2242/2260/2280/22110 storage devices support (both SATA & PCIE mode)³ 2 x U.2 connector³ 6 x SATA 6Gb/s port(s)² Support Raid 0, 1, 5, 10 Supports Intel^® Smart Response Technology⁴ Intel^® Rapid Storage Technology 15 support Intel^® Optane™ Memory Ready ⁵
LAN機能	Intel® I210-AT, 1 x Gigabit LAN Controller(s) Intel® I219-LM , 1 x Gigabit LAN Gigabit Intel^® LAN Connection- 802.3az Energy Efficient Ethernet (EEE) appliance ASUS Turbo LAN Utility
オーディオ機能	Realtek^® ALC S1220A 8-Channel High Definition Audio CODEC featuring Crystal Sound 3 - Impedance sense for front and rear headphone outputs - Supports : Jack-detection, Multi-streaming 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in) Audio Feature : - DTS Connect - DTS Headphone:X - Optical S/PDIF out port(s) at back panel - Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference - Unique de-pop circuit: Reduces start-up popping noise to audio outputs - EMI protection cover to prevent electrical noise to affect the amplifier quality - Power pre-regulator: Reduces power input noise to ensure consistent performance Separate layer for left and right track, ensuring both sound deliver equal quality Premium Japan-made audio capacitors provides warm, natural, and immersive sound with exceptional clarity and fidelity
USB機能	Intel^® Z270 Chipset : 6 x USB 3.1 Gen 1 port(s) (4 at back panel, , 2 at mid-board) Intel^® Z270 Chipset : 6 x USB 2.0/1.1 port(s) (4 at back panel, , 2 at mid-board) ASMedia^® USB 3.1 Gen 2 controller : 2 x USB 3.1 port(s) (2 at back panel, , Type-A + USB Type-C™) ASMedia^® USB 3.1 Gen 2 controller : 1 x USB 3.1 Gen 2 front panel connector port(s)
独自機能	OC Design - ASUS PRO Clock Technology - Full BCLK range for extreme overclocking performance 5-Way Optimization by Dual Intelligent Processors 5 - Whole system optimization with a single click! 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ Power Control, Fan Xpert 4, and Turbo App together, providing better CPU performance, efficient power saving, precise digital power control, whole system cooling and even tailor your own app usages. Gamer's Guardian: - SafeSlot ASUS TPU : - Auto Tuning - GPU Boost ASUS EPU : - EPU ASUS Digital Power Design : - Industry leading Digital 8 + 4 + 2 Phase Power Design ASUS Exclusive Features : - USB BIOS Flashback - MemOK! - AI Suite 3 - Ai Charger - ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface - Turbo LAN - Crystal Sound 3 - EZ XMP ASUS Exclusive Features ASUS Quiet Thermal Solution : - Stylish Fanless Design Heat-pipe solution - ASUS Fan Xpert 4 ASUS EZ DIY : - ASUS CrashFree BIOS - ASUS EZ Flash 3 - ASUS USB BIOS Flashback CPU Installation Tool - Three-step simplicity and safety ASUS Q-Design : - ASUS Q-Shield - ASUS Q-Code - ASUS Q-LED (CPU, DRAM, VGA, HDD LED) - ASUS Q-Slot - ASUS Q-DIMM - ASUS Q-Connector Performance Optimization : - Fan Xpert 4 featuring Fan Auto Tuning function and multiple thermistors selection for optimized system cooling control Turbo App Key Express M.2 and U.2 Onboard (The Latest Transfer Technology with up to 32Gb/s Data-transfer Speeds for M.2 and U.2)

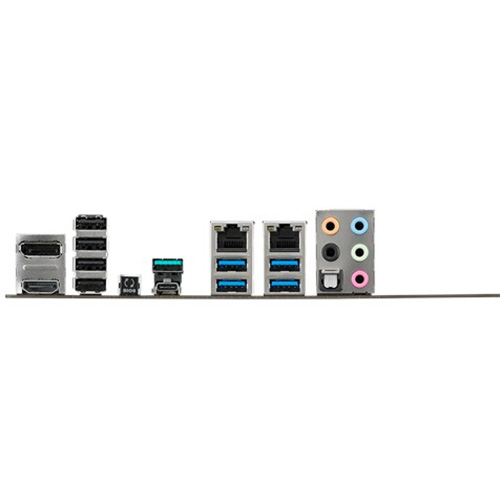

背面インターフェース	1 x DisplayPort 1 x HDMI 2 x LAN (RJ45) port(s) 1 x USB 3.1 Gen 2 (teal blue)Type-A 1 x USB 3.1 Gen 2 USB Type-C™ 4 x USB 3.1 Gen 1 4 x USB 2.0 1 x Optical S/PDIF out 1 x USB BIOS Flashback Button(s) 1 x 8-channel Audio I/O
基板上インターフェース	1 x RGB Header(s) 1 x USB 3.1 Gen 1 connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin) 1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s) 2 x M.2 Socket 3 6 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 3 x Chassis Fan connector(s) () 1 x AIO_PUMP connector 1 x Thunderbolt header(s) 2 x 8-pin EATX 12 V Power connector 1 x 6-pin EATX 12 V_1 Power connector(s) 1 x 24-pin EATX Power connector(s) 1 x EZ XMP switch 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s) (Q-Connector) 1 x 5-pin EXT_FAN(Extension Fan) connector 1 x MemOK! button(s) 1 x Power-on button(s) 1 x Clear CMOS button(s) 1 x 14-1 pin TPM connector 2 x U.2 connector 1 x COM port header 1 x USB 3.1 Gen 2 front panel connector
主な付属品	User's manual ASUS Q-Shield 1 x 2-Way SLI bridge(s) 1 x COM port cable(s) 6 x SATA 6Gb/s cable(s) 2 x M.2 Screw Package 1 x CPU installation tool 1 x Supporting DVD 1 x 3-Way SLI bridge(s) 1 x 4-Way SLI bridge(s) 1 x Q-Connector 1 x 2-port USB 2.0 module(s) 1 x Extension Cable for RGB strips (80 cm)
BIOS機能	128 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.0, ACPI 6.0, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information.
管理機能	WfM 2.0, DMI 3.0, WOL by PME, PXE
OS	Windows^® 10 Windows^® 8.1 64-bit ⁶ Windows^® 7 64-bit ⁶
フォームファクター（サイズW×D）	ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
その他	1 HDMI 2.0 60Hz resolution support requires necessary drivers update. 2 The M.2_1 socket shares bandwidth with SATA6G_56 ports. When using M.2 PCIe devices in X2 mode, SATA_56 ports will not be disabled.When using M.2 PCIe devices in X4 mode, SATA_56 ports will be disabled. 3 The M.2_2 socket shares bandwidth with U.2_2 connector and SATA6G_1 port. When using M.2_2 socket with PCIe bandwidth, SATA6G_1 port will not be disabled and U.2_2 connector will be disabled. When using M.2_2 socket with SATA bandwidth, SATA6G_1 port and U.2_2 connector will be disabled. When using U.2_2 connector, SATA6G_1 port will not be disabled and M.2_2 connector will be disabled. 4 These functions will work depending on the CPU installed. 5 Intel^® Optane Technology is only supported when using 7th Generation Intel^® processors. Before using Intel^® Optane memory modules, ensure that you have updated your motherboard drivers and BIOS to the latest version from ASUS support website. 6 Windows^® 8.1 64-bit and Windows^® 7 64-bit are only supported when using 6th Generation Intel^® Processors *7 Actual number of Multi-graphic supported differs per Vendors' Graphic cards. Please check with Vendor beforehand.
