ASUS（エイスース） Xonar U5

Compact 5.1-channel USB sound card and headphone amplifier with 192kHz/24-bit HD sound and Sonic Studio suite

JAN/UPC：0886227820733
TEKWIND型番：ASU-XONAR/U5

【主な特長】

・True 5.1-channel HD (192kHz/24-bit) surround sound from a compact USB-powered device
・104dB signal-to-analog ratio (SNR) ensures pure sound
・Sonic Studio provides complete control over loads of sound technologies
・Perfect Voice technology eliminates noises for clear in-game communications
・Independent mic and master-volume controls for instant in-game adjustments
・Integrated headphone amplifier provides clear, detailed sound for an immersive audio experience

製品についてお気軽にお問い合わせください

この製品を問い合わせる

プロフェッショナルがいるテックウインドの強み

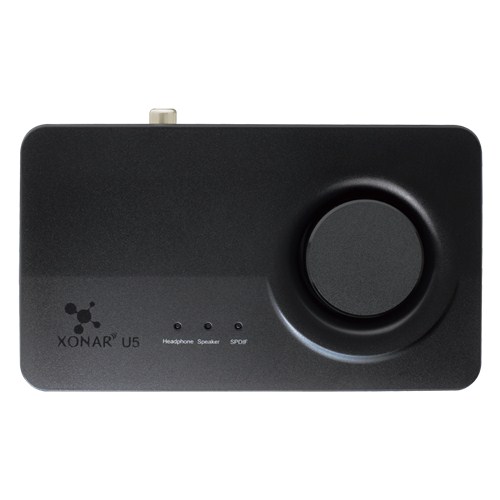

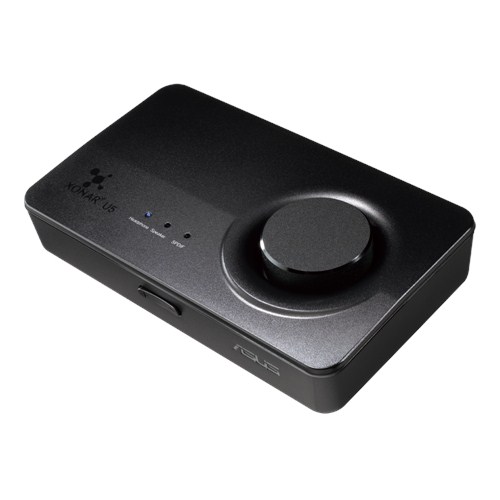

製品画像

仕様（スペック）

SN比	Line output (RCA, 3.5) : 1 Vrms (2.828 Vp-p), Headphone output : 1.3 Vrms (3.677 Vp-p)
シリーズ	Xonar
周波数特性	10 Hz to 44 KHz
出力端子	4 x 3.5 mm jack (1/8") (Headphone out /Front out/Center-Subwoofer out/Rear out)
接続形式	USB
入力端子	1 x 3.5 mm jack (1/8") (Line-in/ Mic-in combo)

Audio
Interface
USB
Audio
Performance
Output Signal-to-Noise Ratio (A-Weighted) (Front-out) :
104 dB
Output THD+N at 1kHz (Front-out) :
>0.005 %(-86 dB)
Frequency Response (-3dB, 24bit/96KHz input) :
10 Hz to 44 KHz
Output/Input Full-Scale Voltage :
Line output (RCA, 3.5) : 1 Vrms (2.828 Vp-p)
Headphone output : 1.3 Vrms (3.677 Vp-p)
Chipset
Audio Processor :C-Media CM6631A High-Definition Sound Processor
Sample Rate
and
Resolution
Analog Playback Sample Rate and Resolution :
44.1K/48K/88.2K/96K/192KHz @ 16bit/24bit
Analog Recording Sample Rate and Resolution :
44.1K/48K/88.2K/96K/192KHz @ 16bit/24bit
S/PDIF Digital Output :
44.1K/48K/88.2K/96K/192KHz @ 16bit/24bit
ASIO Driver Support :
44.1K/48K/88.2K/96K/192KHz @ 16bit/24bit

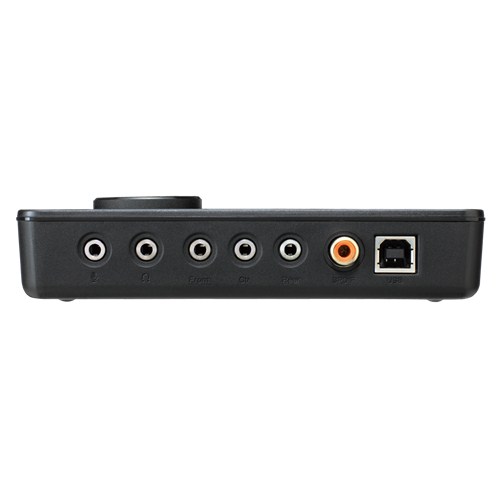

Connectivity
Analog Output
4 x 3.5 mm jack (1/8") (Headphone out /Front out/Center-Subwoofer out/Rear out)
Analog Input
1 x 3.5 mm jack (1/8") (Line-in/ Mic-in combo)
Digital
1 x S/PDIF out (1 x Coaxial)
Special
Features
Sonic Studio
Operating
System
Windows® 8.1
Windows® 8 , 32bit/64bit
Windows® 7 , 32bit/64bit
Mac OS X *
Accessories
S/PDIF adapter x 1
USB cable x 1
Driver CD x 1
Quick start guide x 1
Dimensions
138 x 80 x 25 mm ( L x W x H )
Note
* Xonar U5 playback under OS X without any driver needed.
