ASUS（エイスース） Z10PE-D16(ASMB8-iKVM)

Powerful Expandability with Supreme Computing Power

・JAN/UPC：0886227751075
・TEKWIND型番：ASU-Z10PE-D16

ASUS Z10PE-D16 is perfectly built for expandability and extreme computing performance. ASUS Z10PE-D16 has mass storage capacity, along with an M.2 slot for added flexibility, and is engineered with premium components for premium efficiency. Together with optimized user experience and an intuitive remote-management solution, Z10PE-D16 is ideal for enterprise general purpose and being the computing/memcache node in the datacenter.

製品についてお気軽にお問い合わせください

この製品を問い合わせる

プロフェッショナルがいるテックウインドの強み

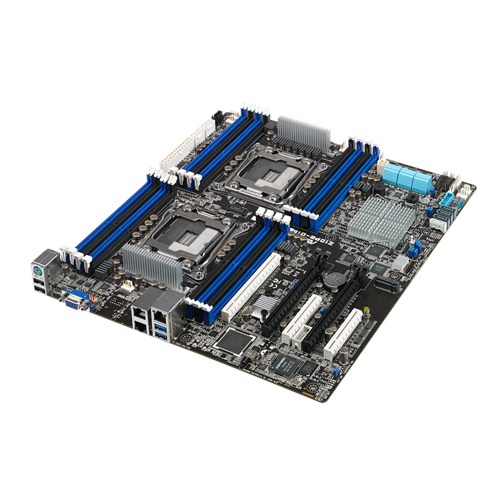

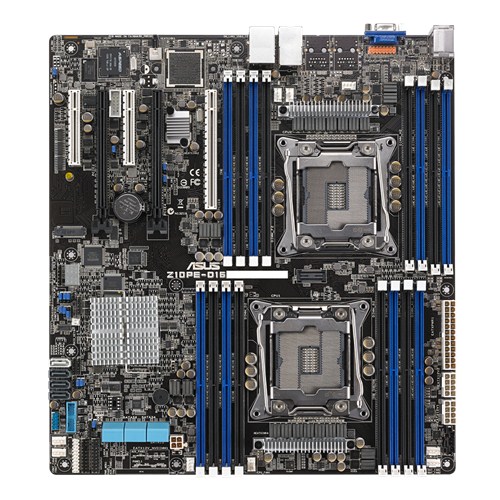

製品画像

スペック

Processor/
System Bus
2 x Socket R3 (LGA 2011-3)
Intel® Xeon® processor E5-2600 v3 product family
QPI 6.4 / 8.0 / 9.6 GT/s
Core Logic
Intel® C612 PCH
Memory
Total Slots : 16 (4-channel per CPU, 8 DIMM per CPU)
Capacity : Maximum up to 1024GB LRDIMM
Memory Type :
DDR4 2133 /1866/1600/1333 RDIMM*
DDR4 2133 /1866/1600/1333 LRDIMM*
DDR4 2133 /1866/1600/1333 NVDIMM*
Memory Size :
32GB, 16GB, 8GB, 4GB RDIMM
64GB, 32GB LRDIMM
Expansion Slots
Total Slot : 5
Slot Location 1 : PCI-E x8 (Gen3 X4 Link), MIO supported
Slot Location 2 : PCI-E x16 (Gen3 X16 Link)
Slot Location 3 : PCI-E x8 (Gen3 X8 Link)
Slot Location 4 : PCI-E x16 (Gen3 X16 Link)
Slot Location 6 : PCI-E x16 (Gen3 X16 Link)
Form Factor
EEB (12"x13")
ASUS Features
FAN speed control
Rack Ready (Rack and Pedestal dual use)
ASWM Enterprise
Storage
SATA Controller :
Intel® C612
10 x SATA3 6Gb/s ports
or
9 x SATA3 6Gb/s ports + 1 x M.2 connector
Intel® Rapid Storage Technology Enterprise(RSTe) (For Windows Only)
(Support Software RAID 0, 1, 5, 10 )
LSI® MegaRAID (For Linux/Windows)
(Support Software RAID 0, 1, 10 )
SAS Controller :
ASUS PIKE II 3008 8-port SAS HBA card(Optional)
ASUS PIKE II 3108 8-port SAS HW RAID card(Optional)
Networking
1 x Dual Port Intel Ethernet Controller i350-AM2 + 1 x Mgmt LAN
Graphic
Aspeed AST2400 with 32MB VRAM
On Board I/O
1 x TPM header
1 x PSU Power Connector (24-pin SSI power connector + 8-pin SSI 12V + 8-pin SSI 12V power connector)
1 x USB 3.0 pin header , Up to 2 Devices
1 x USB 2.0 pin header
9 x Fan Header , 4pin
1 x SMBus
1 x Chassis Intruder
2 x Front LAN LED
1 x Serial Port Header
1 x M.2 connector , NGFF Type : 2242, Capacity : 16~128GB

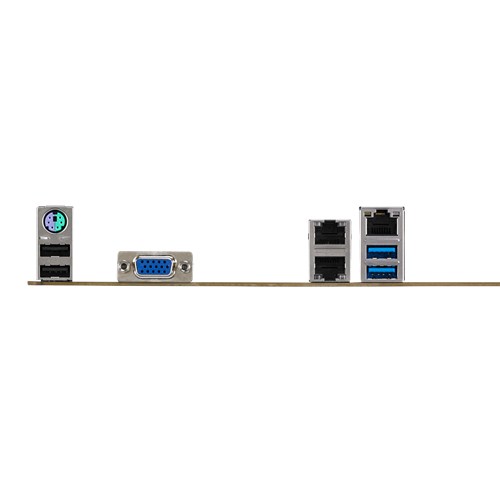

Back I/O Ports
2 x USB 3.0
2 x USB 2.0
1 x VGA Port
2 x GbE LAN
1 x Mgmt LAN
1 x PS/2 KB/Mouse
Management
Solution
ASWM Enterprise
ASMB8-iKVM for KVM-over-Internet
Environment
Operation temperature: 10℃ ~ 35℃
Non operation temperature: -40℃ ~ 70℃
Non operation humidity: 20% ~ 90% ( Non condensing)
Monitoring
CPU Temperature
Fan RPM
Note
* Please refer to www.asus.com for latest momory AVL update
2133MT/s@1DPC only

Products certified by the Federal Communications Commission and Industry Canada will be distributed in the United States and Canada. Please visit the ASUS USA and ASUS Canada websites for information about locally available products.
All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets.
PCB color and bundled software versions are subject to change without notice.
Brand and product names mentioned are trademarks of their respective companies.
