ASUS（エイスース） P9D-V

Combat Model with Advanced I/O Design

・JAN/UPC：0886227559510
・TEKWIND型番：ASU-P9D-V

【主な特長】

The ASUS P9D-V is the latest ASUS UP serverboard, designed around the Intel® Denlow platform as an attractive entry model that provides a highly cost and power-efficient option. The P9D-V uses the Intel® C224 chipset, featuring three legacy PCI slots, dual server-class Intel® Ethernet, and digital power delivery. It is ideal for SMB, web, printer, and file servers, or any other entry-level server application.

製品についてお気軽にお問い合わせください

この製品を問い合わせる

プロフェッショナルがいるテックウインドの強み

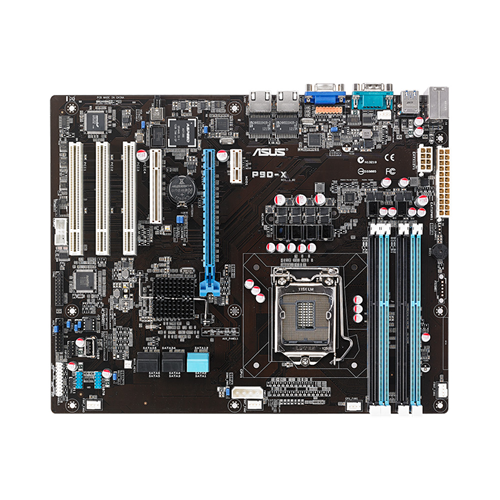

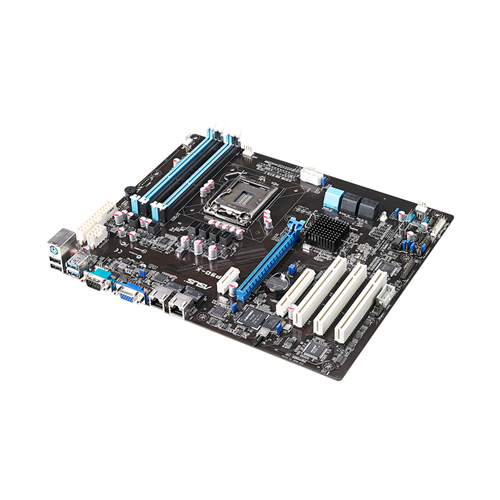

製品画像

スペック

CPU	Intel LGA1150
チップセット	Intel C224
メモリ	DDR3, 1333/1600, UDIMM, with ECC
拡張スロット	PCI-E x8, PCI-E x16
背面端子類	1x External Serial Port, 4x External USB Port, 1x VGA Port, 2x RJ-45, 1x PS/2 KB/Mouse

Processor/System
Bus
1 x Socket LGA1150
Intel® Xeon® processor E3-1200 v3 product family
4th Gen Intel® Core™ i3 processors
Intel® Pentium™ processors
Intel® Celeron™ processors

*Refer to www.asus.com for CPU Support list
Core Logic
Intel® C224 Chipset
Memory
Total Slots : 4 (2-channel)
Capacity : Maximum up to 32GB UDIMM
Memory Type :
DDR3 1600/1333 UDIMM with ECC
Memory Size :
8GB, 4GB, 2GB
Expansion Slots
Total Slot : 6
Slot Location 1 : PCI 32bit/33MHz
Slot Location 2 : PCI 32bit/33MHz
Slot Location 3 : PCI 32bit/33MHz
Slot Location 4 : PCI-E x8 (Gen2 X4 Link)
Slot Location 6 : PCI-E x16 (Gen3 X16 Link)
Slot Location 7 : MIO Slot for Audio card
Follow SSI Location#
Form Factor
ATX (12"x9.6")
ASUS Features
FAN speed control
Rack Ready (Rack and Pedestal dual use)
ASWM Enterprise
Storage
SATA Controller :
Intel® C224
4 x SATA3 6Gb/s ports
2 x SATA2 3Gb/s ports
Intel® Rapid Storage Technology Enterprise(RSTe) (For Windows Only)
(Support Software RAID 0, 1, 5, 10 )
Networking
2 x Intel® I210AT
Graphic
Aspeed AST1300 with 64MB VRAM
On Board I/O
1 x TPM header
1 x PSU Power Connector (24-pin ATX power connector + 8-pin ATX 12V power connector)
1 x USB 3.0 pin header , Up to 2 Devices
2 x USB 2.0 pin header , Up to 4 Devices
1 x Internal A Type USB Port*1
5 x Fan Header , 4pin
1 x Chassis Intruder
2 x Front LAN LED
1 x Serial Port Header
1 x SATA DOM Power connector*2
1 x VGA Header

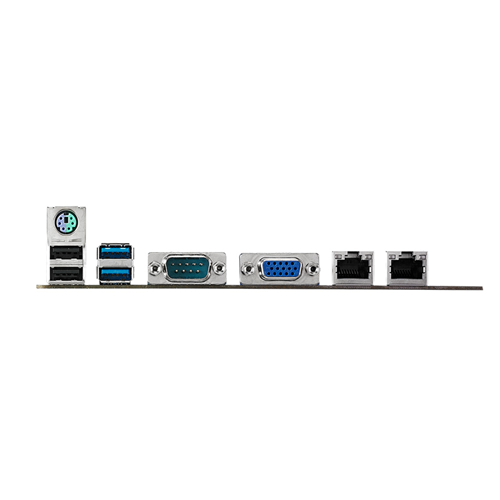

Back I/O Ports
1 x External Serial Port
4 x External USB Port (2 x USB 3.0, 2 x USB 2.0)
1 x VGA Port
2 x RJ-45
1 x PS/2 KB/Mouse
Management
Solution
Software: ASWM Enterprise
Regulatory
Compliance
CE, C-Tick, FCC(Class B)
Environment
Operation temperature: 10℃ ~ 35℃
Non operation temperature: -40℃ ~ 70℃
Non operation humidity: 20% ~ 90% ( Non condensing)
Accessories
Standard Gift Box Pack
1 x User Guide
2 x Support CD
1 x I/O shield
4 x SATA 6G cables + 2 x SATA 3G cables
1 x USB to SATA DOM Power cable
1 x Plate for LGA1150

Standard Bulk Pack
1 x User Guide
2 x Support CD
1 x I/O shield
1 x Plate for LGA1150
Product SKUs
Standard Gift Box Pack
Standard Bulk Pack
Monitoring
CPU Temperature
Fan RPM
Note
*1 1 x USB 2.0 connector
*2 4-pin power connector
