Extreme I/O Expandability with High VR Power Efficiency

P9D-E/4L

JAN/UPC:0886227559459
TEKWIND型番:ASU-P9D-E/4L

P9D-E/4L is the flagship model of ASUS latest UP Denlow serverboards. The board is perfectly designed with powerful I/O expandability and digital power solution increasing VR power efficiency up to 94%. The versatile and highly reliable P9D-E/4L is ideal for data center front-end, firewall, gateway, storage, SMB print/ file/ mail/ exchange server, and more.


製品についてお気軽にお問い合わせください

この製品を問い合わせる

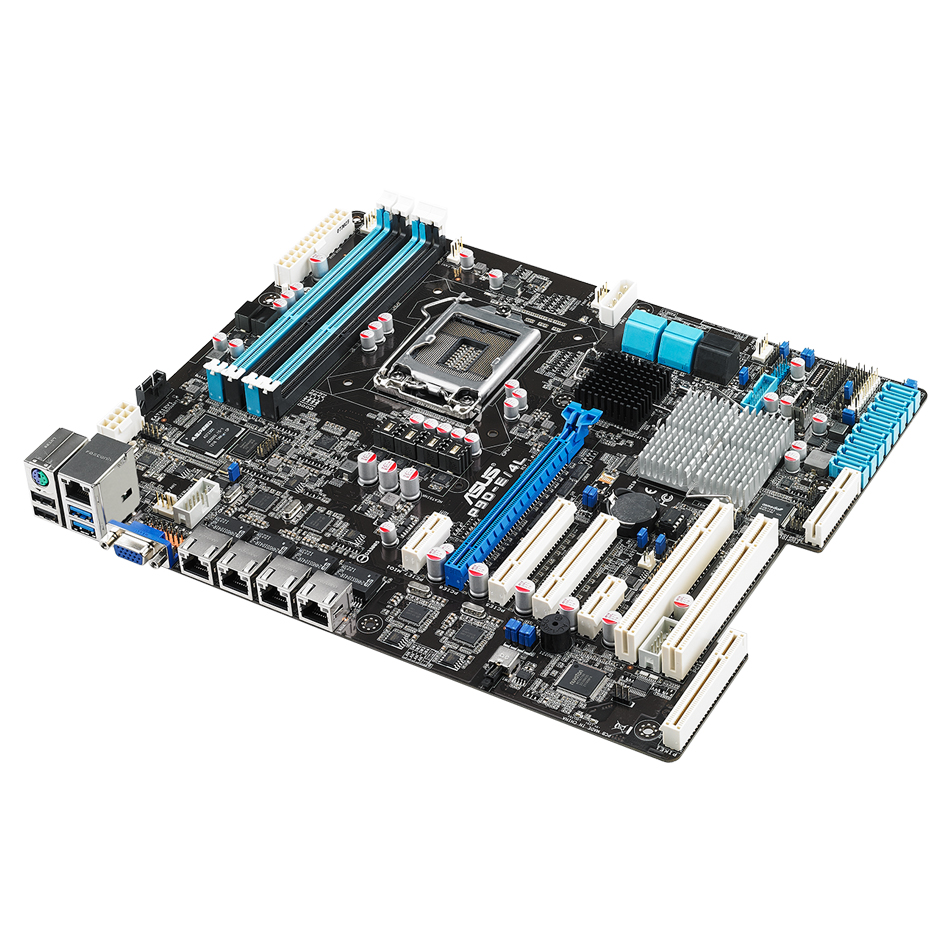

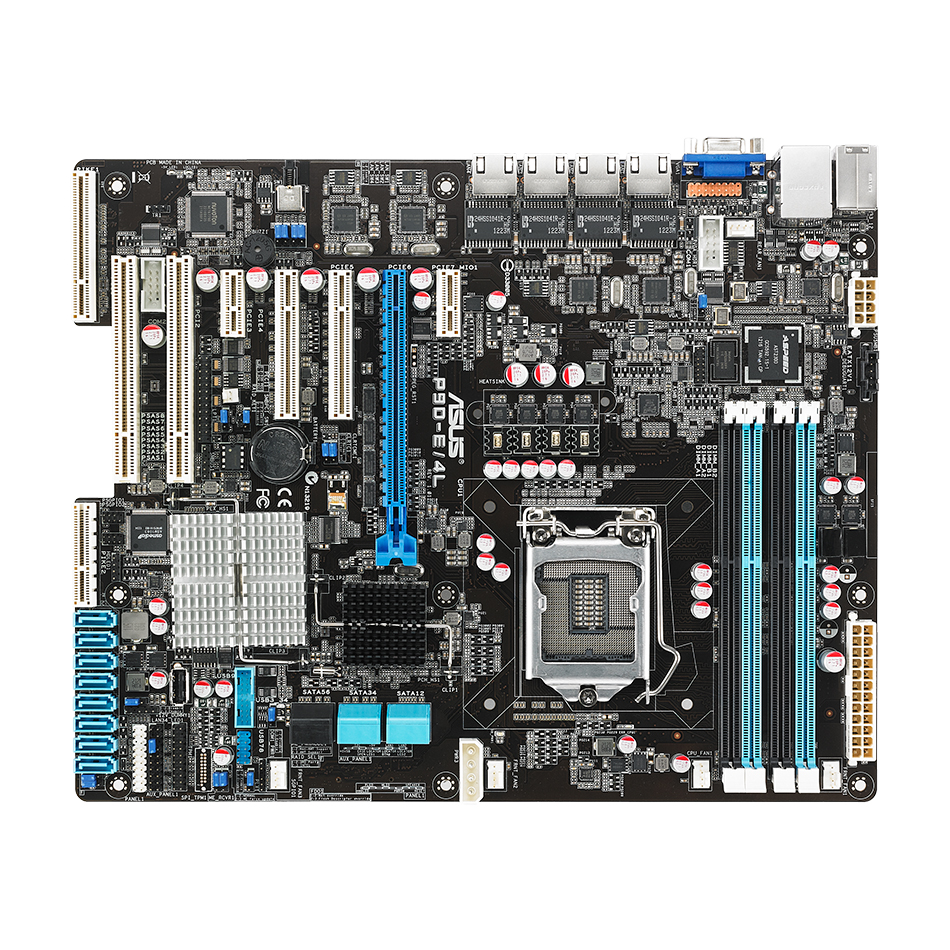

製品画像

スペック

CPU Intel LGA1150
チップセット Intel C224
メモリ DDR3, 1333/1600, UDIMM, with ECC
拡張スロット PCI-E x1, PCI-E x8, PCI-E x8, PCI-E x16, PCI-E x1
背面端子類 4x External USB Port, 1x VGA Port, 4x RJ-45 + 1x Mgmt LAN, 1x PS/2 KB/Mouse
  • Processor
    /System Bus
    1 x Socket LGA1150
    Intel® Xeon® processor E3-1200 v3 product family
    4th Gen Intel® Core™ i3 processors
    Intel® Pentium™ processors
    Intel® Celeron™ processors

    *Refer to www.asus.com for CPU Support list
  • Core Logic
    Intel® C224 Chipset
  • Memory
    Total Slots : 4 (2-channel)
    Capacity : Maximum up to 32GB UDIMM
    Memory Type :
    DDR3 1600/1333 UDIMM with ECC
    Memory Size :
    8GB, 4GB, 2GB
  • Expansion Slots
    Total Slot : 7
    Slot Location 1 : PCI 32bit/33MHz
    Slot Location 2 : PCI 32bit/33MHz
    Slot Location 3 : PCI-E x1 (Gen2 X1 Link)
    Slot Location 4 : PCI-E x8 (Gen3 X8 Link)
    Slot Location 5 : PCI-E x8 (Gen3 X8 Link)
    Slot Location 6 : PCI-E x16 (Gen3 X16 Link), Auto switch to x8 link if slot 5 is occupied
    Slot Location 7 : PCI-E x1 (Gen2 X1 Link), MIO supported
    Additional Slot 1 : PIKE Slot for Stroage expansion *1
    Follow SSI Location#
  • Form Factor
    ATX (12"x9.6")
  • ASUS Features
    FAN speed control
    Rack Ready (Rack and Pedestal dual use)
    ASWM Enterprise
  • Storage
    SATA Controller :
    Intel® C224
    4 x SATA3 6Gb/s ports
    2 x SATA2 3Gb/s ports
    Intel® Rapid Storage Technology Enterprise(RSTe) (For Windows Only)
    (Support Software RAID 0, 1, 5, 10 )
    LSI® MegaRAID (For Linux/Windows)
    (Support Software RAID 0, 1, 10 )
    SAS Controller :
    ASUS PIKE 2008 8-port SAS2 6G RAID card (Optional)
    ASUS PIKE 2008/IMR 8-port SAS2 6G RAID card(Optional)
    ASUS PIKE 2108-32PD 8-port SAS2 6G RAID card (Optional)
    ASUS PIKE 2208 8-port SAS 6G HW RAID card (Optional)
    ASUS PIKE 2308 8-port SAS 6G RAID card (Optional)
    ASUS PIKE 9230 4-port SATA 6G RAID card (Optional)
  • Networking
    4 x Intel® I210AT + 1 x Mgmt LAN
  • Graphic
    Aspeed AST2300 with 32MB VRAM
  • On Board I/O
    1 x TPM header
    1 x PSU Power Connector (24-pin ATX power connector + 8-pin ATX 12V power connector)
    1 x Management Connector , Onboard header for management card
    1 x USB 3.0 pin header , Up to 2 Devices
    1 x USB 2.0 pin header , Up to 2 Devices
    1 x Internal A Type USB Port*2
    5 x Fan Header , 4pin
    1 x SMBus
    1 x Chassis Intruder
    4 x Front LAN LED
    2 x Serial Port Header
    1 x SATA DOM Power connector*3
    1 x VGA Header

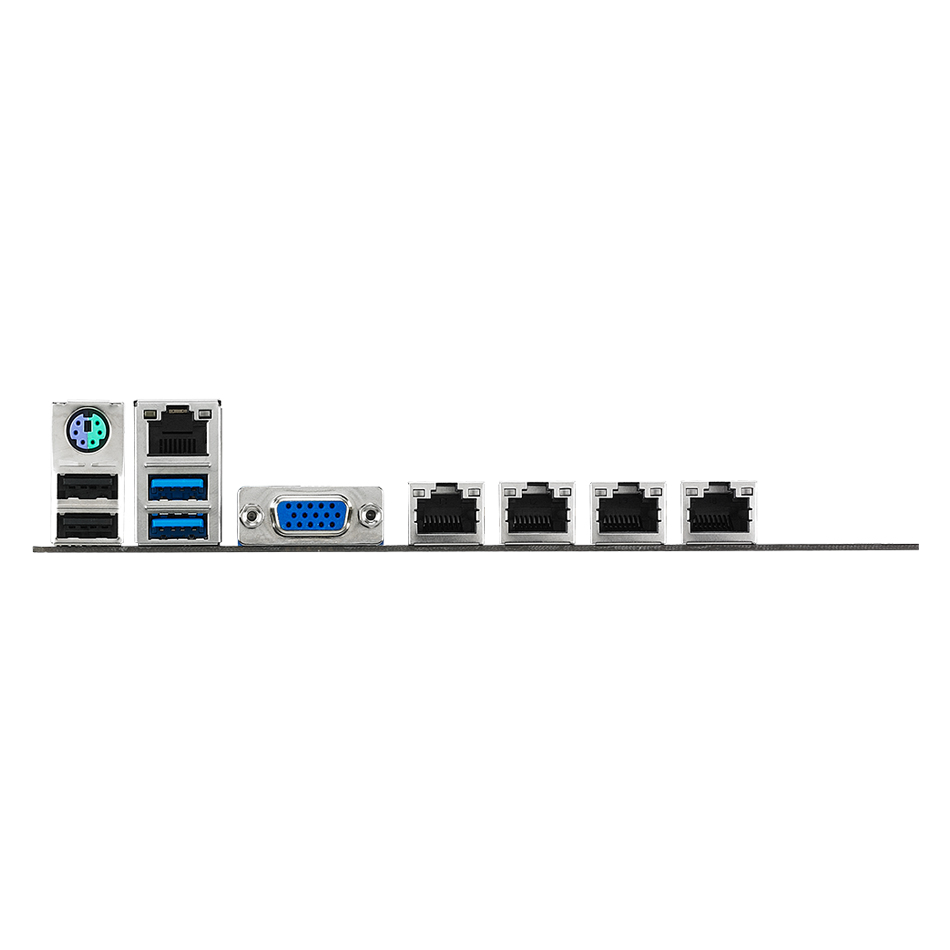

  • Back I/O Ports
    4 x External USB Port (2 x USB 3.0, 2 x USB 2.0)
    1 x VGA Port
    4 x RJ-45 + 1 x Mgmt LAN
    1 x PS/2 KB/Mouse
  • Management
    Solution
    Software: ASWM Enterprise
    Out of Band Remote Management: Optional ASMB7-iKVM for KVM-over-Internet
  • Regulatory
    Compliance
    CE, C-Tick, FCC(Class B)

  • Environment
    Operation temperature: 10℃ ~ 35℃
    Non operation temperature: -40℃ ~ 70℃
    Non operation humidity: 20% ~ 90% ( Non condensing)
  • Accessories
    Standard Gift Box Pack
    1 x User Guide
    2 x Support CD
    1 x I/O shield
    4 x SATA 6G cables + 2 x SATA 3G cables
    1 x USB to SATA DOM Power cable
    1 x Plate for LGA1150

    Standard Bulk Pack
    1 x User Guide
    2 x Support CD
    1 x I/O shield
    1 x Plate for LGA1150
  • Product SKUs
    Standard Gift Box Pack
    Standard Bulk Pack
  • Monitoring
    CPU Temperature
    Fan RPM
  • Note
    *1 Gen3 supported
    *2 1 x USB 2.0 connector
    *3 4-pin power connector
  • All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets.
  • PCB color and bundled software versions are subject to change without notice.
  • Brand and product names mentioned are trademarks of their respective companies.
