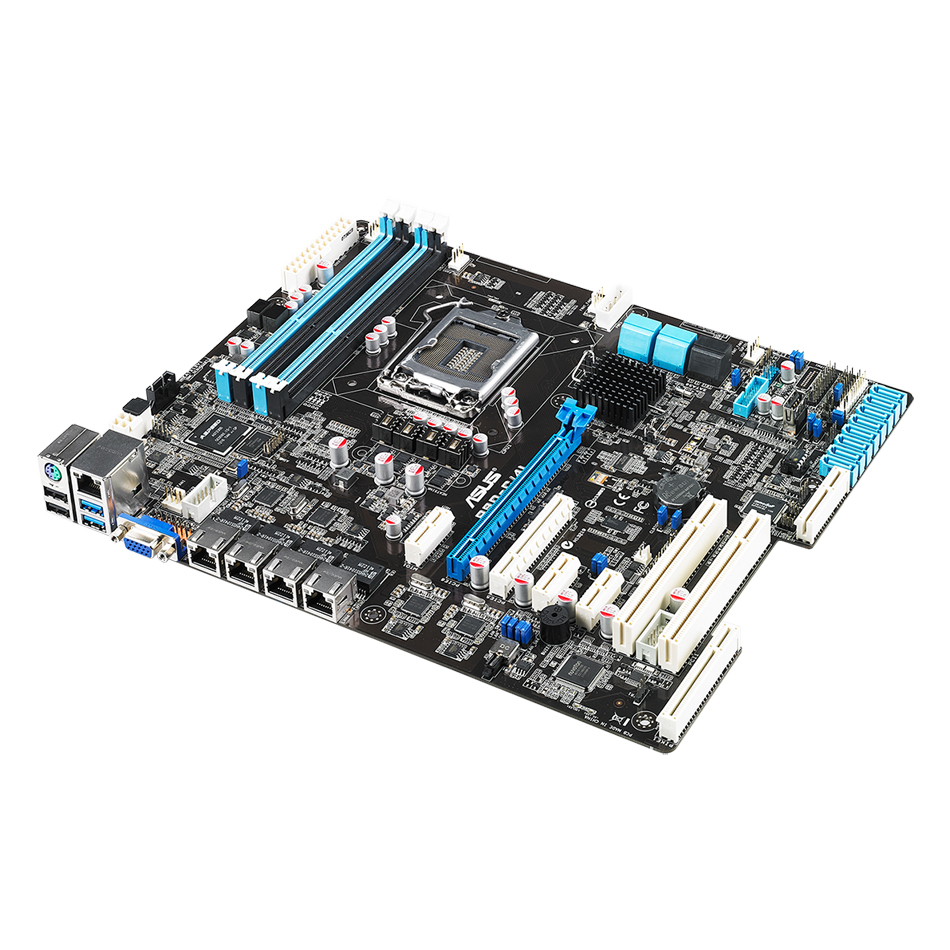

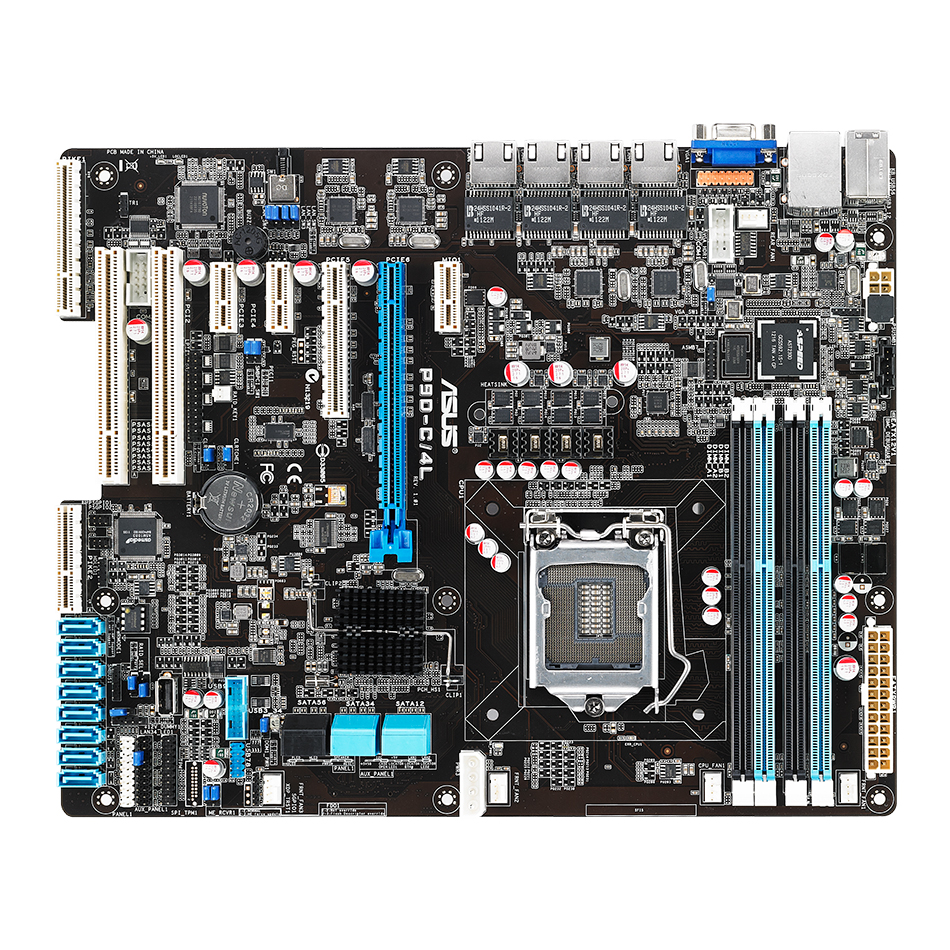

Streamlined feature-rich ATX UP serverboard
・JAN/UPC:0886227559473
・TEKWIND型番:ASU-P9D-C/4L
The ASUS P9D-C/4L provides a cost-efficient serverboard without compromising on performance and scalability. It supports the latest Intel® Xeon® E3-1200 v3 processor family, PCI Express 3.0, and legacy PCI for diverse applications. With all these features, the P9D-C/4L fits great as part of a firewall, gateway, web/printer/mail server, and more.
製品についてお気軽にお問い合わせください
この製品を問い合わせるスペック
CPU | Intel LGA1150 |
---|---|
チップセット | Intel C224 |
メモリ | DDR3, 1333/1600, UDIMM, with ECC |
拡張スロット | PCI-E x1, PCI-E x1, PCI-E x8, PCI-E x16 |
背面端子類 | 4x External USB Port, 1x VGA Port, 4x RJ-45 + 1x Mgmt LAN, 1x PS/2 KB/Mouse |
- Processor/
System Bus1 x Socket LGA1150
Intel® Xeon® processor E3-1200 v3 product family
4th Gen Intel® Core™ i3 processors
Intel® Pentium™ processors
Intel® Celeron™ processors
*Refer to www.asus.com for CPU Support list - Core Logic
Intel® C224 Chipset
- Memory
Total Slots : 4 (2-channel)
Capacity : Maximum up to 32GB UDIMM
Memory Type :
DDR3 1600/1333 UDIMM with ECC
Memory Size :
8GB, 4GB, 2GB - Expansion Slots
Total Slot : 6
Slot Location 1 : PCI 32bit/33MHz
Slot Location 2 : PCI 32bit/33MHz
Slot Location 3 : PCI-E x1 (Gen2 X1 Link)
Slot Location 4 : PCI-E x1 (Gen2 X1 Link)
Slot Location 5 : PCI-E x8 (Gen3 X4 Link)
Slot Location 6 : PCI-E x16 (Gen3 X8 Link)
Slot Location 7 : MIO Slot for Audio card
Additional Slot 1 : PIKE Slot for Stroage expansion *1
Follow SSI Location# - Form Factor
ATX (12"x9.6")
- ASUS Features
FAN speed control
Rack Ready (Rack and Pedestal dual use)
ASWM Enterprise - Storage
SATA Controller :
Intel® C224
4 x SATA3 6Gb/s ports
2 x SATA2 3Gb/s ports
Intel® Rapid Storage Technology Enterprise(RSTe) (For Windows Only)
(Support Software RAID 0, 1, 5, 10 )
LSI® MegaRAID (For Linux/Windows)
(Support Software RAID 0, 1, 10 )
SAS Controller :
ASUS PIKE 2008 8-port SAS2 6G RAID card (Optional)
ASUS PIKE 2008/IMR 8-port SAS2 6G RAID card(Optional)
ASUS PIKE 2108-32PD 8-port SAS2 6G RAID card (Optional)
ASUS PIKE 2208 8-port SAS 6G HW RAID card (Optional)
ASUS PIKE 2308 8-port SAS 6G RAID card (Optional)
ASUS PIKE 9230 4-port SATA 6G RAID card (Optional) - Networking
4 x Intel® I210AT + 1 x Mgmt LAN
- Graphic
Aspeed AST2300 with 32MB VRAM
- On Board I/O
1 x TPM header
1 x PSU Power Connector (24-pin ATX power connector + 8-pin ATX 12V power connector)
1 x Management Connector , Onboard header for management card
1 x USB 3.0 pin header , Up to 2 Devices
1 x USB 2.0 pin header , Up to 2 Devices
1 x Internal A Type USB Port*2
5 x Fan Header , 4pin
1 x SMBus
1 x Chassis Intruder
4 x Front LAN LED
2 x Serial Port Header
1 x SATA DOM Power connector*3

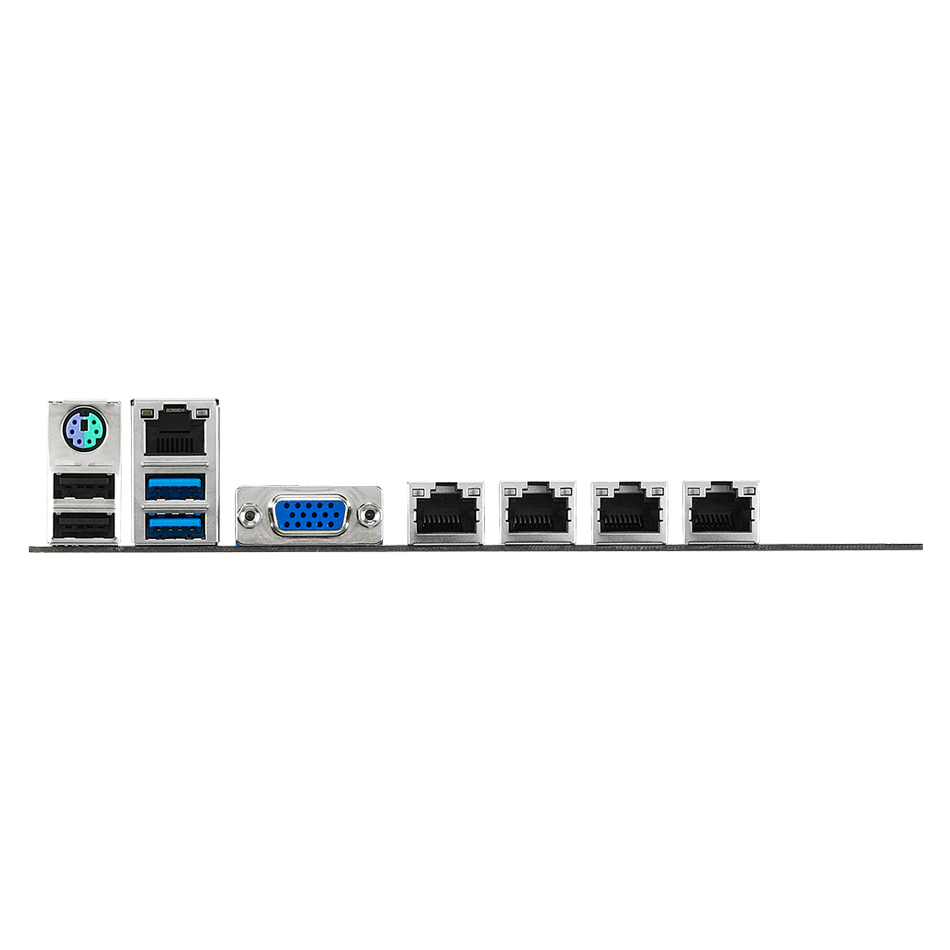

1 x VGA Header - Back I/O Ports
4 x External USB Port (2 x USB 3.0, 2 x USB 2.0)
1 x VGA Port
4 x RJ-45 + 1 x Mgmt LAN
1 x PS/2 KB/Mouse - Management
SolutionSoftware: ASWM Enterprise
Out of Band Remote Management: Optional ASMB7-iKVM for KVM-over-Internet - Regulatory
ComplianceCE, C-Tick, FCC(Class B)
- Environment
Operation temperature: 10℃ ~ 35℃
Non operation temperature: -40℃ ~ 70℃
Non operation humidity: 20% ~ 90% ( Non condensing) - Accessories
Standard Gift Box Pack
1 x User Guide
2 x Support CD
1 x I/O shield
4 x SATA 6G cables + 2 x SATA 3G cables
1 x USB to SATA DOM power cable
1 x Plate for LGA1150
Standard Bulk Pack
1 x User Guide
2 x Support CD
1 x I/O shield
1 x Plate for LGA1150 - Product SKUs
Standard Gift Box Pack
Standard Bulk Pack - Monitoring
CPU Temperature
Fan RPM - Note
*1 Gen3 supported
*2 1 x USB 2.0 connector
*3 4-pin power connector
- All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets.
- PCB color and bundled software versions are subject to change without notice.
- Brand and product names mentioned are trademarks of their respective companies.
