カテゴリー:
PCパーツ > マザーボード > サーバー・ワークステーション
・JAN/UPC:0886227297733
・TEKWIND型番:ASU-Z9PA-U8

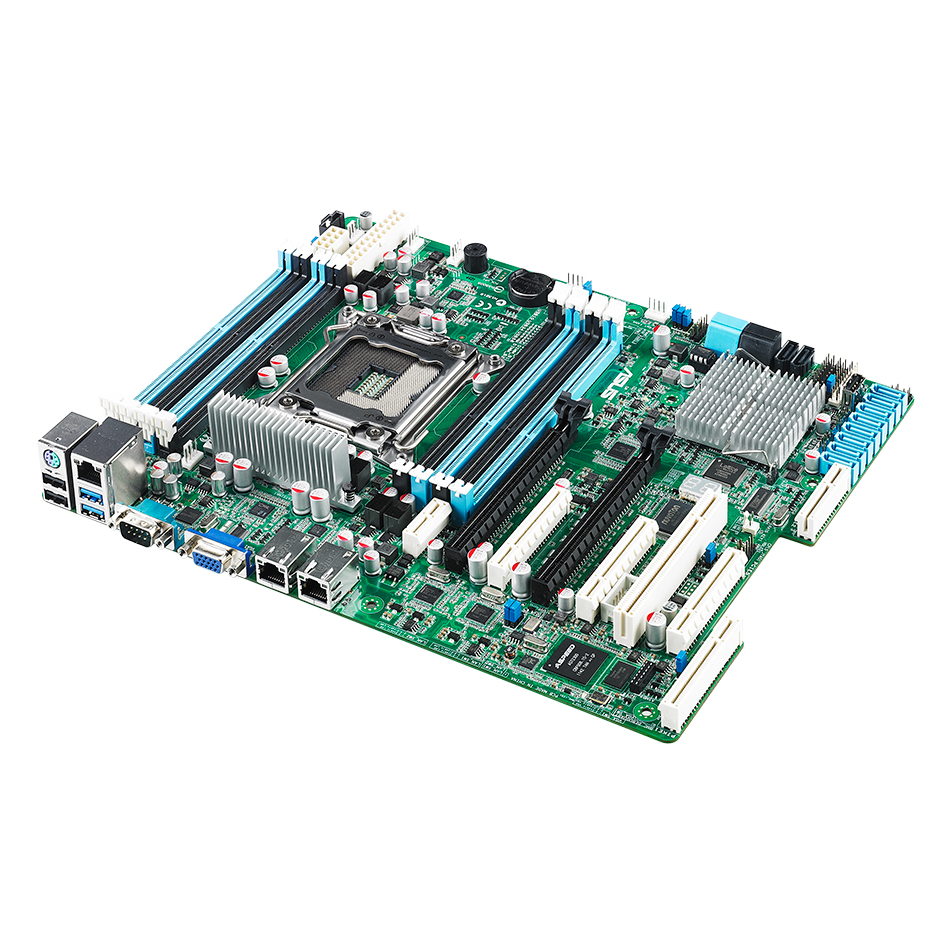

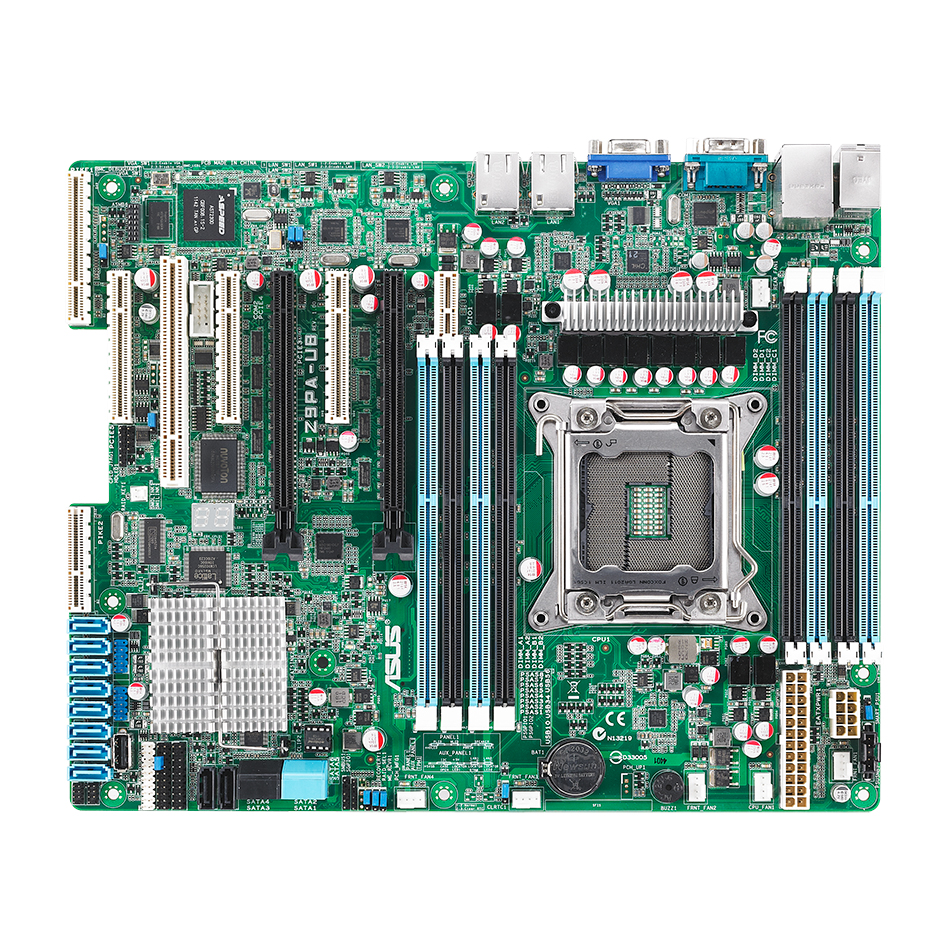

The ATX-sized Z9PA-U8 supports the latest Intel® Xeon® processor E5-2600 and E5-1600 product family, featuring high computing capacity and faster data transmission. Additionally, the Z9PA-U8 fulfills different storage configurations via ASUS PIKE RAID cards, and through the ASUS ASMB6-iKVM server management interface offers better system management.
スペック
Processor / System Bus |
1 x Socket 2011 Intel® Xeon® processor E5-1600 product family Intel® Xeon® processor E5-2600 product family |
---|---|
Core Logic | Intel® C602-A PCH |
Memory |
Total Slots : 8 (4-channel per CPU, 8 DIMM per CPU) Capacity : Maximum up to 256GB LRDIMM Memory Type : DDR3, 1066/1333/1600, RDIMM DDR3, 1066/1333, UDIMM DDR3, 1066/1333, LRDIMM Memory Size : 2GB, 4GB, 8GB, 16GB RDIMM 2GB, 4GB, 8GB UDIMM 8GB, 16GB, 32GB LRDIMM |
Expansion Slots |
Total Slot : 7 Slot Location 1 : PCI-E x8 (Gen2 X4 Link) Slot Location 2 : PCI 32bit/33MHz Slot Location 3 : PCI-E x8 (Gen3 X8 Link) Slot Location 4 : PCI-E x16 (Gen3 X16 Link), Auto switch to x8 link if slot 3 is occupied Slot Location 5 : PCI-E x8 (Gen3 X8 Link) Slot Location 6 : PCI-E x16 (Gen3 X16 Link), Auto switch to x8 link if slot 5 is occupied Slot Location 7 : MIO Slot for Audio card Additional Slot 1 : PIKE Slot for Stroage expansion Follow SSI Location# |
Form Factor |
ATX (12"x9.6") Z9PA-U8 is standard ATX size with EEB mounting hole locations |
ASUS Features |
FAN speed control Rack Ready (Rack and Pedestal dual use) ASWM Enterprise |
Storage |
SATA Controller : Intel® C602-A AHCI 4 x SATA2 3Gb/s ports 2 x SATA3 6Gb/s ports Intel® Rapid Storage Technology Enterprise(RSTe) (For Windows Only) (Support Software RAID 0, 1, 5, 10 ) LSI® MegaRAID (For Linux/Windows) (Support Software RAID 0, 1, 10 ) SAS Controller : ASUS PIKE 2008 8-port SAS2 6G RAID card ASUS PIKE 2108 8-port SAS2 6G RAID card ASUS PIKE 2208 8-port SAS 6G HW RAID card ASUS PIKE 9230 4-port SATA 6G RAID card |
Networking | 2 x Intel® 82574L + 1 x Mgmt LAN |
Graphic | Aspeed AST2300 with 16MB VRAM |
On Board I/O |
1 x TPM header 1 x PSU Power Connector , 24-pin SSI power connector + 8-pin SSI 12V power connector 1 x Management Connector , Onboard socket for management card 1 x USB connector 2 x USB pin header , Up to 4 Devices 6 x Fan Header , 4pin 1 x SMBus 1 x Chassis Intruder 2 x Front LAN LED 1 x Serial Port Header |
Back I/O Ports |

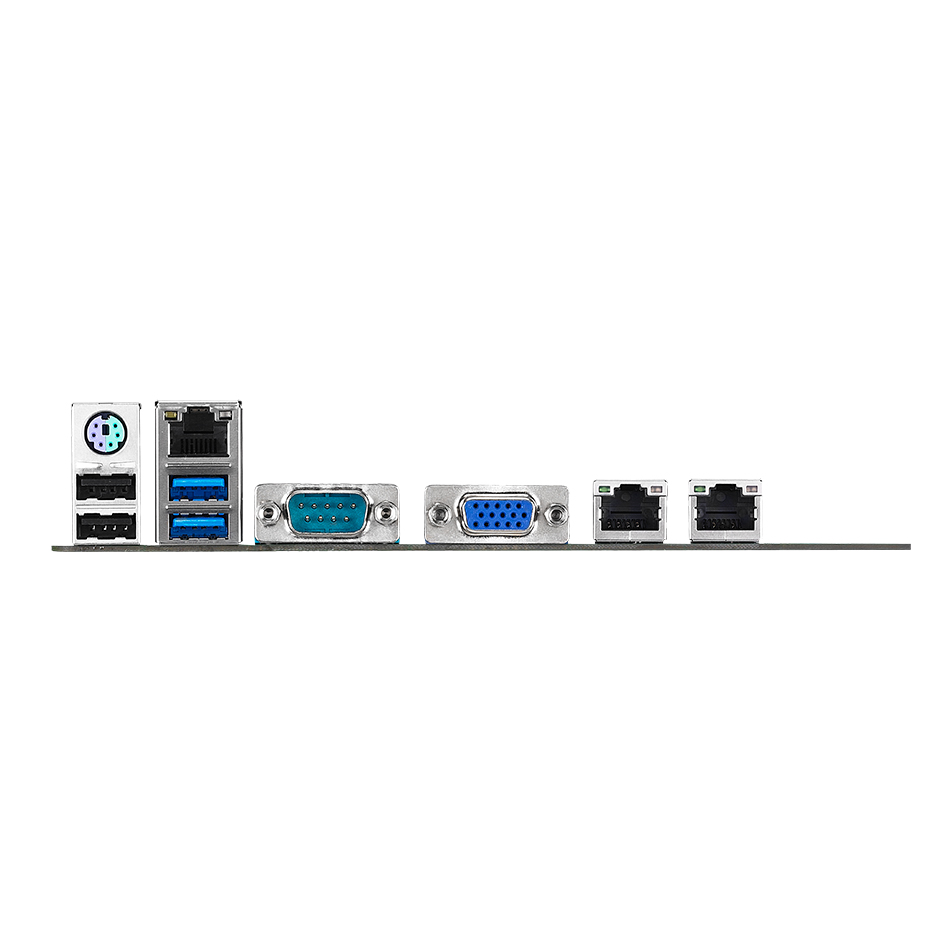

1 x External Serial Port 4 x External USB Port ?2 x USB 3.0, 2 x USB 2.0? 1 x VGA Port 2 x RJ-45 + 1 x Mgmt LAN 1 x PS/2 KB/Mouse |
Management Solution |
ASWM Enterprise Optional ASMB6-iKVM for KVM-over-Internet |
EMI |
US (FCC, CFR47 Part 15, Class B) Europe (CE, EN55022 & EN55024) |
Environment |
Operation temperature: 10℃ ~ 35℃ Non operation temperature: -40℃ ~ 70℃ Non operation humidity: 20% ~ 90% ( Non condensing) |
Accessories |
Gift Box Pack: 6 x SATA Data Cables 1 x I/O Shield 1 x ASUS Mainboard Support CD 1 x ASWM Support CD 1 x User's Guide 1 x USB to SATA DOM Power cable Bulk Pack: 1 x I/O Shield 1 x ASUS Mainboard Support CD 1 x ASWM Support CD 1 x User's Guide |
Product SKUs |
Standard Gift Box Pack Standard Bulk Pack |
- All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets.
- PCB color and bundled software versions are subject to change without notice.
- Brand and product names mentioned are trademarks of their respective companies.
