EMX-CDD

Intel® Atom™ Cedar Trail 対応 Intel® D2550
Processor + NM10 チップセット搭載 Mini ITXマザーボード

・JAN/UPC：4717677407464
・メーカー型番：EMX-CDD-A1R
・TEKWIND型番：AVA-EMX-CDD-A1R

・ Intel® Atom™ D2550 プロセッサー (1M Cache, 1.86GHz)
・ Intel® NM10 チップセット搭載
・ 1 x 240ピン DDR3 1066/ 1333MHz SODIMM、最大 4GB
・ VGA, HDMI, デュアルチャンネル18/ 24-bit LVDS
・ 2 x Realtek RTL8111E PCIe Gigabit イーサネット
・ 1 x Mini PCIe
・ 2 SATA II, 6 COM (5V/ 12V), 8 USB, 8-bit GPIO
・寸法: 170mm x 170mm

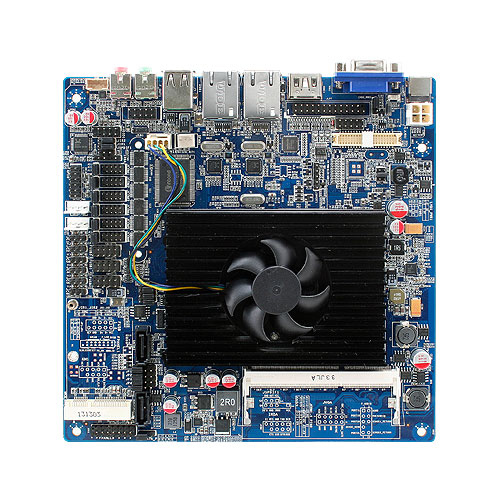

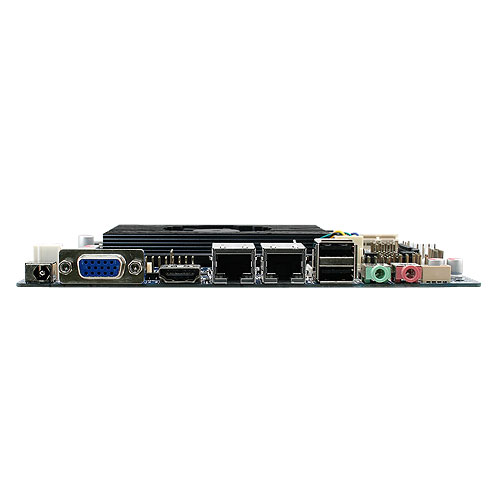

製品画像

スペック

System

CPU	Onboard Intel® Atom™ D2550 Processor (1M Cache, 1.86GHz)
BIOS	AMI 16MBit SPI BIOS
System Chipset	Intel® NM10 Chipset
I/O Chip	Winbond W83627UHG
System Memory	One 204-pin DDR3 1066/ 1333MHz SO-DIMM Socket, Supports Up to 4GB Max
Watchdog Timer	Reset : 1 to 255 sec/min per step
H/W Status Monitor	Monitoring Temperature, Voltage and Cooling Fan Status with Auto Throttling Control
Expansion	1 x Mini PCI-e Socket (Mini PCI-e and mSATA SSD Switch Through Jumper)

I/O

MIO	2 x SATA II, 2 x SATA Power, 1 x LPT, 1 x PS2 Keyboard, 1 x PS2 Mouse
Serial Port	6 x RS-232 (Pin9 with 5V/ 12V)
USB	8 x USB 2.0/ 1.1
GPIO	8-bit General Purpose I/O for DI and DO

Display

Chipset	Integrated Intel® Graphics Media Accelerator 3650 (Gfx freq @ 640MHz) Support DX9
Resolution	VGA/ HDMI Display: 1920 x 1200; LVDS: 1400 x 900
Multiple Display	LVDS + VGA, VGA + HDMI, HDMI + LVDS
LCD Interface	Single-channel 18/ 24-bit LVDS

Audio

Audio Codec	Realtek ALC661 HD Audio Decoding Controller
Audio Interface	Mic-in, Line-out; Support On-board S/PDIF Input/ Output
Audio Amplifer	Realtek ALC105 Stereo Class-D 3W x 2

Ethernet

Chipset	2 x Realtek RTL8111E PCI-Express Gigabit Ethernet
Ethernet Interface	10/ 100/ 1000 Base-Tx Gigabit Ethernet Compatible

Environment & Mechanical

Power Requirement	DC-in +12V
Power Type	ATX Mode
Operating Temperature	0 ~ 60°C (32 ~ 140°F)
Storage Temperature	-40 ~ 75°C (-40 ~ 167°F)
Operating Humidity	0 ~ 90% Relative Humidity, Non-condensing
Size (L x W)	6.69” x 6.69” (170mm x 170mm)
Weight	1.058lbs (0.48kg)
