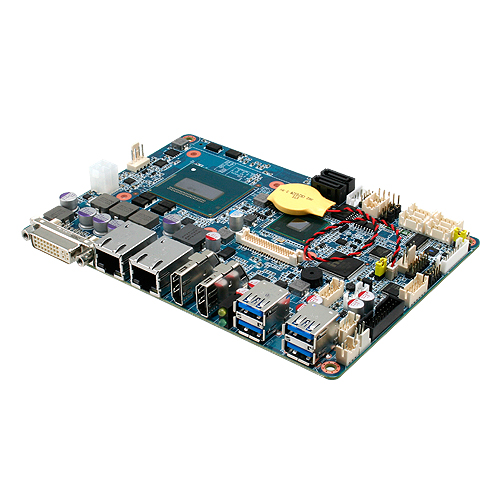

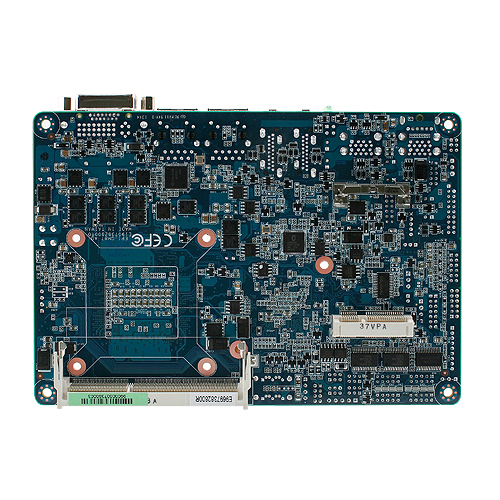

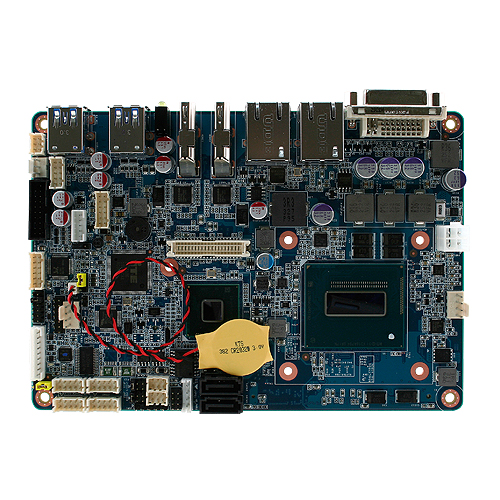

Intel Core i3-4102E, 2-Core 1.6GHz, 3M Cache
Intel QM87 チップセット搭載EPIC モジュール



・ DDR3L 1066/1333MHz SDRAM 対応 204ピン SODIMM ソケット x1(最大8GB)
・ 三画面出力に対応
・ 18/24-bit デュアルチャンネル LVDS、 DVI x1、 HDMI x2
・ SATA III x2、 Mini-PCIe x1、 USB 3.0 x6、 USB 2.0 x2、COM x4、 8-bit DIO
・ Gigabitイーサネット x2、 HDオーディオ
・ mSATA対応
・ TPM 1.2 機能、iAMT 9.0
・ 寸法 (L x W):115 x 165mm





CPU Intel® Core™ i7-4700EQ, 4-Core, 2.4GHz, 6M Cache; Intel® Core™ i5-4400E, 2-Core, 2.7GHz, 3M Cache; Intel® Core™ i3-4102E, 2-Core, 1.6GHz, 3M Cache
BIOS AMI uEFI BIOS, 128 Mbit SPI Flash ROM, iAMT 9.0 Supported
System Chipset Intel® QM87 PCH
I/O Chip EC (IT8518E)
System Memory One 204-pin DDR3L SODIMM Socket, Supports Up to 8GB 1.35V DDR3L 1333/1600MHz SDRAM
SSD 1 x mSATA (From Mini PCIe Slot)
Watchdog Timer H/W Reset, 1sec. ~ 65535sec./min. and 1sec. or 1min. step
H/W Status Monitor Monitoring System Temperature, voltage with Auto Throttling Control
Expansion 1 x Mini PCIe (mSATA Supported)


MIO 2 x SATA III, 2 x RS-232, 2 x RS-232/422/485, LPC
IrDA FINTEK 81216 (IR Supported)
USB 2 x USB 3.0, 2 x USB 2.0 (Wafer), 4 x USB 3.0 (Edge Connectors)
DI/O 4-bit GPI, 4-bit GPO


Chipset Intel® QM87
Resolution DVI Mode: 1920 x 1200 @ 60Hz, LCD/Sinultanous Mode: 1920 x 1080 @ 60Hz, HDMI Mode: 1920 x 1200 @ 60Hz
Multiple Display Dual HDMI + LVDS/HDMI + LVDS + DVI or Dual HDMI + CRT/HDMI + LVDS + CRT
LVDS Dual-channel 18/24-bit LVDS
DVI One DVI Port Co-lay with VGA


Chipset Realtek ALC892 Supports 5.1-CH HD Audio Codec
Audio Interface Mic-in, Line-in and Line-out


LAN 1 x Intel® I210AT Gigabit Ethernet Controller, 1 x Intel® I217LM Gigabit Ethernet PHY
Ethernet Interface 10/100/1000 Base-Tx Gigabit Ethernet Compatible

Mechanical & Environmental

Power Requirement +12V ~ 19V
ACPI Single Power ATX Support S0, S3, S4, S5; ACPI 3.0 Compliant
Power Type AT/ATX
Operation Temperature 0 ~ 60°C (32 ~ 140°F)
Storage Temperature -40 ~ 75°C (-40 ~ 167°F)
Operating Humidity 0% ~ 90% Relative Humidity, Non-condensing
Size ( L x W ) 4.5" x 6.5" (115mm x 165mm)
Weight 0.4lbs (0.18kg)

Built-in Touch Screen (Optional)

Chipset PenMount 6000
Touch Screen Interface With 9-pin 2.0mm Box Header (Can be Selected to Support 4/5/8-wire Touch Screen)
