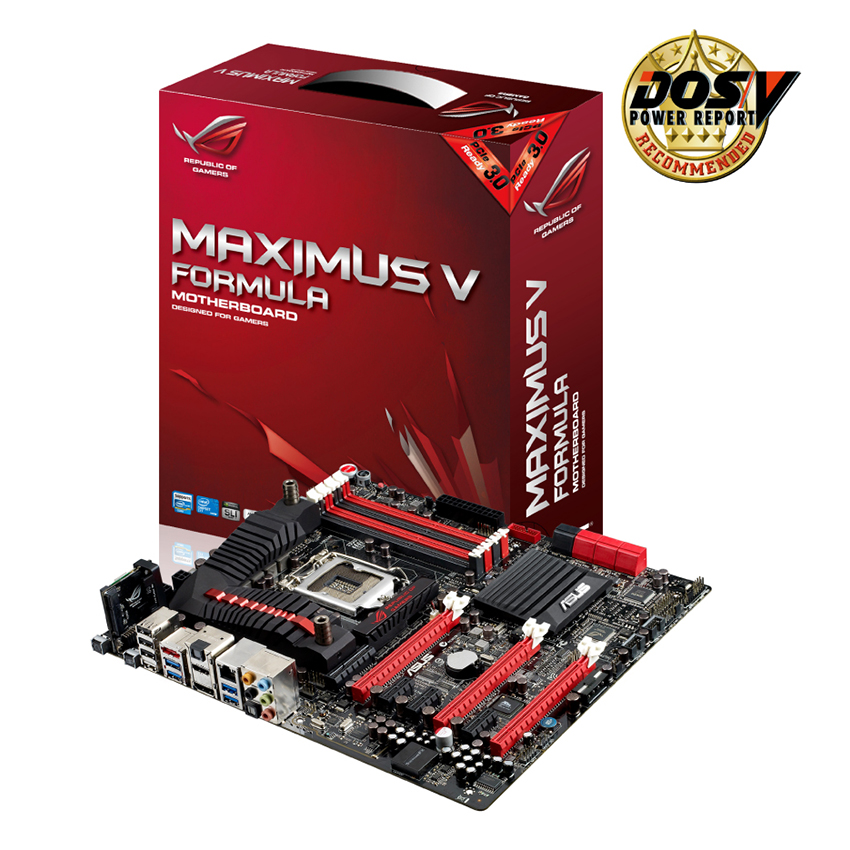

ASUS（エイスース） MAXIMUS V FORMULA

高音質なオンボードオーディオ機能を搭載するゲーマー向けマザーボード

・JAN/UPC：0610839186372
・TEKWIND型番：ASU-MAXIMUS5/FORMULA

【主な特長】

・Intel Z77チップセット搭載
・Intel Core i7/i5/i3、Pentium、Celeron CPU対応
・DDR3メモリ×4枚（最大32GB）対応
・x16 3.0スロット×3、x4 2.0スロット×1、x1 2.0スロット×3、Mini Card×1
・SATA 6Gb/s×6、SATA 3Gb/s×2、eSATA 3Gb/s×2、mSATA 3Gb/s×1
・画面出力：DisplayPort、HDMI
・1000BASE-T×1（CPU負荷低、低消費電力Intelチップ使用）
・IEEE802.11a/b/g/n 2.4/5GHzデュアルバンド無線LAN機能
・Bluetooth 4.0/3.0+HS無線機能搭載
・USB 3.0×6、USB 2.0×8
・液冷にも対応可能な「Fusion Thermo Solution」を搭載
・ゲーマー向けの高性能オーディオ機能「SupremeFX IV」
・ネットワークゲームに最適なデータ通信最適化技術「Game First II」
・グラフィックス機能を最高60%高速化する「Virtu MVP」
・トリプルデジタル「Extreme Engine Digi+ II」（8+4+2フェーズ）
・PCI Express Mini CardとmSATAのコンボカードを付属

製品についてお気軽にお問い合わせください

この製品を問い合わせる

プロフェッショナルがいるテックウインドの強み

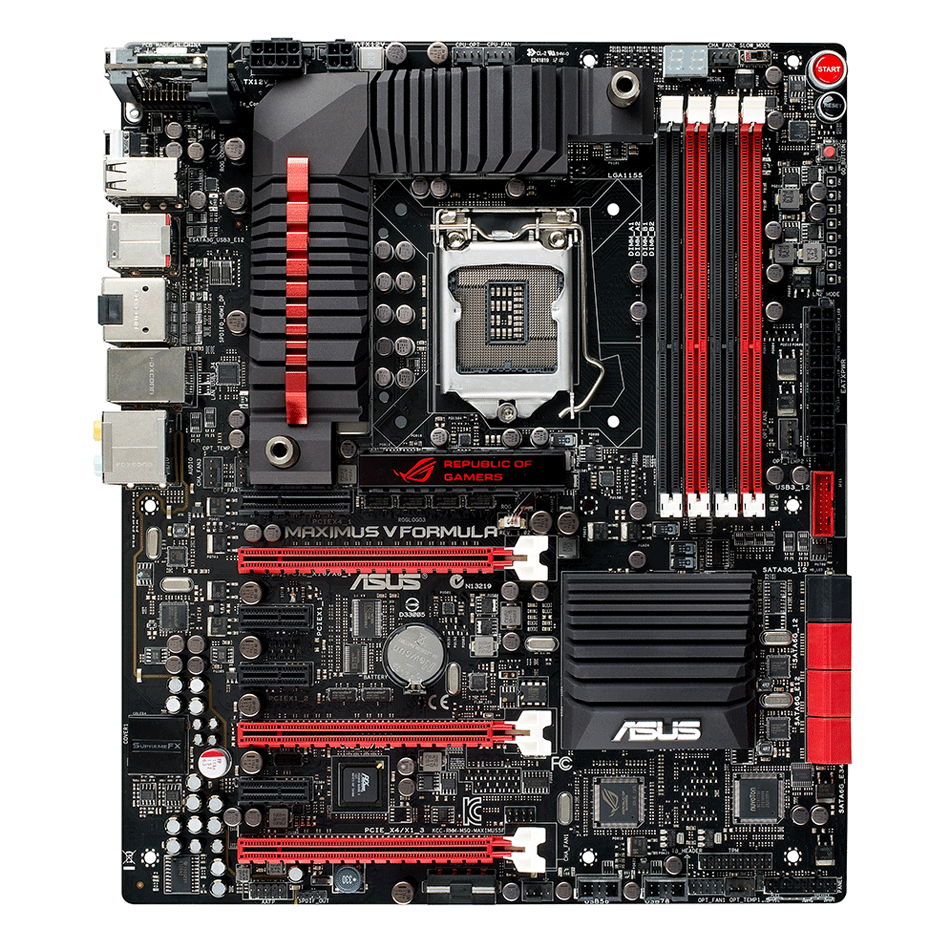

製品画像

スペック

CPU	Intel® Socket 1155 for 3rd/2nd Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors Supports Intel® 22 nm CPU Supports Intel® 32 nm CPU Supports Intel® Turbo Boost Technology 2.0 * The Intel® Turbo Boost Technology 2.0 support depends on the CPU types. * Refer to www.asus.com for CPU support list
Chipset	Intel® Z77
Memory	4 x DIMM, Max. 32GB, DDR3 2800(O.C.)/2666(O.C.)/2600(O.C.)/2400(O.C.)/2200(O.C.)/2133(O.C.)/1866(O.C.)/1600/1333/1066 MHz Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) * Hyper DIMM support is subject to the physical characteristics of individual CPUs. * Refer to www.asus.com or user manual for the Memory QVL (Qualified Vendors Lists).
Graphic	Integrated Graphics Processor Multi-VGA output support : HDMI/DisplayPort ports - Supports HDMI with max. resolution 1920 x 1200 @ 60 Hz - Supports DisplayPort with max. resolution 2560 x 1600 @ 60 Hz Supports Intel® HD Graphics, InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™
Multi-GPU Support	Supports NVIDIA® SLI™ Technology Supports AMD 3-Way CrossFireX™ Technology Supports AMD CrossFireX™ Technology Supports LucidLogix® Virtu™ MVP Technology *1
Expansion Slots	3 x PCIe 3.0/2.0 x16 (x16 or dual x8 or x8/x4/x4) 2 1 x PCIe 2.0 x4 3 x PCIe 2.0 x1 1 x mini-PCIe 2.0 x1 3
Storage	Intel® Z77 chipset : 2 x SATA 6Gb/s port(s), red 2 x SATA 3Gb/s port(s), black 1 x eSATA 3Gb/s port(s), red 1 x mini-SATA 3Gb/s port(s) , black Support Raid 0, 1, 5, 10 Supports Intel® Smart Response Technology, Intel® Rapid Start Technology, Intel® Smart Connect Technology 4 ASMedia® PCIe SATA controller :* *5 4 x SATA 6Gb/s port(s), red
LAN	Intel®, 1 x Gigabit LAN Controller(s)
Wireless Data Network	Wi-Fi 802.11 a/b/g/n Supports dual band frequency 2.4/5 GHz
Bluetooth	Bluetooth V4.0 Bluetooth V3.0+HS
Audio	SupremeFX IV built-in 7.1-Channel High Definition Audio CODEC - Output Signal-to-Noise Ratio (A-Weighted): 110 dB - Output THD+N at 1kHz: 95 dB - TI 6120A2 high fidelity headphone amplifier - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking Audio Feature : - SupremeFX Shielding™ Technology - ELNA premium audio capacitors - 1500 uF Audio Power Capacitor - Blu-ray audio layer Content Protection - DTS Ultra PC II - DTS Connect - Optical S/PDIF out port(s) at back panel
USB Ports	Intel® Z77 chipset : 4 x USB 3.0 port(s) (2 at back panel, blue, 2 at mid-board) Intel® Z77 chipset : 8 x USB 2.0 port(s) (4 at back panel, black+white, 4 at mid-board) ASMedia® USB 3.0 controller : 2 x USB 3.0 port(s) (2 at back panel, blue)
Overclocking Features	mPCIe Combo™ (mPCIe/mSATA combo card) ROG Connect : - RC Diagram - RC Remote - RC Poster - GPU TweakIt Extreme Engine Digi+ II : - 8 -phase CPU power design + 4 -phase iGPU power design - 2 -phase Memory power design ROG Extreme OC kit : - Slow Mode - LN2 Mode - EZ Plug ProbeIt UEFI BIOS features : - ROG BIOS Print - GPU.DIMM Post GameFirst II iROG Extreme Tweaker Loadline Calibration USB BIOS Flashback Overclocking Protection : - ASUS C.P.R.(CPU Parameter Recall)
Special Features	ASUS TurboV EVO : - CPU Level Up ASUS EPU : - EPU ASUS Wi-Fi GO! - Wi-Fi GO! Function: DLNA Media Hub, Smart Motion Control, Remote Desktop, Remote Keyboard & Mouse, File Transfer, Capture & Send ASUS Exclusive Features : - AI Suite II - Ai Charger+ - USB Charger+ - USB 3.0 Boost - Disk Unlocker ASUS Quiet Thermal Solution : - ASUS Fan Xpert 2 ASUS EZ DIY : - ASUS O.C. Profile - ASUS CrashFree BIOS 3 - ASUS EZ Flash 2 ASUS Q-Design : - ASUS Q-Shield - ASUS Q-Code - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED) - ASUS Q-Slot - ASUS Q-DIMM - ASUS Q-Connector

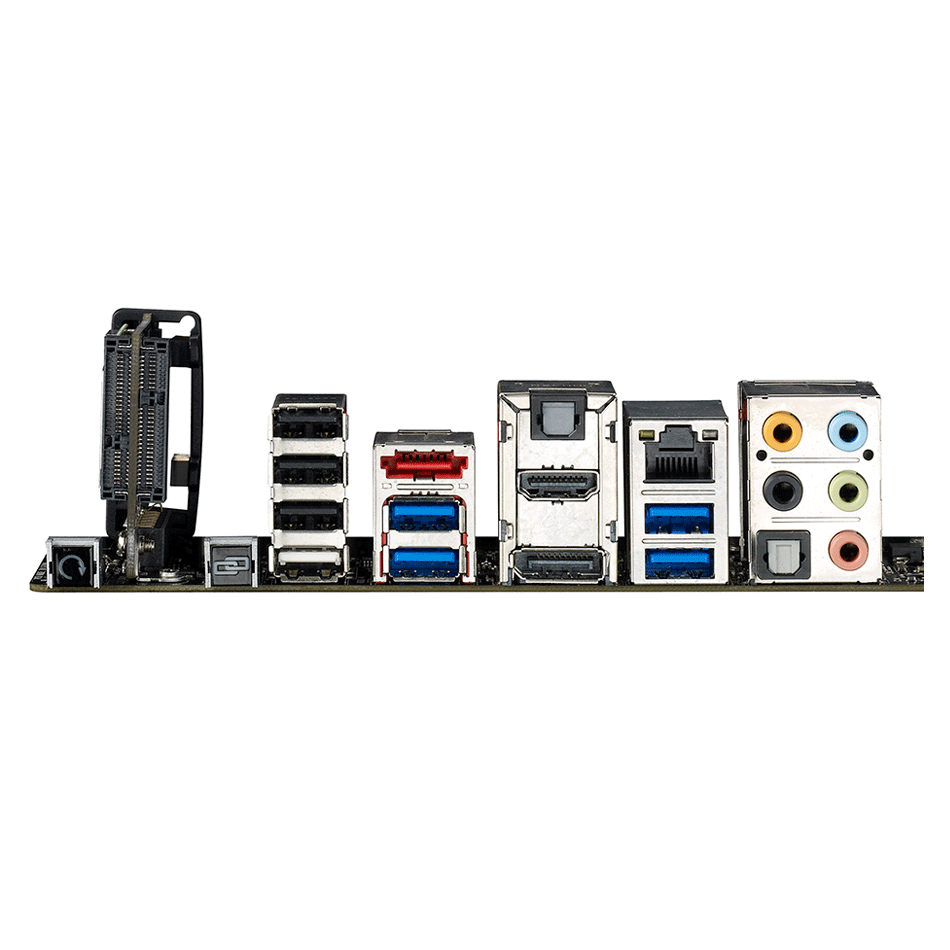

Back I/O Ports	1 x DisplayPort 1 x HDMI 1 x eSATA 3Gb/s 1 x LAN (RJ45) port(s) 4 x USB 3.0 4 x USB 2.0 1 x Optical S/PDIF out 1 x Optical S/PDIF in 5 x Audio jack(s) 1 x Clear CMOS button(s) 1 x ROG Connect On/ Off switch(es)
Internal I/O Ports	1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 6 x SATA 6Gb/s connector(s) 2 x SATA 3Gb/s connector(s) 2 x CPU Fan connector(s) (4 -pin) 3 x Chassis Fan connector(s) (4 -pin) 3 x Optional Fan connector(s) (4 -pin) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x 4-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s) 1 x Slow Mode switch(es) 8 x ProbeIt Measurement Points 3 x Thermal sensor connector(s) 1 x LN2 Mode header(s) 1 x EZ Plug connector(s) (4-pin Molex power connector) 1 x Power-on button(s) 1 x Reset button(s) 1 x Go Button(s) 1 x mPCIe Combo header(s)
Accessories	User's manual I/O Shield 2 x SATA 3Gb/s cable(s) 4 x SATA 6Gb/s cable(s) 1 x SLI bridge(s) 1 x Q-connector(s) (2 in 1) 1 x ROG Connect cable(s) 1 x 12 in 1 ROG Cable Label(s) 1 x mPCIe Combo card(s) with dual band WiFi 802.11 a/b/g/n module + Bluetooth v4.0/3.0+HS module * 1 x 2-in-1 RF Cable(s) * 2 x Wi-Fi Ring Moving Antenna(s) * mPCIe Comboカードの取り付けについて http://www.tekwind.co.jp/faq/entry_131.php
BIOS	64Mb UEFI AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.5, ACPI2.0a Multi-Language BIOS
Manageability	WfM2.0, DMI2.0, WOL by PME, PXE
Support Disc	Drivers Kaspersky® Anti-Virus DAEMON Tools Pro Standard GameFirst II ROG CPU-Z Mem TweakIt ASUS AI Suite II ASUS WebStorage ASUS Utilities
Form Factor	Extended ATX Form Factor 12 inch x 10.1 inch ( 30.5 cm x 25.7 cm )
Note	1: LucidLogix Virtu MVP supports Windows 7 operating systems. 2-1: PCIe 3.0 speed is supported by Intel® 3rd generation Ivy Bridge Core™ Processors. 2-2: x8/x4/x4 mode is supported by Intel® 3rd generation Ivy Bridge Core™ Processors. 3-1: The mPCIe 2.0 x1 slot is located on mPCIe Combo™ expansion card. 3-2: The mini-PCIe slot is pre-installed with an Wi-Fi/Bluetooth module. 4: Supports on Intel® Core™ processor family with Windows® 7 operating systems. *5: These SATA ports are for data hard drives only.
