ASUS（エイスース） P8C WS

ASUSTek Intel C216搭載 DDR3メモリ対応 ATXワークステーションマザーボード P8C WS

・JAN/UPC：0610839186228
・TEKWIND型番：ASU-P8C/WS

P8C WSは、サーバー向けIntel C216チップセットを搭載したワークステーションマザーボードです。

CPUはCore i3/i5/i7他、Xeon E3-1200/12x5 V2シリーズに対応。またXeon CPUが持つECCメモリ機能によりECCメモリにも対応。データ信頼性の向上を実現しました。ECCメモリを利用しない場合には安価な通常のLGA1155向けi3/i5/i7 CPUも利用可能です。

さらに、オンボードLANはIntel 82574LをDualで搭載し、サーバ向けに利用する機会も多いCOMポートブラケットと起動不良時の切り分けのためのPOSTコード表示モジュール"G.P. Diagnosis Card"を標準添付するなど、ワークステーション・サーバ向けに利用しやすいよう構成が工夫されています。

また、サーバーエントリーモデルながらISVやVMware仮想化の認証を受けており、十分な仮想sever構築を行うことが出来ます。様々な用途・構成で幅広くご利用頂けるIvy Bridge対応の最新ワークステーション・マザーボードです。

製品についてお気軽にお問い合わせください

この製品を問い合わせる

プロフェッショナルがいるテックウインドの強み

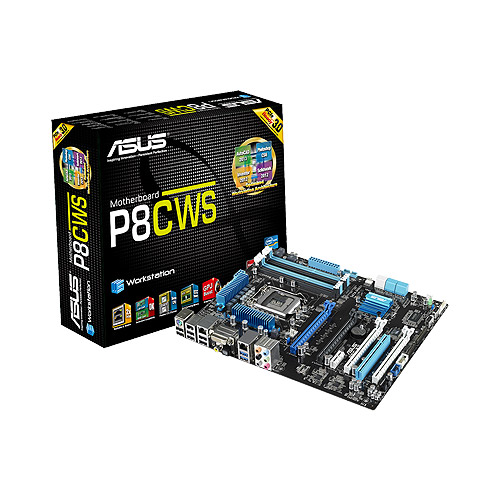

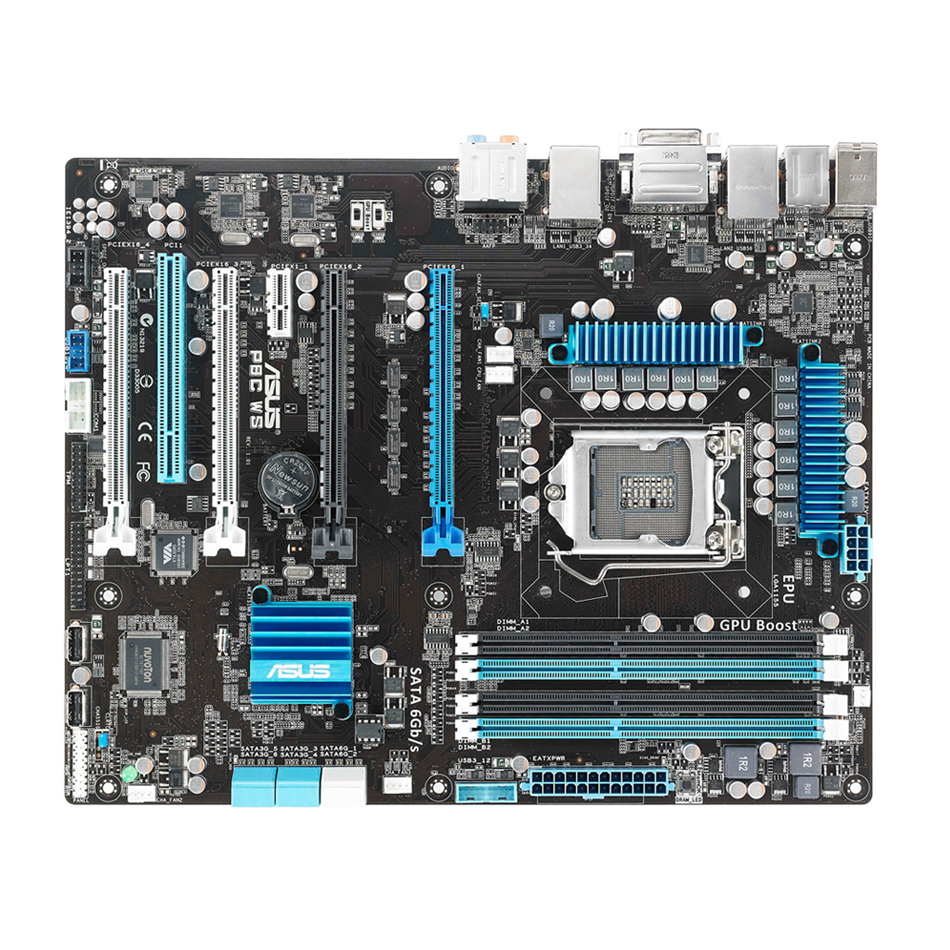

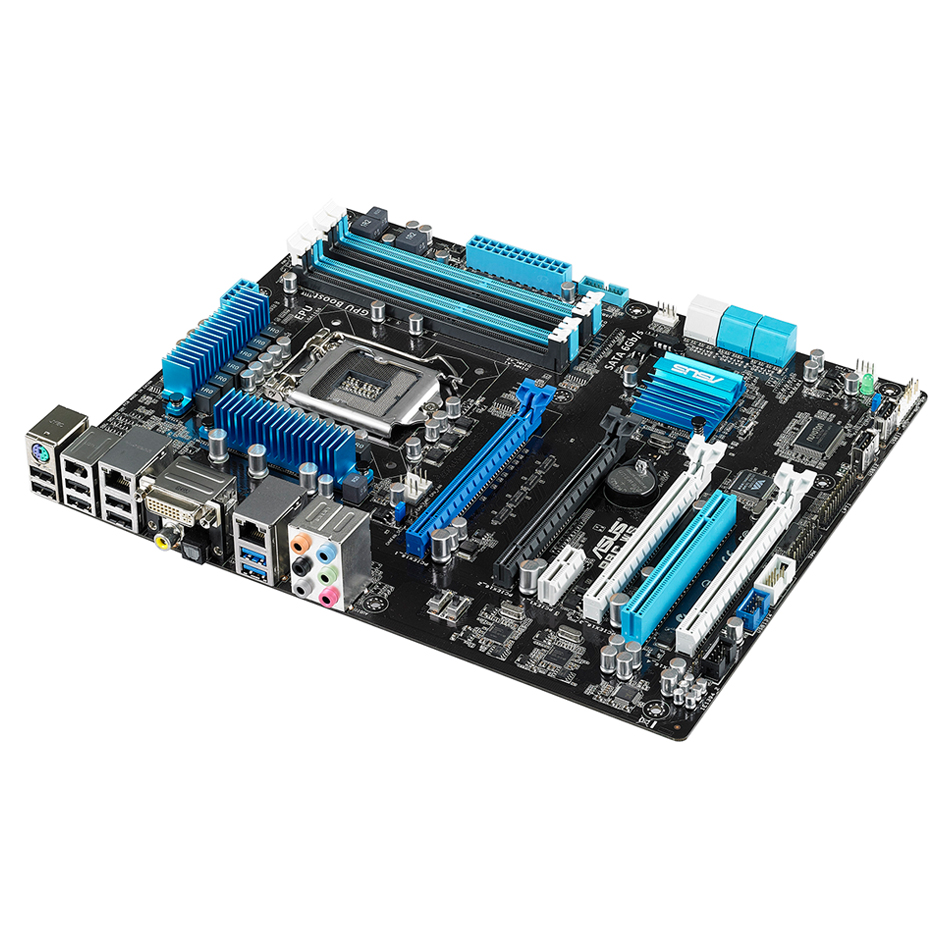

製品画像

スペック

CPU	Intel® Socket 1155 for 3rd/2nd Generation Core™ i3 Processors Intel® Socket 1155 for Intel® E3-1200/12x5 v2 processors Supports Intel® 32 nm CPU Supports Intel® 22 nm CPU Supports Intel® Turbo Boost Technology 2.0
Chipset	Intel® C216
Memory	4 x DIMM, Max. 32GB, DDR3 1600/1333 MHz ECC, Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) * Refer to www.asus.com or user manual for the Memory QVL (Qualified Vendors Lists).
Graphic	Integrated Graphics Processor Multi-VGA output support : DVI ports - Supports DVI with max. resolution 1920 x 1200 @ 60 Hz Maximum shared memory of 1024 MB
Multi-GPU Support	Supports AMD Quad-GPU CrossFireX™ Technology
Expansion Slots	2 x PCIe 3.0/2.0 x16 (x16 or dual x8) 2 x PCIe 2.0 x16 (x4 mode) 1 x PCIe 2.0 x1 1 x PCI
Storage	Intel® C216 chipset : 2 x SATA 6Gb/s port(s), gray 4 x SATA 3Gb/s port(s), blue Support Raid 0, 1, 5, 10 Supports Intel® Smart Response Technology, Intel® Rapid Start Technology, Intel® Smart Connect Technology *1
LAN	Intel® 82574L, 2 x Gigabit LAN Controller(s) Support Teaming Technology
Audio	Realtek® ALC892 8-Channel High Definition Audio CODEC - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking Audio Feature : - Blu-ray audio layer Content Protection - Optical S/PDIF out port(s) at back panel
IEEE 1394	VIA® 6308S controller 2 x IEEE 1394a port(s)
USB Ports	Intel® C216 chipset : 4 x USB 3.0 port(s) (2 at back panel, blue, 2 at mid-board) Intel® C216 chipset : 10 x USB 2.0 port(s) (6 at back panel, black, 4 at mid-board)
Workstation Feature	4 x PCIe x 16 slot(s) G.P. Diagnosis Card bundled Quick Gate: 2 x vertical USB 2.0 on board
Special Features	ASUS EPU : - EPU - EPU switch ASUS Power Design : - 8 +2 Phase Power Design GPU Boost with switch ASUS Exclusive Features : - MemOK! - AI Suite II - Anti-Surge - ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface ASUS Quiet Thermal Solution : - Stylish Fanless Design Heat-sink solution - ASUS Fan Xpert ASUS EZ DIY : - ASUS CrashFree BIOS 3 - ASUS EZ Flash ASUS Q-Design : - ASUS Q-Connector

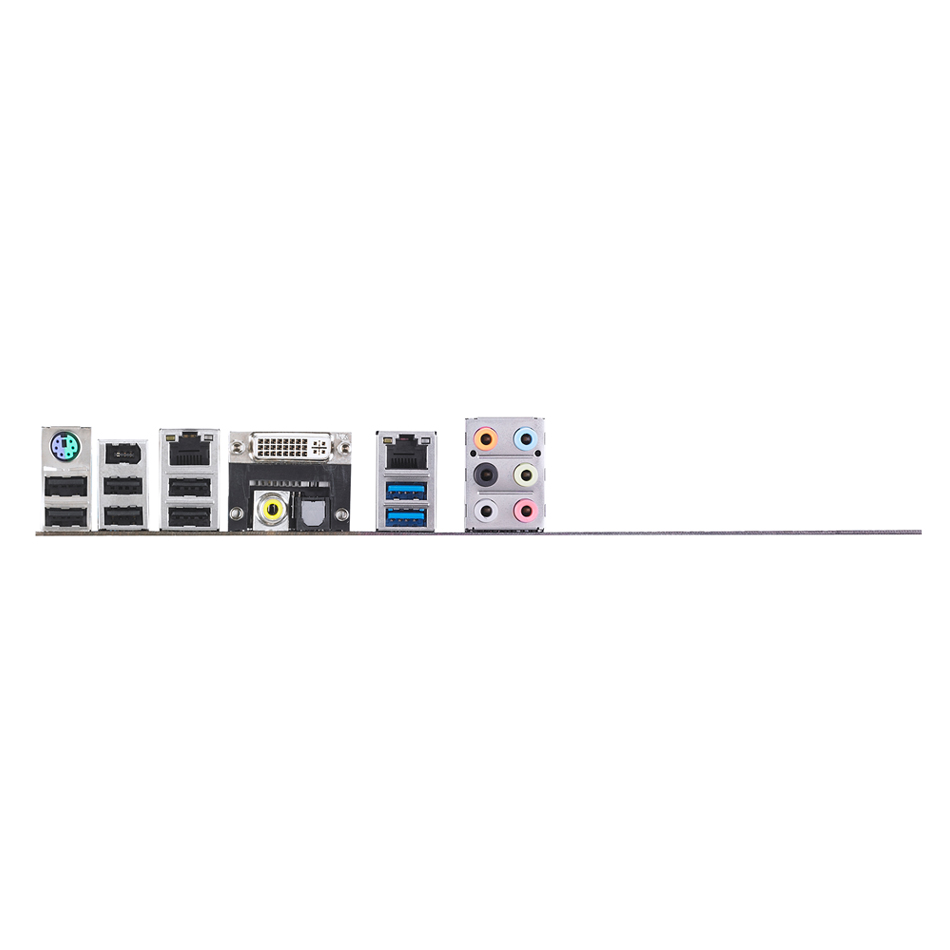

Back I/O Ports	1 x PS/2 keyboard/mouse combo port(s) 1 x DVI-I 1 x IEEE 1394a 2 x LAN (RJ45) port(s) 2 x USB 3.0 6 x USB 2.0 1 x Coaxial S/PDIF out 1 x Optical S/PDIF out 6 x Audio jack(s)
Internal I/O Ports	1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s) (19-pin) 1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s) 2 x Vertical USB 2.0 port(s) 1 x TPM connector(s) 1 x COM port(s) connector(s) 1 x IEEE 1394a connector(s) 1 x CPU Fan connector(s) 3 x Chassis Fan connector(s) 1 x Power Fan connector(s) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x parallel port connector(s) 1 x Front panel connector(s) (1 x 20 -pin) 1 x Front panel audio connector(s) (AAFP) 1 x MemOK! button(s)
BIOS	64 Mb Flash ROM, EFI AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.6, ACPI 2.0a, Multi-language BIOS, ASUS EZ Flash Utility, ASUS CrashFree BIOS 3
Manageability	WfM 2.0, DMI 2.0, WOL by PME, WOR by PME, PXE
Operating System	Windows® Server 2008 R2 Enterprise Windows® Server 2008 Enterprise 32/64-bit Windows® Server 2003 R2 Enterprise 32/64-bit Windows® 7 32/64-bit Windows® XP 32/64-bit RedHat® Enterprise Linux WS 6.2 32/64-bit Open SUSE 12.1 Ubuntu Desktop 12.04 *2
Form Factor	ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.5 cm )
Note	1: Supports on Intel® Core™ processor family with Windows 7 operating systems. 2: Linux OS only conduct installation test OK.

The product (electrical , electronic equipment, Mercury-containing button cell battery) should not be placed in municipal waste. Check local regulations for disposal of electronic products.

All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets.
PCB color and bundled software versions are subject to change without notice.
Brand and product names mentioned are trademarks of their respective companies.
