ASUS（エイスース） M5A99FX PRO R2.0

最新機能を追加したAMDプラットフォーム用マザーボードの新R2.0シリーズ
トリプルデジタル電源回路にUSB BIOS Flashbackなど基本性能と使いやすさを向上

・JAN/UPC：0610839187430
・TEKWIND型番：ASU-M5A99FX/PRO/R2.0

・AMD 990FX＋AMD SB950チップセット搭載
・AMD FX、Phenom II、Athlon II、Sempron 100シリーズ対応
・DDR3メモリ×4枚（最大32GB）対応
・x16 2.0スロット×4、x1 2.0スロット×1、PCI×1
・SATA 6Gb/s×7、eSATA 6Gb/s×1
・1000BASE-T×1
・USB 3.0×4、USB 2.0×14
・トリプルデジタル「SMART DIGI+ Power Control」
（8＋2＋2フェーズ）
・マザーボードの電力を集中管理する電力制御チップ「EPU」
・クロックや電圧制御のためだけの専用制御チップ「TPU」
・DLNAとスマートフォンからのリモートデスクトップに対応する「Remote GO!」
・CPU＋ケースファンを温度制御できる「Fan Xpert」
・スマートフォンを高速充電できる「Ai Charger+」
・マザーボード搭載機能を集中管理できる「AI Suite II」
・初心者モードと上級者モードを備える高機能BIOS「EFI BIOS」
・CPUがなくてもUSBメモリからBIOSを更新できる「USB BIOS Flashback」

製品についてお気軽にお問い合わせください

この製品を問い合わせる

プロフェッショナルがいるテックウインドの強み

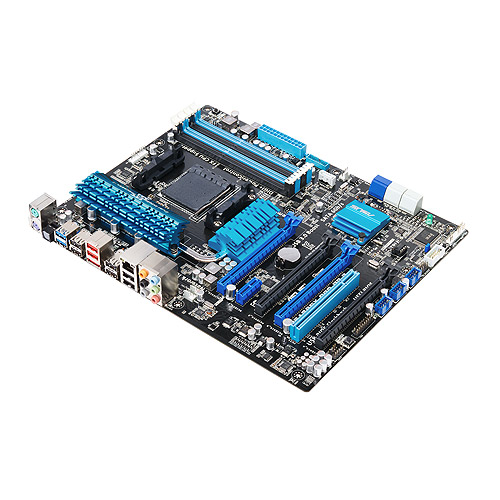

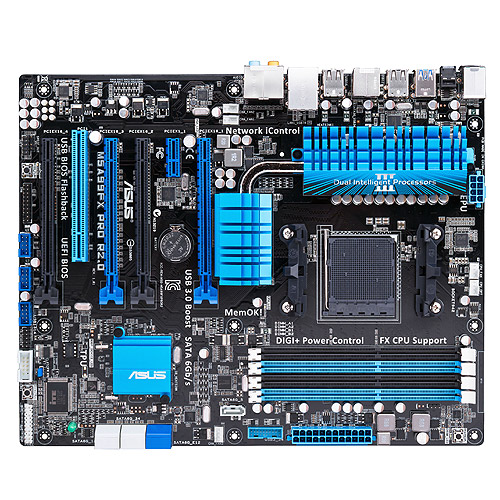

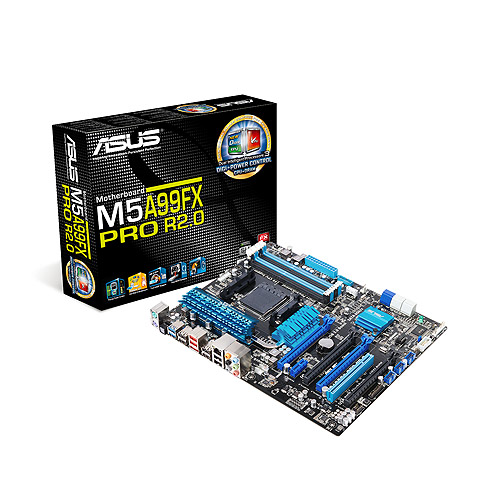

製品画像

スペック

CPU	AMD AM3+ FX™/Phenom™ II/Athlon™ II/Sempron™ 100 Series Processors Supports AM3+ 32 nm CPU Supports CPU up to 8 cores Supports CPU up to 140 W AMD Cool 'n' Quiet™ Technology
Chipset	AMD 990FX/SB950
Memory	4 x DIMM, Max. 32GB, DDR3 2133(O.C.)/1866/1600/1333/1066 MHz ECC, Non-ECC, Un-buffered Memory Dual Channel Memory Architecture * Refer to www.asus.com or user manual for the Memory QVL (Qualified Vendors Lists). * Due to OS limitation, when installing total memory of 4GB capacity or more, Windows® 32-bit operation system may only recognize less than 3GB. Install a 64-bit Windows® OS when you want to install 4GB or more memory on the motherboard. * Due to CPU spec., AMD 100 series CPUs support up to DDR3 1066MHz. With ASUS design, this motherboard can support up to DDR3 1333MHz.
System Bus	Up to 5.2 GT/s HyperTransport™ 3.0
Multi-GPU Support	Supports NVIDIA® Quad-GPU SLI™ Technology Supports AMD Quad-GPU CrossFireX™ Technology
Expansion Slots	2 x PCIe 2.0 x16 (dual x16) 2 x PCIe 2.0 x16 (x4 mode, black) 1 x PCIe 2.0 x1 1 x PCI
Storage	AMD SB950 controller : 5 x SATA 6Gb/s port(s), gray 1 x eSATA port(s), red ASMedia® PCIe SATA controller : 2 x SATA 6Gb/s port(s), navy blue
LAN	Realtek® 8111F, 1 x Gigabit LAN Controller(s)
Audio	Realtek® ALC892 8-Channel High Definition Audio CODEC - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking Audio Feature : - Absolute Pitch 192kHz/ 24-bit True BD Lossless Sound - Blu-ray audio layer Content Protection - DTS Ultra PC II - DTS Connect - ASUS Noise Filter - Optical S/PDIF out port(s) at back panel
USB Ports	ASMedia® USB 3.0 controller : 4 x USB 3.0 port(s) (2 at back panel, blue, 2 at mid-board) AMD SB950 controller : 14 x USB 2.0 port(s) (8 at back panel, black, 6 at mid-board)
Overclocking Features	Overclocking Protection : - ASUS C.P.R.(CPU Parameter Recall)
Special Features	ASUS Dual Intelligent Processors 3 with New DIGI+ Power Control : SMART DIGI+ : - Smart DIGI+ Key- Quickly delivers optimized VRM frequency, voltage and current for superior CPU/DRAM overclocking performance with one click. ASUS TPU : - Auto Tuning - TurboV ASUS EPU : - EPU ASUS Digital Power Design : - Industry leading Digital 6 + 2 Phase CPU Power Design - Industry leading Digital 2 Phase DRAM Power Design - CPU Power Utility - DRAM Power Utility ASUS Exclusive Features : - Remote GO! - USB BIOS Flashback - MemOK! - AI Suite II - Ai Charger+ - Front Panel USB 3.0 Support - ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface - Network iControl - USB 3.0 Boost ASUS Quiet Thermal Solution : - Stylish Fanless Design Heat-pipe solution - ASUS Fan Xpert ASUS EZ DIY : - DirectKey - Percision Tweaker 2 - ASUS O.C. Profile - ASUS EZ Flash 2 - ASUS MyLogo 2 - Multi-language BIOS ASUS Q-Design : - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED) - ASUS Q-Slot - ASUS Q-DIMM - ASUS Q-Connector

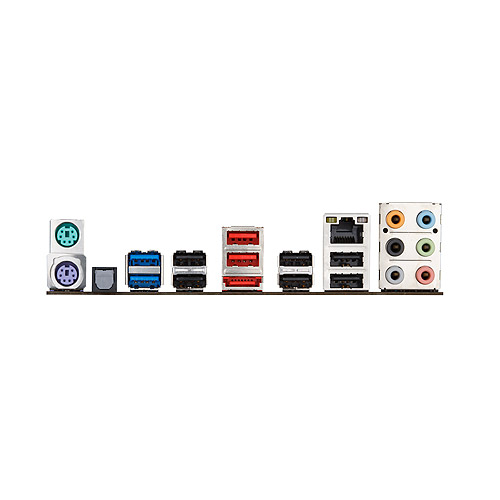

Back I/O Ports	1 x PS/2 keyboard (purple) 1 x PS/2 mouse (green) 1 x eSATA 1 x LAN (RJ45) port(s) 2 x USB 3.0 8 x USB 2.0 (one port can be switched to USB BIOS Flashback) 1 x Optical S/PDIF out 6 x Audio jack(s)
Internal I/O Ports	1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s) (19-pin) 3 x USB 2.0 connector(s) support(s) additional 6 USB 2.0 port(s) 1 x TPM connector(s) 1 x COM port(s) connector(s) 7 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) (4 -pin) 1 x CPU OPT Fan connector(s) (4 -pin) 3 x Chassis Fan connector(s) (4 -pin) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s) (Q-Connector) 1 x DirectKey Button(s) 1 x DRCT header(s) 1 x MemOK! button(s) 1 x Clear CMOS jumper(s) 1 x USB BIOS Flashback button(s)
Accessories	User's manual I/O Shield 4 x SATA 6Gb/s cable(s) 1 x SLI bridge(s) 1 x Q-connector(s) (2 in 1)
BIOS	64 Mb Flash ROM, UEFI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.7, ACPI 2.0a, Multi-language BIOS, ASUS EZ Flash 2, F12 PrintScreen, F3 Shortcut Function and ASUS DRAM SPD (Serial Presence Detect) memory information
Manageability	WfM 2.0, DMI 2.0, WOL by PME, WOR by PME, PXE
Support Disc	Drivers ASUS Utilities ASUS Update Anti-virus software (OEM version)
Form Factor	ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

The product (electrical , electronic equipment, Mercury-containing button cell battery) should not be placed in municipal waste. Check local regulations for disposal of electronic products.

All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets.
PCB color and bundled software versions are subject to change without notice.
Brand and product names mentioned are trademarks of their respective companies.
