ASUS（エイスース） P8Z77-V PREMIUM

Thunderboltポートを標準搭載するZ77シリーズ最上位モデル

・JAN/UPC：0610839186907
・TEKWIND型番：ASU-P8Z77-V/PREMIUM

Z77搭載マザーボードに最上位モデル P8Z77-V PREMIUM が登場しました。

P8Z77-V PREMIUMの大きな特徴はASUSマザーボード史上初搭載となるThunderboltコネクタと、mSATAポートに搭載済みの32GB SSDです。

ストレージデバイスからモニタまで、最大6デバイスを高速10Gbpsで接続することが可能な次世代インターフェースThunderboltポートを装備することにより、将来的な様々な拡張にも対応することができます。

搭載済のmSATA 32GB SSDはIntel Rapid Start Technology、Intel Smart Response Technologyへ同時に対応可能な容量を備えており、別途SSDをご購入頂く必要無く、またケースのスペースも消費すること無くWindows7のOS起動速度やハードディスクのキャッシングによるパフォーマンス向上に貢献します。

このほか、「Dual Intelligent Processors 3 with SMART DIGI+ Technology」による20フェイズデジタル電源、PCI Expressスイッチチップによる使い勝手の良いスロット構成、USB3.0未対応パソコンケースのための付属FrontUSB3.0 BOX、CPU無しでもBIOSの書き換えが可能なBIOS Flashback用USBポート、Intel製チップを採用したDualGbLANコネクタ、WiFi/Bluetooth対応モジュール、各種自作組み立て支援機能(組み立てやすいガスケット型IOパネル Q-Shield、BIOS起動シーケンスが確認出来るQ-LED/Q-Code等)、スロットも4WAY-SLI,CrossfireX対応と、まさに最上位モデルの"PREMIUM"の名に恥じない様々な機能により性能と信頼性、さらには使い勝手を満たしたZ77シリーズで最もお勧め出来るマザーボードです。

製品についてお気軽にお問い合わせください

この製品を問い合わせる

プロフェッショナルがいるテックウインドの強み

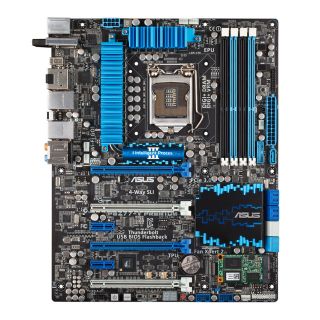

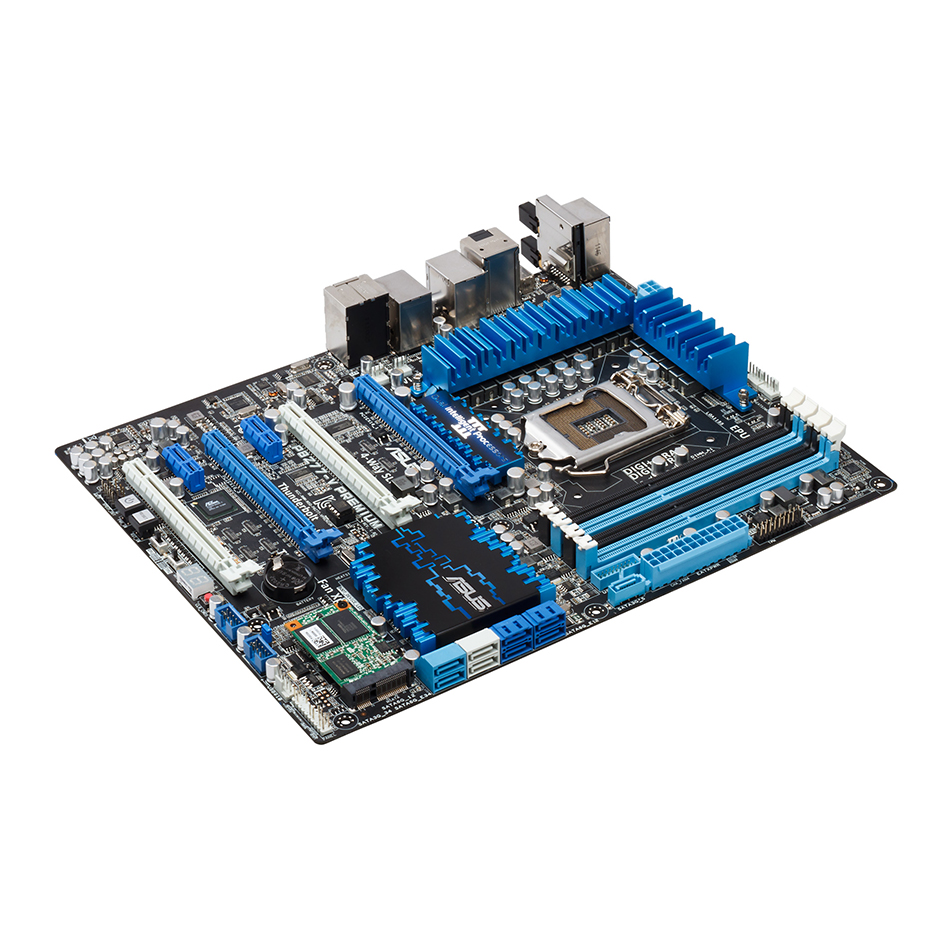

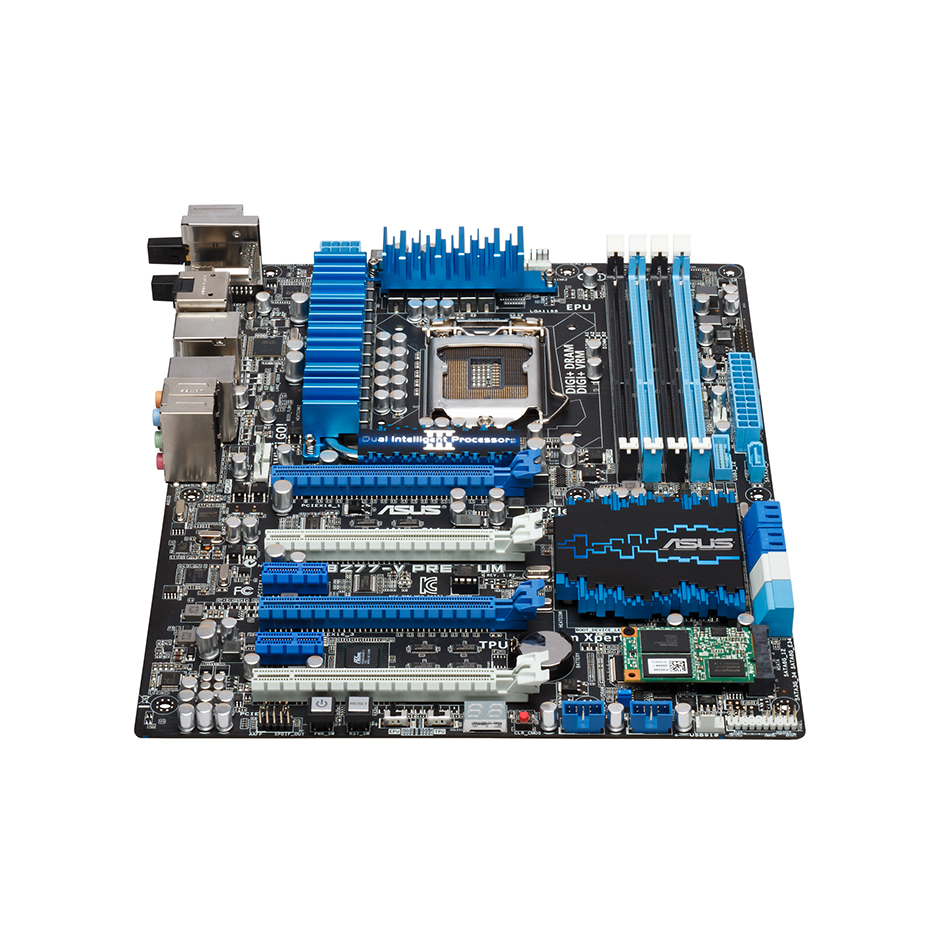

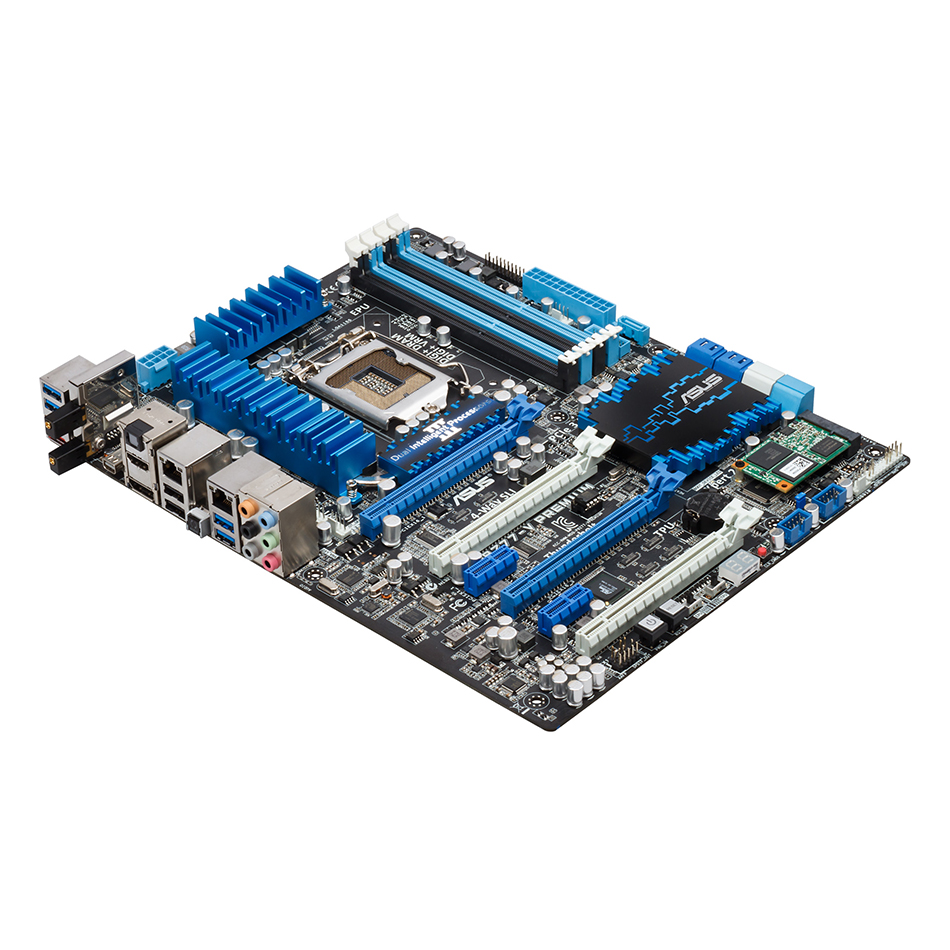

製品画像

スペック

CPU	Intel® Socket 1155 for 3rd/2nd Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors Supports Intel® 22 nm CPU Supports Intel® 32 nm CPU Supports Intel® Turbo Boost Technology 2.0 * The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
Chipset	Intel® Z77
Memory	4 x DIMM, Max. 32GB, DDR3 2800(O.C.)/2600(O.C.)/2400(O.C.)/2200(O.C.)/2133(O.C.)/2000(O.C.)/1866(O.C.)/1800(O.C.)/1600/1333/1066 MHz Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) * Hyper DIMM support is subject to the physical characteristics of individual CPUs. * Refer to www.asus.com or user manual for the Memory QVL (Qualified Vendors Lists).
Thunderbolt	VGA output support Data transfer rate up to 10 Gbps Daisy-chain up to 6 Thunderbolt devices
Graphic	Integrated Graphics Processor Multi-VGA output support : HDMI/DisplayPort/Thunderbolt ports - Supports HDMI with max. resolution 1920 x 1200 @ 60 Hz - Supports DisplayPort with max. resolution 2560 x 1600 @ 60 Hz - Supports Thunderbolt with max. resolution 2560 x 1600 @ 60 Hz Maximum shared memory of 1696 MB Supports Intel® HD Graphics, InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™
Multi-GPU Support	Supports NVIDIA® 4-Way SLI™ Technology Supports AMD 4-Way CrossFireX Technology Supports LucidLogix® Virtu™ MVP Technology *1
Expansion Slots	4 x PCIe 3.0/2.0 x16 (dual x16 or x16, x8, x8 or quad x8) *2 2 x PCIe 2.0 x1
Storage	Intel® Z77 chipset : 2 x SATA 6Gb/s port(s), gray 3 x SATA 3Gb/s port(s), blue 1 x mini-SATA 3Gb/s port(s) with onboard 32GB SSD, black Support Raid 0, 1, 5, 10 Supports Intel® Smart Response Technology, Intel® Rapid Start Technology, Intel® Smart Connect Technology 3 Marvell® PCIe 9230 controller :* 4 x SATA 6Gb/s port(s), navy blue Support Raid 0, 1, 10 ASMedia® PCIe SATA controller : *4 2 x eSATA 6Gb/s port(s), red
LAN	Intel® 82579V, 1 x Gigabit LAN Controller(s) Intel® 82583, 1 x Gigabit LAN Controller(s) Dual Gigabit LAN controllers- 802.3az Energy Efficient Ethernet (EEE) appliance Intel® LAN- Dual interconnect between the Integrated LAN controller and Physical Layer (PHY)

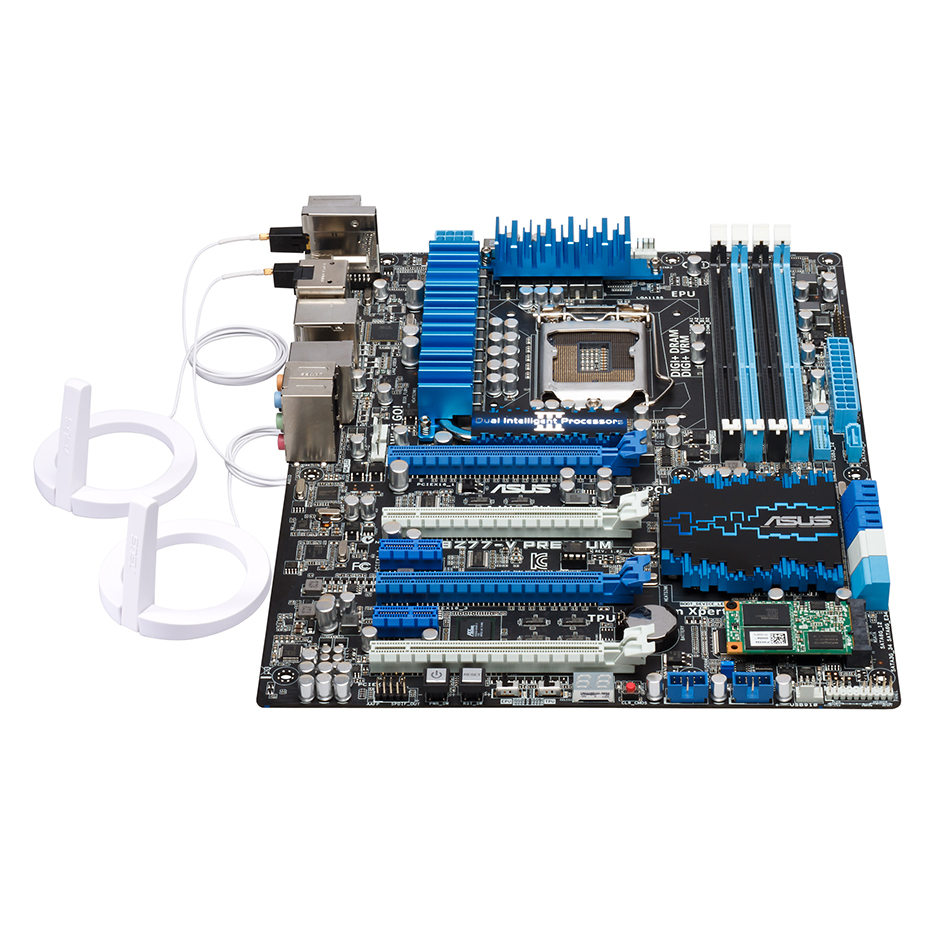

Wireless Data Network	Wi-Fi 802.11 a/b/g/n Supports dual band frequency 2.4/5 GHz
Bluetooth	Bluetooth V4.0 Bluetooth V3.0+HS
Audio	Realtek® ALC898 8-Channel High Definition Audio CODEC - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking Audio Feature : - Absolute Pitch 192kHz/ 24-bit True BD Lossless Sound - Blu-ray audio layer Content Protection - DTS Ultra PC II - DTS Connect - Optical S/PDIF out port(s) at back panel
USB Ports	ASMedia® USB 3.0 controller : 2 x USB 3.0 port(s) (2 at back panel, blue) Intel® Z77 chipset : 5 4 x USB 3.0 port(s) (2 at back panel, blue, 2 at mid-board) Intel® Z77 chipset :* 6 x USB 2.0 port(s) (2 at back panel, black, 4 at mid-board)
Overclocking Features	Overclocking Protection : - ASUS C.P.R.(CPU Parameter Recall)
Special Features	ASUS Dual Intelligent Processors 3 - SMART DIGI+ Power Control : SMART DIGI+ : - Smart DIGI+ Key- quickly delivers higher VRM frequency, voltage and current for superior CPU/iGPU/DRAM overclocking performance with one switch. - Smart CPU Power Level (Intel® VRD 12.5 Future Power Design)- provides the best digital power saving conditions. ASUS TPU : - Auto Tuning - TurboV - GPU Boost - TPU switch ASUS EPU : - EPU - EPU switch ASUS Digital Power Design : - Industry leading Digital 20 Phase Power Design (16 -phase for CPU, 4 -phase for iGPU) - Industry leading Digital 2 Phase DRAM Power Design - CPU Power Utility - DRAM Power Utility ASUS Wi-Fi GO! - Wi-Fi GO! Function: DLNA Media Hub, Smart Motion Control, Remote Desktop, Remote Keyboard & Mouse, File Transfer, Capture & Send 6 - Wi-Fi GO! Remote for portable Smartphone/Tablet, supporting iOS & Android systems - Wi-Fi Engine for network sharing and connection: Client Mode, AP Mode ASUS Exclusive Features* : - USB BIOS Flashback - AI Suite II - Ai Charger+ - USB Charger+ - Anti-Surge - ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface - ASUS SSD Caching II - Network iControl - USB 3.0 Boost - Disk Unlocker ASUS Quiet Thermal Solution : - Stylish Fanless Design Heat-pipe solution - ASUS Fan Xpert 2 ASUS EZ DIY : - ASUS O.C. Tuner - ASUS CrashFree BIOS 3 - ASUS EZ Flash 2 ASUS Q-Design : - ASUS Q-Shield - ASUS Q-Code - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED) - ASUS Q-Slot - ASUS Q-DIMM - ASUS Q-Connector

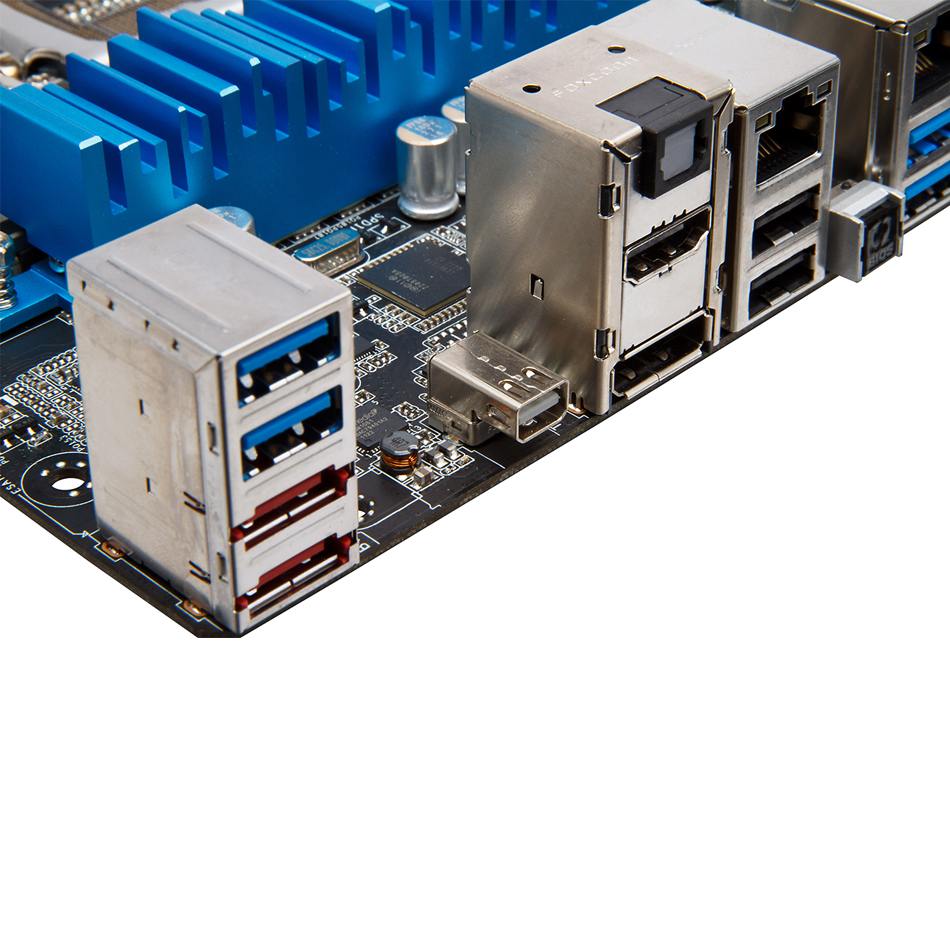

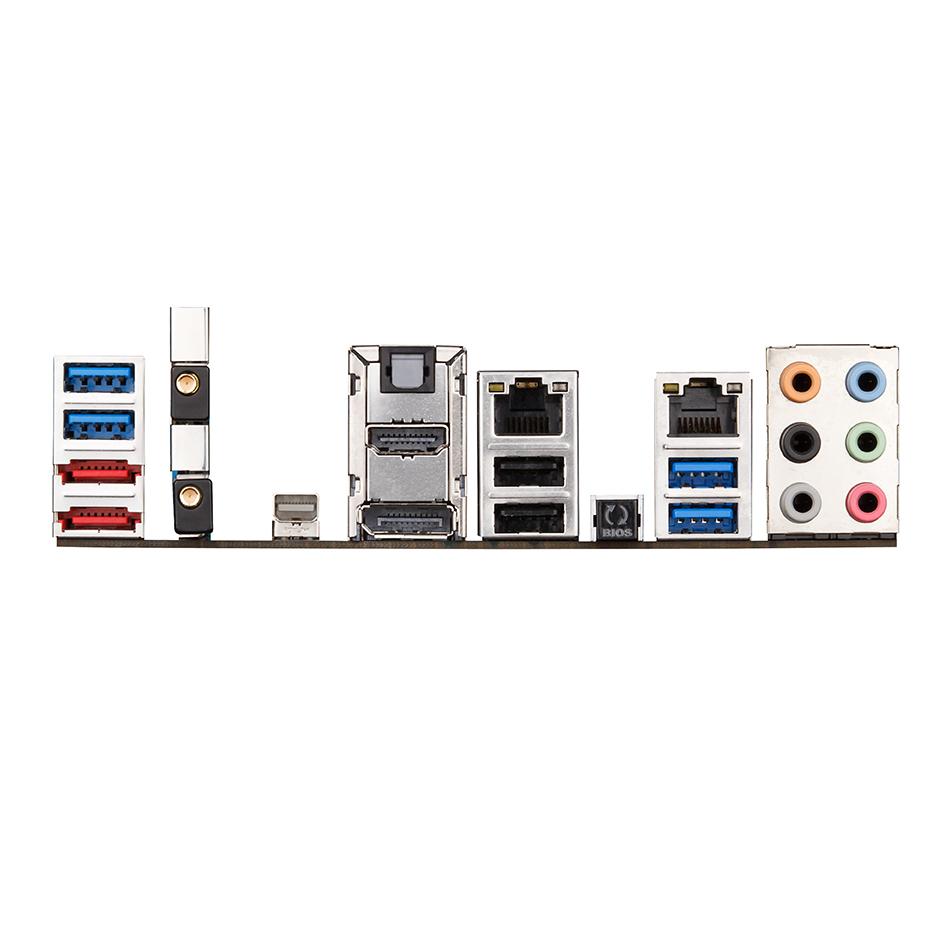

Back I/O Ports	1 x Thunderbolt port(s) 1 x DisplayPort 1 x HDMI 2 x eSATA 6Gb/s 2 x LAN (RJ45) port(s) 4 x USB 3.0 2 x USB 2.0 1 x Optical S/PDIF out 6 x Audio jack(s) 1 x Bluetooth V4.0 connector(s) for ASUS Wi-Fi GO! card 1 x USB BIOS Flashback Button(s)
Internal I/O Ports	1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s) (19-pin) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x TPM connector(s) 6 x SATA 6Gb/s connector(s) 3 x SATA 3Gb/s connector(s) 1 x mSATA connector(s) with 32GB SSD onboard 1 x CPU Fan connector(s) (4 -pin) 1 x CPU OPT Fan connector(s) (4 -pin) 4 x Chassis Fan connector(s) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s) (Q-Connector) 1 x MemOK! button(s) 1 x TPU switch(es) 1 x EPU switch(es) 1 x CPU/DRAM overvoltage jumper(s) 1 x Power-on button(s) 1 x Reset button(s) 1 x Clear CMOS button(s)
Accessories	User's manual ASUS Q-Shield 2 x SATA 3Gb/s cable(s) 4 x SATA 6Gb/s cable(s) 1 x 3-Way SLI bridge(s) 1 x 4-Way SLI bridge(s) 1 x SLI bridge(s) 1 x Q-connector(s) (2 in 1) 1 x ASUS Front Panel USB 3.0 Box(es) 1 x ASUS Wi-Fi GO! card(s) 2 x Wi-Fi Ring Moving Antenna(s)
BIOS	64 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.5, ACPI 2.0a, Multi-language BIOS, ASUS EZ Flash 2, ASUS CrashFree BIOS 3, F12 PrintScreen, F3 Shortcut Function and ASUS DRAM SPD (Serial Presence Detect) memory information
Manageability	WfM 2.0, DMI 2.0, WOL by PME, PXE
Support Disc	Drivers ASUS Utilities ASUS Update Anti-virus software (OEM version)
Form Factor	ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Note	1: LucidLogix Virtu MVP supports Windows 7 operating systems. 2: PCIe 3.0 speed is supported by Intel® 3rd generation Core™ processors. 3: Supports on Intel® Core™ processor family with Windows 7 operating systems. 4: These SATA ports are for data hard drivers only. ATAPI devices are not supported. 5: The USB 3.0 ports run at USB 3.0 speed rate under Windows® 7 or later versions. 6: Available with V1.01.00 or later.

The product (electrical , electronic equipment, Mercury-containing button cell battery) should not be placed in municipal waste. Check local regulations for disposal of electronic products.

All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets.
PCB color and bundled software versions are subject to change without notice.
Brand and product names mentioned are trademarks of their respective companies.
