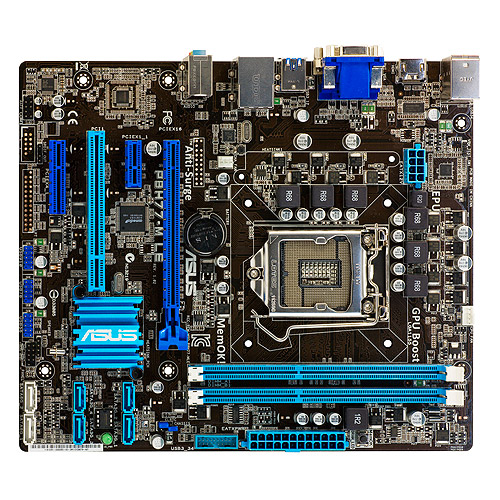

Intel H77チップセット搭載 uATXマザーボード
・JAN/UPC：0610839185160
・TEKWIND型番：ASU-P8H77-M/LE
【主な特長】
・ASUS DIGI+VRM :- Digital power control: digital power Design for the CPU and iGPU
・GPU Boost: Instant iGPU Level Up!
・USB3.0 Boost : Lightning Fast Transfer Speeds!
・Lucid Virtu MVP : Up to 60% Hybrid Graphics Boost
・Network iControl : Real-time Regulate Network Bandwidth
製品についてお気軽にお問い合わせください
この製品を問い合わせる製品画像
スペック
| CPU | Intel® Socket 1155 for 3rd/2nd Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors Supports Intel® 22 nm CPU Supports Intel® 32 nm CPU Supports Intel® Turbo Boost Technology 2.0 * The Intel® Turbo Boost Technology 2.0 support depends on the CPU types. * Refer to www.asus.com for CPU support list |
|---|---|
| Chipset | Intel® H77 |
| Memory | 2 x DIMM, Max. 16GB, DDR3 2200(O.C.)/2133(O.C.)/2000(O.C.)/1866(O.C.)/1800(O.C.)/1600/1333 MHz Memory Dual Channel Memory Architecture * 1600MHz and higher frequency is supported by Intel® 3rd generation processors. * Refer to www.asus.com or user manual for the Memory QVL (Qualified Vendors Lists). * Due to OS limitation, when installing total memory of 4GB capacity or more, Windows® 32-bit operation system may only recognize less than 3GB. Install a 64-bit Windows® OS when you want to install 4GB or more memory on the motherboard. * Due to the CPU behavior, DDR3 2133/1866MHz memory module will run at DDR3 2000/1800MHz frequency as default. |
| Graphic | Integrated Graphics Processor Multi-VGA output support : HDMI/DVI/RGB ports - Supports HDMI with max. resolution 1920 x 1200 @ 60 Hz - Supports DVI with max. resolution 1920 x 1200 @ 60 Hz - Supports RGB with max. resolution 2048 x 1536 @ 75 Hz |
| Multi-GPU Support | Supports LucidLogix® Virtu™ MVP Technology *1 |
| Expansion Slots | 1 x PCIe 3.0/2.0 x16 1 x PCIe 2.0 x4 1 x PCIe 2.0 x1 1 x PCI |
| Storage | Intel® H77 chipset : 2 x SATA 6Gb/s port(s), gray 4 x SATA 3Gb/s port(s), blue Support Raid 0, 1, 5, 10 Supports Intel® Smart Response Technology, Intel® Rapid Start Technology, Intel® Smart Connect Technology *3 |
| LAN | Realtek® 8111F, 1 x Gigabit LAN Controller(s) |
| Audio | Realtek® ALC887 8-Channel High Definition Audio CODEC - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking |
| USB Ports | Intel® H77 chipset : 4 x USB 3.0 port(s) (2 at back panel, blue, 2 at mid-board) Intel® H77 chipset : 10 x USB 2.0 port(s) (4 at back panel, black, 6 at mid-board) |
| Special Features | ASUS EPU : - EPU ASUS Digital Power Design : - ASUS DIGI+ VRM Utility GPU Boost ASUS Exclusive Features : - MemOK! - Anti-Surge - ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface - USB 3.0 Boost ASUS Quiet Thermal Solution : - ASUS Fan Xpert ASUS EZ DIY : - ASUS CrashFree BIOS 3 - ASUS EZ Flash 2 - ASUS MyLogo 2 100% All High-quality Conductive Polymer Capacitors |

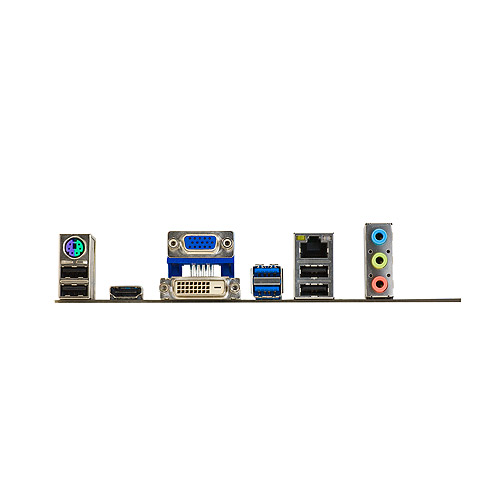

| Back I/O Ports | 1 x PS/2 keyboard/mouse combo port(s) 1 x DVI 1 x D-Sub 1 x HDMI 1 x LAN (RJ45) port(s) 2 x USB 3.0 4 x USB 2.0 3 x Audio jack(s) |
| Internal I/O Ports | 1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s) 3 x USB 2.0 connector(s) support(s) additional 6 USB 2.0 port(s) 2 x SATA 6Gb/s connector(s) 4 x SATA 3Gb/s connector(s) 1 x CPU Fan connector(s) 1 x Chassis Fan connector(s) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x Internal speaker connector(s) 1 x System panel(s) 1 x Chassis Intrusion connector(s) |
| BIOS | 64Mb Flash ROM, AMI BIOS, PnP, DMI v2.0, WfM2.0, SMBIOS v2.5, ACPI v2.0a |
| Manageability | WOL, PXE, PME Wake Up |
| Form Factor | uATX Form Factor 9.6 inch x 8.2 inch ( 24.4 cm x 20.8 cm ) |
| Note | *1: LucidLogix Virtu MVP supports Windows 7 operating systems. *2: Due to Intel® chipset limitation, P8Z77, P8H77 and P8B75 series motherboards do not support Windows® Vista operating system. *3: Supports on Intel® Core™ processor family with Windows 7 operating systems. |
The product (electrical , electronic equipment, Mercury-containing button cell battery) should not be placed in municipal waste. Check local regulations for disposal of electronic products.
- All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets.
- PCB color and bundled software versions are subject to change without notice.
- Brand and product names mentioned are trademarks of their respective companies.
