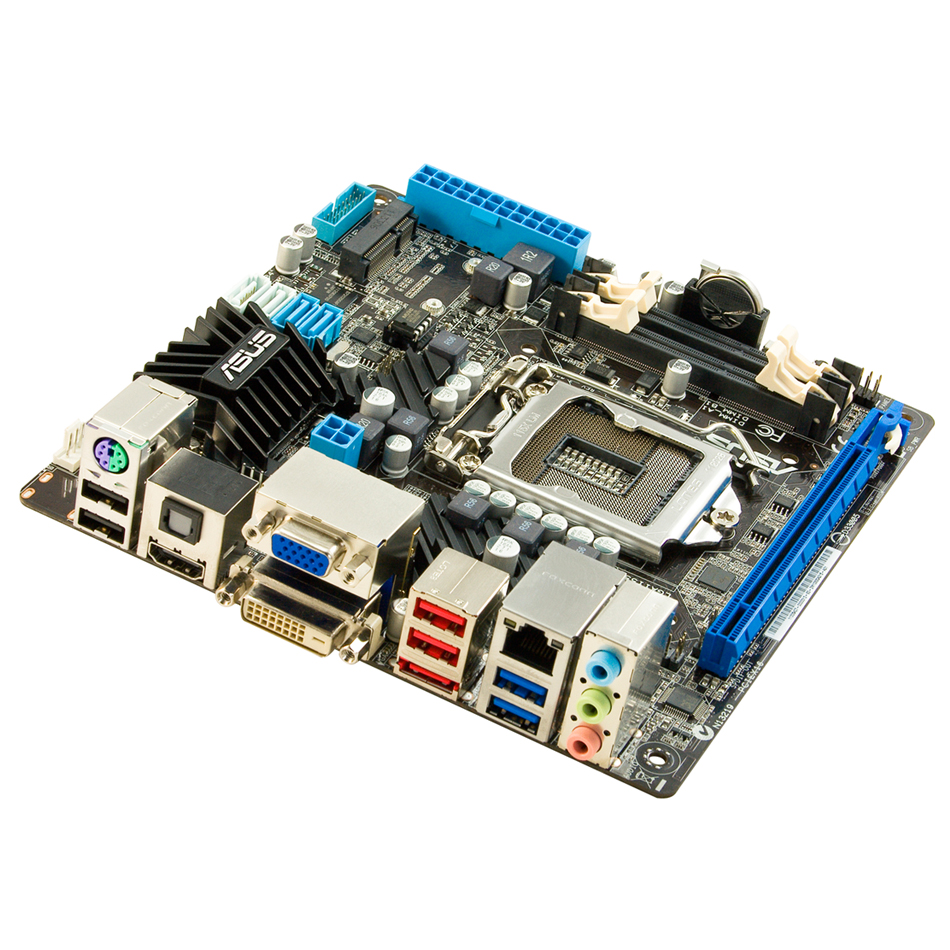

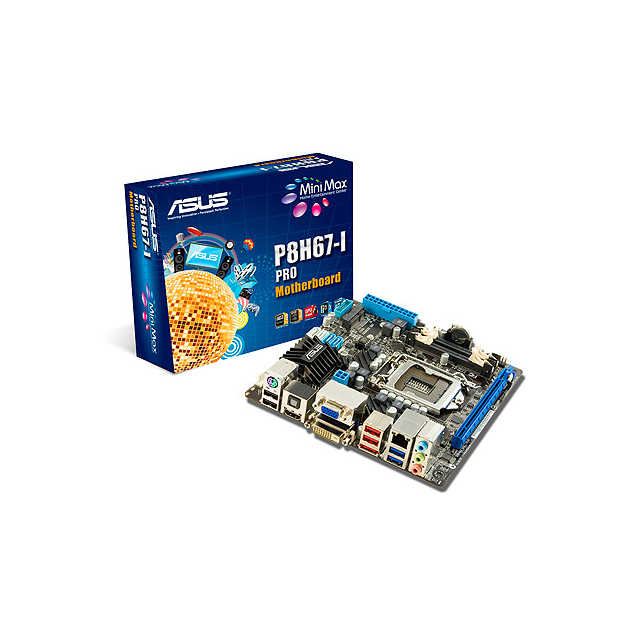

Intel H67(B3)チップセット搭載 Mini ITXマザーボード
・JAN/UPC：0610839184675
・TEKWIND型番：ASU-P8H67-I/PRO
【主な特長】
・GPU Boost - Go to the Limit with iGPU Level Up
・MemOK! - Any Memory is A-OK!
・SATA6G / USB 3.0
・UEFI BIOS ? Flexible and Easy BIOS Interface
・AI Suite II ? One-Stop Access to Innovative ASUS Features
製品についてお気軽にお問い合わせください
この製品を問い合わせる製品画像
スペック
| CPU | Intel® Socket 1155 for 2nd Generation Core™ i7/Core™ i5/Core™ i3 Processors Supports Intel® 32 nm CPU Supports Intel® Turbo Boost Technology 2.0 * The Intel® Turbo Boost Technology 2.0 support depends on the CPU types. * Refer to www.asus.com for CPU support list |
|---|---|
| Chipset | Intel® H67(B3) |
| Memory | 2 x SO-DIMM, Max. 8GB, DDR3 1333/1066 MHz Non-ECC, Un-buffered Memory Dual Channel Memory Architecture * Refer to www.asus.com or user manual for the Memory QVL (Qualified Vendors Lists). |
| Graphic | Integrated Graphics Processor Multi-VGA output support : HDMI/DVI/RGB ports - Supports HDMI with max. resolution 1920 x 1200 @ 60 Hz - Supports DVI with max. resolution 1920 x 1200 @ 60 Hz - Supports RGB with max. resolution 2048 x 1530 @ 75 Hz Maximum shared memory of 1748 MB |
| Expansion Slots | 1 x PCIe 2.0 x16 |
| Storage | Intel® H67(B3) chipset : 2 x SATA 6Gb/s port(s), gray 2 x SATA 3Gb/s port(s), blue 1 x eSATA 3Gb/s port(s), red Support Raid 0, 1, 5, 10 |
| LAN | Realtek® 8111E , 1 x Gigabit LAN Controller(s) |
| Audio | Realtek® ALC892 8-Channel High Definition Audio CODEC - Supports : Jack-detection, Front Panel Jack-retasking Audio Feature : - Blu-ray audio layer Content Protection - DTS Surround Sensation UltraPC - Optical S/PDIF out port(s) at back panel |
| USB Ports | Built-in Controller : 4 x USB 3.0 port(s) (2 at back panel, blue, 2 at mid-board) Built-in Controller : 6 x USB 2.0 port(s) (4 at back panel, black+red, 2 at mid-board) |
| Special Features | ASUS EPU : - EPU GPU Boost ASUS Exclusive Features : - MemOK! - Anti-Surge - ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface ASUS EZ DIY : - ASUS CrashFree BIOS 3 - ASUS EZ Flash 2 |

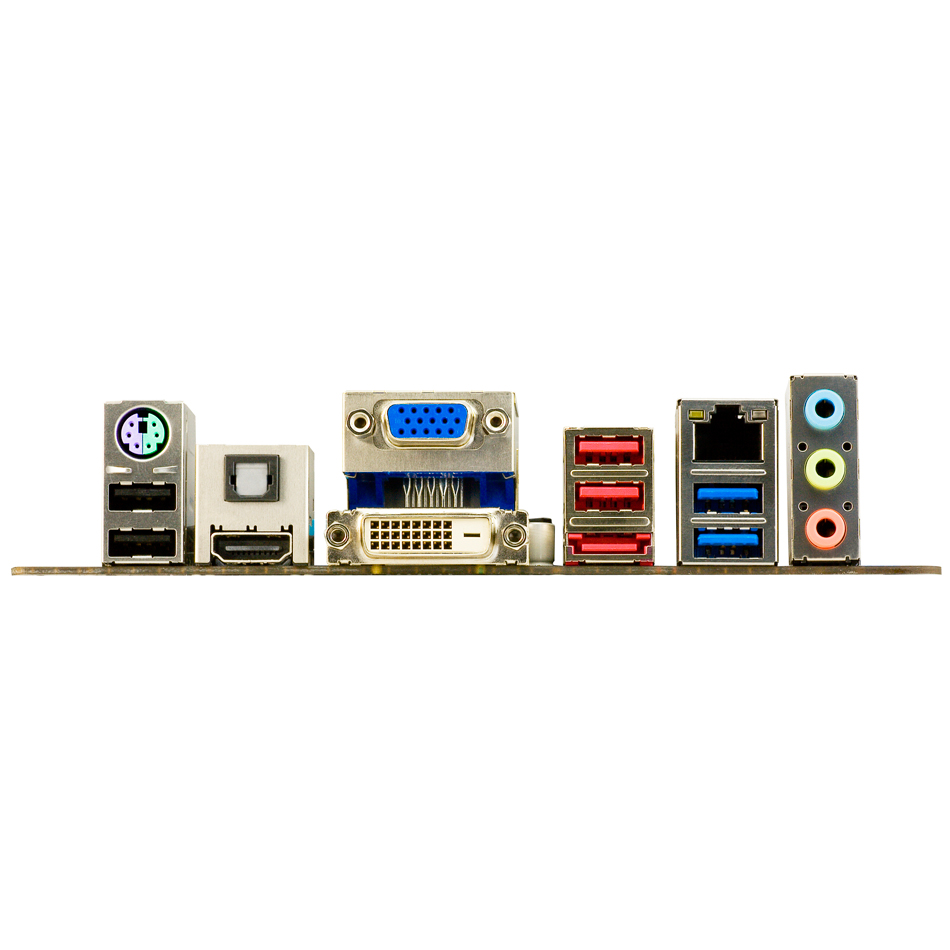

| Back I/O Ports | 1 x PS/2 keyboard/mouse combo port(s) 1 x DVI 1 x D-Sub 1 x HDMI 1 x eSATA 3Gb/s 1 x LAN (RJ45) port(s) 2 x USB 3.0 4 x USB 2.0 1 x Optical S/PDIF out 3 x Audio jack(s) |
| Internal I/O Ports | 1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s) 1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s) 2 x SATA 6Gb/s connector(s) 2 x SATA 3Gb/s connector(s) 1 x CPU Fan connector(s) (4 -pin) 1 x Chassis Fan connector(s) (4 -pin) 1 x 24-pin EATX Power connector(s) 1 x 4-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s) 1 x MemOK! button(s) 1 x GPU Boost switch(es) 1 x Clear CMOS jumper(s) |
| BIOS | 32 Mb Flash ROM , AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.5, ACPI 2.0a |
| Manageability | WOL by PME,PXE |
| Support Disc | Drivers Anti-virus software (OEM version) ASUS Update ASUS Utilities |
| Form Factor | Mini ITX Form Factor 6.75 inch x 6.75 inch ( 17.1 cm x 17.1 cm ) |
The product (electrical , electronic equipment, Mercury-containing button cell battery) should not be placed in municipal waste. Check local regulations for disposal of electronic products.
- All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets.
- PCB color and bundled software versions are subject to change without notice.
- Brand and product names mentioned are trademarks of their respective companies.
