P8H77-I

Name: P8H77-I
Brand: ASUS（エイスース）
SKU: 90-MIBI90-G0JAY0DZ
Availability: OutOfStock

Intel H77チップセット搭載Mini ITXマザーボード

・JAN/UPC：0610839185177
・TEKWIND型番：ASU-P8H77-I

【主な特長】

・USB3.0 Boost : Lightning Fast Transfer Speeds!
・GPU Boost: Instant iGPU Level Up!
・Lucid Virtu MVP : Up to 60% Hybrid Graphics Boost
・Network iControl : Real-time Regulate Network Bandwidth

この製品を問い合わせる

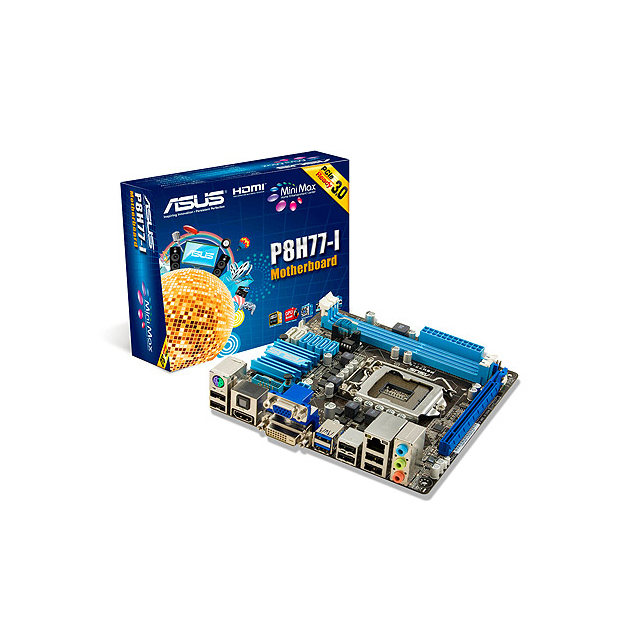

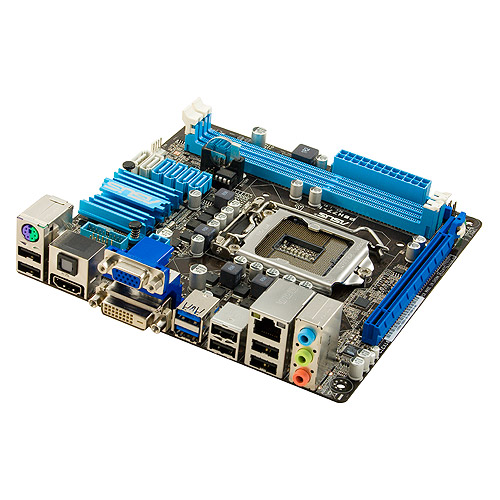

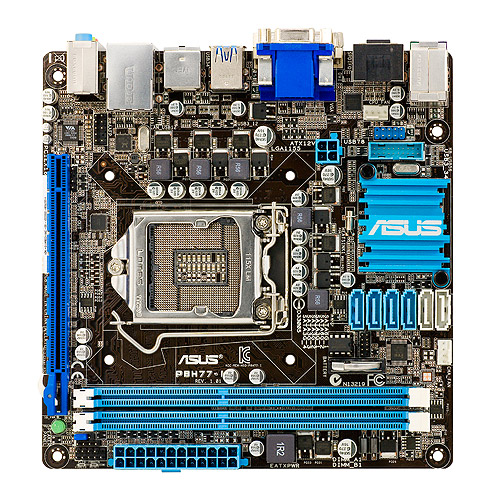

製品画像

スペック

CPU	Intel® Socket 1155 for 3rd/2nd Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors Supports Intel® 22 nm CPU Supports Intel® 32 nm CPU Supports Intel® Turbo Boost Technology 2.0 * The Intel® Turbo Boost Technology 2.0 support depends on the CPU types. * Refer to www.asus.com for CPU support list
Chipset	Intel® H77
Memory	2 x DIMM, Max. 16GB, DDR3 2200(O.C.)/2133(O.C.)/2000(O.C.)/1866(O.C.)/1800(O.C.) /1600/1333 MHz Non-ECC, Un-buffered Memory Dual Channel Memory Architecture * 1600MHz and higher frequency is supported by Intel® 3rd generation processors. * Refer to www.asus.com or user manual for the Memory QVL (Qualified Vendors Lists). * Due to the CPU behavior, DDR3 2133/1866MHz memory module will run at DDR3 2000/1800MHz frequency as default.
Graphic	Integrated Graphics Processor Multi-VGA output support : HDMI/DVI/RGB ports - Supports HDMI with max. resolution 1920 x 1200 @ 60 Hz - Supports DVI with max. resolution 1920 x 1200 @ 60 Hz - Supports RGB with max. resolution 2048 x 1536 @ 75 Hz
Multi-GPU Support	Supports LucidLogix® Virtu™ MVP Technology *1
Expansion Slots	1 x PCIe 3.0/2.0 x16
Storage	Intel® H77 chipset : 2 x SATA 6Gb/s port(s), gray 4 x SATA 3Gb/s port(s), blue Support Raid 0, 1, 5, 10
LAN	Realtek® 8111F, 1 x Gigabit LAN Controller(s)
Audio	VIA 8-Channel High Definition Audio CODEC - Supports : Multi-streaming, Front Panel Jack-retasking
USB Ports	Intel® H77 chipset : 4 x USB 3.0 port(s) (2 at back panel, blue, 2 at mid-board) Intel® H77 chipset : 8 x USB 2.0 port(s) (6 at back panel, black, 2 at mid-board)
Special Features	GPU Boost ASUS Exclusive Features : - AI Suite II - Ai Charger+ - Anti-Surge - ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface - USB 3.0 Boost ASUS Quiet Thermal Solution : - ASUS Fan Xpert - ASUS Q-Fan 2 ASUS EZ DIY : - ASUS CrashFree BIOS 3 - ASUS EZ Flash 2 - ASUS MyLogo 2

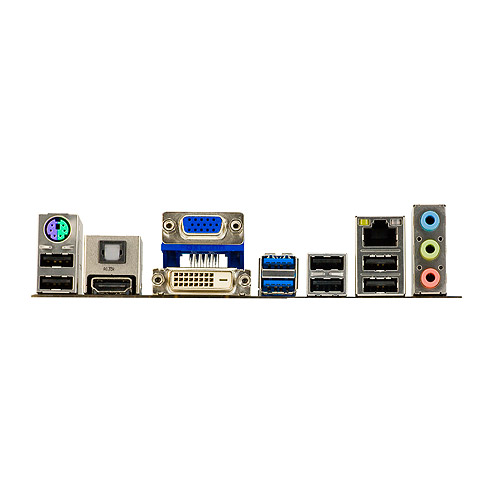

Back I/O Ports	1 x PS/2 keyboard/mouse combo port(s) 1 x DVI-D 1 x D-Sub 1 x HDMI 1 x LAN (RJ45) port(s) 2 x USB 3.0 6 x USB 2.0 1 x Optical S/PDIF out 3 x Audio jack(s)
Internal I/O Ports	1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s) 1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s) 2 x SATA 6Gb/s connector(s) 4 x SATA 3Gb/s connector(s) 1 x CPU Fan connector(s) (4 -pin) 1 x Chassis Fan connector(s) (4 -pin) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 4-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x Internal speaker connector(s) 1 x System panel(s) 1 x Clear CMOS jumper(s)
Accessories	User's manual I/O Shield 2 x SATA 6Gb/s cable(s)
BIOS	64 Mb Flash ROM, AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.5, ACPI 2.0a
Manageability	WOL by PME, PXE
Support Disc	Drivers ASUS Utilities ASUS Update Anti-virus software (OEM version)
Form Factor	Mini ITX Form Factor 6.7 inch x 6.7 inch ( 17 cm x 17 cm )
Note	1: LucidLogix Virtu MVP supports Windows 7 operating systems. 2: Due to Intel® chipset limitation, P8Z77, P8H77 and P8B75 series motherboards do not support Windows® Vista operating system.
