ASUS（エイスース） P8Z77-V LK

Intel CPU "Ivy Bridge"対応、Z77チップセット搭載、エントリーモデルの ATXマザーボード登場。

・JAN/UPC：0610839185542
・TEKWIND型番：ASU-P8Z77-V/LK

製品についてお気軽にお問い合わせください

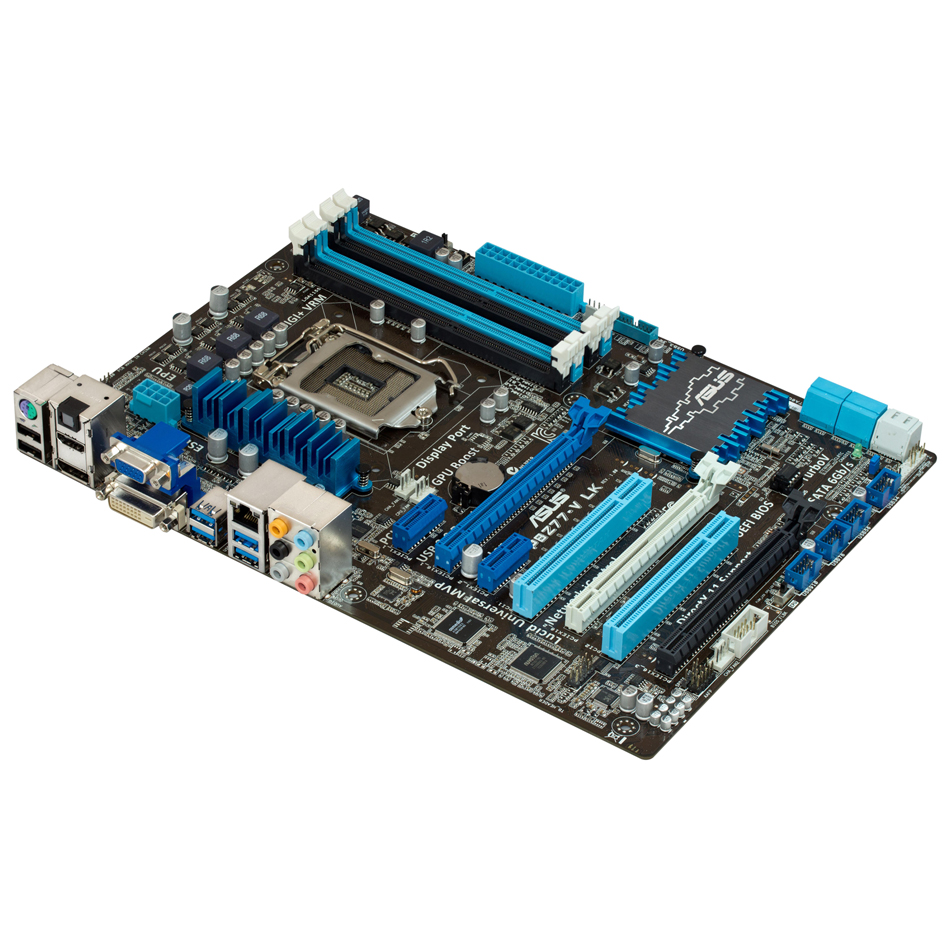

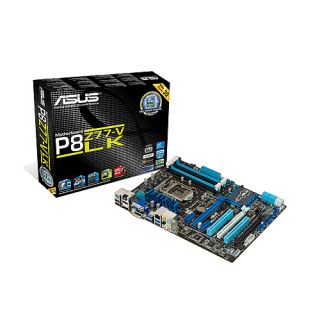

製品画像

スペック

CPU	Intel® Socket 1155 for 3rd/2nd Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors Supports Intel® 22 nm CPU Supports Intel® 32 nm CPU Supports Intel® Turbo Boost Technology 2.0 * Refer to www.asus.com for CPU support list
Brikkesett	Intel® Z77
Minne	4 x DIMM, Max. 32GB, DDR3 2400(O.C.)/2200(O.C.)/2133(O.C.)/2000(O.C.)/1866(O.C.)/1800(O.C.)/1600/1333 MHz Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) * Hyper DIMM support is subject to the physical characteristics of individual CPUs.
Grafikk	Integrated Graphics Processor Multi-VGA output support : HDMI/DVI/RGB/DisplayPort ports - Supports HDMI with max. resolution 1920 x 1200 @ 60 Hz - Supports DVI with max. resolution 1920 x 1200 @ 60 Hz - Supports RGB with max. resolution 2048 x 1536 @ 75 Hz - Supports DisplayPort with max. resolution 2560 x 1600 @ 60 Hz Maximum shared memory of 1696 MB Supports Intel® HD Graphics
Multi-GPU Support	Supports NVIDIA® Quad-GPU SLI™ Technology Supports AMD Quad-GPU CrossFireX™ Technology Supports AMD 3-Way CrossFireX™ Technology Supports LucidLogix® Virtu™ MVP Technology *1
Expansion Slots	2 x PCIe 3.0/2.0 x16 (x16 or dual x8) *2 1 x PCIe 2.0 x16 (x4 mode, black) 2 x PCIe 2.0 x1 2 x PCI
Lagring	Intel® Z77 chipset : 2 x SATA 6Gb/s port(s), gray 4 x SATA 3Gb/s port(s), blue Support Raid 0, 1, 5, 10 Supports Intel® Smart Response Technology, Intel® Rapid Start Technology, Intel® Smart Connect Technology *3
LAN	Realtek® 8111F, 1 x Gigabit LAN Controller(s)
Lyd	Realtek® ALC892 8-Channel High Definition Audio CODEC - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
USB Ports	Intel® Z77 chipset : 4 4 x USB 3.0 port(s) (2 at back panel, blue, 2 at mid-board) Intel® Z77 chipset :* 10 x USB 2.0 port(s) (2 at back panel, black, 8 at mid-board) ASMedia® USB 3.0 controller : *4 2 x USB 3.0 port(s) (2 at back panel, blue)
Overclocking Features	Overclocking Protection : - ASUS C.P.R.(CPU Parameter Recall)
Special Features	ASUS EPU : - EPU - EPU switch ASUS Digital Power Design : - Industry leading 4 + 1 + 1 Phase Power Design - ASUS DIGI+ VRM Utility TurboV GPU Boost ASUS Exclusive Features : - MemOK! - AI Suite II - Ai Charger+ - Anti-Surge - ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface - Network iControl - USB 3.0 Boost - Disk Unlocker ASUS Quiet Thermal Solution : - Stylish Fanless Design Heat-sink solution & MOS Heatsink - ASUS Fan Xpert+ ASUS EZ DIY : - ASUS CrashFree BIOS 3 - ASUS EZ Flash 2 - ASUS MyLogo 2 100% All High-quality Conductive Polymer Capacitors

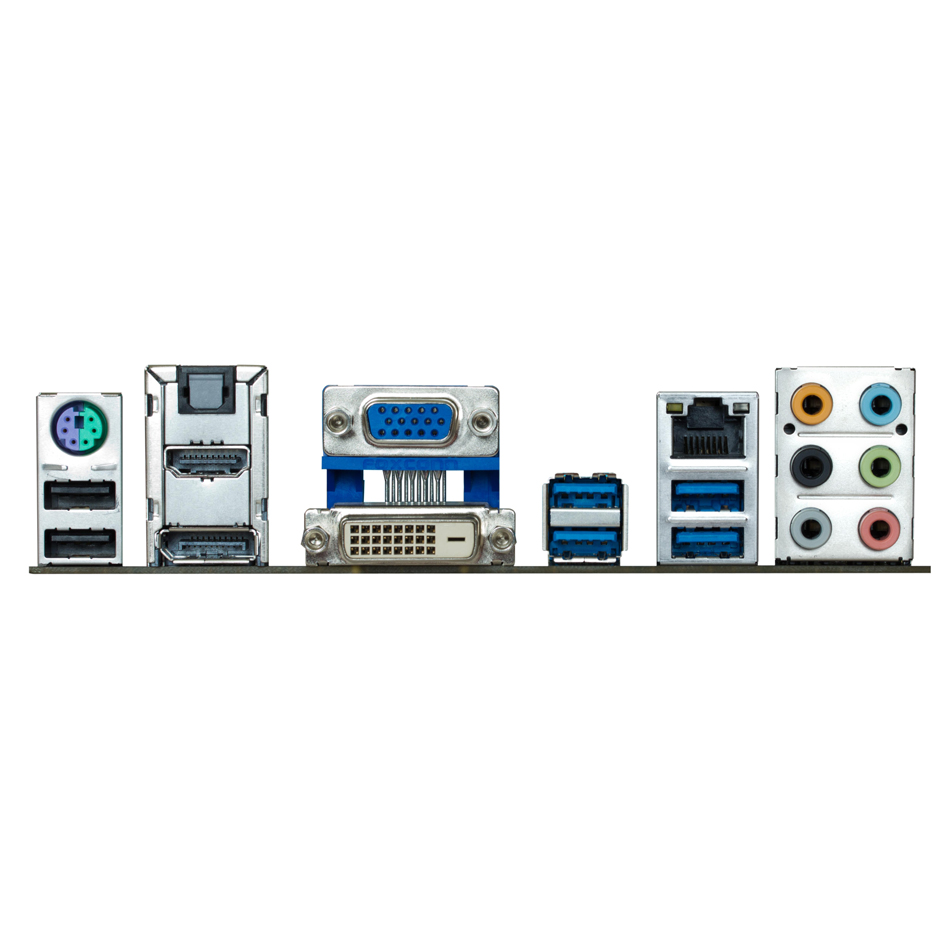

Back I/O Ports	1 x PS/2 keyboard/mouse combo port(s) 1 x DVI 1 x DisplayPort 1 x HDMI 1 x LAN (RJ45) port(s) 4 x USB 3.0 2 x USB 2.0 1 x Optical S/PDIF out 6 x Audio jack(s)
Internal I/O Ports	1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s) 4 x USB 2.0 connector(s) support(s) additional 8 USB 2.0 port(s) 1 x COM port(s) connector(s) 2 x SATA 6Gb/s connector(s) 4 x SATA 3Gb/s connector(s) 1 x CPU Fan connector(s) (4 -pin) 3 x Chassis Fan connector(s) (4 -pin) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s) 1 x MemOK! button(s) 1 x EPU switch(es) 1 x GPU Boost switch(es) 1 x Clear CMOS jumper(s)
Accessories	User's manual I/O Shield 2 x SATA 6Gb/s cable(s) 1 x SLI bridge(s)
BIOS	64 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.7, ACPI 2.0a, Multi-language BIOS, ASUS EZ Flash 2, ASUS CrashFree BIOS 3, F12 PrintScreen, F3 Shortcut Function and ASUS DRAM SPD (Serial Presence Detect) memory information
Manageability	WfM 2.0, DMI 2.0, WOL by PME, WOR by PME, PXE
Support Disc	Drivers ASUS Utilities ASUS Update Anti-virus software (OEM version)
Form Factor	ATX Form Factor 12 inch x 8.8 inch ( 30.5 cm x 22.4 cm )
Merk	1: LucidLogix Virtu MVP supports Windows 7 operating systems. 2: PCIe 3.0 speed is supported by Intel® 3rd generation Core™ processors. 3: Supports on Intel® Core™ processor family with Windows 7 operating systems. 4-1: Supports ASUS USB 3.0 Boost UASP Mode. 4-2: The USB 3.0 ports only support Windows® 7 or later versions. 5: Due to Intel® chipset limitation, P8Z77, P8H77 and P8B75 series motherboards do not support Windows® Vista operating system.

The product (electrical , electronic equipment, Mercury-containing button cell battery) should not be placed in municipal waste. Check local regulations for disposal of electronic products.

Alle spesifikasjoner kan endres når som helst uten varsel. Snakk med forhandleren din for å få et nøyaktig tilbud. Produktene er kanskje ikke tilgjengelige i alle markeder.
PCB-farge og versjoner opå vedlagte programmer kan endres når som helst uten varsel.
Merker og navn som nevnes, er varemerker som tilhører sine respektive selskaper.
