ASUS（エイスース） MAXIMUS 5 GENE

R.O.G.シリーズより Intel CPU "Ivy Bridge"対応、Z77チップセット搭載、Micro ATX サイズのマザーボード登場。

・JAN/UPC：0610839185917
・TEKWIND型番：ASU-MAXIMUS5/GENE

【主な特長】

・LGA1155 socket for 3rd generation Intel Core processor-based platform and 2nd Generation Core i7/ i5/ i3/ Pentium? / Celeron? Processors
・Intel Z77 Express Chipset
・SupremeFX III - Supreme Sound
・GameFirst / Intel Gb LAN Frag Without Lag
・mPCIe Combo Give Your PC A Power Up!
・NIVIDIA SLI / AMD CrossFireX Technology Support
・LucidLogix Virtu MVP - Up to 60% Hybrid Graphics Boost

製品についてお気軽にお問い合わせください

この製品を問い合わせる

プロフェッショナルがいるテックウインドの強み

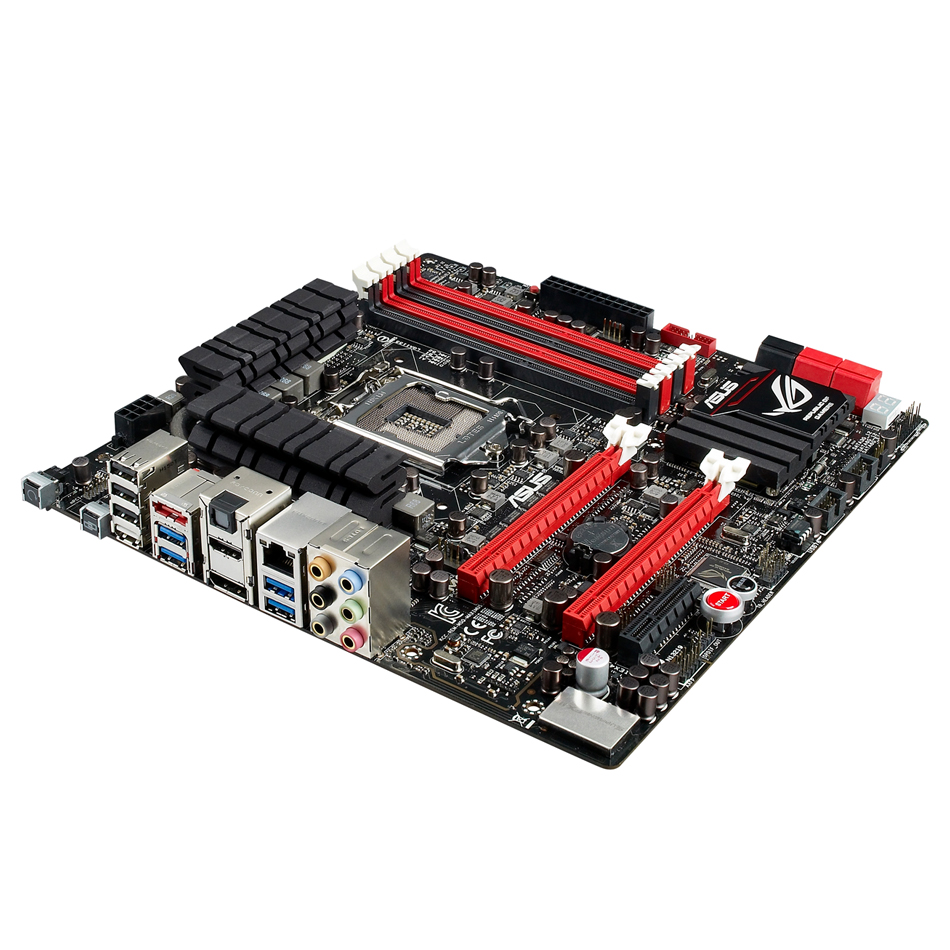

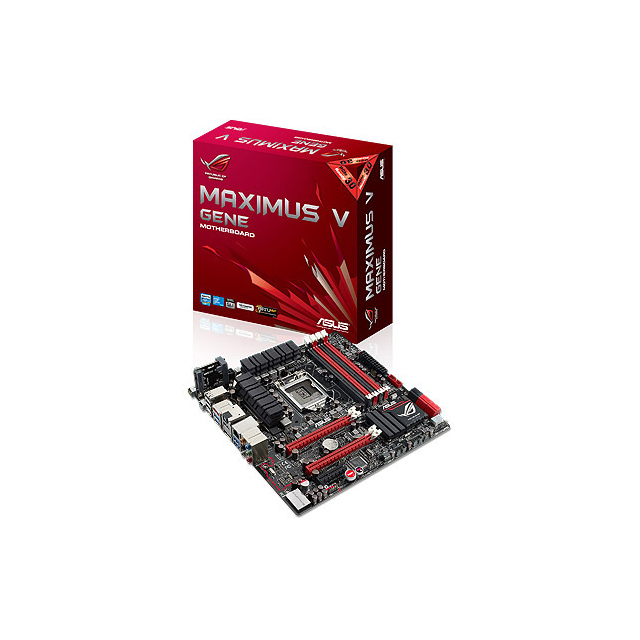

製品画像

スペック

CPU	Intel® Socket 1155 for 3rd/2nd Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors Supports Intel® 22 nm CPU Supports Intel® 32 nm CPU Supports Intel® Turbo Boost Technology 2.0 * The Intel® Turbo Boost Technology 2.0 support depends on the CPU types. * Refer to www.asus.com for CPU support list
Chipset	Intel® Z77
Memory	4 x DIMM, Max. 32GB, DDR3 2800(O.C.)/2666(O.C.)/2600(O.C.)/2400(O.C.)/2200(O.C.)/2133(O.C.)/2000(O.C.)/1866(O.C.)/1600/1333 MHz Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) * Hyper DIMM support is subject to the physical characteristics of individual CPUs. * Refer to www.asus.com or user manual for the Memory QVL (Qualified Vendors Lists).
Graphic	Integrated Graphics Processor Multi-VGA output support : HDMI/DisplayPort ports - Supports HDMI with max. resolution 1920 x 1200 @ 60 Hz - Supports DisplayPort with max. resolution 2560 x 1600 @ 60 Hz Supports Intel® HD Graphics, InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™
Multi-GPU Support	Supports NVIDIA® SLI™ Technology Supports AMD CrossFireX™ Technology Supports LucidLogix® Virtu™ MVP Technology *1
Expansion Slots	2 x PCIe 3.0/2.0 x16 (x16 or dual x8, red) 2 1 x PCIe 2.0 x4 (black) 1 x mini-PCIe 2.0 x1 3
Storage	Intel® Z77 chipset : 4 2 x SATA 6Gb/s port(s), red 2 x SATA 3Gb/s port(s), black 1 x eSATA 3Gb/s port(s), red 1 x mini-SATA 3Gb/s port(s), black Support Raid 0, 1, 5, 10 Supports Intel® Smart Response Technology, Intel® Rapid Start Technology, Intel® Smart Connect Technology 5 ASMedia® PCIe SATA controller : *6 2 x SATA 6Gb/s port(s), red
LAN	Intel®, 1 x Gigabit LAN Controller(s)
Audio	SupremeFX III built-in 8-Channel High Definition Audio CODEC - Output Signal-to-Noise Ratio (A-Weighted): 110 dB - Output THD+N at 1kHz: 95 dB - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking Audio Feature : - SupremeFX Shielding™ Technology - 1500 uF Audio Power Capacitor - Gold-plated jacks - X-Fi® Xtreme Fidelity™ - EAX® Advanced™ HD 5.0 - THX® TruStudio PRO™ - Creative ALchemy - Blu-ray audio layer Content Protection - Optical S/PDIF out port(s) at back panel
USB Ports	Intel® Z77 chipset : 4 x USB 3.0 port(s) (2 at back panel, blue, 2 at mid-board) Intel® Z77 chipset : 8 x USB 2.0 port(s) (4 at back panel, black+white, 4 at mid-board) ASMedia® USB 3.0 controller : 2 x USB 3.0 port(s) (2 at back panel, blue)
Overclocking Features	mPCIe Combo™ (mPCIe/mSATA combo card) ROG Connect : - RC Diagram - RC Remote - RC Poster - GPU TweakIt Extreme Engine Digi+ II : - 8 -phase CPU power design + 4 -phase iGPU power design - 2 -phase QPI/DRAM power design ProbeIt UEFI BIOS features : - ROG BIOS Print - GPU.DIMM Post GameFirst iROG Extreme Tweaker Loadline Calibration USB BIOS Flashback Overclocking Protection : - ASUS C.P.R.(CPU Parameter Recall)
Special Features	ASUS Hybrid Processor - TurboV EVO : - CPU Level Up ASUS EPU : - EPU ASUS Exclusive Features : - AI Suite II - Ai Charger+ - USB 3.0 Boost - Disk Unlocker ASUS EZ DIY : - ASUS O.C. Profile - ASUS CrashFree BIOS 3 - ASUS EZ Flash 2 ASUS Q-Design : - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED) - ASUS Q-Slot - ASUS Q-DIMM - ASUS Q-Connector

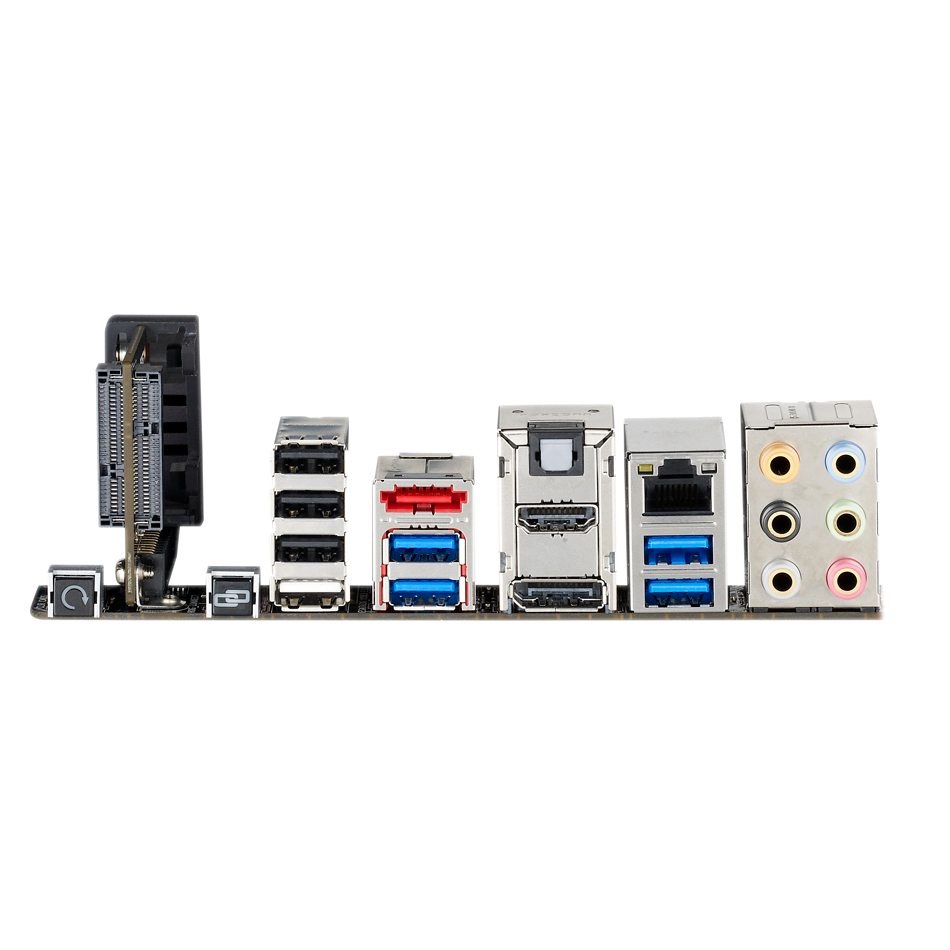

Back I/O Ports	1 x DisplayPort 1 x HDMI 1 x eSATA 3Gb/s 1 x LAN (RJ45) port(s) 4 x USB 3.0 4 x USB 2.0 (one port can be switched to ROG Connect) 1 x Optical S/PDIF out 6 x Audio jack(s) 1 x Clear CMOS button(s) 1 x ROG Connect On/ Off switch(es)
Internal I/O Ports	1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 4 x SATA 6Gb/s connector(s) 2 x SATA 3Gb/s connector(s) 2 x CPU Fan connector(s) 3 x Chassis Fan connector(s) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s) 8 x ProbeIt Measurement Points 1 x Power-on button(s) 1 x Reset button(s) 1 x Go Button(s) 1 x mPCIe Combo header(s)
Accessories	User's manual I/O Shield 2 x SATA 3Gb/s cable(s) 4 x SATA 6Gb/s cable(s) 1 x SLI bridge(s) 1 x Q-connector(s) (2 in 1) 1 x ROG Connect cable(s) 1 x 12 in 1 ROG Cable Label(s) 1 x ROG Door Hanger(s)
BIOS	64Mb UEFI AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.5, ACPI2.0a Multi-Language BIOS
Manageability	WfM2.0, DMI2.0, WOL by PME, PXE
Support Disc	Drivers Sound Blaster® X-Fi 2 Utility Kaspersky® Anti-Virus DAEMON Tools Pro Standard ROG CPU-Z ASUS AI Suite II ASUS WebStorage ASUS Utilities
Form Factor	uATX Form Factor 9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )
Note	1: LucidLogix Virtu MVP supports Windows 7 operating systems. 2: PCIe3.0 speed is supported by Intel® 3rd generation Core™ Processors. 3: The mPCIe 2.0 x1 slot is located on mPCIe Combo™ expansion card. 4: The mSATA 3Gb/s slot is located on mPCIe Combo™ expansion card. 5: Supports on Intel® Core™ processor family with Windows® 7 operating systems. 6: These SATA ports are for data hard drives only. *7: Due to Intel® chipset limitation, P8Z77, P8H77 and P8B75 series motherboards do not support Windows® Vista operating system.

The product (electrical , electronic equipment, Mercury-containing button cell battery) should not be placed in municipal waste. Check local regulations for disposal of electronic products.

All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets.
PCB color and bundled software versions are subject to change without notice.
Brand and product names mentioned are trademarks of their respective companies.
