販売終了 サポート終了

Z8PE-D18

JAN/UPC:4937699420191
TEKWIND型番:ASU-Z8PE-D18

【主な特長】

The ASUS Z8PE-D18 server motherboard delivers significant computing capability with 18 DIMM slots and high expandability with 6 expansion slots to cater to the most demanding tasks and upgrades in the future.


製品についてお気軽にお問い合わせください

この製品を問い合わせる

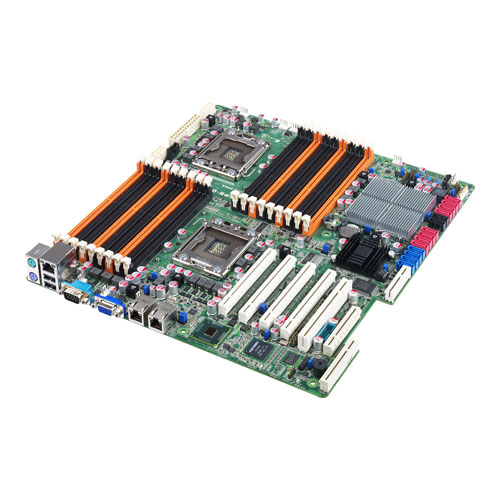

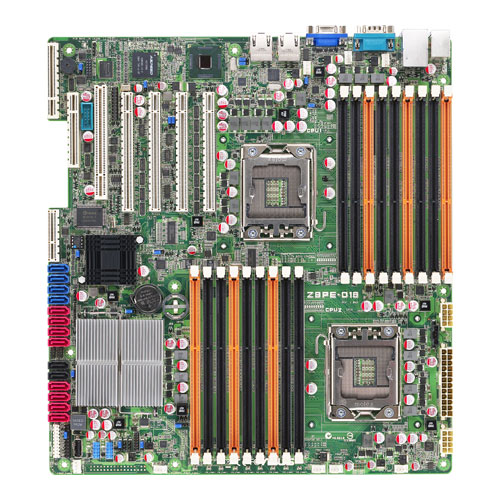

製品画像

スペック

Processor / System Bus 2 x Socket LGA1366
Quad-Core Intel® Xeon® W5500 Series (130W)
Six-Core/Quad-Core Intel® Xeon® X5600/X5500 Series (95W)
Quad-Core/Dual Core Intel® Xeon® E5600/E5500 Series (80W)
Six-Core/Quad-Core/Dual Core Intel® Xeon® L5600/L5500 Series (60W/40W/38W) Processor
Core Logic Intel® 5520 IOH
Intel® ICH10R I/O Controller
Memory Total Slots : 18 (3-channel per CPU, 9 DIMM per CPU)
Capacity : Maximum up to 192GB RDIMM/Maximum up to 48GB UDIMM
Memory Type :
DDR3, 1333/1066/800, RDIMM
UDIMM, with ECC
Memory Size :
1GB, 2GB, 4GB, 8GB, 16GB RDIMM
1GB, 2GB, 4GB UDIMM
Expansion Slots Total Slot : 6
Slot Location 1 : PCI-E x8 (Gen1 X4 Link), Auto turn off if PIKE is occupied
Slot Location 2 : PCI 32bit/33MHz
Slot Location 3 : PCI-E x16 (Gen2 X16 Link), Auto switch to x8 link if slot 4 is occupied
Slot Location 4 : PCI-E x16 (Gen2 X8 Link)
Slot Location 5 : PCI-E x16 (Gen2 X16 Link), Auto turn off if slot 6 is occupied
Slot Location 6 : PCI-E x16 (Gen2 X16 Link), Auto turn off if slot 5 is occupied, For 1U FH/FL Card, MIO supported
Additional Slot 1 : PIKE Slot for Stroage expansion
Form Factor 12 " x 13 " Inch
ASUS Features FAN speed control
Rack Ready (Rack and Pedestal dual use)
ASWM2.0
Storage SATA Controller :
Intel® ICH10R
6 x SATA2 300MB/s
Intel® Matrix Storage (For Windows Only)
(Support Software RAID 0, 1, 5, 10 )
LSI® MegaRAID (For Linux/Windows)
(Support Software RAID 0, 1, 10 )
SAS Controller :
ASUS PIKE 1064E 4-port SAS RAID card (Optional)
ASUS PIKE 1068E 8-port SAS RAID card (Optional)
ASUS PIKE 1078 8-port SAS HW RAID card (Optional)
ASUS PIKE 6480 8-port SAS RAID card(Optional)
Networking 1 x Dual Port Intel® 82576EB(VMDq) + 1 x Mgmt LAN
Graphic Aspeed AST2050 with 8MB VRAM
On Board I/O 1 x PSU Power Connector , 24-pin SSI power connector + 8-pin SSI 12V + 8-pin SSI 12V power connector
1 x Management Connector , Onboard socket for optional management card
1 x Internal A Type USB Port
2 x USB pin header , Up to 4 Devices
8 x Fan Header , 4pin
2 x SMBus
1 x Chassis Intruder
2 x Front LAN LED
1 x Serial Port Header
Back I/O Ports 1 x External Serial Port
2 x External USB Port
1 x VGA Port
2 x RJ-45 + 1 Management Port
1 x PS/2 KB/Mouse
Management Solution Software: ASWM2.0
Out of Band Remote Management: Optional ASMB4-iKVM for KVM-over-Internet
EMI US (FCC, CFR47 Part 15, Class B)
Europe (CE, EN55022 & EN55024)
Australia (C-TICK)
Environment Operation temperature: 10℃ ~ 35℃
Non operation temperature: -40℃ ~ 70℃
Non operation humidity: 20% ~ 90% ( Non condensing)
Accessories Gift Box Pack :
1 x User's Guide
2 x Thermal sensor cable
1 x ASUS Mainboard Support CD
1 x I/O Shield
6 x SATA 3G Cable(s)
Bulk Pack :
1 x User's Guide
1 x ASUS Mainboard Support CD
1 x I/O Shield
Product SKUs Standard Gift Box Pack
Standard Gift Box Pack with ASMB4-iKVM
Standard Gift Box Pack with MIO
Standard Bulk Pack
Standard Bulk Pack with ASMB4-iKVM
Monitoring CPU Temperature
Fan RPM
Note *Refer to ASUS Server AVL for latest update
  • All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets.
  • PCB color and bundled software versions are subject to change without notice.
  • Brand and product names mentioned are trademarks of their respective companies.
