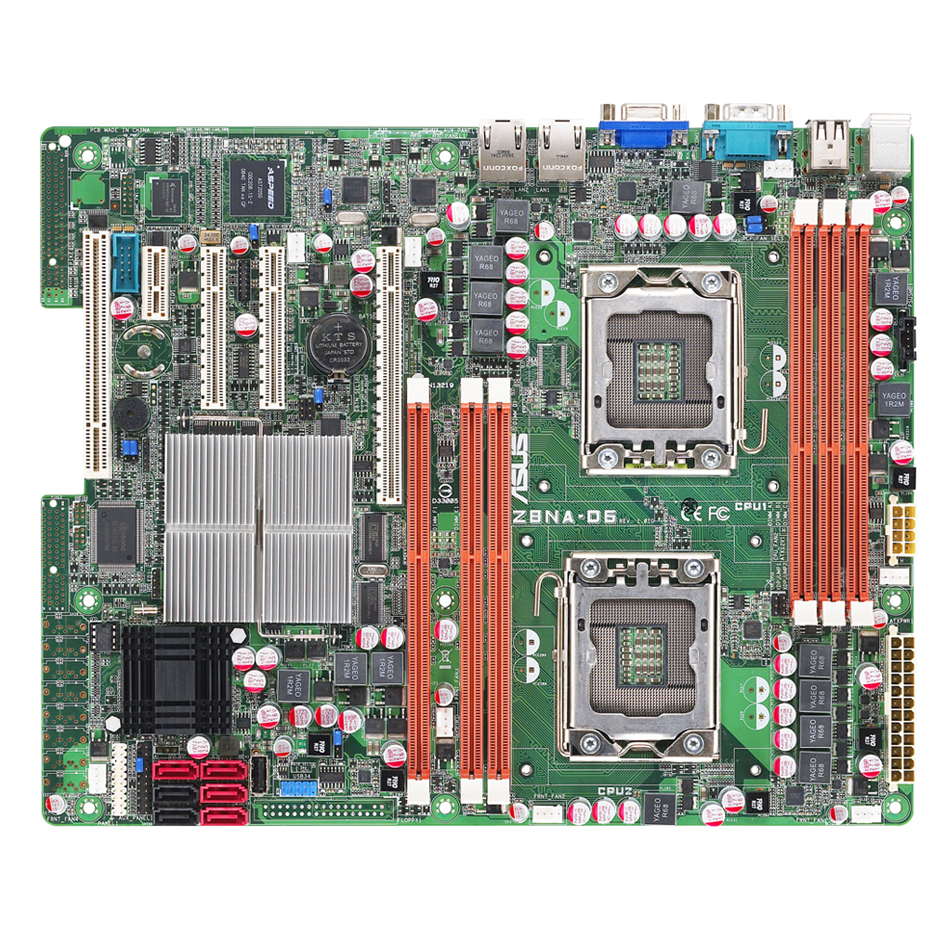

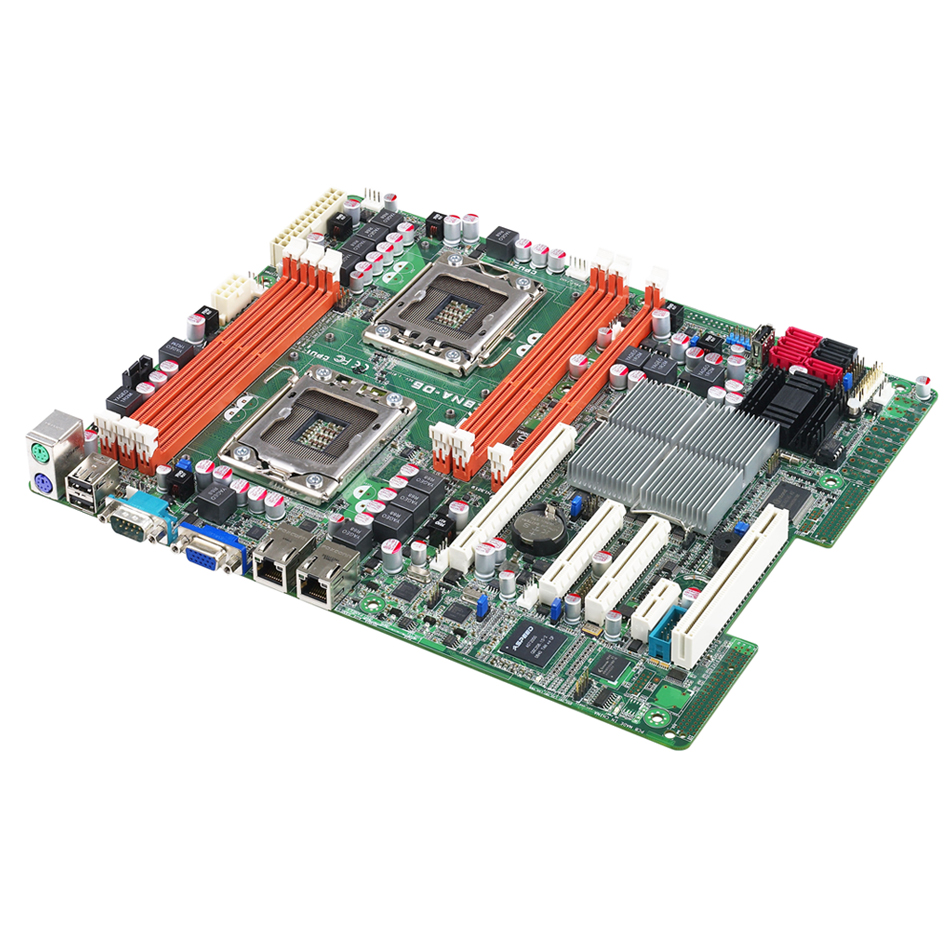

製品画像
スペック
| Processor / System Bus | 2 x Socket LGA1366 Six-Core/Quad-Core Intel® Xeon® X5600/X5500 Series (95W) Six-Core/Quad-Core/Dual Core Intel® Xeon® E5600/E5500 Series (80W) Six-Core/Quad-Core/Dual Core Intel® Xeon® L5600/L5500 Series (60W/40W/38W) Processor QPI 4.8 / 5.86 / 6.4 GT/s |
|---|---|
| Core Logic | Intel® 5500 IOH Intel® ICH10R I/O Controller |
| Memory | Total Slots : 6 (3-channel per CPU, 3 DIMM per CPU) Capacity : Maximum up to 96GB RDIMM/Maximum up to 24GB UDIMM Memory Type : DDR3, 1333/1066/800, RDIMM* DDR3, 1333/1066/800, UDIMM* Memory Size : 1GB, 2GB, 4GB, 8GB, 16GB RDIMM 1GB, 2GB, 4GB UDIMM |
| Expansion Slots | Total Slot : 5 Slot Location 1 : PCI 32bit/33MHz Slot Location 2 : MIO Slot for Audio card PCI-E x1 is not supported Slot Location 3 : PCI-E x8 (Gen2 X4 Link) Slot Location 4 : PCI-E x8 (Gen2 X4 Link) Slot Location 6 : PCI-E x16 (Gen2 X16 Link) |
| Form Factor | 12 " x 9.6 " Inch |
| ASUS Features | Rack Ready (Rack and Pedestal dual use) ASWM2.0 FAN speed control |
| Storage | SATA Controller : Intel® ICH10R 6 x SATA2 300MB/s Intel® Matrix Storage (For Windows Only) (Support Software RAID 0, 1, 5, 10 ) |
| Networking | 2 x Intel® 82574L |
| Graphic | Aspeed AST2050 with 8MB VRAM |
| On Board I/O | 1 x PSU Power Connector , 24-pin ATX power connector + 8-pin ATX 12V power connector *1 1 x Internal A Type USB Port 1 x USB pin header , Up to 2 Devices 8 x Fan Header , 4pin 2 x SMBus 1 x Chassis Intruder 2 x Front LAN LED 1 x Serial Port Header |

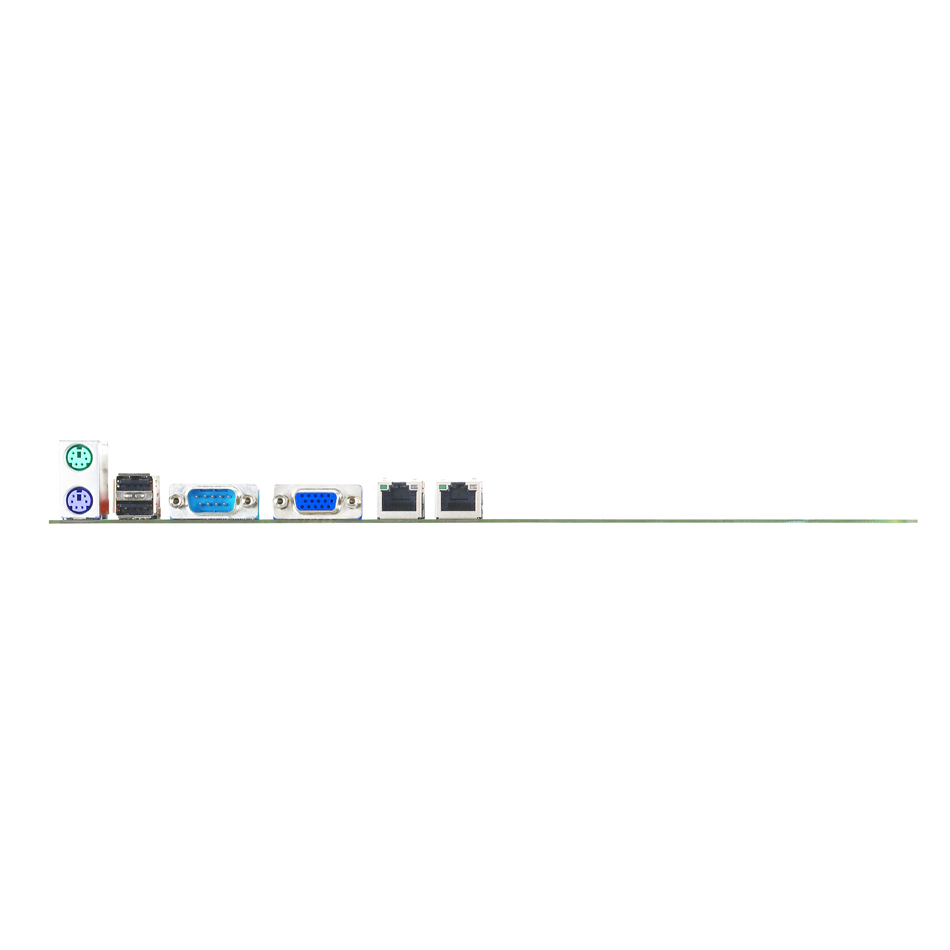

| Back I/O Ports | 1 x External Serial Port 2 x External USB Port 1 x VGA Port 2 x RJ-45 1 x PS/2 KB/Mouse |
| Management Solution | Software: ASWM2.0 |
| EMI | US (FCC, CFR47 Part 15, Class B) Europe (CE, EN55022 & EN55024) Australia (C-TICK) |
| Environment | Operation temperature: 10℃ ~ 35℃ / Non operation temperature: -40℃ ~ 70℃ Non operation humidity: 20% ~ 90% (Non condensing) |
| Accessories | Gift Box Pack : 1 x User's Guide 1 x Support CD 1 x I/O Shield 6 x SATA 6G Cable(s) Bulk Pack : 1 x User's Guide 1 x Support CD 1 x I/O Shield |
| Product SKUs | Standard Gift Box Pack Standard Gift Box Pack with MIO Standard Bulk Pack |
| Monitoring | CPU Temperature Fan RPM |
| Note | * Refer to ASUS Server AVL for latest update *1: Support Both ATX & SSI Power Supply Minimum requiremen of ATX Power supply: 1)450W 2)All +12V output ≧18A |
- All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets.
- PCB color and bundled software versions are subject to change without notice.
- Brand and product names mentioned are trademarks of their respective companies.
