ASUS（エイスース） RAMPAGE IV EXTREME

Intel CPU Sandy Bridge-E 対応！
最新LGA2011ソケット、X79チップ搭載！

・JAN/UPC：4937699434518
・TEKWIND型番：ASU-RAMPAGE4/EXTREME

本製品は、Intel CPU Sandy Bridge-E に対応し、最新チップ X79を搭載した、オーバークロッカー向けマザーボードです。

新ソケット LGA2011 採用で、ハイエンドCPU Sandy Bridge-E をご利用いただけます。また、X79チップセットの搭載ですので、今後展開予定があるPCI-e3.0対応のビデオカードもお使い頂けます。

特徴の一つであるメモリスロットはクアッドチャネル対応の合計8基搭載で、データ転送高速化を実現。電源回路の制御には「DIGI＋ Power Control」を採用し、柔軟な電圧設定により、耐久性を大幅に強化しています。

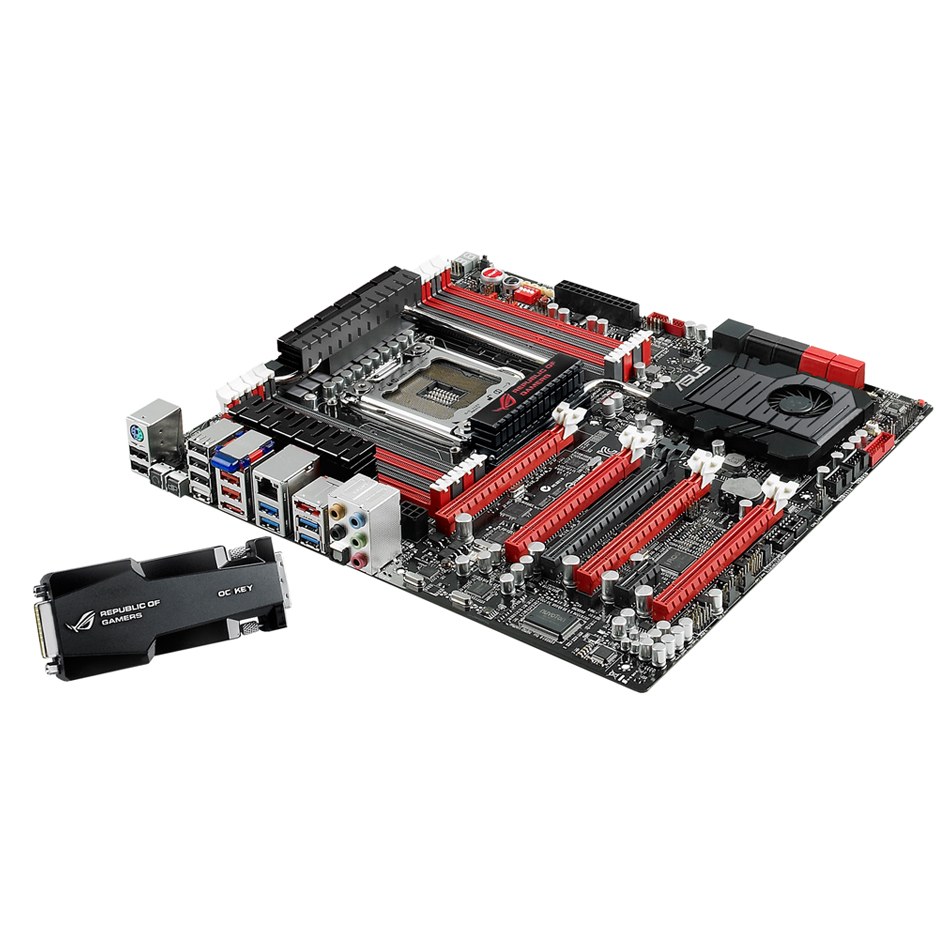

さらに、X79チップ搭載の最上位モデルである本製品には、「OC Key」アダプタが付属しており、CPUオーバークロック設定・モニタリングをより簡易に行うことが出来ます。

その他、高精度の温度センサー「Subzero Sense」の搭載、VGAの電圧設定を行う「VGA Hotwire」を搭載し、オーバークロック関連の機能はR.O.Gブランドにふさわしい仕様となっています。

最新のチップセット・ソケット・CPUなどを利用し高性能な機能を堪能したい方にお勧めの商品です。

※本製品では多くのオーバークロックに関する機能が提供されておりますが、オーバークロック機能については全てユーザーの自己責任の下でご利用頂くものです。この点につきましては予めご了承ください。

製品についてお気軽にお問い合わせください

この製品を問い合わせる

プロフェッショナルがいるテックウインドの強み

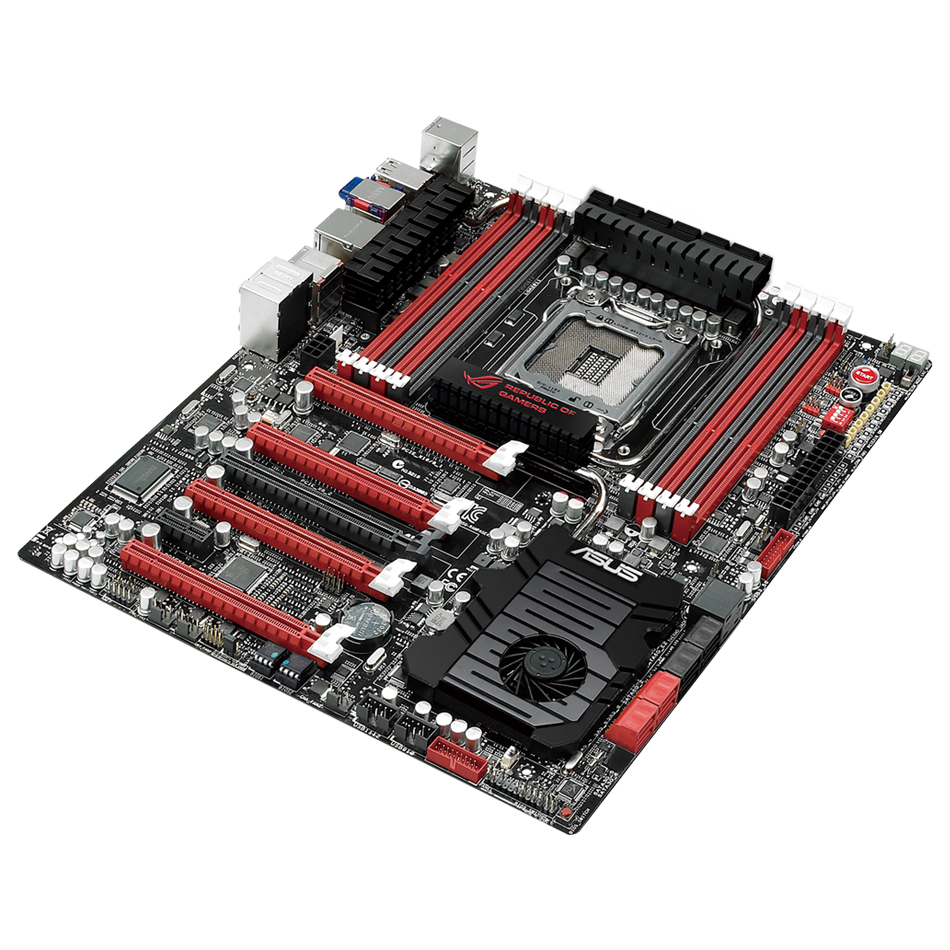

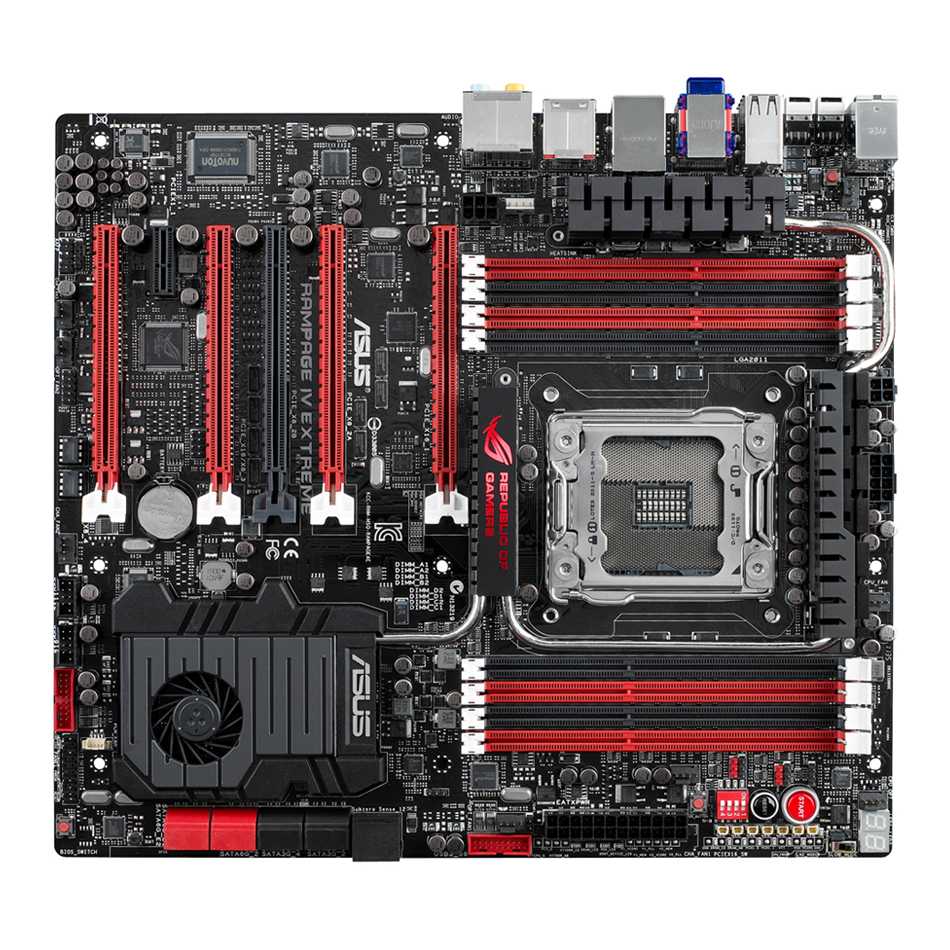

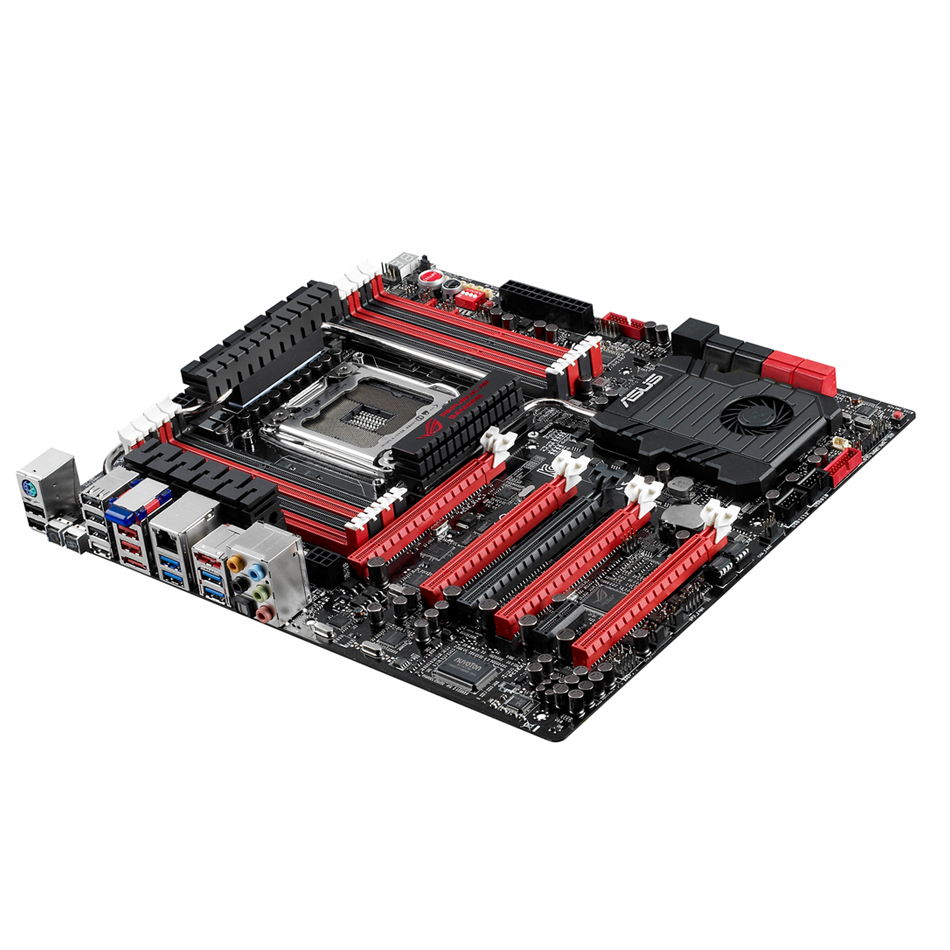

製品画像

お気軽にお問い合わせください

この製品のお問い合わせ

スペック

CPU	Intel® Socket 2011 for 2nd Generation Core™ i7 Processors Supports Intel® Turbo Boost Technology 2 * Refer to www.asus.com for CPU support list
Chipset	Intel® X79
Memory	8 x DIMM, Max. 64GB, DDR3 2400(O.C.)/2133(O.C.)/1866/1600/1333/1066 MHz Non-ECC, Un-buffered Memory Quad Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) * Hyper DIMM support is subject to the physical characteristics of individual CPUs. * Refer to www.asus.com or user manual for the Memory QVL (Qualified Vendors Lists).
Multi-GPU Support	Supports NVIDIA® 4-Way SLI™ Technology Supports AMD 4-Way CrossFireX Technology
Expansion Slots	4 x PCIe 3.0/2.0 x16 (x16; x16/x16; x16/x8/x16 and x16/x8/x8/x8, red) 1 1 x PCIe 3.0/2.0 x16 (x8 mode, gray) 1 1 x PCIe 2.0 x1
Storage	Intel® X79 chipset : 2 x SATA 6Gb/s port(s), red 4 x SATA 3Gb/s port(s), black Support Raid 0, 1, 5, 10 ASMedia® PCIe SATA controller : 2 x eSATA 6Gb/s port(s), red 2 x SATA 6Gb/s port(s), red
LAN	Intel®, 1 x Gigabit LAN Controller(s)
Bluetooth	Bluetooth V2.1+EDR
Audio	Realtek® ALC898 7.1-Channel High Definition Audio CODEC - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking Audio Feature : - Blu-ray audio layer Content Protection - Optical S/PDIF out port(s) at back panel
USB Ports	ASMedia® USB 3.0 controller : 8 x USB 3.0 port(s) (4 at back panel, blue, 4 at mid-board) Intel® X79 chipset : 12 x USB 2.0 port(s) (8 at back panel, black+red, 4 at mid-board)
Overclocking Features	ROG OC Key - OSD TweakIt - OSD Monitor ROG Connect : - RC Diagram - RC Remote - RC Poster - GPU TweakIt ROG iDirect Extreme Engine Digi+ II : - 8 -phase CPU power design - 3 -phase VCCSA power design - 2 + 2 phase DRAM power design ROG Extreme OC kit : - Subzero Sense - VGA Hotwire - Slow Mode - LN2 Mode - PCIe x16 Lane Switch - Q Reset - EZ Plug ProbeIt UEFI BIOS features : - GPU.DIMM Post iROG Extreme Tweaker Loadline Calibration BIOS Flashback USB BIOS Flashback Overclocking Protection : - COP EX (Component Overheat Protection - EX) - Voltiminder LED II - ASUS C.P.R.(CPU Parameter Recall)
Special Features	ASUS EPU : - EPU CPU Level Up ASUS Exclusive Features : - MemOK! - Onboard Button : Power/Reset/Clr CMOS (at back IO) ASUS Quiet Thermal Solution : - ASUS Q-Fan Plus - ASUS Fan Xpert ASUS EZ DIY : - ASUS O.C. Profile - ASUS CrashFree BIOS 3 - ASUS EZ Flash 2 - ASUS MyLogo 2 ASUS Q-Design : - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED) - ASUS Q-Slot - ASUS Q-DIMM - ASUS Q-Connector

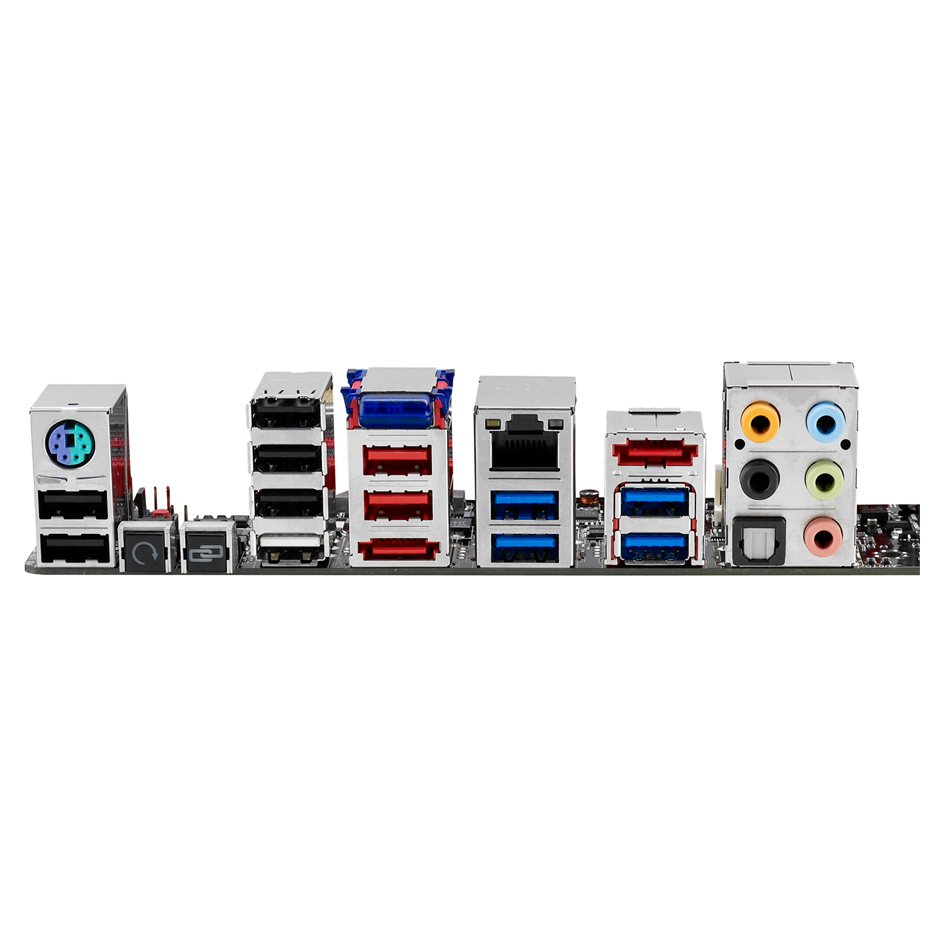

Back I/O Ports	1 x PS/2 keyboard/mouse combo port(s) 1 x Bluetooth module(s) 2 x eSATA 6Gb/s 1 x LAN (RJ45) port(s) 4 x USB 3.0 8 x USB 2.0 (one port can be switched to ROG Connect) 1 x Optical S/PDIF out 5 x Audio jack(s) 1 x Clear CMOS button(s) 1 x ROG Connect On/ Off switch(es) 1 x RC Bluetooth switch(es)
Internal I/O Ports	2 x USB 3.0 connector(s) support(s) additional 4 USB 3.0 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 4 x SATA 6Gb/s connector(s) 4 x SATA 3Gb/s connector(s) 2 x CPU Fan connector(s) 3 x Chassis Fan connector(s) 3 x Optional Fan connector(s) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x 4-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s) 1 x OC Key header(s) 1 x OT header(s) 2 x Subzero Sense connector(s) 1 x Slow Mode switch(es) 7 x ProbeIt Measurement Points 3 x Thermal sensor connector(s) 1 x LN2 Mode header(s) 1 x Q Reset switch(es) 2 x EZ Plug connector(s) (4-pin in white for memory DIMMs; 6-pin in black for PCIe slots) 1 x Power-on button(s) 1 x Reset button(s) 1 x Go Button(s) 1 x BIOS Switch button(s)
Accessories	I/O Shield 4 x SATA 3Gb/s cable(s) 4 x SATA 6Gb/s cable(s) 1 x 3-Way SLI bridge(s) 1 x 4-Way SLI bridge(s) 1 x SLI bridge(s) 1 x CrossFire cable(s) 1 x Q-connector(s) (2 in 1) 1 x ROG Connect cable(s) 1 x ProbeIt cable set(s) 1 x 12 in 1 ROG Cable Label(s) 1 x OC Key(s) 1 x OC Key cable(s) 1 x X-Socket pad(s)
BIOS	2 x 64Mb Flash ROMs, PnP, DMI2.0, WfM2.0, SM BIOS 2.5, ACPI2.0a Multi-Language BIOS
Manageability	WfM2.0, DMI2.0, WOL by PME, WOR by PME, PXE
Support Disc	Support DVD: - Drivers and Applications Kaspersky Anti-Virus ASUS TurboV EVO Utility ASUS PC Probe II ASUS Update ASUS AI Suite II ASUS AI Charger+ Daemon Tool Pro Standard ASUS WebStorage
Form Factor	Extended ATX Form Factor 12 inch x 10.7 inch ( 30.5 cm x 27.2 cm )
Note	1-1 This motherboard is ready to support PCIe 3.0 SPEC. Functions will be available when using PCIe 3.0-compliant devices. Please refer to www.asus.com for updated details. 1-2 For PCIe 3.0 x16 (X8 mode), PCIEx8_2B(Grey) shares bandwidth with PCIEx8_2A(Red).

The product (electrical , electronic equipment, Mercury-containing button cell battery) should not be placed in municipal waste. Check local regulations for disposal of electronic products.

All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets.
PCB color and bundled software versions are subject to change without notice.
Brand and product names mentioned are trademarks of their respective companies.
