ASUS（エイスース） RAMPAGE 4 FORMULA

スマート&スタイリッシュな第4世代"FORMULA"
機能を絞ったX-79+Quad-chメモリ対応モデル

・JAN/UPC：4937699434525
・TEKWIND型番：ASU-RAMPAGE/4/FORMULA

R.O.G.シリーズのRAMPAGE ラインの中で、主要スペックはそのままで搭載機能を絞り込んだ"FORMULA"の第4世代モデルです。

Intelの新CPUソケット"LGA2011"とX79チップセットの搭載に加え、"Quad Channel Memory　Architecture" や "PCIe3.0"などの新技術にも対応します。搭載可能メモリは4基のDIMMスロットに最大32GB、対応はDDR3-2400(O.C.)まで、さらに基板上の4基のPCIEx16(PCIe3.0対応)スロットはマルチGPU技術 "NVIDIA 4-WaySLI"、及び"AMD/4-WayCrossFireX"のいずれにも対応が可能です。

この他にも"SupremeFX3"8チャネル対応HDオーディオや純正OCユーティリティ"TurboV_EVO"など、自動オーバークロックチューニングや重量級のゲームタイトルの快適なオペレーションなどをサポートする機能が搭載されています。

「RampageIV Formula」は、高性能ながら最大の軽装化を施した、正に"FORMULA"カテゴリのマザーボードです。

■YouTube ASUS-Channel"RampageIV Formula"も併せてご覧ください
"ROG Rampage IV Formula X79 gaming motherboard"

製品についてお気軽にお問い合わせください

この製品を問い合わせる

プロフェッショナルがいるテックウインドの強み

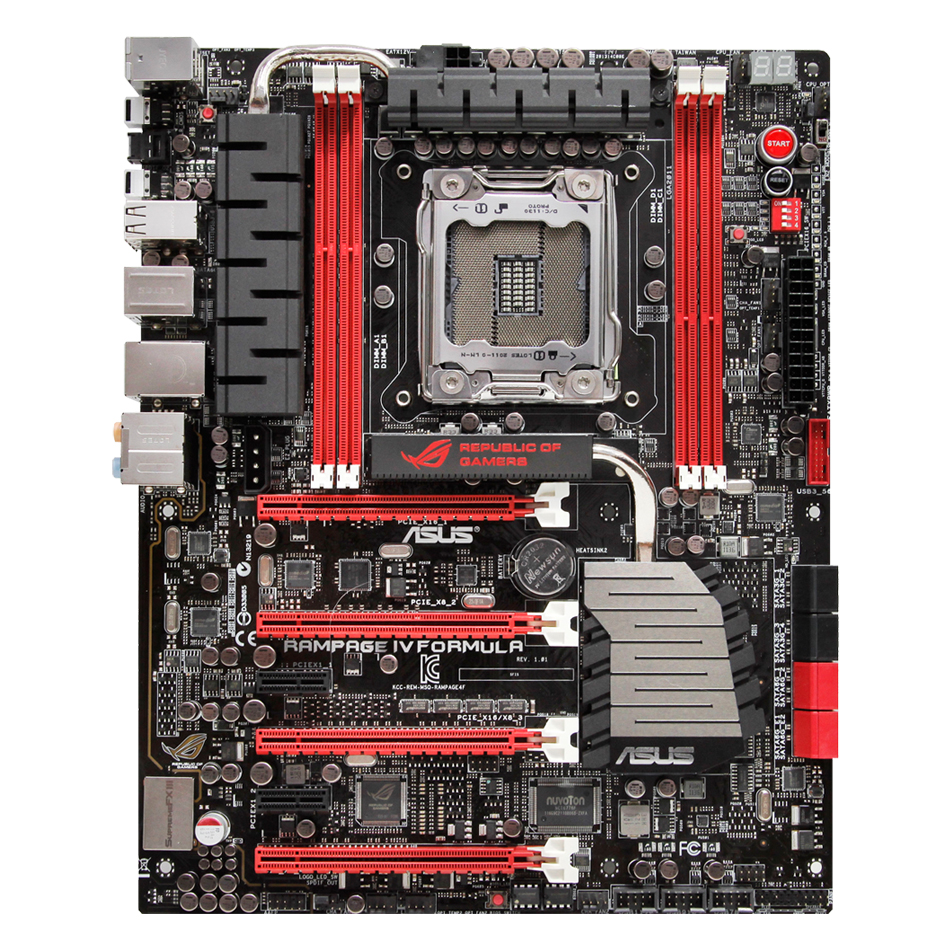

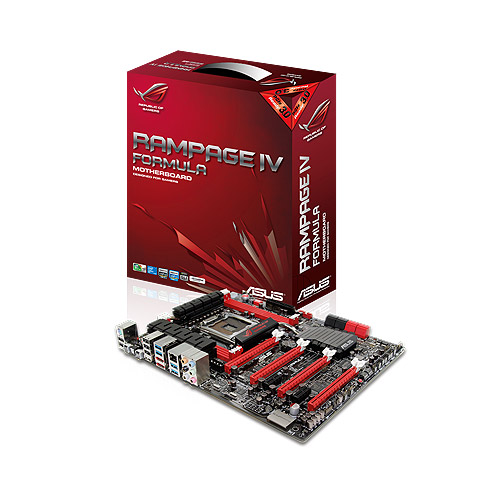

製品画像

お気軽にお問い合わせください

この製品のお問い合わせ

スペック

CPU	Intel® Socket 2011 for 2nd Generation Core™ i7 Processors Supports Intel® Turbo Boost Technology 2 * Refer to www.asus.com for CPU support list
Chipset	Intel® X79
Memory	4 x DIMM, Max. 32GB, DDR3 2400(O.C.)/2200(O.C.)/2133(O.C.)/2000(O.C.)/1800(O.C.)/1600/1333/1066 MHz Memory Quad Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) * Hyper DIMM support is subject to the physical characteristics of individual CPUs.
Multi-GPU Support	Supports NVIDIA® 4-Way SLI™ Technology *1 Supports AMD 4-Way CrossFireX Technology
Expansion Slots	4 x PCIe 3.0/2.0 x16 (x16; x16/x16; x16/x8/x16 and x16/x8/x8/x8, red) *2 2 x PCIe 2.0 x1
Storage	Intel® X79 chipset : 2 x SATA 6Gb/s port(s), red 4 x SATA 3Gb/s port(s), black Support Raid 0, 1, 5, 10 ASMedia® ASM1061 controller : 2 x SATA 6Gb/s port(s), red 2 x Power eSATA 6Gb/s port(s), red
LAN	Intel®, 1 x Gigabit LAN Controller(s)
Audio	SupremeFX III built-in 8-Channel High Definition Audio CODEC - Output Signal-to-Noise Ratio (A-Weighted): 110 dB - Output THD+N at 1kHz: 95 dB - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking Audio Feature : - SupremeFX Shielding™ Technology - 1500 uF Audio Power Capacitor - Gold-plated jacks - X-Fi® Xtreme Fidelity™ - EAX® Advanced™ HD 5.0 - THX® TruStudio PRO™ - Creative ALchemy - Blu-ray audio layer Content Protection - Optical S/PDIF out port(s) at back panel
USB Ports	ASMedia® USB 3.0 controller : 6 x USB 3.0 port(s) (4 at back panel, blue, 2 at mid-board) Intel® X79 chipset : 12 x USB 2.0 port(s) (6 at back panel, black+white, 6 at mid-board)
Overclocking Features	ROG Connect : - RC Diagram - RC Remote - RC Poster - GPU TweakIt Extreme Engine Digi+ II : - 8 -phase CPU power design - 3 -phase VCCSA power design - 2 + 2 phase DRAM power design ROG Extreme OC kit : - Slow Mode - LN2 Mode - PCIe x16 Lane Switch - Q Reset - EZ Plug ProbeIt UEFI BIOS features : - ROG BIOS Print - GPU.DIMM Post GameFirst iROG Extreme Tweaker Loadline Calibration USB BIOS Flashback Overclocking Protection : - COP EX (Component Overheat Protection - EX) - Voltiminder LED II - ASUS C.P.R.(CPU Parameter Recall)
Special Features	ASUS EPU : - EPU CPU Level Up ASUS Exclusive Features : - MemOK! - Onboard Button : Power/Reset/Clr CMOS (at back IO) ASUS Quiet Thermal Solution : - ASUS Fan Xpert ASUS EZ DIY : - ASUS O.C. Profile - ASUS CrashFree BIOS 3 - ASUS EZ Flash 2 - ASUS MyLogo 2 ASUS Q-Design : - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED) - ASUS Q-Slot - ASUS Q-DIMM - ASUS Q-Connector

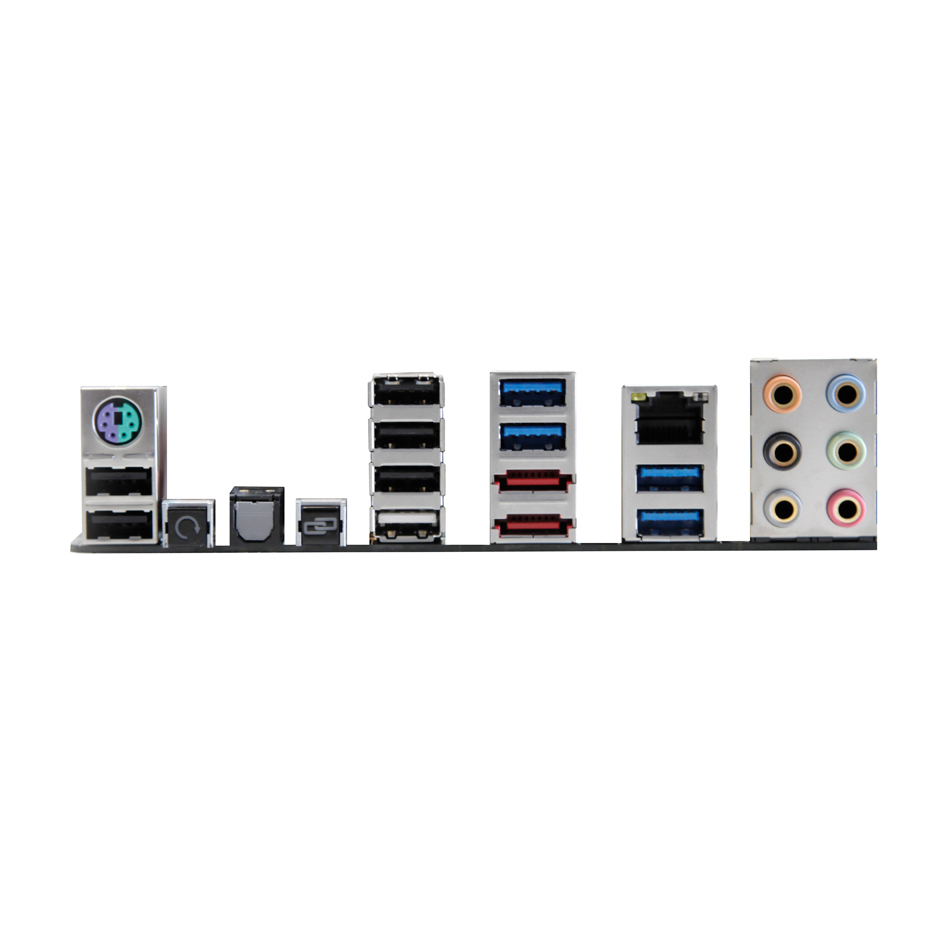

Back I/O Ports	1 x PS/2 keyboard/mouse combo port(s) 2 x eSATA 6Gb/s 1 x LAN (RJ45) port(s) 4 x USB 3.0 6 x USB 2.0 (one port can be switched to ROG Connect) 1 x Optical S/PDIF out 6 x Audio jack(s) 1 x Clear CMOS button(s) 1 x ROG Connect On/ Off switch(es)
Internal I/O Ports	1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s) 3 x USB 2.0 connector(s) support(s) additional 6 USB 2.0 port(s) 4 x SATA 6Gb/s connector(s) 4 x SATA 3Gb/s connector(s) 2 x CPU Fan connector(s) 3 x Chassis Fan connector(s) 3 x Optional Fan connector(s) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s) 1 x Slow Mode switch(es) 8 x ProbeIt Measurement Points 3 x Thermal sensor connector(s) 1 x EZ Plug connector(s) (4-pin Molex power connector) 1 x Power-on button(s) 1 x Reset button(s) 1 x LN2 Mode switch(es) 1 x Go Button(s)
Accessories	User's manual I/O Shield 4 x SATA 3Gb/s cable(s) 4 x SATA 6Gb/s cable(s) 1 x 3-Way SLI bridge(s) 1 x SLI bridge(s) 1 x CrossFire cable(s) 1 x Q-connector(s) (2 in 1) 1 x ROG Connect cable(s) 1 x ROG theme label(s) 1 x 12 in 1 ROG Cable Label(s) 1 x X-Socket pad(s) 1 x ROG Door Hanger(s)
BIOS	2 x 64Mb UEFI AMI BIOSs, PnP, DMI2.0, WfM2.0, SM BIOS 2.5, ACPI2.0a Multi-Language BIOS
Manageability	WfM2.0, DMI2.0, WOL by PME, WOR by PME, PXE
Support Disc	Drivers Sound Blaster® X-Fi 2 Utility Kaspersky® Anti-Virus DAEMON Tools Pro Standard ROG CPU-Z Mem TweakIt ASUS WebStorage ASUS Utilities
Form Factor	ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Note	1: The 4-Way SLI™ bridge is purchased separately. 2: This motherboard is ready to support PCIe 3.0 SPEC. Functions will be available when using PCIe 3.0-compliant devices. Please refer to www.asus.com for updated details.
