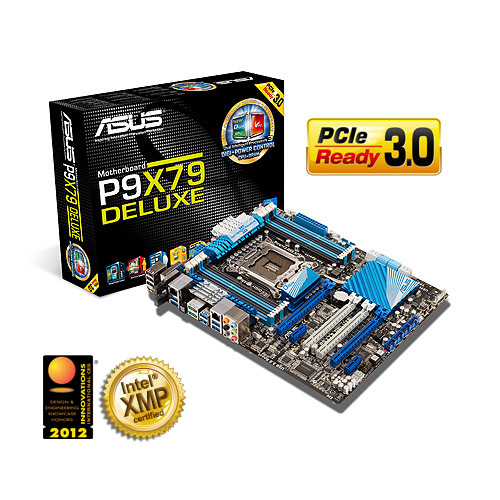

ASUS（エイスース） P9X79 DELUXE

次世代 CPU Sandy Bridge-E 対応！
LGA2011ソケット採用、X79チップ搭載！

・JAN/UPC：4937699434457
・TEKWIND型番：ASU-P9X79_DELUXE

P9X79 DELUXE は、新 CPU (Intel Sandy Bridge-E) に対応する X79 チップセット搭載マザーボードです。

X79 チップセットは、X58 の後継となるハイエンドチップセットで、新CPUへの対応だけでなく、PCIE3.0、SATA 6G、メモリクアッドチャンネル等に対応して更なるパフォーマンスの底上げが図られています。

また、SSD を HDD のキャッシュとして利用して高速化する Marvell9128 による SSD Caching、ASM1042 による USB3.0 等、X79 チップセットに実装されていない機能も補完されています。

デジタル電源回路 "New DIGI+" によるバランスのとれた効率の良い電源供給と放熱効果を高めるヒートパイプ、またCPUファンを含めて冷却用ファン端子は6つ実装されているため、高負荷時のシステムを安定的に保つことができます。

P9X79 DELUXE は、最新の高性能 CPU に対応し、更に CPU + X79 の PCIE バスを余すことなく使い切れる PCIE スロット構成ですので、パフォーマンスを追求するためのベース基板としては間違いの無い選択肢と言える製品です。

製品についてお気軽にお問い合わせください

この製品を問い合わせる

プロフェッショナルがいるテックウインドの強み

製品画像

お気軽にお問い合わせください

この製品のお問い合わせ

スペック

CPU	Intel® Socket 2011 for 2nd Generation Core™ i7 Processors Supports Intel® Turbo Boost Technology 2 * Refer to www.asus.com for CPU support list
Chipset	Intel® X79
Memory	8 x DIMM, Max. 64GB, DDR3 2400(O.C.)/2133(O.C.)/1866/1600/1333/1066 MHz Non-ECC, Un-buffered Memory Quad Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) * Hyper DIMM support is subject to the physical characteristics of individual CPUs. * Refer to www.asus.com or user manual for the Memory QVL (Qualified Vendors Lists).
Multi-GPU Support	Supports NVIDIA® 3-Way SLI™ Technology Supports AMD Quad-GPU CrossFireX™ Technology
Expansion Slots	3 x PCIe 3.0/2.0 x16 (dual x16 or x16, x8, x8) 1 1 x PCIe 3.0/2.0 x16 (x8 mode) 1 2 x PCIe 2.0 x1
Storage	Intel® X79 chipset : 2 x SATA 6Gb/s port(s), white 4 x SATA 3Gb/s port(s), blue Support Raid 0, 1, 5, 10 Marvell® PCIe 9128 controller : 2 x SATA 6Gb/s port(s), white ASMedia® ASM1061 controller : 2 x Power eSATA 6Gb/s port(s), green
LAN	Realtek® 8111E , 1 x Gigabit LAN Controller(s) Intel® 82579V, 1 x Gigabit LAN Controller(s) Dual Gigabit LAN controllers- 802.3az Energy Efficient Ethernet (EEE) appliance
Wireless Data Network	Wi-Fi 802.11 b/g/n
Bluetooth	Bluetooth V3.0+HS ASUS BT GO! Utility
Audio	Realtek® ALC898 8-Channel High Definition Audio CODEC - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking Audio Feature : - Absolute Pitch 192kHz/ 24-bit True BD Lossless Sound - Blu-ray audio layer Content Protection - DTS Ultra PC II - DTS Connect - Optical S/PDIF out port(s) at back panel
USB Ports	ASMedia® USB 3.0 controller : 2 8 x USB 3.0 port(s) (6 at back panel, blue, 2 at mid-board) Intel® X79 chipset :* 12 x USB 2.0 port(s) (4 at back panel, black+white, 8 at mid-board)
Special Features	ASUS Dual Intelligent Processors 3 with New DIGI+ Power Control : ASUS TPU : - Auto Tuning - TurboV - TPU switch ASUS EPU : - EPU - EPU switch ASUS Digital Power Design : - Industry leading Digital 16 + 4 Phase CPU Power Design - Industry leading Digital 2 + 2 Phase DRAM Power Design - CPU Power Utility - DRAM Power Utility ASUS BT GO! : - Folder Sync - BT Transfer - Shot & Send - BT to Net - Music Player - Personal Manager ASUS BT Turbo Remote : - Exclusive Smartphone Interface supporting iPhone, Android, Windows Mobile, and Symbian systems ASUS Exclusive Features : - MemOK! - AI Suite II - Ai Charger - ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface - ASUS SSD Caching - USB 3.0 Boost ASUS Quiet Thermal Solution : - Stylish Fanless Design Heat-pipe solution - ASUS Fan Xpert+ ASUS EZ DIY : - USB BIOS Flashback - ASUS Q-Shield - ASUS O.C. Profile - ASUS CrashFree BIOS 3 - ASUS EZ Flash 2 - ASUS MyLogo 2 - Multi-language BIOS ASUS Q-Design : - ASUS Q-Code - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED) - ASUS Q-Slot - ASUS Q-DIMM - ASUS Q-Connector
Back I/O Ports	1 x Bluetooth module(s) 2 x Power eSATA 6Gb/s 2 x LAN (RJ45) port(s) 6 x USB 3.0 4 x USB 2.0 (one port can be switched to USB BIOS Flashback) 1 x Optical S/PDIF out 6 x Audio jack(s) 1 x Wi-Fi antenna port(s) 1 x USB BIOS Flashback Button(s)
Internal I/O Ports	1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s) (19-pin) 4 x USB 2.0 connector(s) support(s) additional 8 USB 2.0 port(s) 4 x SATA 6Gb/s connector(s) 4 x SATA 3Gb/s connector(s) 1 x CPU Fan connector(s) (4 -pin) 4 x Chassis Fan connector(s) (4 -pin) 1 x Optional Fan connector(s) (4 -pin) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s) (Q-Connector) 1 x MemOK! button(s) 1 x TPU switch(es) 1 x EPU switch(es) 1 x Power-on button(s) 1 x Reset button(s) 1 x Clear CMOS jumper(s) 1 x Bluetooth v3.0 + HS header(s)
Accessories	User's manual I/O Shield 4 x SATA 3Gb/s cable(s) 4 x SATA 6Gb/s cable(s) 1 x 3-Way SLI bridge(s) 1 x SLI bridge(s) 1 x Q-connector(s) (2 in 1) 1 x Wi-Fi Ring Moving Antenna(s) 1 x Bluetooth v3.0 + HS module(s)
BIOS	64 Mb Flash ROM, UEFI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.6, ACPI 2.0a, Multi-language BIOS, ASUS EZ Flash 2, ASUS CrashFree BIOS 3
Manageability	WfM 2.0, DMI 2.0, WOL by PME, WOR by PME, PXE
Support Disc	Drivers ASUS Utilities ASUS Update Anti-virus software (OEM version)
Form Factor	ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Note	1: This motherboard is ready to support PCIe 3.0 SPEC. Functions will be available when using PCIe 3.0-compliant devices. Please refer to www.asus.com for updated details. 2: 6 x USB 3.0 ports at back panel with 1 additional VIA SuperSpeed USB hub controller.

The product (electrical , electronic equipment, Mercury-containing button cell battery) should not be placed in municipal waste. Check local regulations for disposal of electronic products.

All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets.
PCB color and bundled software versions are subject to change without notice.
Brand and product names mentioned are trademarks of their respective companies.
