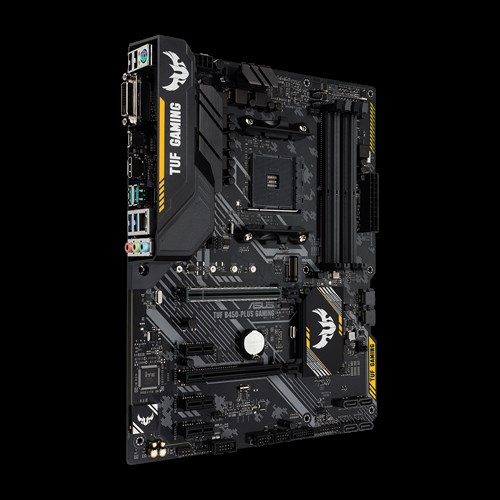

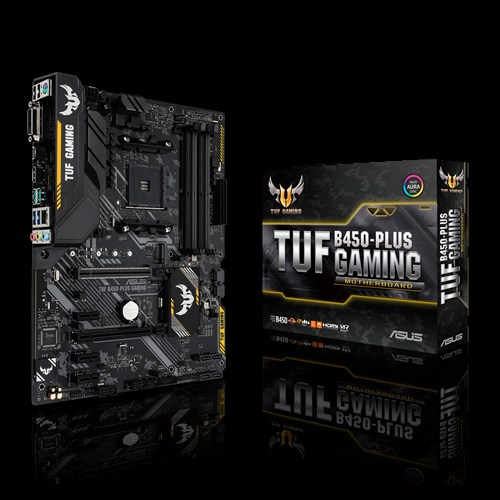

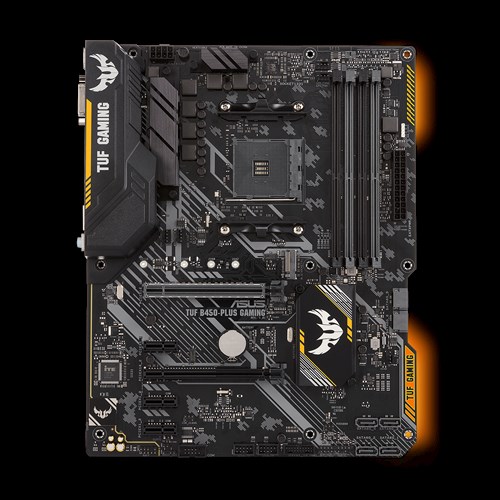

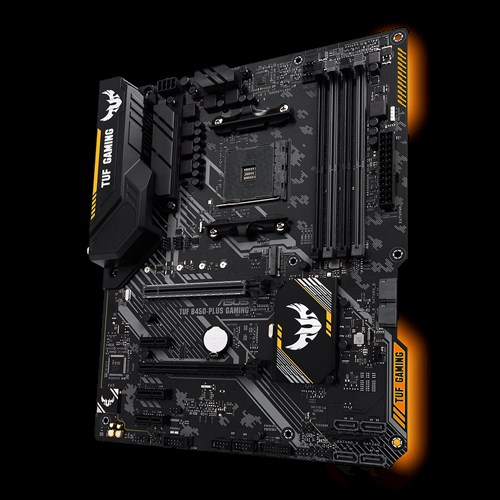

Aura Sync対応、抜群の耐久性を備えたAM4 B450搭載ATXマザーボード
・JAN/UPC：0192876075944
・TEKWIND型番：ASU-TUF/B450-PLUS/GAMING
【主な特長】
・ GPU Temperature Sensing & Fan Xpert 4 Core: すべてのファンの冷却性能と静音性のバランスを最適に維持
・ TUFプロテクション: SafeSlot, ESD Guards, DDR4 overvoltage protection, Digi+ VRM, 長寿命ステンレスI/Oバックパネル
・ ミリタリーグレードTUFコンポーネント: 耐久性を最大限に高めるTUF LANGuard、TUFチョーク、TUFコンデンサ、TUF MOSFETを採用
・ 独自のDTS®カスタムオーディオ: ステレオヘッドホンに位置情報を提供し、敵の位置や動きを特定することが可能
・ Aura Sync RGB: 対応するPCギアによるシンクロLEDイルミネーション
製品についてお気軽にお問い合わせください
この製品を問い合わせる製品画像
スペック
| 対応CPU | AMD AM4 Socket AMD Ryzen™ 2nd Generation/Ryzen™ with Radeon™ Vega Graphics/Ryzen™ 1st Generation Processors Supports CPU up to 8 cores * Refer to www.asus.com for CPU support list |
|---|---|
| 搭載チップセット | AMD B450 |
| メインメモリ | AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation Processors 4 x DIMM, Max. 64GB, DDR4 3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Un-buffered Memory Dual Channel Memory Architecture ECC Memory (ECC mode) support varies by CPU. * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). |
| グラフィックス機能 | Integrated in the AMD Ryzen™ with Radeon™ Vega Graphics Processors Multi-VGA output support : HDMI/DVI-D ports - Supports HDMI 2.0b with maximum resolution of 4096 x 2160 @ 60 Hz - Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz |
| マルチGPU対応 | Supports AMD CrossFireX™ Technology |
| 拡張スロット | AMD Ryzen™ 2nd Generation/ Ryzen™ 1st Generation Processors 1 x PCIe 3.0/2.0 x16 (x16 mode) AMD Ryzen™ with Radeon™ Vega Graphics Processor 1 x PCIe 3.0/2.0 x16 (x8 mode) AMD B450 chipset 1 x PCIe 2.0 x16 (max at x4 mode) 3 x PCIe 2.0 x1 |
| ストレージ機能 | AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation Processors : 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)*1 2 x SATA 6Gb/s port(s) AMD B450 chipset : 4 x SATA 6Gb/s port(s) Support Raid 0, 1, 10 |
| LAN機能 | Realtek® RTL8111H TUF LANGuard |
| オーディオ機能 | Realtek® ALC887-VD2 8-Channel High Definition Audio CODEC *2 Audio Feature : - Exclusive DTS Custom for GAMING Headsets. - Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference - Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals - Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity - Audio Cover: Effective shielding preserves the integrity of audio signals to ensure best quality. |
| USB機能 | AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation : 2 x USB 3.1 Gen 1 port(s) (2 at back panel, , Type-A) AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation : 1 x USB 3.1 Gen 1 port(s) (1 at back panel, , USB Type-C™) AMD B450 chipset : 2 x USB 3.1 Gen 2 port(s) (2 at back panel, , Type-A) AMD B450 chipset : 2 x USB 3.1 Gen 1 port(s) (2 at mid-board) AMD B450 chipset : 6 x USB 2.0 port(s) (2 at back panel, , 4 at mid-board) |
| 独自機能 | ASUS TUF PROTECTION - ASUS SafeSlot: Protect your graphics card Investment - ASUS ESD Guard: Enhanced ESD protection - ASUS Overvoltage Protection: World-class circuit-protecting power design - ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability! - ASUS DIGI+ VRM: 6 Phase digital power design AURA : - Aura Lighting Control - Aura RGB Strip Headers ASUS Exclusive Features : - AI Suite 3 - Ai Charger - PC Cleaner - File Transfer ASUS Quiet Thermal Solution : - Stylish Fanless Design Heat-sink solution & MOS Heatsink - ASUS Fan Xpert 4 Core ASUS EZ DIY : - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode ASUS Q-Design : - ASUS Q-Shield - ASUS Q-Slot - ASUS Q-DIMM Overclocking Protection : - ASUS C.P.R.(CPU Parameter Recall) |

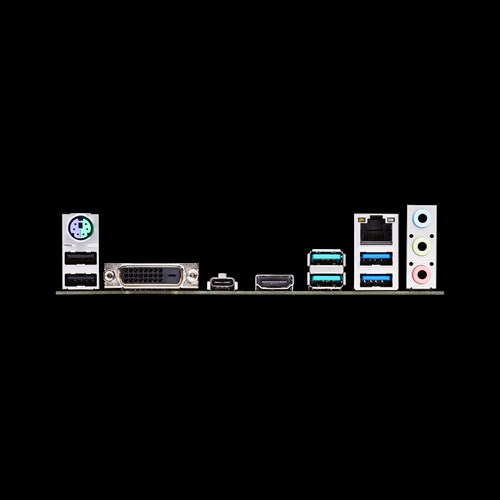

| 背面インターフェース | 1 x PS/2 keyboard/mouse combo port(s) 1 x DVI-D 1 x HDMI 1 x LAN (RJ45) port(s) 1 x 5Gb/s port(s) USB Type-C™ 2 x USB 3.1 Gen 2 (teal blue)Type-A, 2 x USB 3.1 Gen 1 (blue) Type-A, 2 x USB 2.0 3 x Audio jack(s) |
| 基板上インターフェース | 1 x Aura RGB Strip Header 1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) 6 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) (1 x 4 -pin) 3 x Chassis Fan connector(s) (3 x 4 -pin) 1 x AIO_PUMP connector (1 x 4 -pin) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s) 1 x Clear CMOS jumper(s) 1 x COM port header |
| 主な付属品 | User's manual ASUS Q-Shield 2 x SATA 6Gb/s cable(s) 1 x M.2 Screw Package 1 x Supporting DVD 1 x TUF GAMING Sticker 1 x TUF Certification card(s) |
| BIOS機能 | 128 Mb Flash ROM, UEFI AMI BIOS, PnP,SM BIOS 3.1, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, ASUS CrashFree BIOS 3, F3 My Favorite, Last Modified log, F12 PrintScreen,F4 AURA ON/OFF, F9 Search and ASUS DRAM SPD (Serial Presence Detect) memory information |
| 管理機能 | WOL by PME, PXE |
| OS | Windows® 10 64-bit |
| フォームファクター （サイズW×D） |
ATX Form Factor 12.0 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
| その他 | *1 The M.2 Socket shares bandwidth with the SATA_5/6 ports, and therefore the SATA_5/6 ports cannot be used when an M.2 device is installed. *2 Use a chassis with HD audio module in the front panel to support an 8-channel audio output. |
