ROG STRIX B450-F GAMING

Aura Sync対応、入門者によるゲーミングマシンの構築に最適なAM4 B450搭載ATXマザーボード

・JAN/UPC：0192876080276
・TEKWIND型番：ASU-ROG/STRIX/B450-F/GAMING

【主な特長】

・ AMD Ryzen™プロセッサ用AM4ソケット搭載
・高速メモリ&ストレージ: デュアルチャンネルDDR4 3200MHz(OC)、NVM Express® RAID対応
・ Aura Sync RGB: 対応する多彩なPCギアによるシンクロしたLEDイルミネーション
・ゲーミングコネクティビティ: デュアルM.2、USB 3.1 Gen 2 Type-Aコネクターを搭載
・ゲーミング仕様のネットワーク: Intel Gigabitイーサネット、ASUS LANGuard、GameFirstテクノロジーを搭載します。
・ 5-Way Optimization: PCの構成ごとに最適化されたシステム全体のチューニングプロファイルを自動生成
・ゲーミングオーディオ: 「SupremeFX S1220A」と「Sonic Studio III」の組み合わせで風景を描くような奥行きのあるサウンドを実現し、アクションへの没入感を向上
・ゲーマーズガーディアン: プレマウンテッド I/O シールド、ASUS Safeslot、最高の耐久性を実現するプレミアムコンポーネントを採用

製品についてお気軽にお問い合わせください

この製品を問い合わせる

プロフェッショナルがいるテックウインドの強み

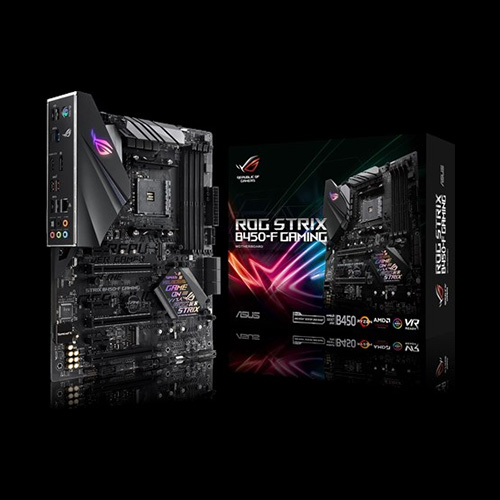

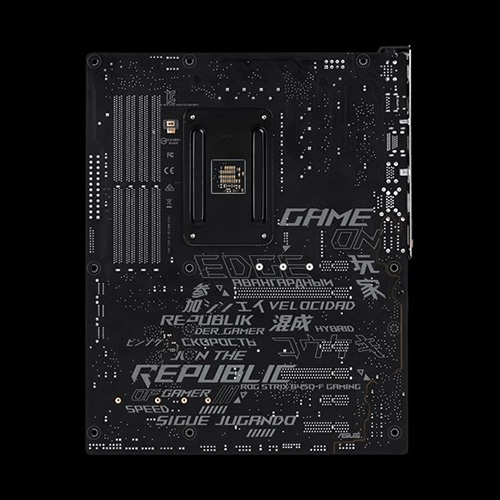

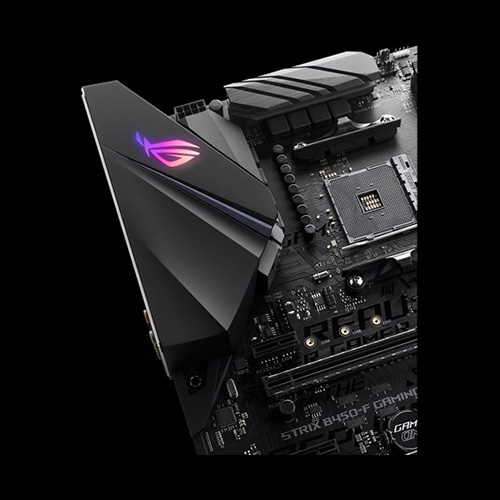

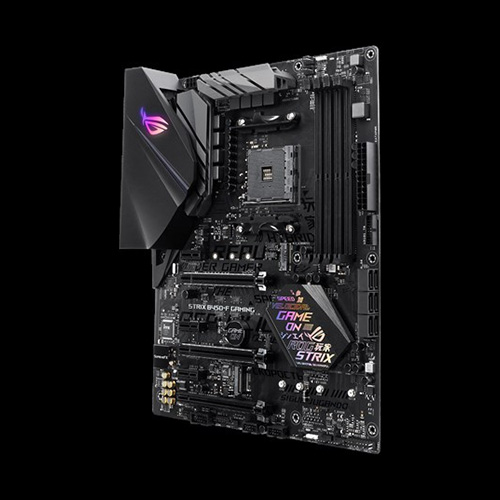

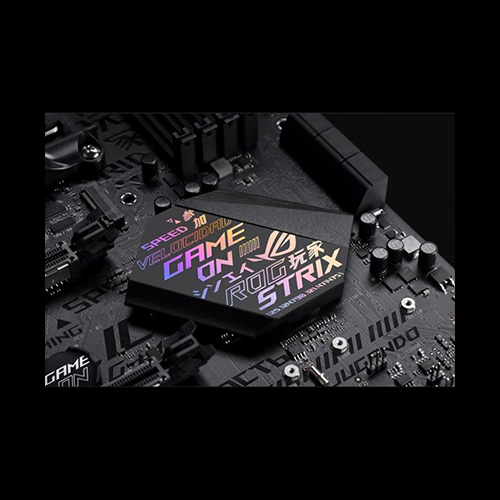

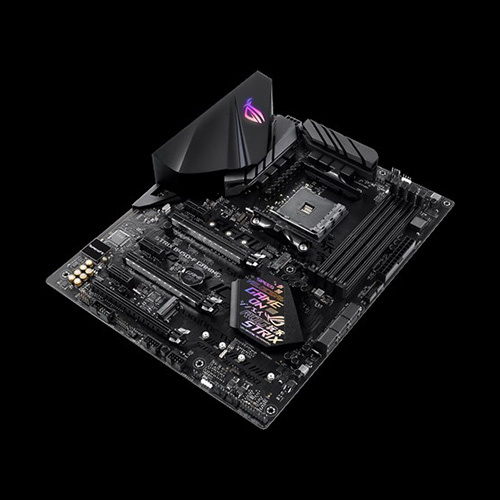

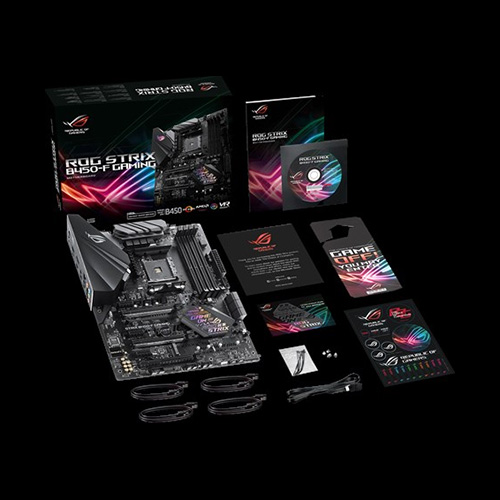

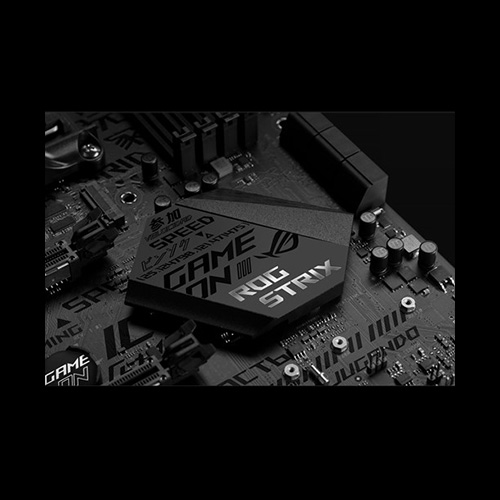

製品画像

スペック

対応CPU	AMD AM4 Socket AMD Ryzen™ 2nd Generation/Ryzen™ with Radeon™ Vega Graphics/Ryzen™ 1st Generation Processors * Refer to www.asus.com for CPU support list
搭載チップセット	AMD B450
メインメモリ	AMD Ryzen™ Processors 4 x DIMM, Max. 64GB, DDR4- 3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory デュアルチャンネル Memory Architecture * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
グラフィックス機能	Integrated in the AMD Ryzen™ with Radeon™ Vega Graphics Processors Multi-VGA output support : HDMI/DisplayPort ports - Supports HDMI 2.0b with maximum resolution of 4096 x 2160 @ 60 Hz - Supports DisplayPort 1.2 with max. resolution 4096 x 2160 @ 60 Hz
マルチGPU対応	AMD Ryzen™ 2nd Generation/Ryzen™ 1st Generation Processors Supports AMD 3-Way CrossFireX™ Technology
拡張スロット	AMD Ryzen™ 2nd Generation/ Ryzen™ 1st Generation Processors 2 x PCIe 3.0/2.0 x16 (x16 or x8/x4) AMD Ryzen™ with Radeon™ Vega Graphics Processor 1 x PCIe 3.0/2.0 x16 (x8 mode) AMD B450 chipset 1 x PCIe 2.0 x16 (max at x4 mode) *¹ 3 x PCIe 2.0 x1
ストレージ機能	AMD Ryzen™ 2nd Generation/ Ryzen™ 1st Generation Processors : ² 1 x M.2 Socket 3, , with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)³ 1 x M.2 Socket 3, , with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)⁴ 2 x SATA 6Gb/s port(s) AMD Ryzen™ with Radeon™ Vega Graphics Processor :* ² 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)³ 2 x SATA 6Gb/s port(s) AMD B450 chipset : 4 x SATA 6Gb/s port(s), Support Raid 0, 1, 10
LAN機能	Intel^® I211-AT, 1000BASE-T/100BASE-TX/10BASE-T×1 Anti-surge LANGuard ROG GameFirst Technology
オーディオ機能	ROG SupremeFX 8-Channel High Definition Audio CODEC S1220A - Dual OP Amplifiers - Impedance sense for front and rear headphone outputs - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input - SupremeFX Shielding Technology - Supports up to 32-Bit/192kHz playback ⁵ Audio Feature :* - Optical S/PDIF out port(s) at back panel - Sonic Radar III - Sonic Studio III + Sonic Studio Link
USB機能	AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation : 3 x USB 3.1 Gen 1 port(s) (3 at back panel, blue) AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation : 1 x USB 3.1 Gen 1 port(s) (1 at back panel, , Type-C) AMD B450 chipset : 2 x USB 3.1 Gen 2 port(s) (2 at back panel, red) AMD B450 chipset : 2 x USB 3.1 Gen 1 port(s) AMD B450 chipset : 6 x USB 2.0 port(s) (2 at back panel, , 4 at mid-board)
ROGシリーズ独自搭載機能	ROG RAMCache II ROG CPU-Z Pre-mounted I/O Shield Overwolf GameFirst IV
独自機能	5-Way Optimization by Dual Intelligent Processors 5 - Whole system optimization with a single click! 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ VRM, Fan Xpert 4, and Turbo App together, providing better CPU performance, efficient power saving, precise digital power control, whole system cooling and even tailor your own app usages. TPU - Auto Tuning, TurboV, GPU Boost Fan Xpert4 - Fan Xpert 4 featuring Fan Auto Tuning function and multiple thermistors selection for optimized system cooling control Gamer's Guardian: - ESD Guards on LAN, Audio, KBMS and USB3.1/3.0/2.0 ports - DRAM Overcurrent Protection - Highly Durable Components - SafeSlot ASUS EPU : - EPU AURA : - Aura Lighting Control - Aura RGB Strip Headers - Aura Lighting Effects Synchronization with compatible ASUS ROG devices ASUS Exclusive Features : - AI Suite 3 - Ai Charger - ASUS Grid ASUS EZ DIY : - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 ASUS Q-Design : - ASUS Q-Shield - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED) - ASUS Q-Slot - ASUS Q-DIMM Digi+VRM Turbo APP - featuring system performance tuning for selected applications

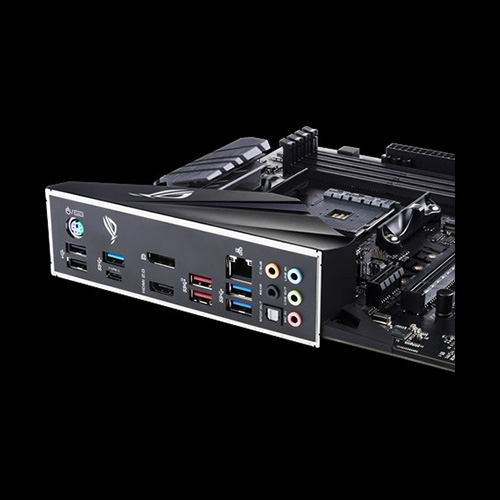

背面インターフェース	1 x PS/2 keyboard/mouse combo port(s) 1 x DisplayPort 1 x HDMI 1 x LAN (RJ45) port(s) 2 x USB 3.1 Gen 2 (red)Type-A, 4 x USB 3.1 Gen 1 (blue) , 2 x USB 2.0 1 x Optical S/PDIF out 5 x Audio jack(s)
基板上インターフェース	2 x Aura RGB Strip Headers 1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode) 1 x TPM header 1 x COM port(s) connector(s) 6 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 3 x Chassis Fan connector(s) 1 x AIO_PUMP connector 1 x 24-pin EATX Power connector(s) 1 x 8-pin EATX 12V Power connectors 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s) 1 x Thermal sensor connector(s) 1 x Clear CMOS jumper(s)
OS	Windows^® 10 64-bit
フォームファクター（サイズW×D）	ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
その他	1 PCIe x16_3 slot shares bandwidth with PCIe x1_2 and PCIe x1_3. 2 Support StoreMI and NVMe RAID 3 When the M.2_1 Socket 3 is operating in SATA or PCIE mode, SATA6G_5/6 ports will be disabled. 4 When the M.2_2 is occupied by M.2 device, PCIe x16_1 will run at x8 mode. 5 Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio.
