販売終了

豊かな拡張性と高度な冷却性能を備えたAMD X470搭載ATXマザーボードWi-Fi標準搭載モデル

ROG CROSSHAIR VII HERO (WI-FI)

JAN/UPC:0889349976289
TEKWIND型番:ASU-ROG/CROSSHAIR/7/HERO/WI-FI

【主な特長】

・ AMD Ryzen™プロセッサ用AM4ソケット搭載
・ シンクロRGBライティングテクノロジーはAura Syncに対応した幅広いPCギアで動作し、アドレサブルライトストリップとPhillips Hueに対応
・ 完璧な冷却性能: 専用の水冷ゾーン、包括的なファンコントロール、M.2ヒートシンクを搭載
・ ゲーミングコネクティビティ: Intel Gigabitイーサネット, 2x2 802.11ac MU-MIMO WiFi, LANGaurd, デュアルM.2, USB 3.1 Gen 2
・ オーバークロックオプション:簡単に自動化されたワンクリックオーバークロックはPC DIY入門者向けにはインテリジェントに簡略化されたオプションを提供し、ベテラン向けには包括的な機能を提供します。
・ ゲーミングオーディオ: SupremeFXとSonic Studio IIIの組合せにより、シーンに奥行きをもたせ、没入感を向上します。
・ ゲーミングデュラビリティ: ASUS Safeslotおよびプレミアムコンポーネントの採用で最大限の耐久性を実現


製品についてお気軽にお問い合わせください

この製品を問い合わせる

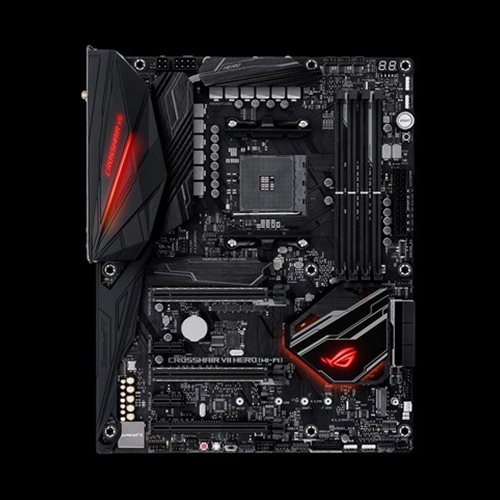

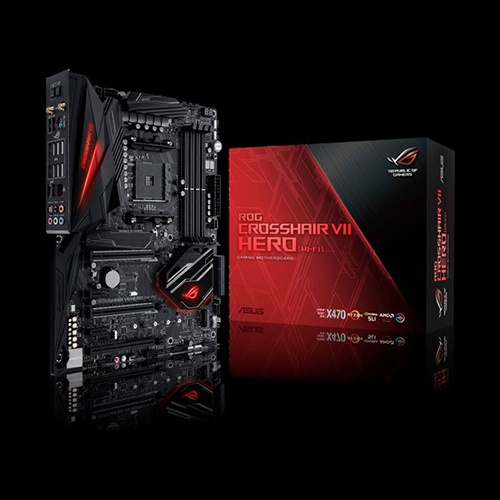

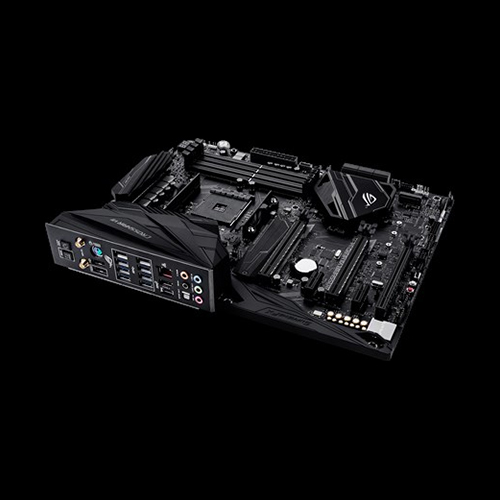

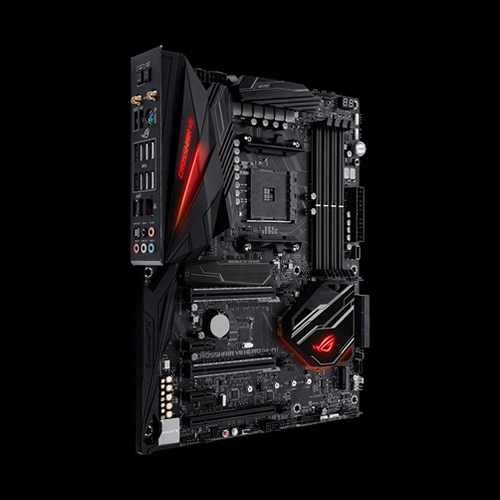

製品画像

スペック

対応CPU AMD AM4 Socket AMD Ryzen™ 2nd Generation/Ryzen™ with Radeon™ Vega Graphics/Ryzen™ 1st Generation/7th Generation A-series/Athlon X4 Processors
* Refer to www.asus.com for CPU support list
搭載チップセット AMD X470
メインメモリ AMD Ryzen™ 2nd Generation Processors
4 x DIMM, Max. 64GB, DDR4- 3600(O.C.)/3466(O.C.)/3400(O.C.)/3200(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory *
AMD Ryzen™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation Processors
4 x DIMM, Max. 64GB, DDR4- 3400(O.C.)/3200(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory *
AMD 7th Generation A-Series/Athlon X4 Processors
4 x DIMM, Max. 64GB, DDR4- 2400/2133 MHz Un-buffered Memory
デュアルチャンネル Memory Architecture
マルチGPU対応 AMD Ryzen™ 2nd Generation/Ryzen™ 1st Generation Processors
Supports NVIDIA® 2-Way SLI™ Technology *1
Supports AMD 3-Way CrossFireX™ Technology
AMD Ryzen™ with Radeon™ Vega Graphics/AMD 7th Generation A-Series/Athlon X4 Processors
Supports AMD CrossFireX™ Technology
拡張スロット AMD Ryzen™ 2nd Generation/ Ryzen™ 1st Generation Processors
2 x PCIe 3.0/2.0 x16 (x16 or dual x8) *2
AMD Ryzen™ with Radeon™ Vega Graphics /7th Generation A-Series/Athlon X4 Processors
1 x PCIe 3.0/2.0 x16 (x8 mode)
AMD X470 chipset
1 x PCIe 2.0 x16 (max at x4 mode)
2 x PCIe 2.0 x1
ストレージ機能 AMD Ryzen™ 2nd Generation/ Ryzen™ 1st Generation Processors :
1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)
AMD 7th Generation A-Series/Athlon X4 Processors : *3
1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA mode)
AMD X470 chipset :
6 x SATA 6Gb/s port(s),
Support Raid 0, 1, 10
LAN機能 Intel® I211-AT, 1000BASE-T/100BASE-TX/10BASE-T×1
Anti-surge LANGuard
ROG GameFirst IV
無線機能 Wi-Fi IEEE802.11ac/n/a/g/b
Supports dual band frequency 2.4/5 GHz
Supports MU-MIMO
Bluetooth機能 Bluetooth V4.2*4
オーディオ機能 ROG SupremeFX 8-Channel High Definition Audio CODEC S1220
- Impedance sense for front and rear headphone outputs
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
- SupremeFX Shielding Technology
- ESS® ES9023P
- Supports up to 32-Bit/192kHz playback *5
Audio Feature :
- Gold-plated jacks
- Optical S/PDIF out port(s) at back panel
- Sonic Radar III
- Sonic Studio III
USB機能 AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation/7th Generation A-Series/Athlon X4 Processors :
4 x USB 3.1 Gen 1 port(s) (4 at back panel, blue)
AMD X470 chipset :
1 x USB 3.1 Gen 2 front panel connector port(s)
AMD X470 chipset :
6 x USB 3.1 Gen 1 port(s) (4 at back panel, blue)
AMD X470 chipset :
5 x USB 2.0 port(s) (2 at back panel, , 3 at mid-board)
ASMedia® USB 3.1 Gen 2 controller :
2 x USB 3.1 port(s) (2 at back panel, black+red, Type-A + USB Type-C™
ROGシリーズ独自搭載機能 Clear CMOS button
ROG RAMCache II
ROG CPU-Z
MemOK! Button
Slow Mode
Overwolf
ReTry Button
Safe Boot Button
Start Button
Reset Button
LN2 Mode
GameFirst IV
Extreme Engine Digi+ :
- MicroFine Alloy Chokes
- NexFET™ Power Block MOSFET
- 10K Black Metallic Capacitors
Mem TweakIt
UEFI BIOS features :
- Tweakers' Paradise
- ROG SSD Secure Erase
- Graphic Card Information Preview
ROG RAMDisk
Extreme Tweaker
USB BIOS Flashback
独自機能 ASUS Dual Intelligent Processors 5-Way Optimization by Dual Intelligent Processors 5 :
- 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ VRM, Fan Expert 4, and Turbo App
Gamer's Guardian:
- SafeSlot
AURA :
- Aura Lighting Control
- Aura RGB Strip Headers
- Aura Addressable Strip Header(s)
ASUS Exclusive Features :
- AI Suite 3
- Ai Charger
ASUS EZ DIY :
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
ASUS Q-Design :
- ASUS Q-Code
- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
- ASUS Q-Slot
- ASUS Q-DIMM
- ASUS Q-Connector

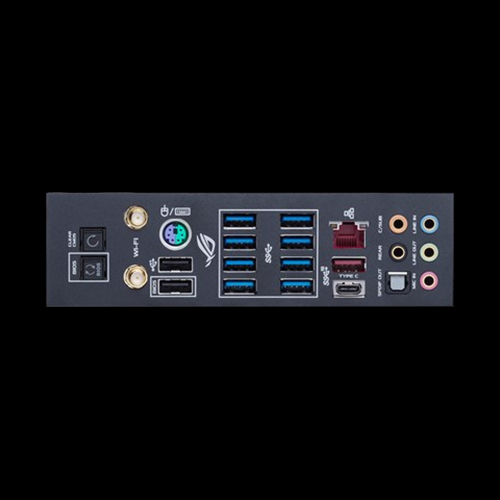

背面インターフェース 1 x PS/2 keyboard/mouse combo port(s)
1 x LAN (RJ45) port(s)
2 x USB 2.0 (one port can be switched to USB BIOS Flashback)
1 x Optical S/PDIF out
1 x Clear CMOS button(s)
1 x USB BIOS Flashback Button(s)
1 x ASUS Wi-Fi GO! module (Wi-Fi 802.11 a/b/g/n/ac and Bluetooth v4.1)
5 x Gold-plated audio jacks
8 x USB 3.1 Gen 1 (blue)
1 x USB 3.1 Gen 2 (red)Type-A
1 x USB 3.1 (black)USB Type-C™
基板上インターフェース 2 x Aura Addressable Strip Header(s)
2 x RGB Header(s)
1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)
6 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s)
1 x CPU OPT Fan connector(s)
3 x Chassis Fan connector(s)
1 x AIO_PUMP connector
1 x H_AMP fan connector
1 x W_PUMP+ connector
1 x 8-pin EATX 12 V Power connector
1 x 4-pin EATX 12 V_1 Power connector(s)
1 x 24-pin EATX Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x 5-pin EXT_FAN(Extension Fan) connector
1 x Slow Mode switch(es)
1 x Thermal sensor connector(s)
1 x Reset button(s)
1 x LN2 Mode switch(es)
1 x ROG extension (ROG_EXT) header(s)
1 x Safe Boot button
1 x ReTry button
1 x Slow Mode jumper(s)
1 x System panel connector
1 x W_IN header
1 x W_OUT header
1 x W_FLOW header
1 x Start button
1 x USB 3.1 Gen 2 front panel connector
1 x Speaker connector
1 x USB 3.1 Gen 1 connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s)
1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)

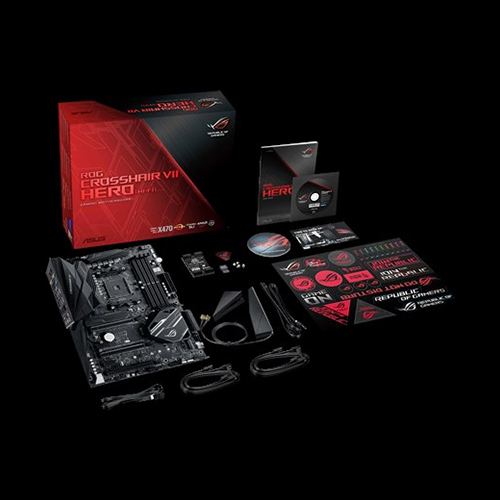

主な付属品 User's manual
4 x SATA 6Gb/s cable(s)
2 x M.2 Screw Package
1 x Supporting DVD
1 x ASUS 2T2R dual band Wi-Fi moving antennas (Wi-Fi 802.11a/b/g/n/ac compliant)
1 x SLI HB BRIDGE(2-WAY-M)
1 x ROG big sticker
1 x Q-Connector
1 x Extension Cable for RGB strips (80 cm)
1 x Extension cable for Addressable LED
1 x ROG coaster(s)
BIOS機能 256 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.0, ACPI 6.0, Multi-language BIOS,
ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log,
F12 PrintScreen and ASUS DRAM SPD (Serial Presence Detect) memory information, Secure Erase, User Profile, F4 AURA ON/OFF, F9 Search
管理機能 WOL, PXE
サポートDVDの内容 Drivers
AURA
ROG GameFirst IV
ROG RAMDisk
ROG RAMCache II
ROG CPU-Z
ROG MemTweakIt
Sonic Studio III
Sonic Radar III
Overwolf
Kaspersky® Anti-Virus
WinRAR
Fan Xpert 4
DAEMON Tools Software
ASUS Utilities
OS Windows® 10 64-bit
フォームファクター
(サイズW×D)
ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
その他 *1 Due to CPU limitation, NVIDIA® 2-Way SLI™ Technology is not supported for AMD 7th Gen A-series/Athlon™ Processors.
*2 The PCIE_x8/x4_2 slot shares bandwidth with the M.2_2 slot.
*3 M.2_2 is unsupported for these processors.
*4 Support for the Bluetooth specification depends on the Windows version. Win7/8.1 support up to Bluetooth 4.0.
*5 Due to limitations in HDA bandwidth, 32-bit/192kHz is not supported for 8-Channel audio and due to Windows 7 limitations, 32-bit playback is unavailable for Windows 7.
