PCパーツ > マザーボード > Intel CPU オンボード
優れた耐久性と互換性を備えるIntel Celeron® SoC J4005搭載の低消費電力ファンレスマザーボード
・JAN/UPC：0889349899434
・TEKWIND型番：ASU-PRIME/J4005I-C
【主な特長】
・ 保証された品質 -5X Protection. 1000を超得る互換性. 8000時間以上の検証時間
・ AI Suite 3：革新的なASUSの各種機能へのワンストップアクセス
・ 新しいUEFI BIOSとEZモード: 便利な情報の追加でより直感的に、簡単で扱いやすくなりました

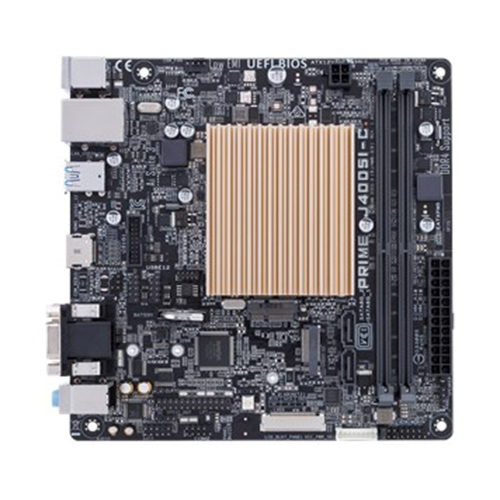

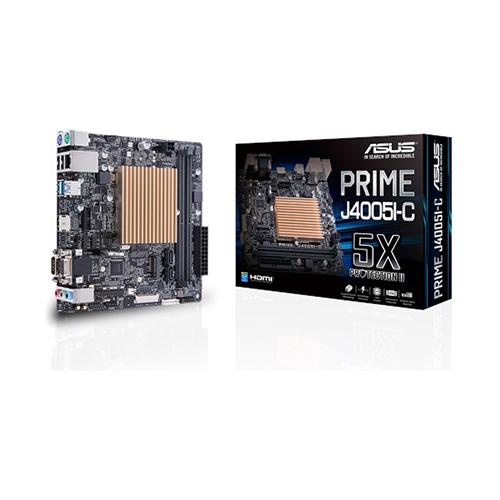

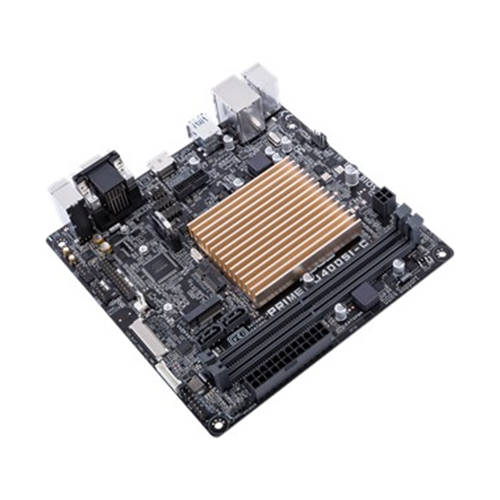

製品画像
スペック
| メインメモリ | 2 x U-DIMM, Max. 8GB, DDR4- 2400/2133 MHz Non-ECC, Un-buffered Memory *1 デュアルチャンネル Memory Architecture * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). |
|---|---|
| グラフィックス機能 | Integrated Graphics Processor Multi-VGA output support : HDMI/RGB/LVDS ports - Supports HDMI with max. resolution 4096 x 2304 @ 24 Hz - Supports LVDS with max. resolution 1920 x 1200 @ 60 Hz - Supports RGB with max. resolution 1920 x 1200 @ 60 Hz Maximum shared memory of 512 MB (for iGPU exclusively) Supports up to 3 displays simultaneously |
| ストレージ機能 | 1 x M.2 Socket 3, , with M Key, type 2260/2280 storage devices support (PCIE mode) 2 x SATA 6Gb/s port(s), |
| LAN機能 | Realtek® RTL8111H, 1000BASE-T/100BASE-TX/10BASE-T×1 |
| オーディオ機能 | Realtek® ALC887-VD2 8-Channel High Definition Audio CODEC *2 - Supports : Jack-detection, Front Panel Jack-retasking |
| USB機能 | Built-in Controller : 4 x USB 3.1 Gen 1 port(s) (2 at back panel, , 2 at mid-board) Built-in Controller : 2 x USB 2.0 port(s) (2 at back panel, ) GL852G USB Hub : 4 x USB port(s) (4 at mid-board) |
| 独自機能 | ASUS 5X Protection II : - ASUS LANGuard - 2.5X higher surge tolerance - ASUS Overvoltage Protection - World-class circuit-protecting power design - ASUS DRAM Overcurrent Protection - Prevents damage from short circuits - ASUS Stainless-Steel Back I/O - 3X corrosion-resistance for greater durability - ASUS ESD Guards - Electrostatic discharge protection ASUS Exclusive Features : - AI Suite 3 - Ai Charger ASUS Quiet Thermal Solution : - Stylish Fanless Design Heat-sink solution ASUS EZ DIY : - ASUS EZ Flash 3 - ASUS MyLogo 2 - ASUS UEFI BIOS EZ Mode ASUS Q-Design : - ASUS Q-DIMM |
| 動作対応OS | Windows® 10 64-bit Linux |

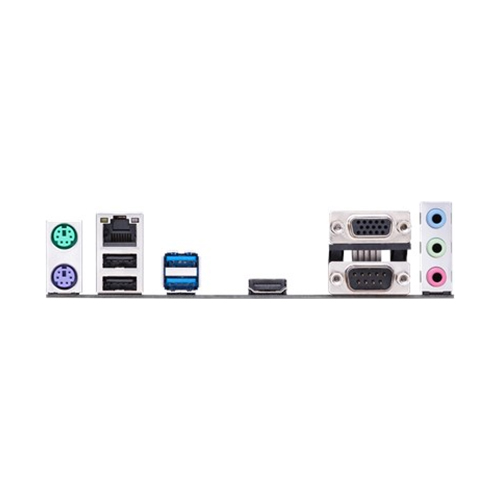

| 背面インターフェース | 1 x PS/2 keyboard (purple) 1 x PS/2 mouse (green) 1 x D-Sub 1 x HDMI 1 x LAN (RJ45) port(s) 2 x USB 3.1 Gen 1 , 2 x USB 2.0 1 x COM port(s) 3 x Audio jack(s) |
| 基板上インターフェース | 2 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s) 1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s) 1 x M.2 Socket 1 with E Key, type 2230 WiFi/BT devices support or PCIe/USB mode 1 x M.2 Socket 3 with M key, type 2260/2280 storage devices support (PCIe x 2 mode) 1 x LPT header 1 x COM port(s) connector(s) 2 x SATA 6Gb/s connector(s) 1 x Chassis Fan connector(s) (1 x 4 -pin) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 4-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x Chassis Intrusion connector(s) 1 x Clear CMOS jumper(s) 1 x Panel off header 1 x LVDS connector(s) 1 x System panel connector 1 x Flat panel display brightness connector 1 x Display panel VCC power selector 1 x Speaker connector |
| 主な付属品 | User's manual I/O Shield 2 x SATA 6Gb/s cable(s) 2 x M.2 Screw Package |
| BIOS機能 | 128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 3.0, ACPI 6.0, Multi-language BIOS, ASUS EZ Flash 3, My Favorites, Quick Note, Last Modified log, F12 PrintScreen, F3 Shortcut functions and ASUS DRAM SPD (Serial Presence Detect) memory information, ErP ready |
| 管理機能 | WfM 2.0, DMI 2.0, WOL by PME, PXE |
| サポートDVDの内容 | Drivers ASUS Utilities EZ Update Anti-virus software (OEM version) |
| フォームファクター （サイズW×D） |
Thin Mini ITX Form Factor 6.7 inch x 6.7 inch ( 17 cm x 17 cm ) |
| その他 | *1 We recommend that you use 8GB or less memory modules. *2 Use a chassis with HD audio module in the front panel to support an 8-channel audio output |
