ROG STRIX X470-I GAMING

驚異的な拡張性を備え第2世代AMD Ryzen™プロセッサに完全対応したX470搭載Mini-ITXマザーボード

・JAN/UPC：0192876018521
・TEKWIND型番：ASU-ROG/STRIX/X470-I/GAMING

【主な特長】

・ AMD Ryzen™プロセッサ用AM4ソケット搭載
・シンクロRGBライティングテクノロジーはAura Syncに対応した幅広いPCギアで動作し、アドレサブルライトストリップとPhillips Hueに対応
・オンボードM.2ヒートシンクでM.2ドライブを冷却し、パフォーマンスと安定性を向上
・ゲーミングコネクティビティ: Intel Gigabitイーサネット、LANGuard、2x2 802.11ac MU-MIMO Wi-Fi、デュアルM.2、USB 3.1 Gen 2
・ 5-Way Optimization: PCビルドに合わせてカスタマイズされたオーバークロックと冷却の設定を提供し、自動的にシステム全体のチューニングを施します。
・ゲーミングオーディオ: 「SupremeFX S1220A」と「Sonic Studio III」の組み合わせで風景を描くような奥行きのあるサウンドを実現し、アクションへの没入感を向上

製品についてお気軽にお問い合わせください

この製品を問い合わせる

プロフェッショナルがいるテックウインドの強み

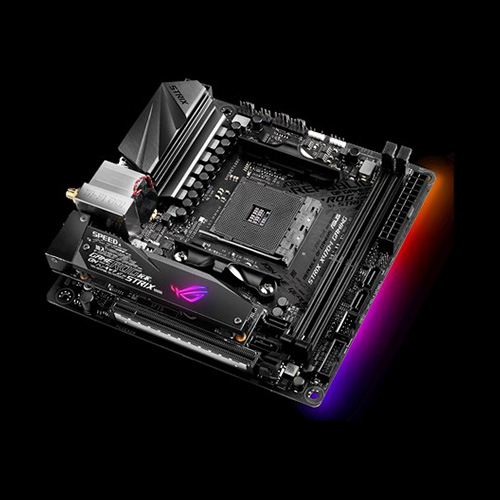

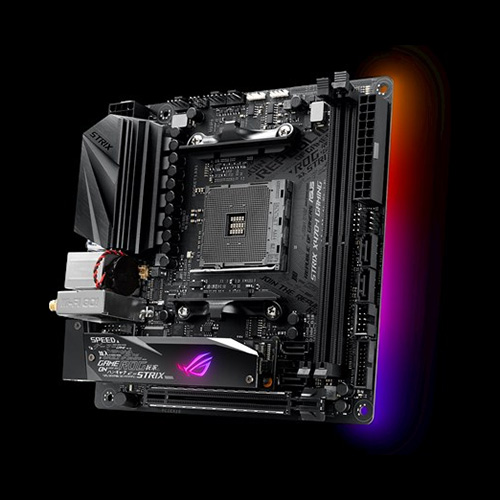

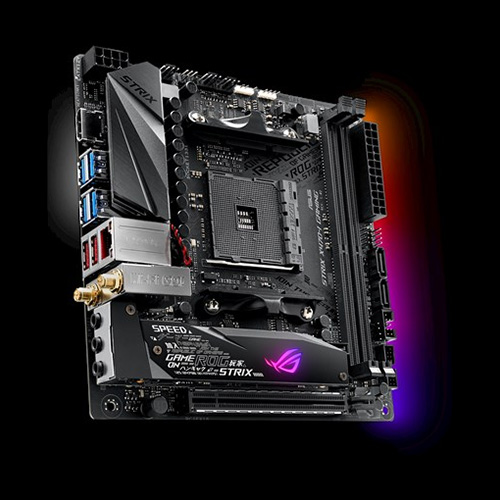

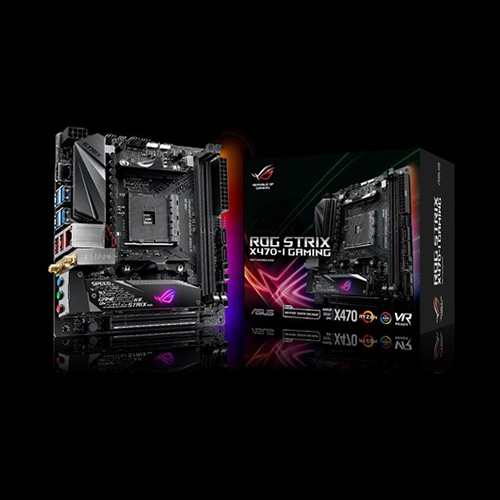

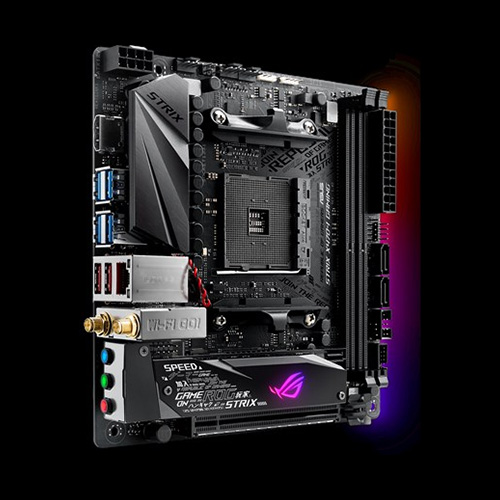

製品画像

スペック

対応CPU	AMD AM4 Socket AMD Ryzen™ 2nd Generation/Ryzen™ with Radeon™ Vega Graphics/Ryzen™ 1st Generation/7^th Generation A-series/Athlon X4 Processors * Refer to www.asus.com for CPU support list
搭載チップセット	AMD X470
メインメモリ	AMD Ryzen™ 2nd Generation Processors 2 x DIMM, Max. 32GB, DDR4- 3600(O.C.)/3466(O.C.)/3400(O.C.)/3200(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory * AMD Ryzen™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation Processors 2 x DIMM, Max. 32GB, DDR4- 3400(O.C.)/3200(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory * AMD 7th Generation A-series/Athlon™ Processors 2 x DIMM, Max. 32GB, DDR4- 2400/2133 MHz Non-ECC, Un-buffered Memory * デュアルチャンネル Memory Architecture * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
グラフィックス機能	Integrated Graphics in the AMD Ryzen™ with Radeon™ Vega Graphics/ 7th Generation A-Series APU Multi-VGA output support : HDMI ports - Supports HDMI 2.0b with maximum resolution of 4096 x 2160 @ 60 Hz Maximum shared memory of 2048 MB (for iGPU exclusively)
拡張スロット	AMD Ryzen™ 2nd Generation/ Ryzen™ 1st Generation Processors 1 x PCIe 3.0/2.0 x16 (x16 mode) AMD Ryzen™ with Radeon™ Vega Graphics /7th Generation A-Series/Athlon X4 Processors 1 x PCIe 3.0/2.0 x16 (x8 mode)
ストレージ機能	AMD Ryzen™ 2nd Generation/ Ryzen™ 1st Generation Processors : 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)¹ AMD Ryzen™ with Radeon™ Vega Graphics Processor :* ² 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) AMD 7th Generation A-Series/Athlon X4 Processors :* ² 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA mode) AMD X470 chipset :* 4 x SATA 6Gb/s port(s), Support Raid 0, 1, 10
LAN機能	Intel^® I211-AT, 1000BASE-T/100BASE-TX/10BASE-T×1 Anti-surge LANGuard ROG GameFirst IV
無線機能	Wi-Fi IEEE802.11ac/n/a/g/b Supports dual band frequency 2.4/5 GHz Supports MU-MIMO
Bluetooth機能	Bluetooth v4.2, 4.0LE, 3.0+HS
オーディオ機能	ROG SupremeFX 8-Channel High Definition Audio CODEC S1220A - Dual OP Amplifiers - Impedance sense for front and rear headphone outputs - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input - Supports up to 32-Bit/192kHz playback ³ LED-illuminated audio jacks Audio Feature :* - Sonic Radar III - Sonic Studio III + Sonic Studio Link
USB機能	AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation/7th Generation A-Series/Athlon X4 Processors : 4 x USB 3.1 Gen 1 port(s) (4 at back panel, blue) AMD X470 chipset : 2 x USB 3.1 Gen 2 port(s) (2 at back panel, red, Type-A) AMD X470 chipset : 2 x USB 3.1 Gen 1 port(s) (2 at mid-board) AMD X470 chipset : 2 x USB 2.0 port(s) (2 at mid-board)
ROGシリーズ独自搭載機能	ROG RAMCache II ROG CPU-Z Overwolf GameFirst IV
独自機能	5-Way Optimization by Dual Intelligent Processors 5 - Whole system optimization with a single click! 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ VRM, Fan Xpert 4, and Turbo App together, providing better CPU performance, efficient power saving, precise digital power control, whole system cooling and even tailor your own app usages. Fan Xpert4 - Fan Xpert 4 featuring Fan Auto Tuning function and multiple thermistors selection for optimized system cooling control Gamer's Guardian: - ESD Guards on LAN, Audio, KBMS and USB3.1/3.0/2.0 ports - DRAM Overcurrent Protection - Stainless Steel Back I/O - Highly Durable Components - DIGI+ VRM - SafeSlot - ESD Guards on LAN, Audio,and USB ports ASUS TPU : - Auto Tuning - TurboV ASUS EPU : - EPU AURA : - Aura Lighting Control ASUS Exclusive Features : - AI Suite 3 - Ai Charger ASUS EZ DIY : - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 ASUS Q-Design : - ASUS Q-Shield - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED) - ASUS Q-Slot - ASUS Q-DIMM Digi+VRM Turbo APP - featuring system performance tuning for selected applications

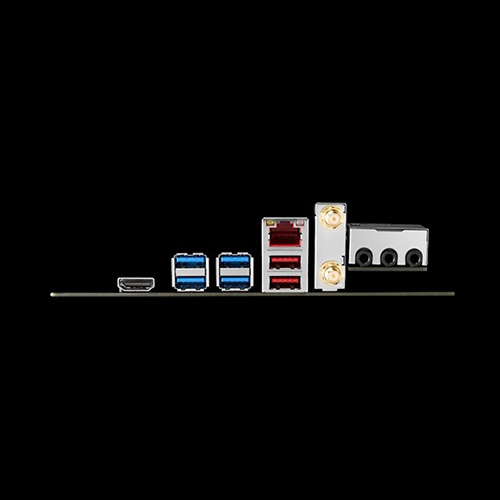

背面インターフェース	1 x HDMI 1 x LAN (RJ45) port(s) 2 x USB 3.1 Gen 2 (red)Type-A, 4 x USB 3.1 Gen 1 (blue) , 3 x LED-illuminated audio jacks 1 x ASUS Wi-Fi GO! module (Wi-Fi 802.11 a/b/g/n/ac and Bluetooth v4.2)
基板上インターフェース	1 x Aura Addressable Strip Header(s) 1 x RGB Header(s) 1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) 1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s) 2 x M.2 Socket 3 for M Key, type 2242/2260/2280 devices 4 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) ( x 4 -pin) 1 x Chassis Fan connector(s) ( x 4 -pin) 1 x AIO_PUMP connector ( x 4 -pin) 1 x 8-pin EATX 12 V Power connector 1 x 24-pin EATX Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x Thermal sensor connector(s) 1 x Clear CMOS jumper(s) 1 x System panel connector 1 x Thermal sensor connector 1 x Speaker connector

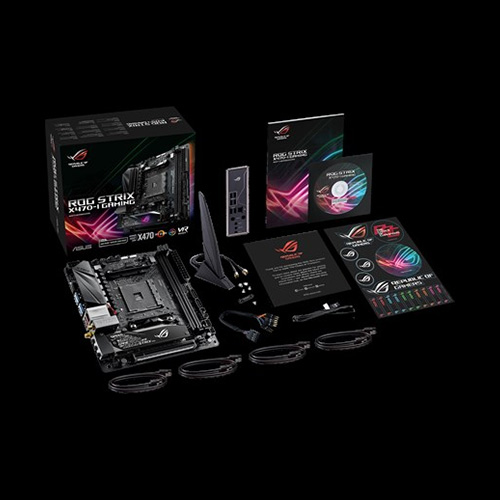

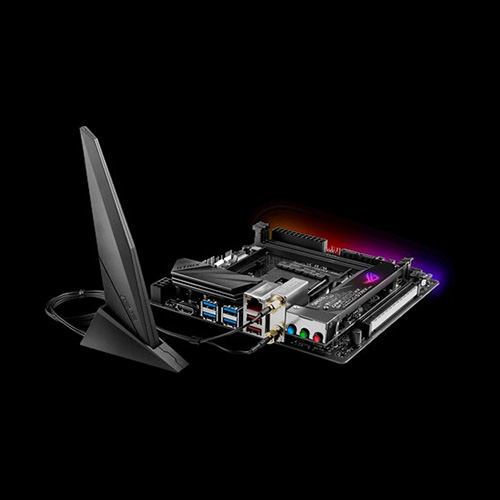

主な付属品	User's manual M.2 mounting kit I/O Shield 4 x SATA 6Gb/s cable(s) 2 x M.2 Screw Package 1 x Supporting DVD 1 x ASUS 2T2R dual band Wi-Fi moving antennas (Wi-Fi 802.11a/b/g/n/ac compliant) 1 x ROG Strix stickers 1 x Cable ties pack(s) 1 x Extension cable for Addressable LED 1 x Panel cable
BIOS機能	256 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.0, ACPI 6.0, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen and ASUS DRAM SPD (Serial Presence Detect) memory information, Secure Erase, User Profile, F4 AURA ON/OFF, F9 Search
管理機能	WOL, PXE
サポートDVDの内容	Drivers ASUS Utilities Anti-virus software
フォームファクター（サイズW×D）	Mini ITX Form Factor 6.7 inch x 6.7 inch ( 17 cm x 17 cm )
その他	1 The M.2_2 slot shares with PCIE x16. When M.2_2 slot runs in PCIE mode, the PCIE x16 slot will run at x8 mode. 2 M.2_2 is unsupported when using these CPUs. *3 Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio.
