販売終了

第2世代Ryzenプロセッサ対応、環境を選ばない高耐久仕様のX470搭載ATXマザーボード

TUF X470-PLUS GAMING

JAN/UPC:0889349951668
TEKWIND型番:ASU-TUF/X470-PLUS/GAMING

【主な特長】

・ GPU Temperature Sensing & Fan Xpert 4 Core: すべてのファンの冷却性能と静音性のバランスを最適に維持
・ TUFプロテクション: SafeSlot, ESD Guards, DDR4 overvoltage protection, Digi+ VRM, 長寿命ステンレスI/Oバックパネル
・ ミリタリーグレードTUFコンポーネント: 耐久性を最大限に高めるTUF LANGuard、TUFチョーク、TUFコンデンサ、TUF MOSFETを採用
・ 独自のDTS®カスタムオーディオ: ステレオヘッドホンに位置情報を提供し、敵の位置や動きを特定することが可能


製品についてお気軽にお問い合わせください

この製品を問い合わせる

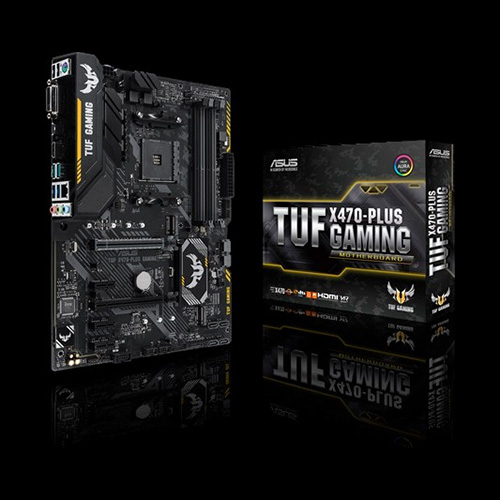

製品画像

スペック

対応CPU AMD AM4 Socket AMD Ryzen™ 2nd Generation/Ryzen™ with Radeon™ Vega Graphics/Ryzen™ 1st Generation/7th Generation A-series/Athlon X4 Processors
Supports CPU up to 8 cores
* Refer to www.asus.com for CPU support list
搭載チップセット AMD X470
メインメモリ AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation Processors
4 x DIMM, Max. 64GB, DDR4- 3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Un-buffered Memory
AMD 7th Generation A-Series/Athlon X4 Processors
4 x DIMM, Max. 64GB, DDR4- 2400/2133 MHz Un-buffered Memory
デュアルチャンネル Memory Architecture
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
グラフィックス機能 Integrated Graphics in the AMD Ryzen™ with Radeon™ Vega Graphics/ 7th Generation A-Series APU
Multi-VGA output support : HDMI/DVI-D ports
- Supports HDMI 1.4b with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
- Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz
Maximum shared memory of 2048 MB (for iGPU exclusively)
マルチGPU対応 Supports AMD CrossFireX™ Technology
拡張スロット AMD Ryzen™ 2nd Generation/ Ryzen™ 1st Generation Processors
1 x PCIe 3.0/2.0 x16 (x16 mode)
AMD Ryzen™ with Radeon™ Vega Graphics /7th Generation A-Series/Athlon X4 Processors
1 x PCIe 3.0/2.0 x16 (x8 mode)
AMD X470 chipset
1 x PCIe 2.0 x16 (max at x4 mode)
3 x PCIe 2.0 x1
ストレージ機能 AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation Processors :
1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
AMD 7th Generation A-Series/Athlon X4 Processors :
1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA mode)
AMD X470 chipset :
1 x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 2 mode)
6 x SATA 3Gb/s port(s)
Support Raid 0, 1, 10
LAN機能 Realtek® RTL8111H
TUF LANGuard
オーディオ機能 Realtek® ALC887-VD2 8-Channel High Definition Audio CODEC
Audio Feature :
- Exclusive DTS Custom for GAMING Headsets.
- Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference
- Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
- Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
- Audio Cover: Effective shielding preserves the integrity of audio signals to ensure best quality.
USB機能 AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation/7th Generation A-Series/Athlon X4 Processors :
2 x USB 3.1 Gen 1 port(s) (2 at back panel, , Type-A)
AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation/7th Generation A-Series/Athlon X4 Processors :
1 x USB 3.1 Gen 1 port(s) (1 at back panel, , USB Type-C™)
AMD X470 chipset :
2 x USB 3.1 Gen 2 port(s) (2 at back panel, )
AMD X470 chipset :
4 x USB 3.1 Gen 1 port(s) (4 at mid-board)
AMD X470 chipset :
6 x USB 2.0 port(s) (2 at back panel, , 4 at mid-board)
独自機能 ASUS TUF PROTECTION
- ASUS SafeSlot: Protect your graphics card Investment
- ASUS ESD Guard: Enhanced ESD protection
- ASUS Overvoltage Protection: World-class circuit-protecting power design
- ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!
- ASUS DIGI+ VRM: 6 Phase digital power design

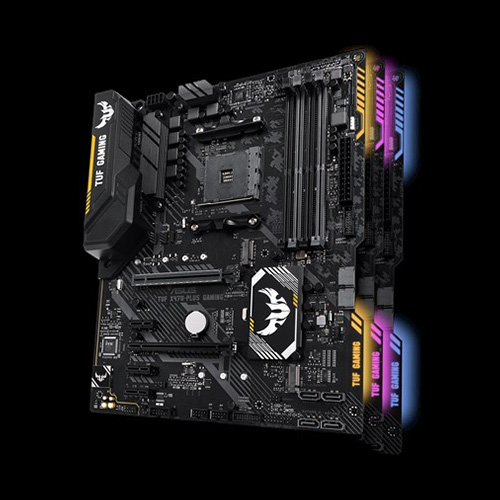

AURA :
- Aura Lighting Control
ASUS Exclusive Features :
- AI Suite 3
- Ai Charger
- PC Cleaner
ASUS Quiet Thermal Solution :
- Stylish Fanless Design Heat-sink solution & MOS Heatsink
- ASUS Fan Xpert 4 Core
ASUS EZ DIY :
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
ASUS Q-Design :
- ASUS Q-Slot
- ASUS Q-DIMM
Overclocking Protection :
- ASUS C.P.R.(CPU Parameter Recall)

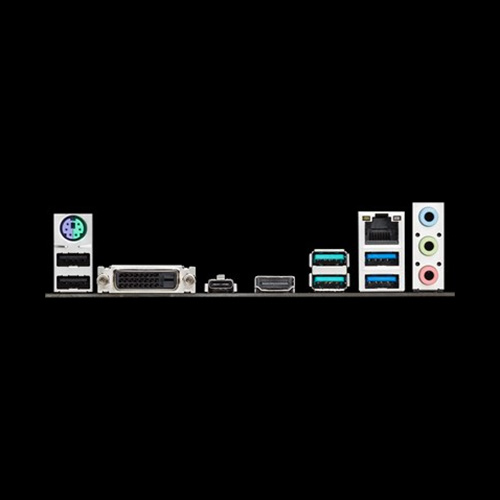

背面インターフェース 1 x PS/2 keyboard/mouse combo port(s)
1 x DVI-D
1 x HDMI
1 x LAN (RJ45) port(s)
2 x USB 3.1 Gen 2 Type-A,
1 x USB 3.1 Gen 1 (blue) USB Type-C™,
2 x USB 2.0
2 x USB 3.1 Gen 1 (blue)
3 x Audio jack(s)
基板上インターフェース 1 x RGB Header(s)
2 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s) (19-pin)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 X2 mode)
6 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s) (1 x 4 -pin)
3 x Chassis Fan connector(s) (3 x 4 -pin)
1 x AIO_PUMP connector (1 x 4 -pin)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s)
1 x Clear CMOS jumper(s)
1 x COM port header

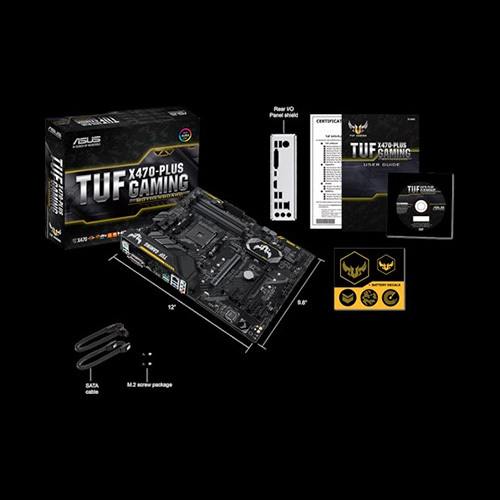

主な付属品 User's manual

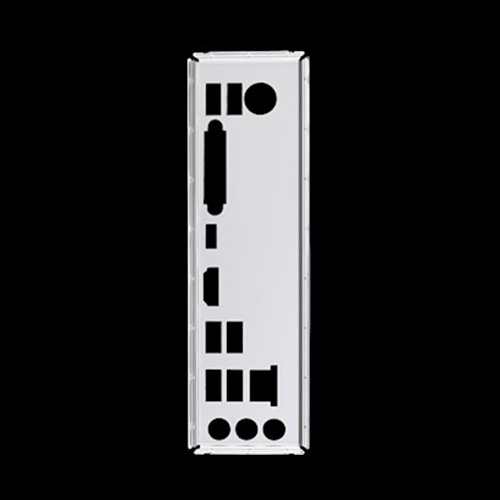

ASUS Q-Shield
2 x SATA 6Gb/s cable(s)
1 x M.2 Screw Package
1 x Supporting DVD
1 x TUF GAMING Sticker
1 x TUF Certification card(s)
BIOS機能 256 Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.0, ACPI 6.0, Multi-language BIOS, ASUS EZ Flash 3, ASUS CrashFree BIOS 3, My Favorites, Last Modified log, F12 PrintScreen, ASUS User Profile,ASUS DRAM SPD (Serial Presence Detect) memory information, F6 Qfan Control,F4 AURA ON/OFF,F9 Search
管理機能 DMI 3.0, WOL by PME, PXE
OS Windows® 10 64-bit
フォームファクター
(サイズW×D)
ATX Form Factor
12.0 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
