ROG STRIX H370-F GAMING

3Dプリントフレンドリーデザイン採用で個性的なビルドにも対応したゲーミング仕様のH370搭載ATXマザーボード

・JAN/UPC：0889349906071
・TEKWIND型番：ASU-ROG/STRIX/H370-F/GAMING

【主な特長】

・第8世代のIntel LGA1151 Coreプロセッサ対応
・ Aura Sync RGB: LEDストリップを含む互換性を持つ多彩なPCギアとシンクロしたLEDイルミネーションを実現
・イージーDIY: プリマウントI/Oシールド、ASUS SafeSlot、プレミアムコンポーネントで最大級の耐久性を実現
・ 3Dプリントフレンドリーデザイン: 専用の3Dマウントで3Dプリントパーツの増設に対応
・オンボードM.2ヒートシンク: M.2ドライブを冷却し、安定したストレージパフォーマンスと信頼性を提供
・高度な冷却機能: マシンに合わせて調整されたシステム全体のチューニングと冷却プロファイルを自動的に生成
・ゲーミングオーディオ: SupremeFX S1220AとSonic Studio IIIの組み合わせで画面の中に入り込んだような没入感を提供
・ゲーミングコネクティビティ: デュアルM.2、USB 3.1 Gen 2 Type-A/Type-Cコネクターを搭載
・ゲーミングネットワーク: インテルギガビットイーサネット、LANGuard、GameFirst搭載によりスムーズで安全なラグフリーのオンライン環境を実現

製品についてお気軽にお問い合わせください

この製品を問い合わせる

プロフェッショナルがいるテックウインドの強み

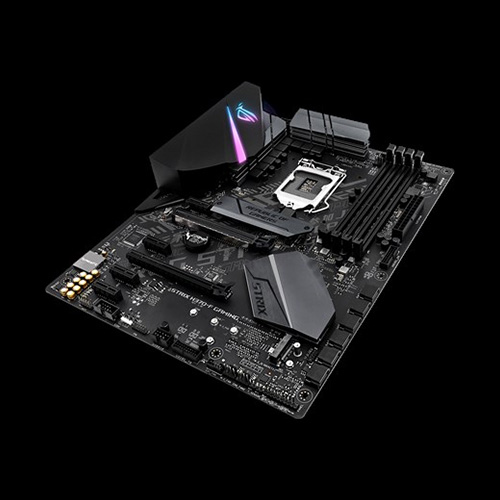

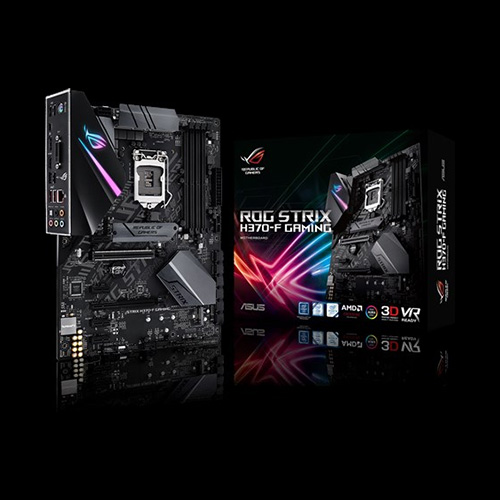

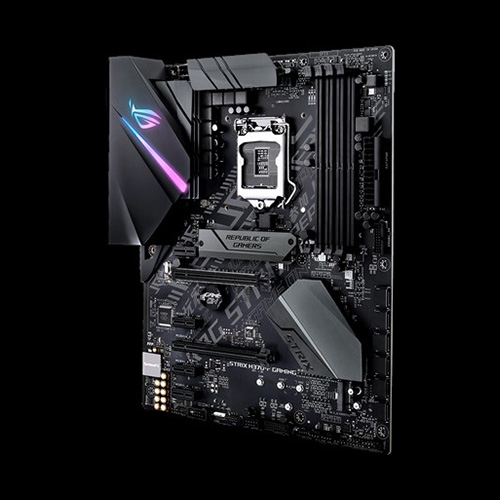

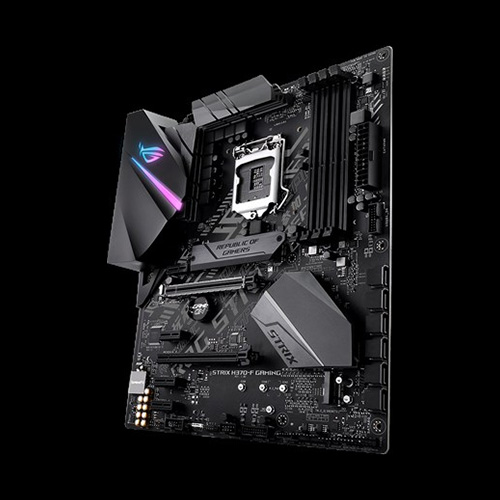

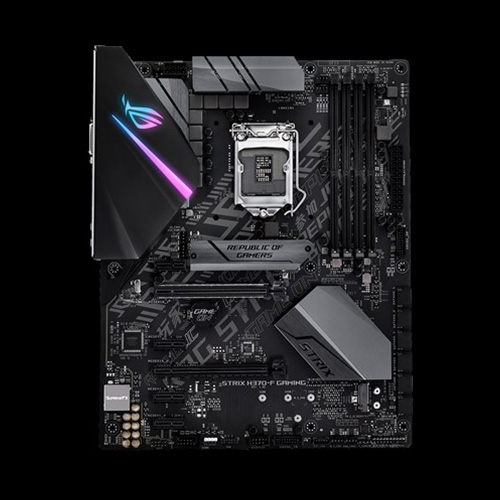

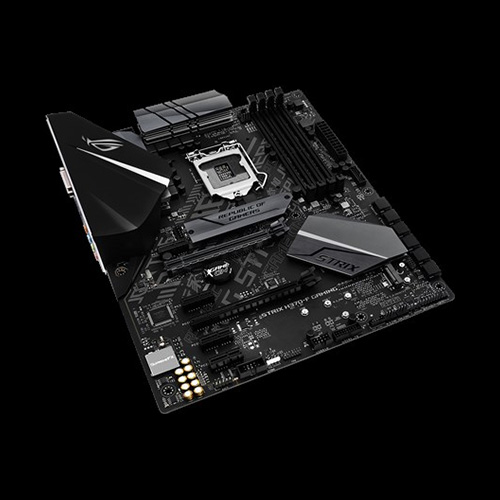

製品画像

スペック

対応CPU	Intel^® Socket 1151 for 8^th Generation Core^™ Processors Supports Intel^® 14 nm CPU Supports Intel^® Turbo Boost Technology 2.0 * The Intel^® Turbo Boost Technology 2.0 support depends on the CPU types. * Refer to www.asus.com for CPU support list
搭載チップセット	Intel^® H370
メインメモリ	4 x DIMM, Max. 64GB, DDR4- 2666/2400/2133 MHz Non-ECC, Un-buffered Memory デュアルチャンネル Memory Architecture Supports Intel^® Extreme Memory Profile (XMP) * Hyper DIMM support is subject to the physical characteristics of individual CPUs. * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). ** DDR4 2666MHz and higher memory modules will run at max. 2666MHz on Intel^® 8th Gen. 6-core or higher processors.
グラフィックス機能	Integrated Graphics Processor- Intel^® HD Graphics support Multi-VGA output support : HDMI/DVI-D/DisplayPort ports - Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz - Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz - Supports DisplayPort with max. resolution 4096 x 2304 @ 60 Hz *¹
マルチGPU対応	Supports AMD 2-Way CrossFireX Technology
拡張スロット	8th Generation Intel^® Core™ Processor 1 x PCIe 3.0/2.0 x16 (x16 mode) Intel^® H370 Chipset 1 x PCIe 3.0/2.0 x16 (x4 mode) 4 x PCIe 3.0/2.0 x1
ストレージ機能	Intel^® H370 Chipset : 1 x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 2 mode)² 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode) 6 x SATA 6Gb/s port(s) Support Raid 0, 1, 5, 10 Intel^® Rapid Storage Technology supports Intel^® Optane™ Memory Ready ³
LAN機能	Intel^® I219V, 1000BASE-T/100BASE-TX/10BASE-T×1, Dual interconnect between the Integrated Media Access Controller (MAC) and Physical Layer (PHY) Anti-surge LANGuard ROG GameFirst Technology
オーディオ機能	ROG SupremeFX 8-Channel High Definition Audio CODEC S1220A - Dual Headphone Amplifiers - Impedance sense for front and rear headphone outputs - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input - SupremeFX Shielding Technology - Supports up to 32-Bit/192kHz playback ⁴ Audio Feature :* - Optical S/PDIF out port(s) at back panel - Sonic Radar III - Sonic Studio III + Sonic Studio Link
USB機能	Intel^® H370 Chipset : 1 x USB 3.1 Gen 2 port(s) (1 at back panel, black, USB Type-C™, Support 3A power output) Intel^® H370 Chipset : 2 x USB 3.1 Gen 2 port(s) (2 at back panel, red, Type-A, Support 3A power output) Intel^® H370 Chipset : 4 x USB 3.1 Gen 1 port(s) (4 at mid-board) Intel^® H370 Chipset : 6 x USB 2.0 port(s) (4 at back panel, black, 2 at mid-board)
ROGシリーズ独自搭載機能	ROG RAMCache II ROG CPU-Z ROG CloneDrive Pre-mounted I/O Shield Overwolf GameFirst IV ROG Aura - Aura Lighting Control - Aura RGB Strip Headers
独自機能	Fan Xpert4 - Fan Xpert 4 featuring Fan Auto Tuning function and multiple thermistors selection for optimized system cooling control Gamer's Guardian: - ESD Guards on LAN, Audio, KBMS and USB3.1/3.0/2.0 ports - DRAM Overcurrent Protection - Stainless Steel Back I/O - Highly Durable Components - SafeSlot AURA : - Aura Lighting Control - Aura RGB Strip Headers - Aura Lighting Effects Synchronization with compatible ASUS ROG devices ASUS Exclusive Features : - AI Suite 3 - Ai Charger ASUS EZ DIY : - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 ASUS Q-Design : - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED) - ASUS Q-Slot - ASUS Q-DIMM Gaming Aesthetics : - 3D printing friendly - AURA-RGB Lighting Digi+VRM
背面インターフェース	1 x PS/2 keyboard/mouse combo port(s) 1 x DVI-D 1 x DisplayPort 1 x HDMI 1 x LAN (RJ45) port(s) 1 x USB 3.1 Gen 2 (black)USB Type-C™, 2 x USB 3.1 Gen 2 (red)Type-A 4 x USB 2.0 1 x Optical S/PDIF out 5 x Audio jack(s)
基板上インターフェース	1 x AAFP connector 1 x RGB Header(s) 2 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s) 1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s) 1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 X2 mode) 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode) 6 x SATA 6Gb/s connector(s) 1 x M.2_FAN connector 1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 2 x Chassis Fan connector(s) 1 x AIO_PUMP connector 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x System panel(s) 1 x 5-pin EXT_FAN(Extension Fan) connector 1 x Thermal sensor connector(s) 1 x Clear CMOS jumper(s) 1 x 14-1 pin TPM connector 1 x COM port header 2 x 3D Mount screw port(s)

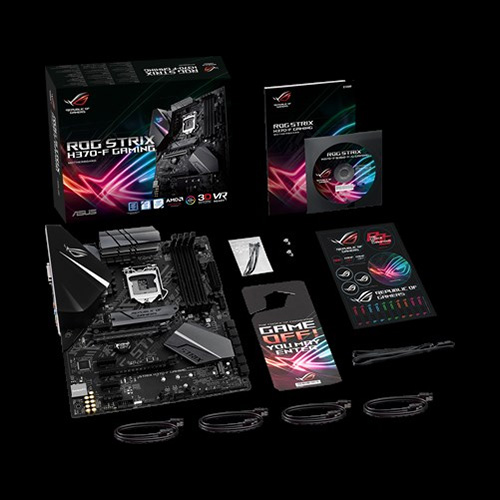

主な付属品	User's manual 4 x SATA 6Gb/s cable(s) 1 x M.2 Screw Package 1 x Supporting DVD 1 x CABLE TIE BLACK 1 x ROG Strix stickers 1 x ROG Door Hanger(s) 1 x Extension Cable for RGB strips (80 cm) 1 x 3D printing mount package
BIOS機能	1 x 128 Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, Secure Erase, User Profile, F11 EZ RAID Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen, , F4 AURA ON/OFF and F9 Search
管理機能	WOL, WOR, PXE
OS	Windows^® 10 64-bit
フォームファクター（サイズW×D）	ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
その他	1 DP 1.2 Multi-Stream Transport compliant, supports DP 1.2 monitor daisy chain up to 3 displays. 2 The M.2_1 socket shares bandwidth with SATA6G_2 port when using M.2 SATA mode device. Adjust BIOS settings to use X2 mode (PCIE only). 3 Intel^® Optane™ Technology only supported when using 8th Generation Intel^® Processors. Before using Intel^® Optane™ memory modules, ensure that you have updated your motherboard drivers and BIOS to the latest version from ASUS support website. 4 Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio.
