販売終了

二層構造型ヒートシンク採用で高い拡張性を持つB360搭載Mini-ITXマザーボード

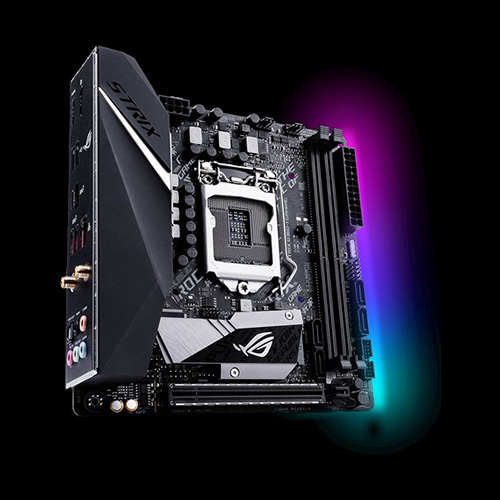

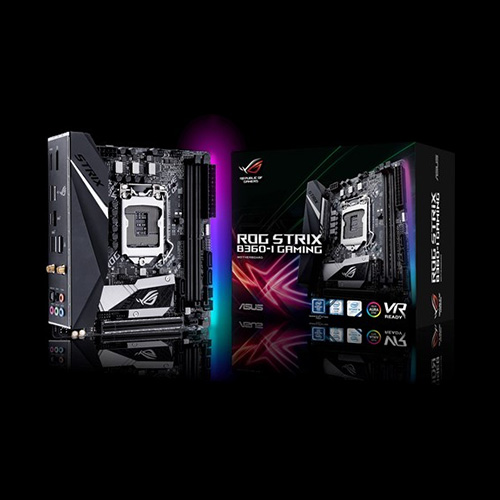

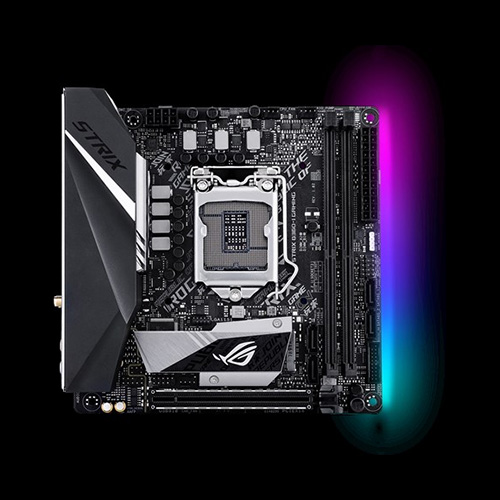

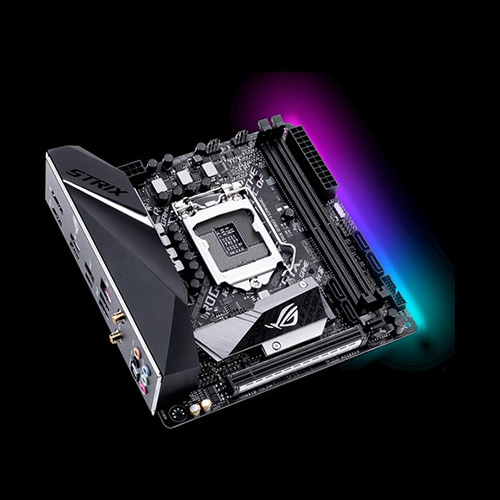

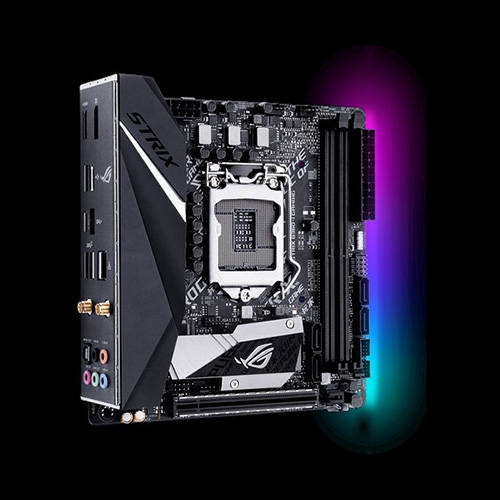

ROG STRIX B360-I GAMING

JAN/UPC:0889349966082
TEKWIND型番:ASU-ROG/STRIX/B360-I/GAMING

【主な特長】

・ デスクトップ向け第8世代Intel® Core™プロセッサ用LGA1151ソケット搭載
・ Aura Sync RGB: アドレスサブルRGBストリップを含む、対応する多彩なPCギアによるシンクロしたLEDイルミネーション
・ イージーDIY: プリマウントI/Oシールド、ASUS SafeSlot、プレミアムコンポーネントで最大級の耐久性を実現
・ 二層構造のPCH&M.2ヒートシンク設計で最適な放熱と高いパフォーマンスを実現
・ 高度な冷却機能: マシンに合わせて調整されたシステム全体のチューニングと冷却プロファイルを自動的に生成
・ ゲーミングオーディオ: SupremeFX S1220AとSonic Studio IIIの組み合わせで画面の中に入り込んだような没入感を提供
・ ゲーミングコネクティビティ: デュアルM.2、USB 3.1 Gen 2 Type-Aコネクターを搭載
・ ゲーミングネットワーク: インテルギガビットイーサネット、LANGuard、GameFirst、MU-MIMO対応の統合型2x2 802.11ac Wi-Fi搭載によりスムーズで安全なラグフリーのオンライン環境を実現


製品についてお気軽にお問い合わせください

この製品を問い合わせる

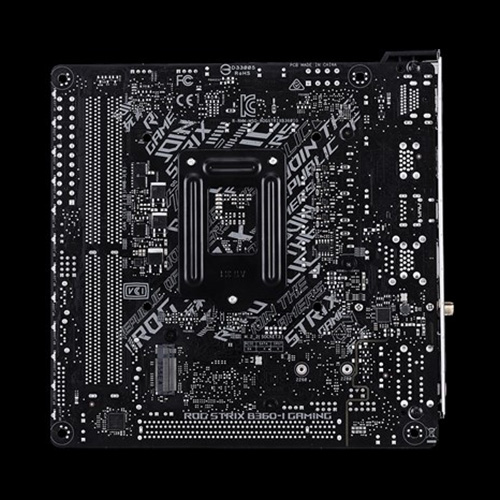

製品画像

スペック

対応CPU Intel® Socket 1151 for 8th Generation Core Processors
Supports Intel® 14 nm CPU
Supports Intel® Turbo Boost Technology 2.0
* The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
* Refer to www.asus.com for CPU support list
搭載チップセット Intel® B360
メインメモリ 2 x DIMM, Max. 32GB, DDR4- 2666/2400/2133 MHz Non-ECC, Un-buffered Memory
デュアルチャンネル Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
* Hyper DIMM support is subject to the physical characteristics of individual CPUs.
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
** DDR4 2666MHz and higher memory modules will run at max. 2666MHz on Intel® 8th Gen. 6-core or higher processors.
グラフィックス機能 Integrated Graphics Processor- Intel® HD Graphics support
Multi-VGA output support : HDMI/DisplayPort 1.2 ports
- Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz
- Supports DisplayPort 1.2 with max. resolution 4096 x 2304 @ 60 Hz
Maximum shared memory of 1024 MB (for iGPU exclusively)
拡張スロット 1 x PCIe 3.0/2.0 x16 (x16 mode)
ストレージ機能 Intel® B360 Chipset :
1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)*1
1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)*1
4 x SATA 6Gb/s port(s)
Intel® Optane™ Memory Ready *2
LAN機能 Intel® I219V
Anti-surge LANGuard
ROG GameFirst Technology

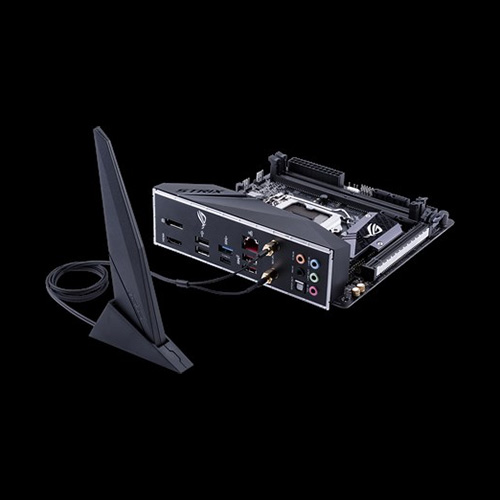

無線機能 Wi-Fi IEEE802.11ac/n/a/g/b*3
Supports dual band frequency 2.4/5 GHz
Supports MU-MIMO
Bluetooth機能 Bluetooth® 5.0*4
オーディオ機能 ROG SupremeFX 8-Channel High Definition Audio CODEC S1220A
- Dual OP Amplifiers
- Impedance sense for front and rear headphone outputs
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
- Supports up to 32-Bit/192kHz playback *5
Audio Feature :
- SupremeFX Shielding™ Technology
- Optical S/PDIF out port(s) at back panel
- Sonic Radar III
- Sonic Studio III + Sonic Studio Link
USB機能 Intel® B360 Chipset : *6
2 x USB 3.1 Gen 2 port(s) (2 at back panel, red)
Intel® B360 Chipset :
4 x USB 3.1 Gen 1 port(s) (2 at back panel, , Type-A + USB Type-C™, 2 at mid-board)
Intel® B360 Chipset :
4 x USB 2.0 port(s) (2 at back panel, , 2 at mid-board)
ROGシリーズ独自搭載機能 ROG RAMCache II
ROG CPU-Z
ROG CloneDrive
Pre-mounted I/O Shield
Overwolf
GameFirst IV
ROG Aura
独自機能 Gamer's Guardian:
- ESD Guards on LAN, Audio, KBMS and USB3.0/2.0 ports
- DRAM Overcurrent Protection
- Stainless Steel Back I/O
- Highly Durable Components
- DIGI+ VRM
- SafeSlot
AURA :
- Aura Lighting Control
- Aura Lighting Effects Synchronization with compatible ASUS ROG devices
ASUS Exclusive Features :
- AI Suite 3
- Ai Charger
ASUS Quiet Thermal Solution :
- ASUS Fan Xpert 4
ASUS EZ DIY :
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
ASUS Q-Design :
- ASUS Q-Shield
- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
- ASUS Q-Slot
- ASUS Q-DIMM

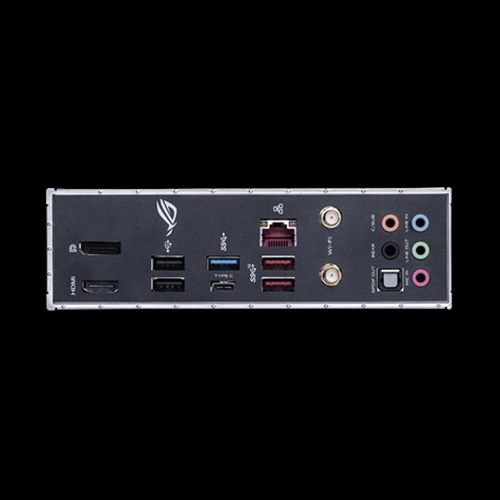

背面インターフェース 1 x DisplayPort
1 x HDMI
2 x USB 3.1 Gen 2 Type-A,
2 x USB 3.1 Gen 1 (blue) Type-A + USB Type-C™,
2 x USB 2.0
1 x Optical S/PDIF out
5 x Audio jack(s)
1 x ASUS Wi-Fi GO! module (Wi-Fi 802.11 a/b/g/n/ac and Bluetooth v4.2)
Anti-surge LAN (RJ45) port
基板上インターフェース 1 x Aura Addressable Strip Header(s)
1 x AAFP connector
1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s)
1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
4 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s) (1 x 4 -pin)
1 x Chassis Fan connector(s) (2 x 4 -pin)
1 x AIO_PUMP connector
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x Internal speaker connector(s)
1 x Clear CMOS jumper(s)
1 x System panel connector
1 x Thermal sensor connector

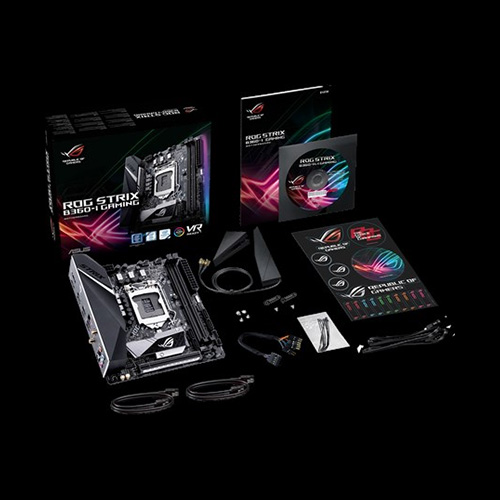

主な付属品 User's manual
M.2 2242 mounting kit
2 x SATA 6Gb/s cable(s)
2 x M.2 Screw Package
1 x Supporting DVD
1 x ROG Strix stickers
1 x Cable ties pack(s)
1 x Wi-Fi Antenna(s)
1 x Extension cable for Addressable LED
1 x Panel cable
BIOS機能 1 x 128 Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1, Multi-language BIOS
ASUS EZ Flash 3, CrashFree BIOS 3, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen, ASUS DRAM SPD (Serial Presence Detect) memory information, F4 AURA ON/OFF and F9 Search, Secure Erase, User Profile.
管理機能 WOL, PXE
サポートDVDの内容 Drivers
ASUS Utilities
EZ Update
Anti-virus software (OEM version)
OS Windows® 10 64-bit
フォームファクター
(サイズW×D)
Mini ITX Form Factor
6.7 inch x 6.7 inch ( 17 cm x 17 cm )
その他 *1 For a 2242 storage device, use the bundled 2242 mounting kit.
*2 Only M.2_2 supports Intel® Optane Memory
*3 Up to 1.73Gbps transfer speed
*4 Bluetooth V5.0 will be supported on future versions of Windows. Refer to https://www.microsoft.com for updates on Windows OS Bluetooth support version.
*5 Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio
*6 Supports 3A power output, one at a time only.
