ROG STRIX B360-G GAMING

ゲーミング向けの豊富な機能を内蔵したB360搭載mATXマザーボード

・JAN/UPC：0889349975343
・TEKWIND型番：ASU-ROG/STRIX/B360-G/GAMING

【主な特長】

・第8世代のIntel LGA1151 Coreプロセッサ対応
・ Aura Sync RGB: LEDストリップを含む互換性を持つ多彩なPCギアとシンクロしたLEDイルミネーションを実現
・イージーDIY: プリマウントI/Oシールド、ASUS SafeSlot、プレミアムコンポーネントで最大級の耐久性を実現
・高度な冷却機能: マシンに合わせて調整されたシステム全体のチューニングと冷却プロファイルを自動的に生成
・ゲーミングオーディオ: SupremeFX S1220AとSonic Studio IIIの組み合わせで画面の中に入り込んだような没入感を提供
・ゲーミングコネクティビティ: デュアルM.2、USB 3.1 Gen 2 Type-Aコネクターを搭載
・ゲーミングネットワーク: インテルギガビットイーサネット、LANGuard、GameFirst搭載によりスムーズで安全なラグフリーのオンライン環境を実現

製品についてお気軽にお問い合わせください

この製品を問い合わせる

プロフェッショナルがいるテックウインドの強み

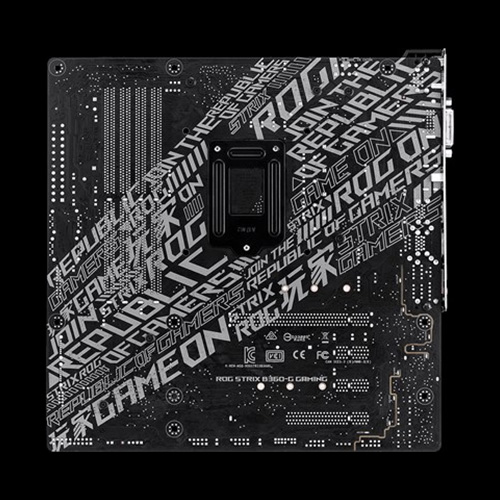

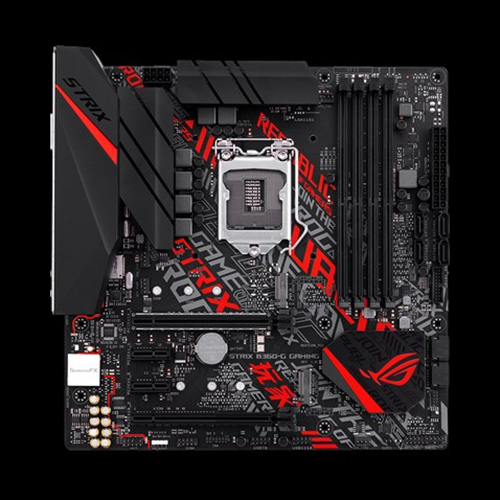

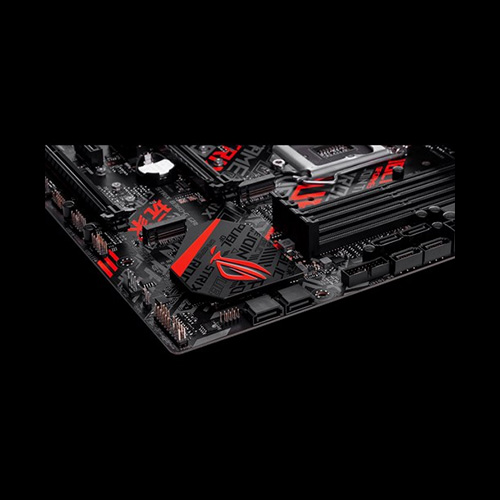

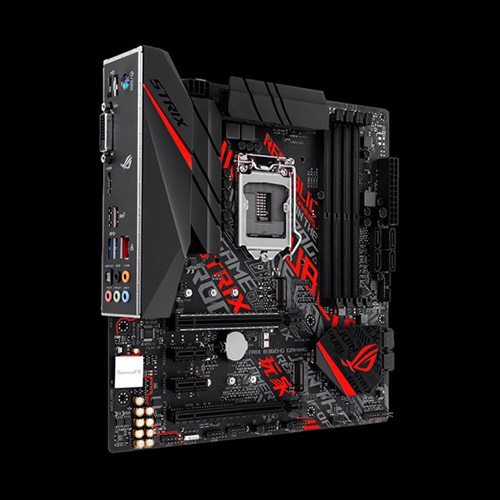

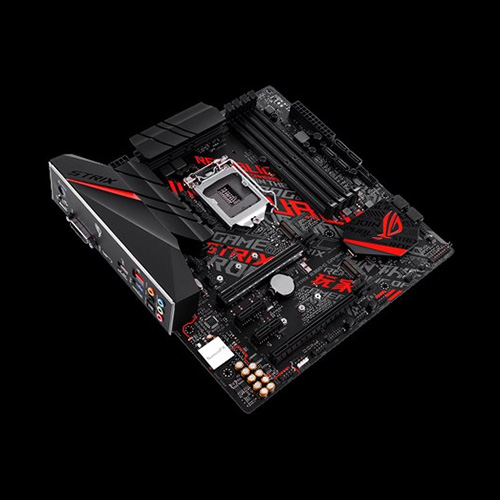

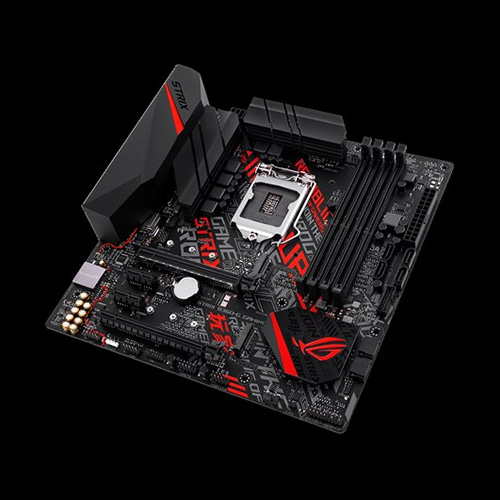

製品画像

スペック

対応CPU	Intel^® for 8^th Generation Core^™ Processors Supports Intel^® Turbo Boost Technology 2.0 * Refer to www.asus.com for CPU support list
搭載チップセット	Build in Intel^® B360
メインメモリ	Intel^® B360 Chipset 4 x DIMM, Max. 64GB, DDR4- 2666/2400/2133 MHz Non-ECC, Un-buffered Memory デュアルチャンネル Memory Architecture Supports Intel^® Extreme Memory Profile (XMP) * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). ** DDR4 2666MHz and higher memory modules will run at max. 2666MHz on Intel^® 8th Gen. 6-core or higher processors.
グラフィックス機能	Integrated Graphics Processor- Intel^® HD Graphics support Multi-VGA output support : HDMI/DVI-D ports - Supports HDMI with max. resolution 4096 x 2160 @ 30 Hz - Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz Maximum shared memory of 1024 MB (for iGPU exclusively)
マルチGPU対応	Supports AMD 2-Way CrossFireX Technology
拡張スロット	1 x PCIe 3.0 x16 1 x PCIe 3.0 x16 (max at x4 mode) 2 x PCIe 3.0/2.0 x1
ストレージ機能	Intel^® B360 Chipset : 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)* 1 x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 2 mode) 6 x SATA 6Gb/s port(s) Intel^® Optane™ Memory Ready *
LAN機能	Intel^® I219V Anti-surge LANGuard ROG GameFirst IV
オーディオ機能	ROG SupremeFX 8-Channel High Definition Audio CODEC S1220A - Dual OP Amplifiers - Impedance sense for front and rear headphone outputs - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB (Line-out at rear) 113 dB SNR recording input Audio Feature : - SupremeFX Shielding™ Technology - Optical S/PDIF out port(s) at back panel - LED-lit Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference, with a gorgeous illuminated trace path - Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity - Sonic Radar III - Sonic Studio III + Sonic Studio Link
USB機能	Intel^® B360 Chipset : 2 x USB 3.1 Gen 2 port(s) Intel^® B360 Chipset : 4 x USB 3.1 Gen 1 port(s) Intel^® B360 Chipset : 6 x USB 2.0 port(s)
ROGシリーズ独自搭載機能	ROG RAMCache II ROG CloneDrive Pre-mounted I/O Shield Overwolf GameFirst IV
独自機能	Gamer's Guardian: - ESD Guards on LAN, Audio, KBMS and USB3.1/3.0/2.0 ports - DRAM Overcurrent Protection - 10K Black Metallic Capacitors - Stainless Steel Back I/O - Highly Durable Components - DIGI+ VRM - SafeSlot AURA : - Aura Lighting Control - Aura RGB Strip Headers ASUS Exclusive Features : - GPU Boost - AI Suite 3 - ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface ASUS Quiet Thermal Solution : - ASUS Fan Xpert 4 Core ASUS EZ DIY : - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS MyLogo ASUS Q-Design : - ASUS Q-Slot - ASUS Q-DIMM

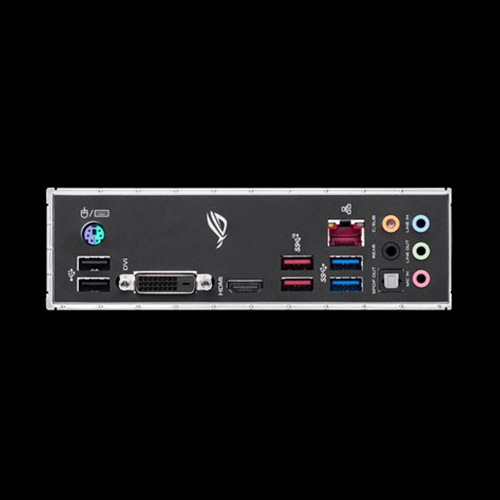

背面インターフェース	1 x PS/2 keyboard/mouse combo port(s) 1 x DVI 1 x HDMI 2 x USB 3.1 Gen 2 1 x Optical S/PDIF out 5 x Gold-plated audio jacks 2 x USB 3.1 Gen 1 (blue) 2 x USB 3.1 Gen 2 (red)Type-A Anti-surge LAN (RJ45) port
基板上インターフェース	1 x AAFP connector 1 x Aura RGB Strip Header 1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 2 with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 X2 mode) 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode) 1 x TPM header 1 x COM port(s) connector(s) 6 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) 2 x Chassis Fan connector(s) 1 x AIO_PUMP connector 1 x 24-pin EATX Power connector(s) 1 x 8-pin EATX 12V Power connectors 1 x Front panel connector(s) 1 x Clear CMOS jumper(s)

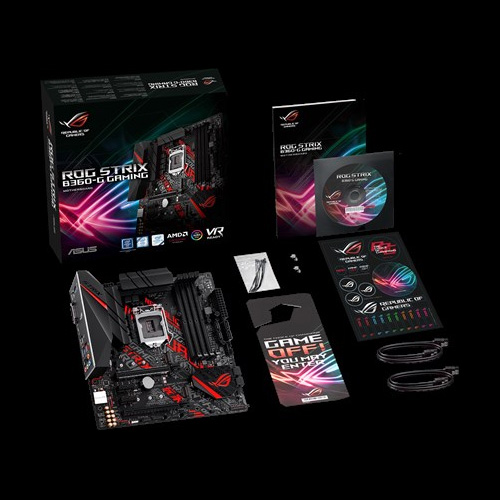

主な付属品	User's manual 2 x SATA 6Gb/s cable(s) 1 x M.2 Screw Package 1 x Supporting DVD 1 x Strix door hanger 1 x CABLE TIE BLACK 1 x ROG Strix stickers
BIOS機能	1 x 128 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.0, ACPI 6.0, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen and ASUS DRAM SPD (Serial Presence Detect) memory information, ASUS Secure Erase, ASUS User Profile, F4 AURA ON/OFF, F9 Search
管理機能	WOL, WOR, PXE
OS	Windows^® 10 64-bit
フォームファクター（サイズW×D）	mATX Form Factor 9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )
