PRIME X470-PRO

柔軟なチューニング機能でエントリーレベルから高パフォーマンスにまで対応するX470搭載ATXマザーボード

・JAN/UPC：0889349935101
・TEKWIND型番：ASU-PRIME/X470-PRO

【主な特長】

・ 5-Way Optimization: ワンクリックでシステム全体のチューニングを施し、CPU-/GPU-負荷型のタスクに最適化されたオーバークロックとインテリジェントな冷却を実現。
・業界をリードする冷却機能:　Fan Xpert 4、または、ASUSのUEFIで水冷やファンを総合的に管理。
・ M.2 ヒートシンク: 超効率的なM.2 SSDヒートシンクが、サーマルスロットルを作動させない転送速度と信頼性の強化のため、20°Cまで温度を低減。
・次世代の接続性: デュアルM.2、NVME RAID対応、USB 3.1 Gen 2ポート、およびフロントパネルヘッダー搭載で最高の柔軟性を実現
・ ASUS Aura Sync: カスタマイズ可能なオンボードLEDと幅広いAura Sync互換パーツから成る業界をリードするRGBエコシステムを搭載

製品についてお気軽にお問い合わせください

この製品を問い合わせる

プロフェッショナルがいるテックウインドの強み

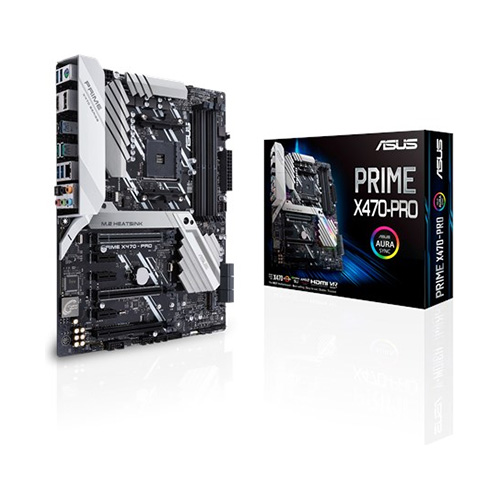

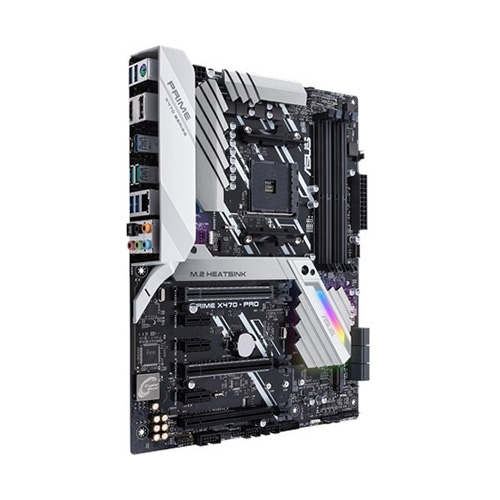

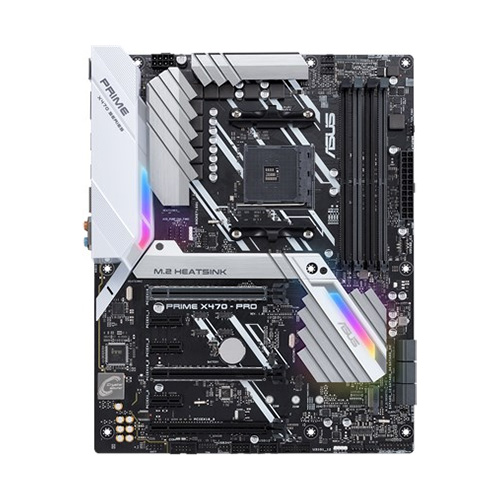

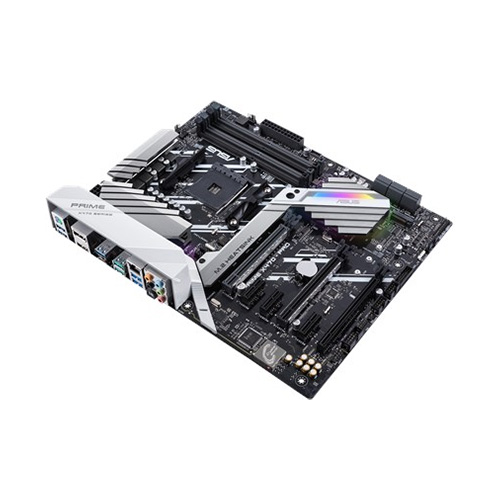

製品画像

スペック

対応CPU	AMD AM4 Socket AMD Ryzen™ 2nd Generation/Ryzen™ with Radeon™ Vega Graphics/Ryzen™ 1st Generation/7^th Generation A-series/Athlon X4 Processors Supports CPU up to 8 cores * Refer to www.asus.com for CPU support list
搭載チップセット	AMD X470
メインメモリ	AMD Ryzen™ 2nd Generation Processors 4 x DIMM, Max. 64GB, DDR4- 3600(O.C.)/3466(O.C.)/3200(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666/2400/2133 MHz Un-buffered Memory * AMD Ryzen™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation Processors 4 x DIMM, Max. 64GB, DDR4- 3200(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666/2400/2133 MHz Un-buffered Memory AMD 7th Generation A-Series/Athlon X4 Processors 4 x DIMM, Max. 64GB, DDR4- 2400/2133 MHz Un-buffered Memory デュアルチャンネル Memory Architecture * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
グラフィックス機能	Integrated Graphics in the AMD Ryzen™ with Radeon™ Vega Graphics/ 7th Generation A-Series APU Multi-VGA output support : HDMI/DisplayPort ports - Supports HDMI 1.4b with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz - Supports DisplayPort 1.2 with max. resolution 4096 x 2160 @ 60 Hz Maximum shared memory of 2048 MB (for iGPU exclusively)
マルチGPU対応	AMD Ryzen™ 2nd Generation/Ryzen™ 1st Generation Processors Supports NVIDIA^® 2-Way SLI™ Technology Supports AMD CrossFireX™ Technology AMD Ryzen™ with Radeon™ Vega Graphics/AMD 7th Generation A-Series/Athlon X4 Processors Supports AMD CrossFireX™ Technology
拡張スロット	AMD Ryzen™ 2nd Generation/ Ryzen™ 1st Generation Processors 2 x PCIe 3.0 x16 (x16 or dual x8) AMD Ryzen™ with Radeon™ Vega Graphics /7th Generation A-Series/Athlon X4 Processors 1 x PCIe 3.0 x16 (x8 mode) AMD X470 chipset 1 x PCIe 2.0 x16 (max at x4 mode) *¹ 3 x PCIe 2.0 x1
ストレージ機能	AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation Processors : 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) AMD 7th Generation A-Series/Athlon X4 Processors : 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA mode) AMD X470 chipset : 1 x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 2 mode)*³ 6 x SATA 6Gb/s port(s), Support Raid 0, 1, 10
LAN機能	Intel^® I211-AT
オーディオ機能	Realtek^® S1220A 8-Channel High Definition Audio CODEC featuring Crystal Sound 3 - Impedance sense for front and rear headphone outputs - Internal audio Amplifier to enhance the highest quality sound for headphone and speakers - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in) - Front panel audio connector (AAFP) Audio Feature : - Optical S/PDIF out port(s) at back panel - Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference - Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals - Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity - EMI protection cover to prevent electrical noise to affect the amplifier quality
USB機能	AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation/7th Generation A-Series/Athlon X4 Processors : 4 x USB 3.1 Gen 1 port(s) (4 at back panel, blue, Type-A) AMD X470 chipset : 1 x USB 3.1 Gen 2 front panel connector port(s) AMD X470 chipset : 4 x USB 3.1 Gen 1 port(s) (2 at back panel, blue, Type-A + USB Type-C™, 2 at mid-board) AMD X470 chipset : 4 x USB 2.0 port(s) (4 at mid-board) ASMedia^® USB 3.1 Gen 2 controller : 2 x USB 3.1 Gen 2 port(s) (2 at back panel, teal blue, Type-A)
独自機能	5-Way Optimization by Dual Intelligent Processors 5 - Whole system optimization with a single click! 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ VRM, Fan Xpert 4, and Turbo App together, providing better CPU performance, efficient power saving, precise digital power control, whole system cooling and even tailor your own app usages. Fan Xpert4 - Fan Xpert 4 featuring Fan Auto Tuning function and multiple thermistors selection for optimized system cooling control ASUS 5X Protection III : - ASUS SafeSlot Core: Fortified PCIe Slot prevents damage - ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges! - ASUS Overvoltage Protection: World-class circuit-protecting power design - ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability! - ASUS DIGI+ VRM: 10 Phase digital power design - ASUS Enhanced DRAM Overcurrent Protection - Short circuit damage prevention - ASUS ESD Guards - Enhanced ESD protection ASUS TPU : - Auto Tuning ASUS EPU : - EPU AURA : - Aura Lighting Control ASUS Exclusive Features : - AI Suite 3 - Ai Charger - Turbo LAN ASUS Quiet Thermal Solution : - Stylish Fanless Design Heat-sink solution & MOS Heatsink - ASUS Fan Xpert 4 ASUS EZ DIY : - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 ASUS Q-Design : - ASUS Q-Shield - ASUS Q-Slot - ASUS Q-DIMM - ASUS Q-Connector Turbo APP - featuring system performance tuning for selected applications

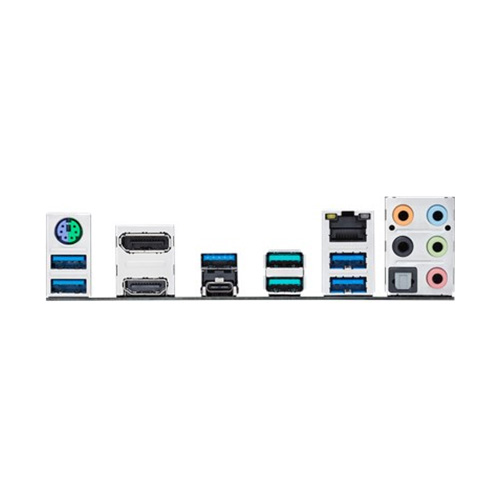

背面インターフェース	1 x PS/2 keyboard/mouse combo port(s) 1 x DisplayPort 1 x HDMI 1 x LAN (RJ45) port(s) 2 x USB 3.1 Gen 2 (teal blue)Type-A, 1 x USB 3.1 Gen 1 USB Type-C™, 5 x USB 3.1 Gen 1 1 x Optical S/PDIF out 5 x Audio jack(s)
基板上インターフェース	2 x Aura RGB Strip Headers 1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & PCIE mode) 1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (both SATA & x2 PCIE mode) 6 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) (1 x 4 -pin) 1 x CPU OPT Fan connector(s) (1 x 4 -pin) 3 x Chassis Fan connector(s) (2 x 4 -pin) 1 x AIO_PUMP connector (1 x 4 -pin) 1 x W_PUMP+ connector (1 x 4 -pin) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s) (Q-Connector) (Chassis intrusion header is inbuilt) 1 x Clear CMOS jumper(s) 1 x 14-1 pin TPM connector 1 x COM port header 1 x USB 3.1 Gen 2 front panel connector
主な付属品	User's manual ASUS Q-Shield 2 x SATA 6Gb/s cable(s) 1 x M.2 Screw Package 1 x Supporting DVD 1 x SLI HB BRIDGE(2-WAY-M) 1 x Q-connector(s) (1 in 1)
BIOS機能	256 Mb Flash ROM, UEFI AMI BIOS, PnP,SM BIOS 3.0, ACPI 6.0, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen,F4 AURA ON/OFF, F9 Search and ASUS DRAM SPD (Serial Presence Detect)memory information
管理機能	WOL by PME, PXE
OS	Windows^® 10 64-bit
フォームファクター（サイズW×D）	ATX Form Factor 12.0 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
その他	1.The PCIe x16_3 slot shares bandwidth with PCIe x1_1 and PCIe x1_3 2 The M.2_2 socket shares PCIe clock with PCIe x1_1. When PCIe x1_1 or PCIe x1_3 is occupied, the M.2_2 socket can only support SATA mode. *3 Supports PCIe RAID configurations via onboard M.2 storages.
