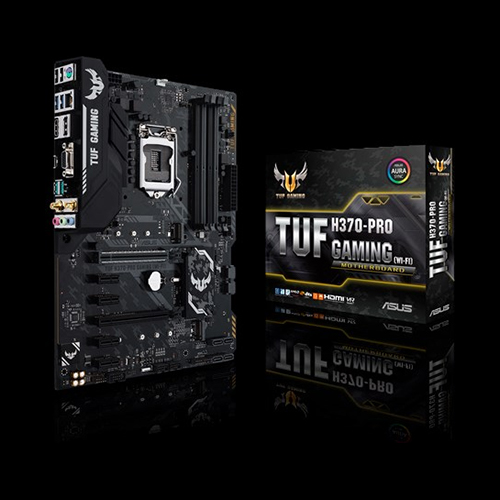

TUF H370-PRO GAMING (WI-FI)

スペック

対応CPU	Intel^® Socket 1151 for 8^th Generation Core^™ Pentium^®/Celeron^® Processors Supports Intel^® 14 nm CPU Supports Intel^® Turbo Boost Technology 2.0 * The Intel^® Turbo Boost Technology 2.0 support depends on the CPU types.
搭載チップセット	Intel^® H370
メインメモリ	4 x DIMM, Max. 64GB, DDR4- 2666/2400/2133 MHz Non-ECC, Un-buffered Memory ¹ デュアルチャンネル Memory Architecture Supports Intel^® Extreme Memory Profile (XMP) Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). * The maximum memory frequency supported varies by processor.
グラフィックス機能	Integrated Graphics Processor- Intel^® HD Graphics support Multi-VGA output support : HDMI/DisplayPort /D-Sub ports - Supports HDMI 1.4b with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz - Supports D-sub with max. resolution 1920 x 1200 @ 60 Hz - Supports DisplayPort with max. resolution 4096 x 2304 @ 60 Hz Maximum shared memory of 1024 MB (for iGPU exclusively) Supports Intel^® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™
マルチGPU対応	Supports AMD 2-Way CrossFireX Technology
拡張スロット	1 x PCIe 3.0/2.0 x16 (x16 mode) 1 x PCIe 3.0/2.0 x16 (max at x4 mode) 4 x PCIe 3.0/2.0 x1
ストレージ機能	Intel^® H370 Chipset : 1 x M.2 Socket 3*², , with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 2 mode) 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode) 6 x SATA 6Gb/s port(s), gray Support Raid 0, 1, 5, 10 Intel^® Rapid Storage Technology supports Intel^® Optane™ Memory Ready
LAN機能	Intel^® I219V, 1000BASE-T/100BASE-TX/10BASE-T×1 ASUS Turbo LAN Utility TUF LANGuard
無線機能	Wi-Fi IEEE802.11ac/n/a/g/b*³ Supports MU-MIMO Supports dual band frequency 2.4/5 GHz
Bluetooth機能	Bluetooth^® 5.0
オーディオ機能	Realtek^® ALC887 8-Channel High Definition Audio CODEC - Supports : Jack-detection, Front Panel Jack-retasking Audio Feature : - Exclusive DTS Custom for GAMING Headsets. - Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference - Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals - Premium Japanese audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity - Audio Cover: Effective shielding preserves the integrity of audio signals to ensure best quality.
USB機能	Intel^® H370 Chipset : 2 x USB 3.1 Gen 2 port(s) (2 at back panel, ) Intel^® H370 Chipset : 5 x USB 3.1 Gen 1 port(s) (3 at back panel, , Type-A + USB Type-C™, 2 at mid-board) Intel^® H370 Chipset : 6 x USB 2.0 port(s) (2 at back panel, , 4 at mid-board)
独自機能	ASUS TUF PROTECTION - ASUS SafeSlot: Protect your graphics card Investment - ASUS ESD Guard: Enhanced ESD protection - ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability! - ASUS Overvoltage Protection: World-class circuit-protecting power design - ASUS DIGI + VRM: 4+2+1 Phase digital power design ASUS EPU : - EPU TUF ENGINE! Power Design : - TUF Components (Choke, Cap. & MOSFET; certified by military-standard) AURA : - Aura Lighting Control - Aura RGB Strip Headers ASUS Exclusive Features : - AI Suite 3 - Ai Charger ASUS Quiet Thermal Solution : - Stylish Fanless Design Heat-sink solution - ASUS Fan Xpert 4 Core ASUS EZ DIY : - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode CPU Installation Tool - Three-step simplicity and safety ASUS Q-Design : - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED) - ASUS Q-Slot - ASUS Q-DIMM
背面インターフェース	1 x PS/2 keyboard/mouse combo port(s) 1 x D-Sub 1 x DisplayPort 1 x HDMI 1 x LAN (RJ45) port(s) 1 x 5Gb/s port(s) USB Type-C™ 2 x USB 3.1 Gen 2 (teal blue)Type-A, 2 x USB 3.1 Gen 1 (blue) , 2 x USB 2.0 3 x Audio jack(s) 2 x Wi-Fi antenna port(s)
基板上インターフェース	1 x Aura RGB Strip Header 1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (both SATA & x2 PCIE mode) 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode) 1 x COM port(s) connector(s) 6 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) (1 x 4 -pin) 2 x Chassis Fan connector(s) (2 x 4 -pin) 1 x AIO_PUMP connector 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s) (Chassis intrusion header is inbuilt) 1 x Clear CMOS jumper(s)
主な付属品	User's manual I/O Shield 2 x SATA 6Gb/s cable(s) 2 x M.2 Screw Package 1 x CPU installation tool 1 x Supporting DVD 1 x ASUS 2T2R dual band Wi-Fi moving antennas (Wi-Fi 802.11a/b/g/n/ac compliant) 1 x TUF Gaming Sticker 1 x TUF Certification card(s)
BIOS機能	128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, WfM2.0, SM BIOS 3.1, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information
管理機能	WfM 2.0, DMI 3.0, WOL by PME, PXE
サポートDVDの内容	Drivers ASUS Utilities ASUS EZ Update Anti-virus software (OEM version)
OS	Windows^® 10 64-bit
フォームファクター（サイズW×D）	ATX Form Factor 12.0 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
その他	1. DDR4 2666MHz and higher memory modules will run at max. 2666MHz on Intel^® 8th Gen. 6-core or higher processors. 2. The M.2_1 socket shares SATA_2 port when use M.2 SATA mode device. Adjust BIOS settings to use a SATA device. *3. Intel^® Wireless-AC 9560 supports HT20/HT40/HT80/HT160 channel bandwidth.
