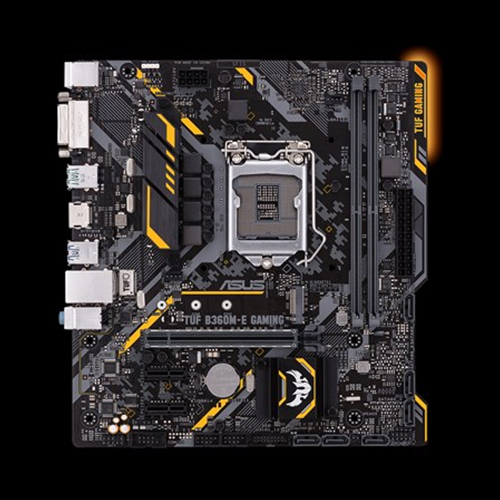

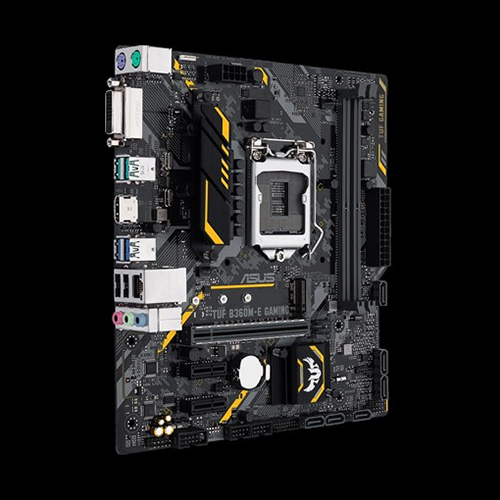

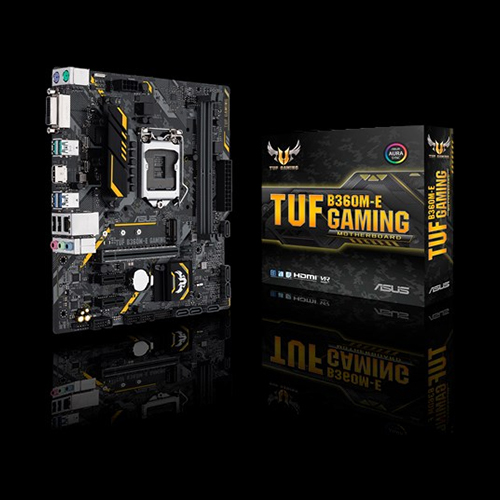

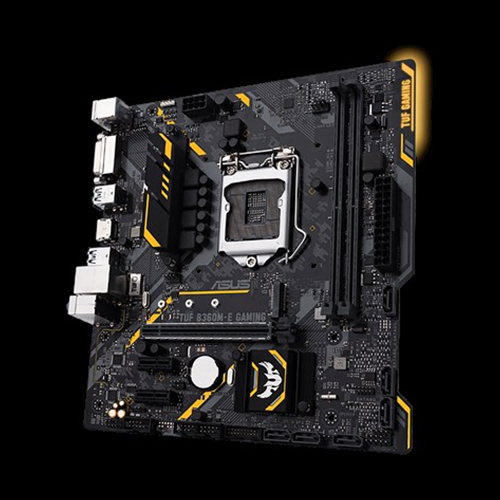

ミリタリグレードの高度な耐久性を誇るB360搭載mATXマザーボード
・JAN/UPC：0889349989951
・TEKWIND型番：ASU-TUF/B360M-E/GAMING
【主な特長】
・ TUFプロテクション: SafeSlot, ESD Guards, DDR4 overvoltage protection, Digi+ VRM, 長寿命ステンレスI/Oバックパネル
・ Fan Xpert:柔軟な冷却制御
・ ミリタリーグレードTUFコンポーネント: 耐久性を最大限に高めるTUF LANGuard、TUFチョーク、TUFコンデンサ、TUF MOSFETを採用
・ Aura Sync RGB: 対応するPCギアによるシンクロLEDイルミネーション
・ インテル® Optane™メモリー対応: 最新の高速ストレージテクノロジーを活用
製品についてお気軽にお問い合わせください
この製品を問い合わせる製品画像
スペック
| 対応CPU | Intel® Socket 1151 for 8th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors Supports Intel® 14 nm CPU Supports Intel® Turbo Boost Technology 2.0 * The Intel® Turbo Boost Technology 2.0 support depends on the CPU types. * Refer to www.asus.com for CPU support list |
|---|---|
| 搭載チップセット | Intel® B360 |
| メインメモリ | Intel® B360 Chipset 2 x DIMM, Max. 32GB, DDR4- 2666/2400/2133 MHz Non-ECC, Un-buffered Memory * * Hyper DIMM support is subject to the physical characteristics of individual CPUs. * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). ** DDR4 2666MHz and higher memory modules will run at max. 2666MHz on Intel® 8th Gen. 6-core or higher processors. |
| グラフィックス機能 | Integrated Graphics Processor Multi-VGA output support : HDMI/DVI-D ports - Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz - Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz Maximum shared memory of 1024 MB (for iGPU exclusively) Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™ |
| 拡張スロット | Intel® B360 Chipset 1 x PCIe 3.0/2.0 x16 (x16 mode) 2 x PCIe 3.0/2.0 x1 |
| ストレージ機能 | Intel® B360 Chipset : 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)*1 6 x SATA 6Gb/s port(s), Intel® Optane™ Memory Ready |
| LAN機能 | Intel® I219V, 1000BASE-T/100BASE-TX/10BASE-T×1 TUF LANGuard |
| オーディオ機能 | Realtek® ALC887 7.1-Channel High Definition Audio CODEC *2 Audio Feature : - Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference - Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals - Premium Japanese audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity |
| USB機能 | Intel® B360 Chipset : 2 x USB 3.1 Gen 2 up to 10Gbps port(s) (2 at back panel, teal blue, Type-A) Intel® B360 Chipset : 4 x USB 3.1 Gen 1 up to 5Gbps port(s) (2 at back panel, blue, Type-A, 2 at mid-board) Intel® B360 Chipset : 6 x USB 2.0/1.1 port(s) (2 at back panel, black, Type-A, 4 at mid-board) |
| 独自機能 | ASUS TUF PROTECTION - ASUS SafeSlot: Protect your graphics card Investment - ASUS ESD Guard: Enhanced ESD protection - ASUS Overvoltage Protection: World-class circuit-protecting power design - ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability! - ASUS DIGI+ VRM: 5 Phase digital power design ASUS OptiMem： - Optimem (Improved DDR4 stability) ASUS EPU : - EPU ASUS Exclusive Features : - AI Suite 3 - Ai Charger - ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface - EZ XMP ASUS Exclusive Features - PC Cleaner - File Transfer ASUS Quiet Thermal Solution : - ASUS Fan Xpert ASUS EZ DIY : - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS MyLogo 2 - ASUS UEFI BIOS EZ Mode ASUS Q-Design : - ASUS Q-Slot - ASUS Q-DIMM AURA: RGB Lighting Control M.2 Onboard(The latest transfer technologies with up to 32Gb/s data transfer speeds) |
| 動作対応OS | Windows® 10 64-bit |

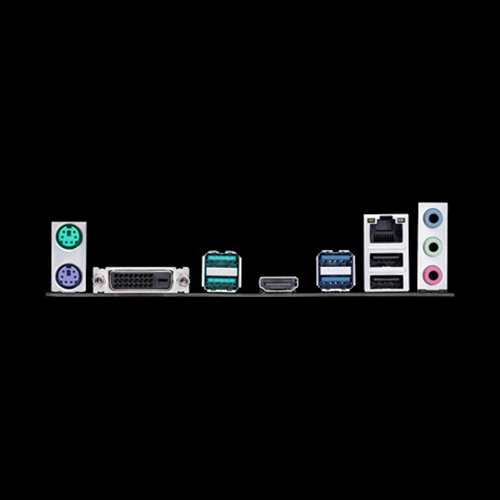

| 背面インターフェース | 1 x PS/2 keyboard (purple) 1 x PS/2 mouse (green) 1 x DVI-D 1 x HDMI 1 x LAN (RJ45) port(s) 2 x USB 3.1 Gen 2 (teal blue) 2 x USB 3.1 Gen 1 (blue) , 2 x USB 2.0 3 x Audio jack(s) |
| 基板上インターフェース | 1 x RGB Header(s) 1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x COM port(s) connector(s) 6 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) (1 x 4 -pin) 1 x Chassis Fan connector(s) (1 x 4 -pin) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin EATX 12V Power connectors 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s) 1 x Clear CMOS jumper(s) 1 x Speaker connector |

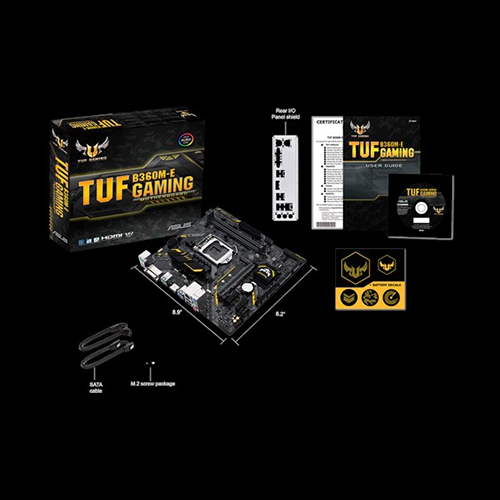

| 主な付属品 | User's manual I/O Shield 2 x SATA 6Gb/s cable(s) 1 x M.2 Screw Package 1 x Supporting DVD 1 x TUF Gaming Sticker 1 x TUF Certification card(s) |
| BIOS機能 | 128 Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information, F4 AURA ON/OFF, F9 Search |
| 管理機能 | WOL by PME, PXE |
| サポートDVDの内容 | Drivers ASUS Utilities EZ Update Anti-virus software (OEM version) |
| フォームファクター （サイズW×D） |
mATX Form Factor 8.9 inch x 8.2 inch ( 22.6 cm x 20.8 cm ) |
| その他 | *1.When a device in SATA mode is installed on the M.2 socket, SATA_2 port cannot be used. *2. Use a chassis with HD audio module in the front panel to support a 8-channel audio output. |
