販売終了

狭いスペースを縦に活用した高い拡張性が特長のH370搭載Mini-ITXマザーボード

ROG STRIX H370-I GAMING

JAN/UPC:0889349975367
TEKWIND型番:ASU-ROG/STRIX/H370-I/GAMING

【主な特長】

・ LGA1151ソケット: 第8世代インテル® Core™デスクトップ・プロセッサー対応
・ Aura Sync RGB: アドレスサブルRGBストリップを含む、対応する多彩なPCギアによるシンクロしたLEDイルミネーション
・ イージーDIY: プリマウントI/Oシールド、ASUS SafeSlot、プレミアムコンポーネントで最大級の耐久性を実現
・ 二層構造のPCH&M.2ヒートシンク設計で最適な放熱と高いパフォーマンスを実現
・ 高度な冷却機能: マシンに合わせて調整されたシステム全体のチューニングと冷却プロファイルを自動的に生成
・ ゲーミングオーディオ: SupremeFX S1220AとSonic Studio IIIの組み合わせで画面の中に入り込んだような没入感を提供
・ ゲーミングコネクティビティ: デュアルM.2、USB 3.1 Gen 2 Type-A/Type-Cコネクターを搭載


製品についてお気軽にお問い合わせください

この製品を問い合わせる

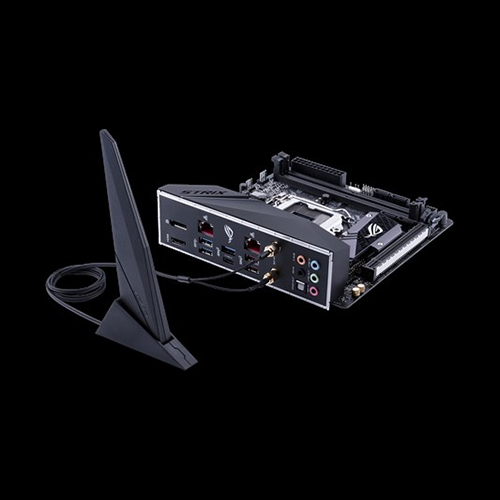

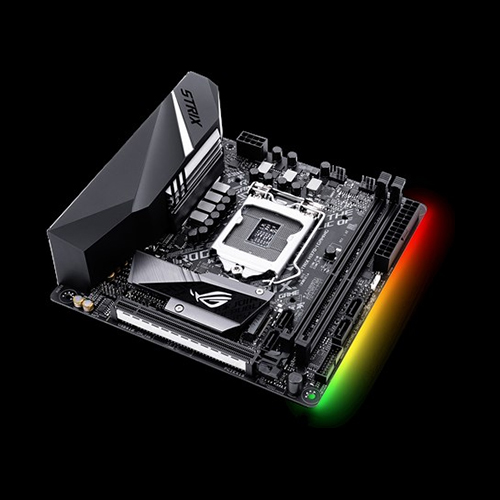

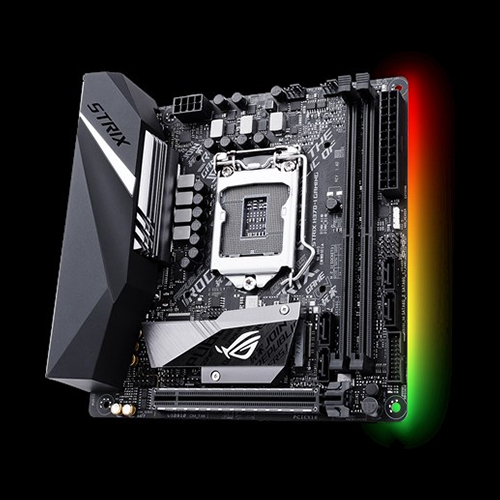

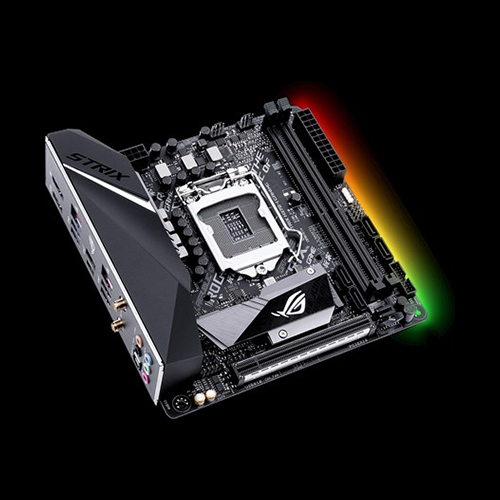

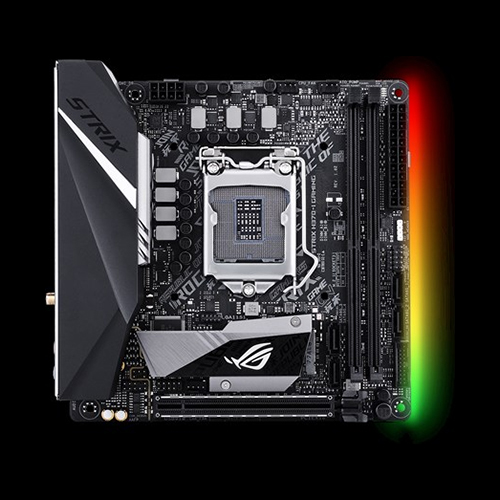

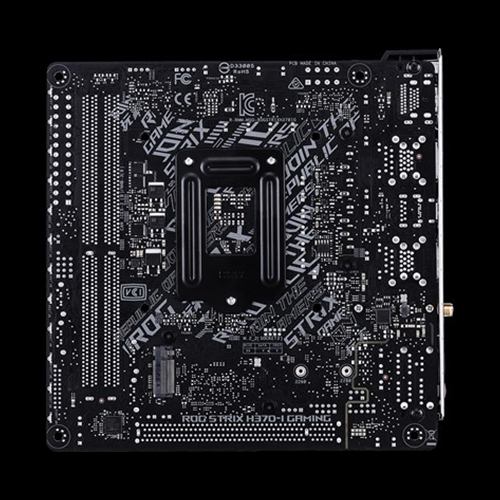

製品画像

スペック

対応CPU Intel® for 8th Generation Core Processors
Supports Intel® 14 nm CPU
Supports Intel® Turbo Boost Technology 2.0
* The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
搭載チップセット Intel® H370
メインメモリ 2 x DIMM, Max. 32GB, DDR4- 2666/2400/2133 MHz Non-ECC, Un-buffered Memory
デュアルチャンネル Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
* Hyper DIMM support is subject to the physical characteristics of individual CPUs.
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
** DDR4 2666MHz and higher memory modules will run at max. 2666MHz on Intel® 8th Gen. 6-core or higher processors.
グラフィックス機能 Integrated Graphics Processor- Intel® HD Graphics support
Multi-VGA output support : HDMI/DisplayPort 1.2 ports
- Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz
- Supports DisplayPort 1.2 with max. resolution 4096 x 2304 @ 60 Hz
Maximum shared memory of 1024 MB (for iGPU exclusively)
拡張スロット 1 x PCIe 3.0/2.0 x16
ストレージ機能 Intel® H370 Chipset :
1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)*
1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)*
Support Raid 0, 1, 5, 10
Intel® Rapid Storage Technology 15 support*1
4 x SATA 6Gb/s port(s),
Intel® Optane™ Memory Ready *2
LAN機能 Intel® I219V, 1000BASE-T/100BASE-TX/10BASE-T×1, Dual interconnect between the Integrated Media Access Controller (MAC) and Physical Layer (PHY)
Realtek® RTL8111H, 1 x 1000BASE-T/100BASE-TX/10BASE-T LAN
Anti-surge LANGuard
ROG GameFirst Technology
無線機能 Wi-Fi IEEE802.11ac/n/a/g/b
Supports dual band frequency 2.4/5 GHz
Supports MU-MIMO
Bluetooth機能 Bluetooth® 5.0*3
オーディオ機能 ROG SupremeFX 8-Channel High Definition Audio CODEC S1220A
- Dual OP Amplifiers
- Impedance sense for front and rear headphone outputs
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
- Supports up to 32-Bit/192kHz playback *4
Audio Feature :
- Optical S/PDIF out port(s) at back panel
- Sonic Radar III
- Sonic Studio III + Sonic Studio Link
USB機能 Intel® H370 Chipset :
2 x USB 3.1 Gen 2 port(s) (2 at back panel, , Type-A, 2 at mid-board)
Intel® H370 Chipset :
6 x USB 3.1 Gen 1 port(s) ( 3 ports at back panel [blue], 1 Type C port at back panel, 2 ports at mid-board[charcoal]
Intel® H370 Chipset :
2 x USB 2.0 port(s) (2 ports at mid-board)
ROGシリーズ独自搭載機能 ROG RAMCache II
ROG CPU-Z
ROG CloneDrive
Overwolf
GameFirst IV
ROG Aura
- Aura Lighting Control
独自機能 Fan Xpert4

Gamer's Guardian:
- ESD Guards on LAN, Audio, KBMS and USB3.0/2.0 ports
- DRAM Overcurrent Protection
- Highly Durable Components
- DIGI+ VRM
- SafeSlot
ASUS EPU :
- EPU
AURA :
- Aura Lighting Control
- Aura Addressable Strip Header(s)
ASUS Exclusive Features :
- AI Suite 3
- Ai Charger
ASUS Quiet Thermal Solution :
- ASUS Fan Xpert 4 Core
ASUS EZ DIY :
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
ASUS Q-Design :
- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
- ASUS Q-Slot
- ASUS Q-DIMM
Performance Optimization :
- DIGI + VRM

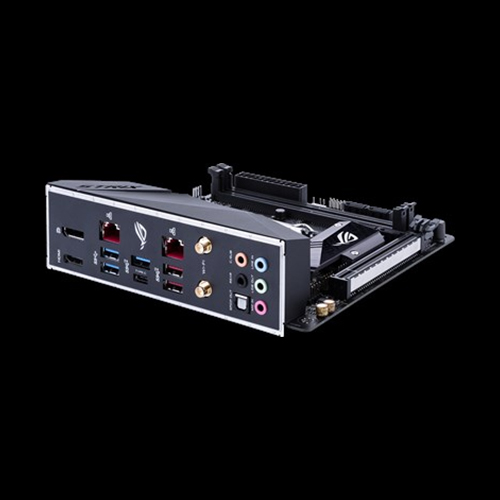

背面インターフェース 1 x DisplayPort
1 x HDMI
2 x LAN (RJ45) port(s)
2 x USB 3.1 Gen 2
1 x USB 3.1 Gen 1 (blue) USB Type-C™,
3 x USB 3.1 Gen 1
1 x Optical S/PDIF out
5 x Audio jack(s)
1 x Wi-Fi antenna port(s)
基板上インターフェース 1 x Aura Addressable Strip Header(s)
1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s)
1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)
4 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s) (1 x 4 -pin)
1 x Chassis Fan connector(s) (1 x 4 -pin)
1 x AIO_PUMP connector (1 x 4 -pin)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x Internal speaker connector(s)
1 x System panel(s)
1 x Clear CMOS jumper(s)

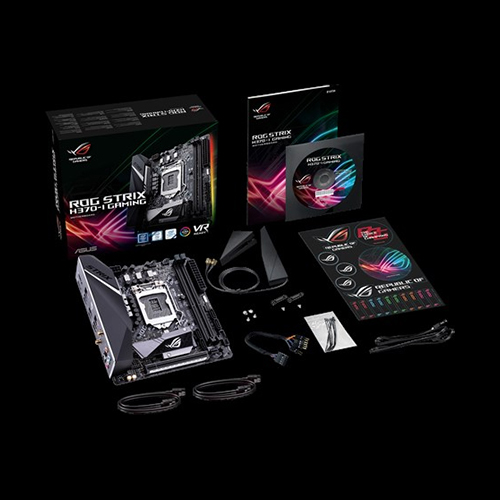

主な付属品 User's manual
M.2 2242 mounting kit
2 x SATA 6Gb/s cable(s)
2 x M.2 screws
1 x pack of cable tie
1 x Supporting DVD
1 x ASUS 2T2R dual band Wi-Fi moving antennas (Wi-Fi 802.11a/b/g/n compliant)
1 x ROG Strix stickers
1 x Extension Cable for RGB strips (80 cm)
1 x Panel cable
BIOS機能 1 x 128 Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ RAID Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen, ASUS DRAM SPD (Serial Presence Detect) memory information, F4 AURA ON/OFF and F9 Search, Secure Erase, User Profile.
OS Windows® 10 64-bit
フォームファクター
(サイズW×D)
Mini ITX Form Factor
6.7 inch x 6.7 inch ( 17 cm x 17 cm )
その他 * For a 2242 storage device, use the bundled 2242 mounting kit.

*1 Bluetooth V5.0 will be supported on future versions of Windows. Refer to https://www.microsoft.com for updates on Windows OS Bluetooth support version.

*2 Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio.
