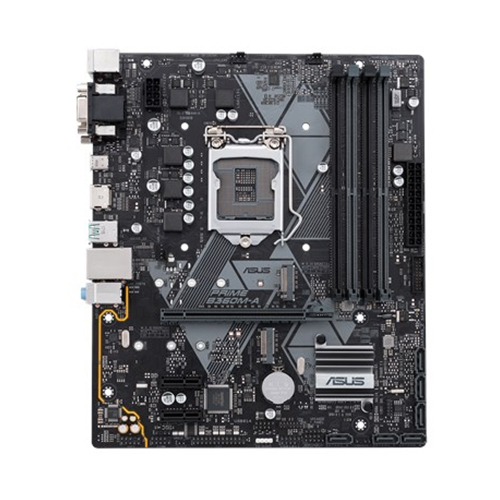

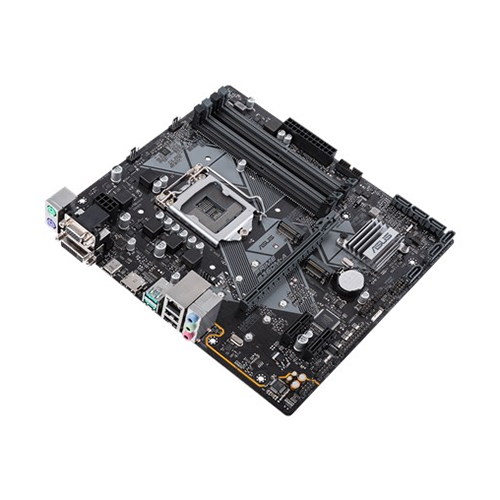

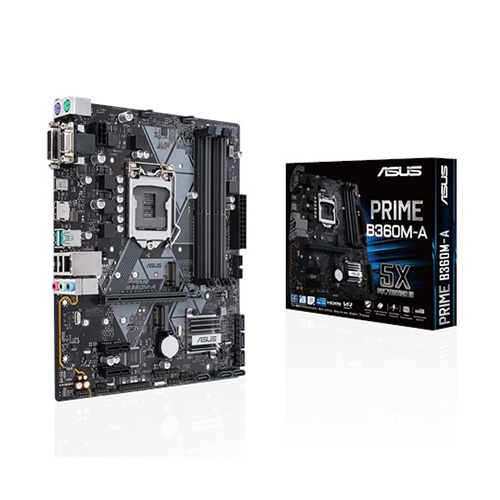

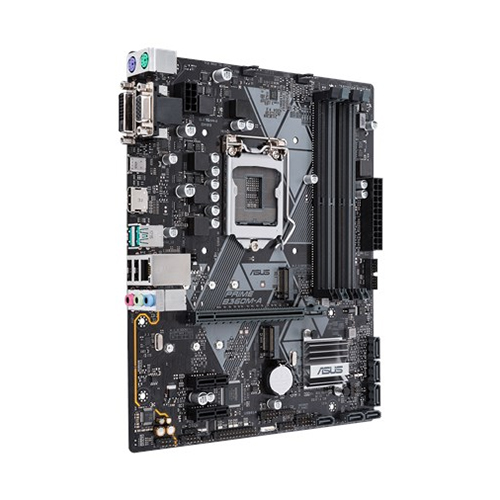

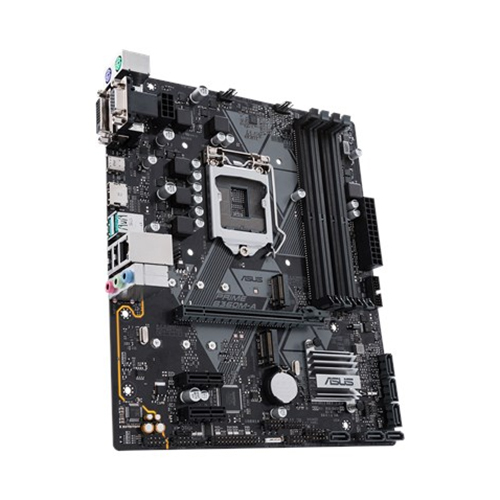

優れた耐久性と拡張性を備え小型PCに最適なB360搭載mATXマザーボード
・JAN/UPC：0889349984369
・TEKWIND型番：ASU-PRIME/B360M-A
【主な特長】
・ ASUS OptiMem: 信号の整合性を向上するトレースとビアの慎重なルーティングによりメモリの安定性を強化
・ Fan Xpert 2+: 柔軟なコントロールで究極の冷却と静音性を実現し、ゲーミング用のGPU温度検知機能も搭載
・ 5X Protection III: 複数のハードウェアプロテクションの組合せによる絶対的な保護
・ 超高速の接続性: USB 3.1 Gen 2、Intel Optaneメモリー、ネイティブM.2に対応した卓抜な柔軟性と、驚異的なストレージスピードを実現
製品についてお気軽にお問い合わせください
この製品を問い合わせる製品画像
スペック
| 対応CPU | Intel® Socket 1151 for 8th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors Supports Intel® 14 nm CPU Supports Intel® Turbo Boost Technology 2.0 * The Intel® Turbo Boost Technology 2.0 support depends on the CPU types. * Refer to www.asus.com for CPU support list |
|---|---|
| 搭載チップセット | Intel® B360 |
| メインメモリ | Intel® B360 Chipset 4 x DIMM, Max. 64GB, DDR4- 2666/2400/2133 MHz Non-ECC, Un-buffered Memory デュアルチャンネル Memory Architecture Supports Intel® Extreme Memory Profile (XMP) * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). * The maximum memory frequency supported varies by processor ** DDR4 2666MHz and higher memory modules will run at max. 2666MHz on Intel® 8th Gen. 6-core or higher processors. |
| グラフィックス機能 | Integrated Graphics Processor- Intel® HD Graphics support Multi-VGA output support : HDMI/DVI-D/RGB ports - Supports HDMI 1.4b with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz - Supports DVI with max. resolution 1920 x 1200 @ 60 Hz - Supports D-sub with max. resolution 1920 x 1200 @ 60 Hz Maximum shared memory of 1024 MB (for iGPU exclusively) Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™ |
| 拡張スロット | 1 x PCIe 3.0 x16 (x16 mode) 2 x PCIe 3.0/2.0 x1 |
| ストレージ機能 | Intel® B360 Chipset : 1 x M.2 Socket 3, , with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x M.2 Socket 3, , with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode) 6 x SATA 6Gb/s port(s), gray |
| LAN機能 | Realtek® RTL8111H, 1 x 1000BASE-T/100BASE-TX/10BASE-T LAN ASUS LAN Guard |
| オーディオ機能 | Realtek® ALC887 8-Channel High Definition Audio CODEC - Supports : Jack-detection, Front Panel Jack-retasking Audio Feature : - LED-illuminated design - Brighten up your build with the gorgeous illuminated audio trace path. - Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference - Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals - Premium Japanese audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity * Choose the chassis with HD audio module in front panel to support 8-channel audio output. |
| USB機能 | Intel® B360 Chipset : 2 x USB 3.1 Gen 2 up to 10Gbps port(s) (2 at back panel, teal blue, Type-A) Intel® B360 Chipset : 3 x USB 3.1 Gen 1 up to 5Gbps port(s) (1 at back panel, , USB Type-C™, 2 at mid-board) Intel® B360 Chipset : 6 x USB 2.0/1.1 port(s) (2 at back panel, +black, Type-A, 4 at mid-board) |
| 独自機能 | ASUS 5X Protection III : - ASUS SafeSlot Core: Fortified PCIe Slot prevents damage - ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges! - ASUS Overvoltage Protection: World-class circuit-protecting power design - ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability! - ASUS DIGI+ VRM: 5 Phase digital power design ASUS OptiMem： - Optimem (Improved DDR4 stability) ASUS EPU : - EPU ASUS Exclusive Features : - AI Suite 3 - Ai Charger - PC Cleaner - File Transfer ASUS Quiet Thermal Solution : - Stylish Fanless Design Heat-sink solution - ASUS Fan Xpert 2+ ASUS EZ DIY : - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode ASUS Q-Design : - ASUS Q-DIMM M.2 Onboard(The latest transfer technologies with up to 32Gb/s data transfer speeds) |

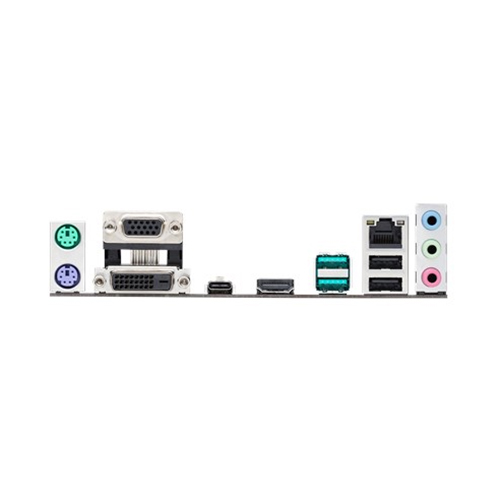

| 背面インターフェース | 1 x PS/2 keyboard (purple) 1 x PS/2 mouse (green) 1 x DVI-D 1 x D-Sub 1 x HDMI 1 x LAN (RJ45) port(s) 2 x USB 3.1 Gen 2 (teal blue)Type-A, up to 10Gbps 1 x USB 3.1 Gen 1 USB Type-C™, up to 5Gbps 2 x USB 2.0 1 x 8-channel Audio I/O |
| 基板上インターフェース | 1 x Aura RGB Strip Header 1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 2 x M.2 Socket 3 for M Key, type 2242/2260/2280 devices 1 x TPM header 1 x LPT header 1 x COM port(s) connector(s) 6 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) 2 x Chassis Fan connector(s) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin EATX 12V Power connectors 1 x Front panel audio connector(s) (AAFP) 1 x Clear CMOS jumper(s) 1 x System panel connector 1 x Chassis intrusion header 1 x Speaker connector |

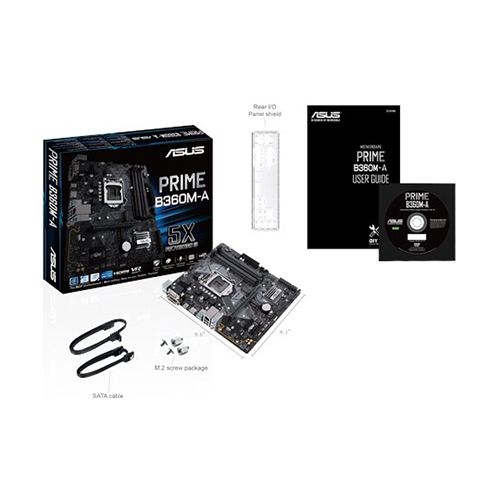

| 主な付属品 | User's manual I/O Shield 2 x SATA 6Gb/s cable(s) 2 x M.2 screws 1 x Supporting DVD |
| BIOS機能 | 128Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F3 My Favorites, Last Modified log, F4 AURA ON/OFF, F6 Qfan Control, F9 Search, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information |
| 管理機能 | WOL by PME, PXE |
| OS | Windows® 10 64-bit |
| フォームファクター （サイズW×D） |
mATX Form Factor 9.6 inch x 8.1 inch ( 24.4 cm x 20.6 cm ) |
