販売終了

デュアルM.2、Intel Optaneメモリー対応、優れた汎用性を備えたIntel LGA1151搭載ATXマザーボード

PRIME Z370-P

JAN/UPC:0889349853559
TEKWIND型番:ASU-PRIME/Z370-P

【主な特長】

・ 最新のIntelプロセッサ対応: 第8世代Intel CoreデスクトップCPU向けLGA1151ソケット搭載
・ ASUS OptiMem: 信号の整合性を向上するトレースとビアの慎重なルーティングによりメモリオーバークロックを強化
・ 5X Protection III: 複数のハードウェアプロテクションの組合せによる絶対的な保護
・ Fan Xpert 4 Core: 究極の冷却性能と静音性のために柔軟な制御を実現
・ 超高速の接続: 驚異的なストレージ速度を実現するデュアルネイティブM.2およびNVMe PCIe RAIDをサポート
・ Intel Optane メモリー対応: 最新の高速ストレージテクノロジー


製品についてお気軽にお問い合わせください

この製品を問い合わせる

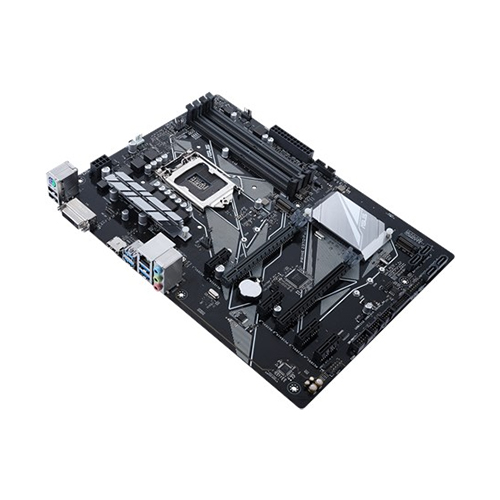

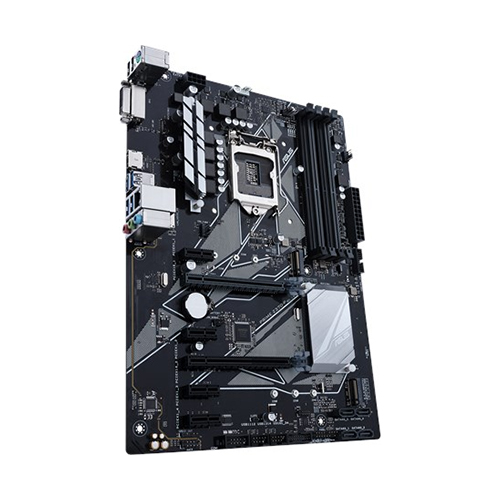

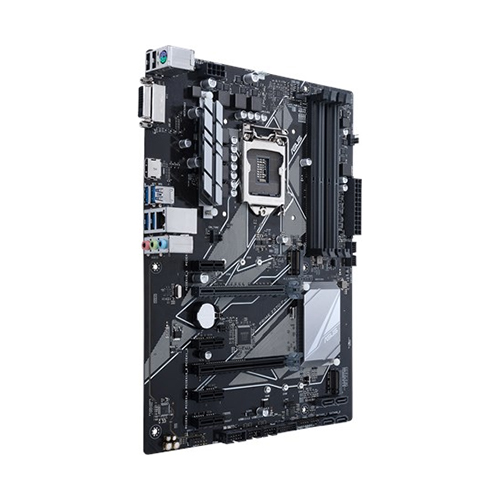

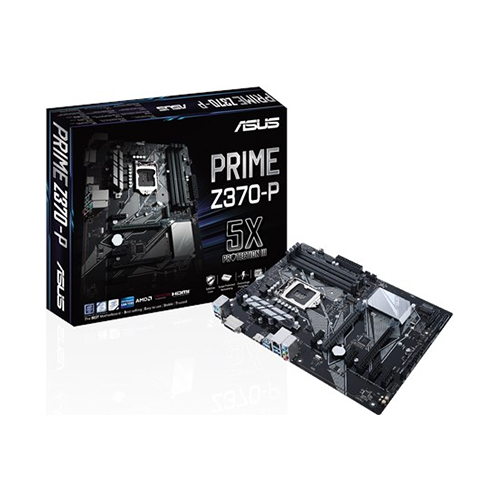

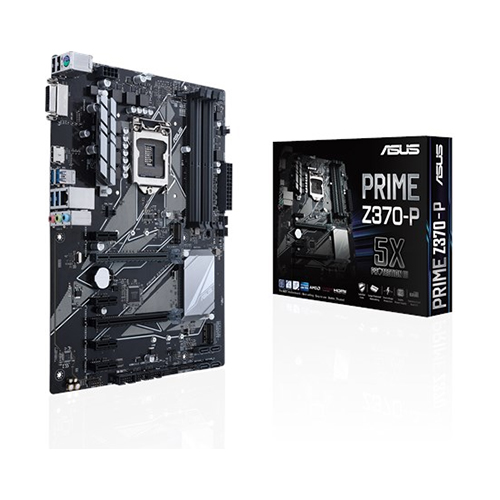

製品画像

スペック

対応CPU Intel® Socket 1151 for 8th Generation Core Processors
Supports Intel® 14 nm CPU
Supports Intel® Turbo Boost Technology 2.0
* Refer to www.asus.com for CPU support list
搭載チップセット Intel® Z370
メインメモリ 4 x DIMM, Max. 64GB, DDR4- 4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory *
デュアルチャンネル Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
* The maximum memory frequency supported varies by processor.
グラフィックス機能 Integrated Graphics Processor- Intel® HD Graphics support
Multi-VGA output support : HDMI/DVI-D ports
- Supports HDMI 1.4b with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
- Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz
Maximum shared memory of 1024 MB
マルチGPU対応 Supports AMD CrossFireX™ Technology
拡張スロット 1 x PCIe 3.0/2.0 x16 (x16, x8/x4+x4) *
1 x PCIe 3.0/2.0 x16 (max at x4 mode)
4 x PCIe 3.0/2.0 x1
*For 3 SSD on CPU support, install a Hyper M.2 X16 card (sold separately) into the PCIeX16_1 slot, enable this card under BIOS settings.
ストレージ機能 Intel® Z370 Chipset :
2 x M.2 Socket 3*1, , with M Key, type 2242/2260/2280 storage devices support (SATA mode & X4 PCIE mode)
4 x SATA 6Gb/s port(s), gray
Support Raid 0, 1, 5, 10
Intel® Optane™ Memory Ready
LAN機能 Realtek® RTL8111H, 1000BASE-T/100BASE-TX/10BASE-T×1
ASUS LAN Guard
オーディオ機能 Realtek® ALC887 8-Channel High Definition Audio CODEC
- Supports : Jack-detection, Front Panel Jack-retasking
Audio Feature :
- LED-illuminated design - Brighten up your build with the gorgeous illuminated audio trace path.
- Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference
- Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
- Premium Japanese audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
USB機能 Intel® Z370 Chipset :
8 x USB 3.1 Gen 1 port(s) (4 at back panel, +blue)
Intel® Z370 Chipset :
6 x USB 2.0 port(s) (2 at back panel, )
独自機能 ASUS 5X Protection III :
- ASUS SafeSlot Core: Fortified PCIe Slot prevents damage
- ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges!
- ASUS Overvoltage Protection: World-class circuit-protecting power design
- ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!
- ASUS DIGI+ VRM: 6 Phase digital power design
ASUS EPU :
- EPU
ASUS Exclusive Features :
- AI Suite 3
- Ai Charger
ASUS Quiet Thermal Solution :
- Stylish Fanless Design Heat-sink solution & MOS Heatsink
- ASUS Fan Xpert 4 Core
ASUS EZ DIY :
- ASUS O.C. Tuner
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
ASUS Q-Design :
- ASUS Q-Slot
- ASUS Q-DIMM
Overclocking Protection :
- ASUS C.P.R.(CPU Parameter Recall)
M.2 Onboard(The latest transfer technologies with up to 32Gb/s data transfer speeds)

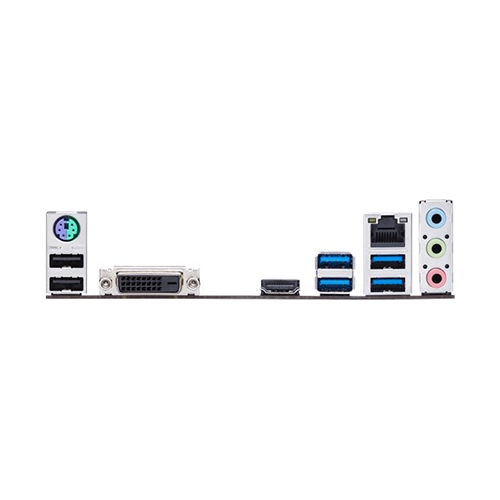

背面インターフェース 1 x PS/2 keyboard/mouse combo port(s)
1 x DVI-D
1 x HDMI
1 x LAN (RJ45) port(s)
4 x USB 3.1 Gen 1 (blue) Type-A
2 x USB 2.0
3 x Audio jack(s)
基板上インターフェース 2 x USB 3.1 Gen 1 connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s) (19-pin)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
2 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA mode & X4 PCIE mode)
1 x COM port(s) connector(s)
4 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s) (1 x 4 -pin)
2 x Chassis Fan connector(s) (2 x 4 -pin)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x Clear CMOS jumper(s)
1 x System panel connector
1 x AIO PUMP Header

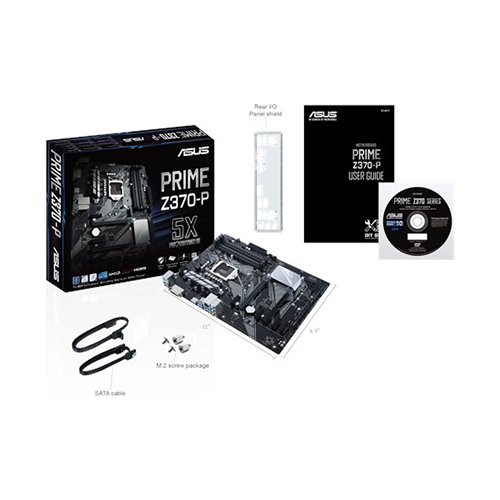

主な付属品 User's manual
I/O Shield
2 x SATA 6Gb/s cable(s)
1 x M.2 Screw Package
1 x SCD
BIOS機能 128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, WfM2.0, SM BIOS 3.0, ACPI 6.0, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information
管理機能 WfM 2.0, DMI 3.0, WOL by PME, PXE
サポートDVDの内容 Drivers
ASUS Utilities
ASUS EZ Update
Anti-virus software (OEM version)
OS Windows® 10 64-bit
フォームファクター
(サイズW×D)
ATX Form Factor
12.0 inch x 8.9 inch ( 30.5 cm x 22.6 cm )
その他 *1. When a device in SATA mode is installed on the M.2_1 socket, SATA_1 port cannot be used.
