販売終了

AMDのHEDTプラットフォームに対応したROG Strixシリーズ初のマザーボード

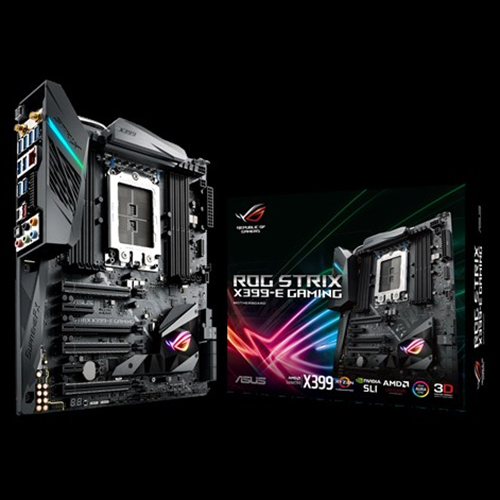

ROG STRIX X399-E GAMING

JAN/UPC:0889349843468
TEKWIND型番:ASU-ROG/STRIX/X399-E/GAMING

【主な特長】

・ AMD Ryzen™ Threadripper™ プロセッサー対応:SocketTR4 CPUs対応
・ シンクロしたRGB LEDイルミネーション: Aura Syncを搭載し、対応するPCギアやアドレサブルLEDストリップで多彩なイルミネーションを実現します。
・ オンボードM.2ヒートシンク: M.2ドライブを冷却し、パフォーマンスと安定性を向上
・ ゲーミングコネクティビティ: Intel Gigabitイーサネット、LANGuard、2x2 802.11ac Wi-Fi、デュアルM.2、USB 3.1 Gen 2 Type-A/Type-C™コネクター
・ ゲーム用オーディオ: 「SupremeFX S1220A」と「Sonic Studio III」の組合せで、シーンに奥行きをもたせ、没入感を向上
・ ゲーミングデュラビリティ: ASUS Safeslotおよびプレミアムコンポーネントの採用で最大限の耐久性を実現


製品についてお気軽にお問い合わせください

この製品を問い合わせる

スペック

対応CPU AMD SocketTR4 for AMD Ryzen™ Threadripper™ Processors
* Refer to www.asus.com for CPU support list
搭載チップセット AMD X399
メインメモリ AMD Ryzen™ Threadripper™ Processors
8 x DIMM, Max. 128GB, DDR4 3600(O.C.)/3466(O.C.)/3333(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz ECC and non-ECC, Un-buffered Memory
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
マルチGPU対応 Supports NVIDIA® Quad-GPU SLI™ Technology
Supports NVIDIA® 3-Way SLI™ Technology
Supports NVIDIA® 2-Way SLI™ Technology
Supports AMD Quad-GPU CrossFireX™ Technology
Supports AMD 3-Way CrossFireX™ Technology
Supports AMD 2-Way CrossFireX Technology
拡張スロット AMD Ryzen™ Threadripper™ Processors
4 x PCIe 3.0 x16 (single@x16, dual@x16/x16, triple@x16/x16/x8 mode)
AMD X399 chipset
1 x PCIe 2.0 x4 (max at x4 mode)
1 x PCIe 2.0 x1
ストレージ機能 AMD Ryzen™ Threadripper™ Processors :
1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
1 x U.2 port
AMD X399 chipset :
6 x SATA 6Gb/s port(s),
Support Raid 0, 1, 10
LAN機能 Intel® I211-AT
Anti-surge LANGuard
ROG GameFirst IV
無線機能 Wi-Fi 802.11 a/b/g/n/ac
Bluetooth機能 Bluetooth V4.2
オーディオ機能 ROG SupremeFX 8-Channel High Definition Audio CODEC S1220A
- Impedance sense for front and rear headphone outputs
- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB (Line-out at rear) and 113 dB SNR recording input (Line-in)
Audio Feature :
- SupremeFX Shielding™ Technology
- Optical S/PDIF out port(s) at back panel
- Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference
- Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
- Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
- Unique de-pop circuit: Reduces start-up popping noise to audio outputs
- EMI protection cover to prevent electrical noise to affect the amplifier quality
- Sonic Radar III
- Sonic Studio III
USB機能 AMD Ryzen™ Threadripper™ Processors :
8 x USB 3.1 Gen 1 port(s) (8 at back panel, , Type-A)
AMD X399 chipset :
1 x USB 3.1 Gen 2 port(s) (1 at mid-board)
AMD X399 chipset :
4 x USB 3.1 Gen 1 port(s) (4 at mid-board)
AMD X399 chipset :
4 x USB 2.0 port(s) (4 at mid-board)
ASMedia® USB 3.1 Gen 2 controller :
2 x USB 3.1 Gen 2 port(s) (Type-A + USB Type-C™)
ROGシリーズ
独自搭載機能
ROG RAMCache II
ROG CPU-Z
ROG CloneDrive
Overwolf
GameFirst IV
独自機能 OC Design - ASUS PRO Clock Technology
- Full BCLK range for extreme overclocking performance
ASUS Dual Intelligent Processors 5-Way Optimization by Dual Intelligent Processors 5 :
- 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ VRM, Fan Expert 4, and Turbo App
AURA :
- Aura Lighting Control
- Aura RGB Strip Headers
- Aura Lighting Effects Synchronization with compatible ASUS ROG devices
- Aura Addressable Strip Header(s)
ASUS Exclusive Features :
- USB BIOS Flashback
- AI Suite 3
- Ai Charger
- Onboard Button : Power
ASUS Quiet Thermal Solution :
- Stylish Design Heat-pipe solution
- ASUS Fan Xpert 4
ASUS EZ DIY :
- ASUS EZ Flash 3
- ASUS USB BIOS Flashback
- ASUS UEFI BIOS EZ Mode
- Multi-language BIOS
ASUS Q-Design :
- ASUS Q-Shield
- ASUS Q-Code
- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
- ASUS Q-Slot
- ASUS Q-DIMM
- ASUS Q-Connector
Gaming Aesthetics :
- 3D printing friendly
- AURA-RGB Lighting
M.2 and U.2 Onboard (The Latest Transfer Technology with up to 32Gb/s Data-transfer Speeds for M.2 and U.2)
背面インターフェース 1 x LAN (RJ45) port(s)
2 x USB 3.1 Gen 2 (teal blue)Type-A + USB Type-C™
8 x USB 3.1 Gen 1 (blue)
1 x Optical S/PDIF out
5 x Audio jack(s)
1 x USB BIOS Flashback Button(s)
1 x ASUS 2x2 Wi-Fi 802.11 a/b/g/n/ac and Bluetooth v4.2 module
基板上
インターフェース
1 x Q_Code
1 x Aura Addressable Strip Header(s)
1 x U.2 port
2 x RGB Header(s)
2 x USB 3.1 Gen 1 connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
6 x SATA 6Gb/s connector(s)
1 x M.2_FAN connector
1 x CPU Fan connector(s)
1 x CPU OPT Fan connector(s)
3 x Chassis Fan connector(s)
1 x AIO_PUMP connector
1 x W_PUMP+ connector
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x 4-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s)
1 x 5-pin EXT_FAN(Extension Fan) connector
1 x Thermal sensor connector(s)
1 x Power-on button(s)
1 x Clear CMOS jumper(s)
1 x USB 3.1 Gen 2 front panel connector
主な付属品 User's manual
ASUS Q-Shield
1 x Vertical M.2 bracket set
4 x SATA 6Gb/s cable(s)
1 x M.2 Screw Package
1 x pack of cable tie
1 x Supporting DVD
1 x SLI HB BRIDGE(2-WAY-M)
1 x Q-Connector
1 x 10-in-1 ROG cable label
1 x Thermal sensor cable pack(s)
ROG Fan Label
1 x ROG Door Hanger(s)
1 x Extension cable for Addressable LED
BIOS機能 128 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.0, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen and ASUS DRAM SPD (Serial Presence Detect) memory information
管理機能 WfM 2.0, DMI 3.0, WOL by PME, PXE
OS Windows® 10 64-bit
フォームファクター
(サイズW×D)
Extended ATX Form Factor
12 inch x 10.6 inch ( 30.5 cm x 26.9 cm )
